Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|H610M-HDV/M.2+D5
73.49€
AL1
AL1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Toote on läbimüüdud kuid võimalik tellida, tellimiseks võta ühendust meie klienditoega info[at]digipood.eu
6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
POLYCHROME RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

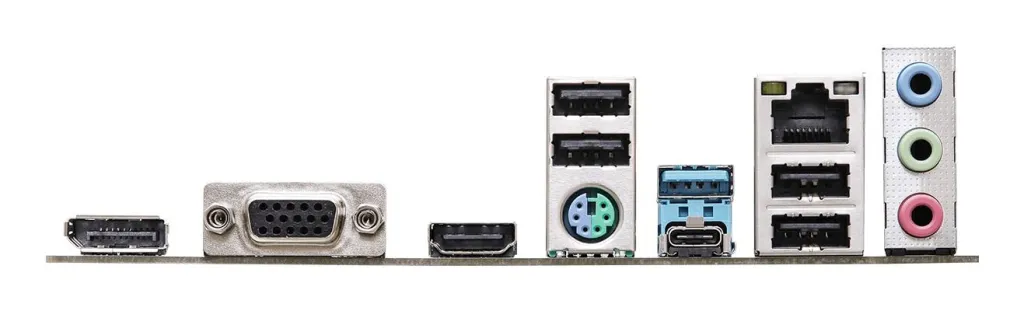

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Power Phase
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
Tootja
ASROCK
Tootekood
H610M-HDV/M.2+ D5
EAN
4710483943478
Google link
lisainfo
Garantiiaeg
24 kuud
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 220 mm
- Sügavus
- 193 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel H610
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 96 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 7.1 channels
- Sisseehitatud mikrofon
- 1
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 1
Sisemine I/O moodul
- TPM-ühenduspesa
- Header
Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 1
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.78 kg
- Netokaal
- 0.6 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 20
- Pakendi maht
- 0.004268 cubm
Muud näitajad
- Kokkuvõte
- Asrock H610M-HDV/M.2+ D5. Processor manufacturer: Intel, Processor socket: LGA 1700. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- DisplayPort versioon
- 1.4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Number of storage drives supported
- 5
- PCI Express x1 (Gen 3.x) slots
- 1
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- SATA III
- Processor manufacturer
- Intel
- ECC сompatibility
- Non-ECC
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Üksuse kalkuleeritud kaal
- 0.78 kg
- Üksuse kalkuleeritud maht
- 0.004268 cubm
- CnKood
- 84733020
- Unit Box Width
- 0.24
- Unit Box Length
- 0.275
- Unit Box Height
- 0.06
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 16x
- 1
- USB 3.2
- Jah
- Tootja koduleht
- https://www.asrock.com/MB/Intel/H610M-HDVM.2+%20D5/index.asp#Overview
- Mudel
- H610M-HDV/M.2+ D5
- Component for
- PC
- Transpordipakendi kaal
- 15.61 kg
- Transpordipakendi kõrgus
- 49.5 cm
- Transpordipakendi laius
- 28.5 cm
- Transpordipakendi sügavus
- 60.5 cm
- Kogus transpordikasti kohta
- 20
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Motherboard chipset
- Intel H610
- Unbuffered memory
- Ei
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 128 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8111H
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- USB 2.0 connectors
- 1
- USB-C
- 1
