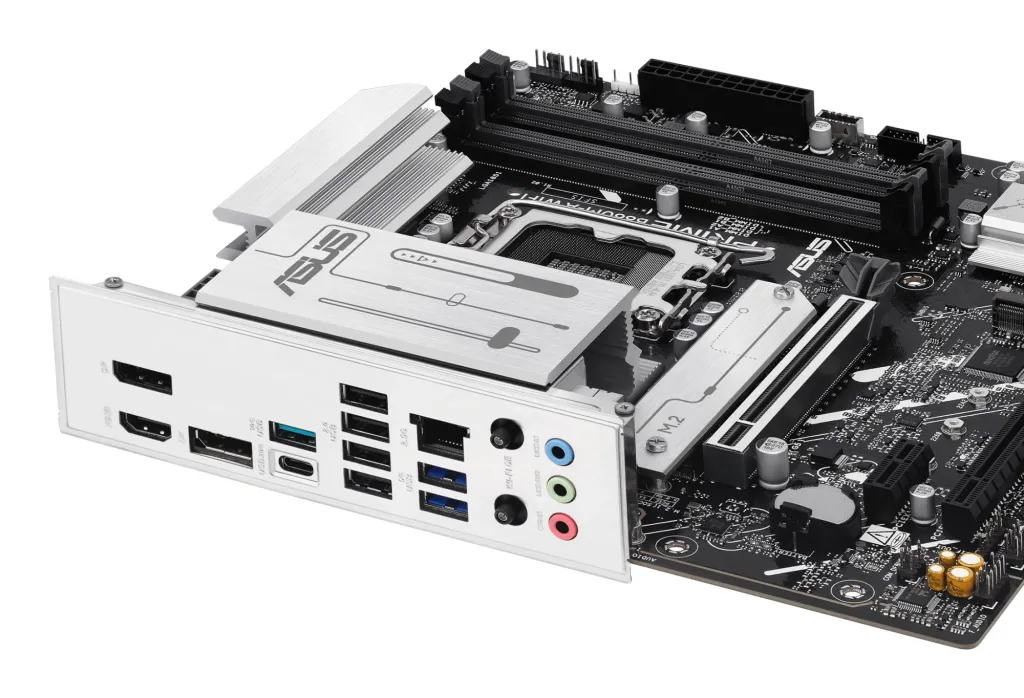

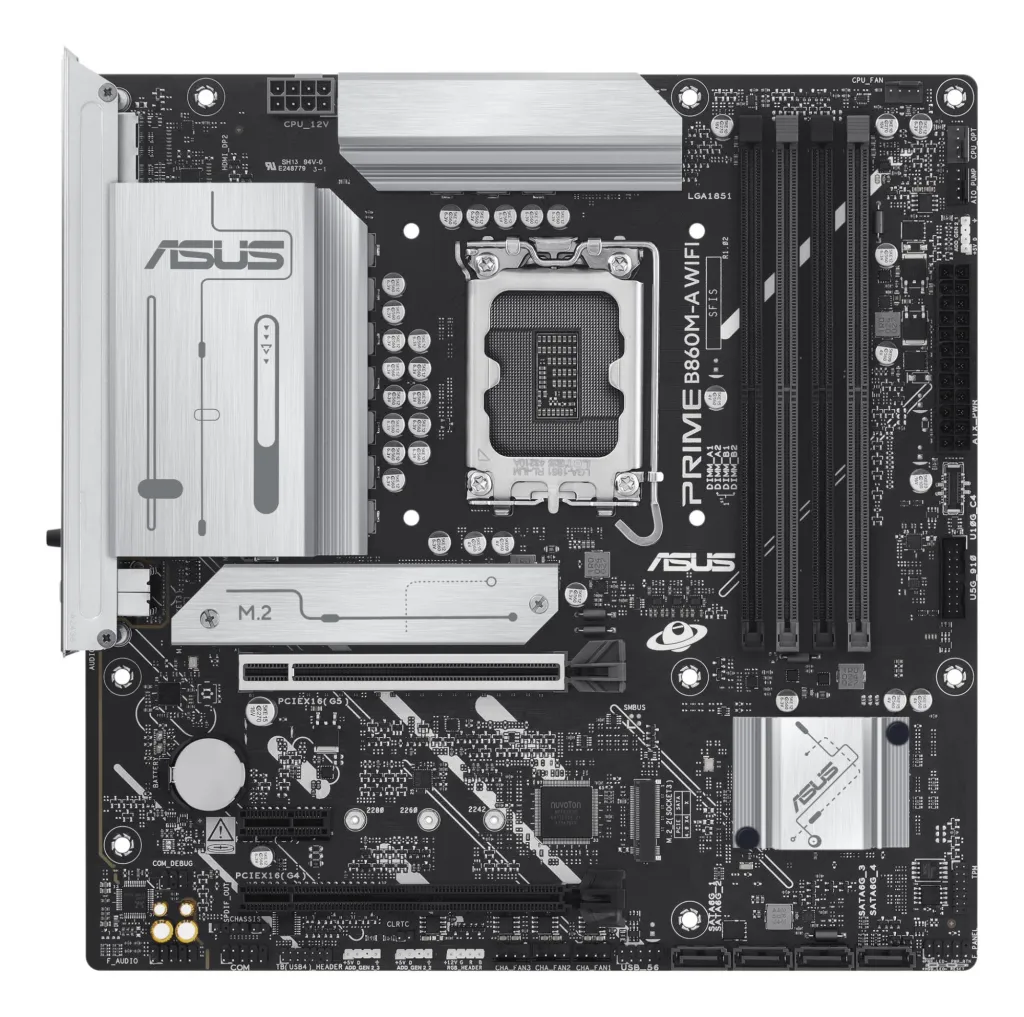

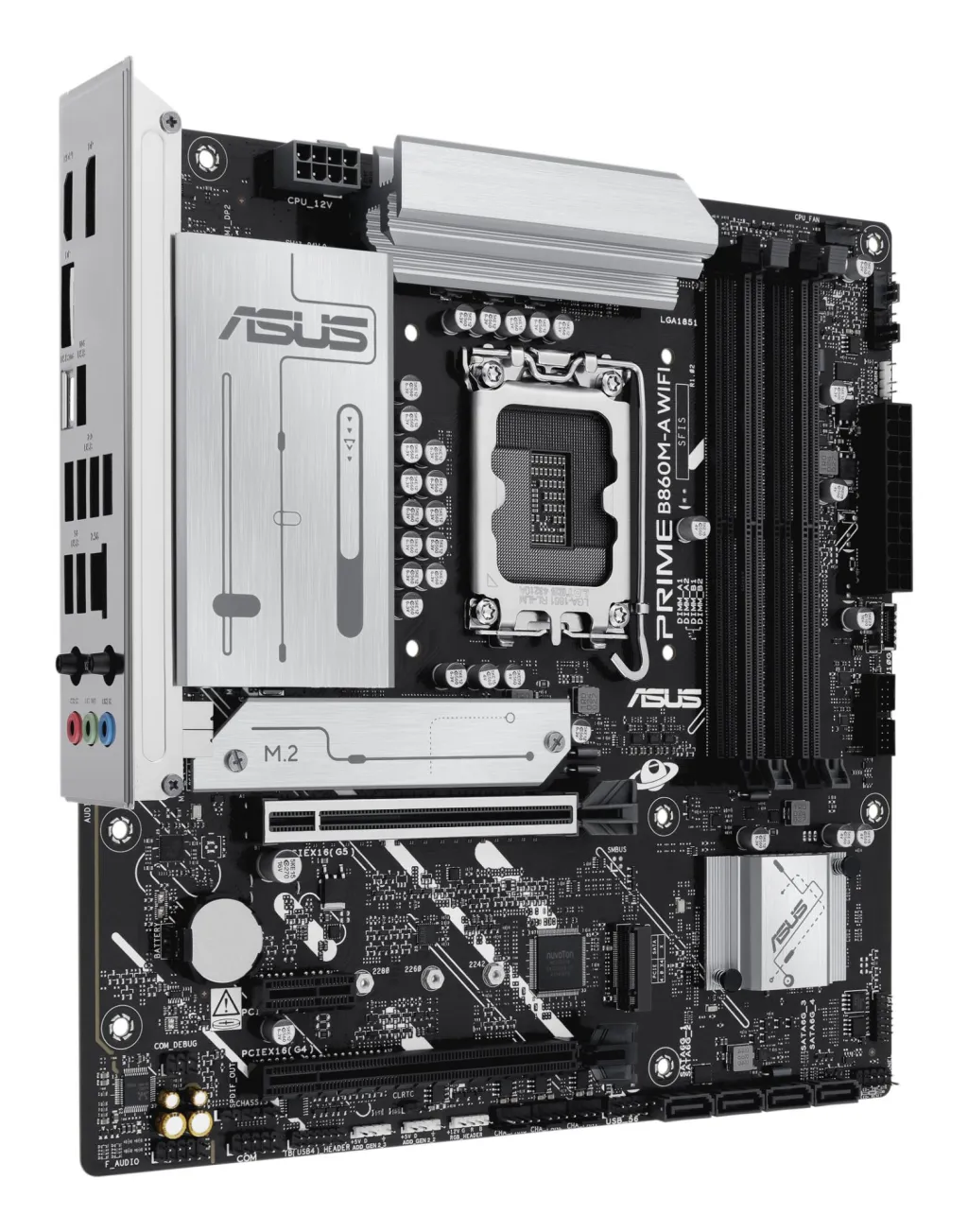

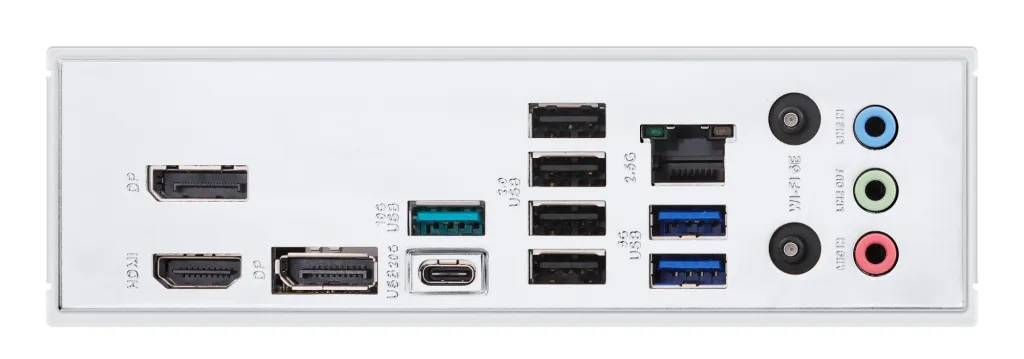

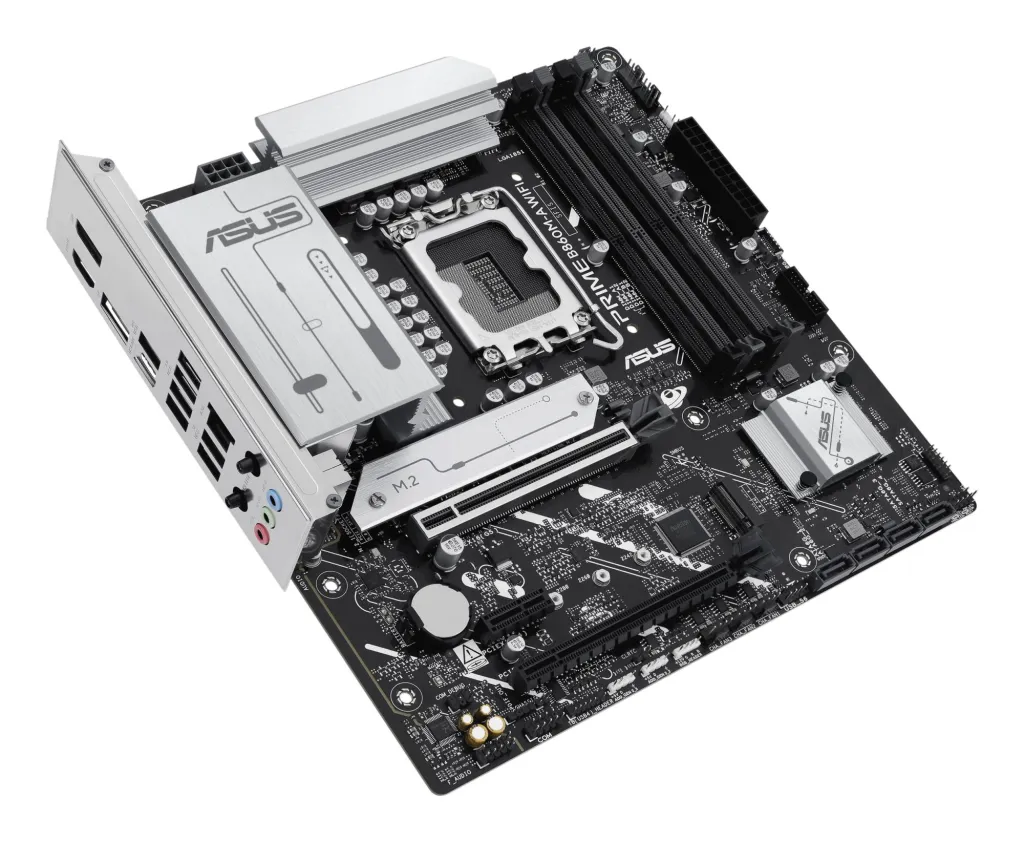

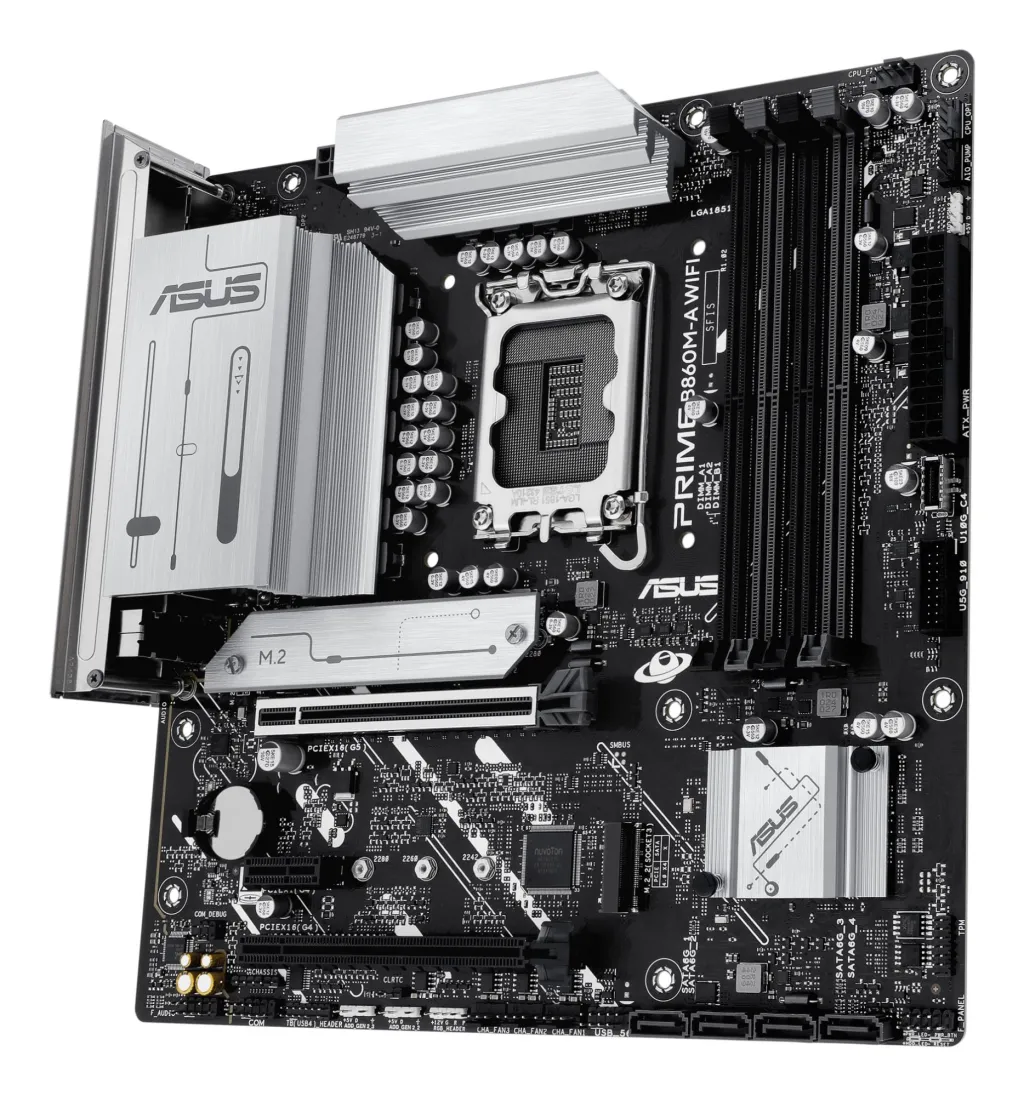

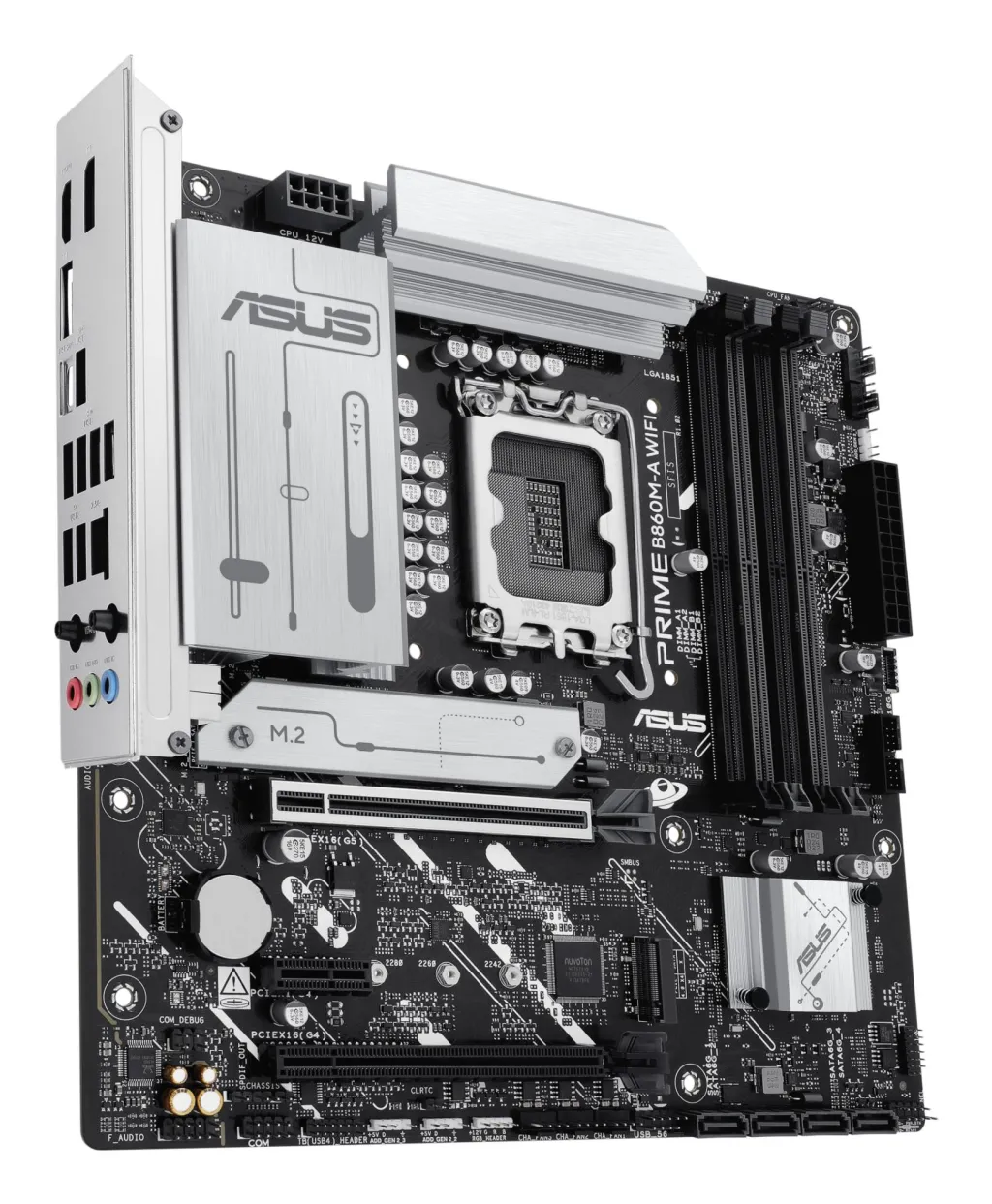

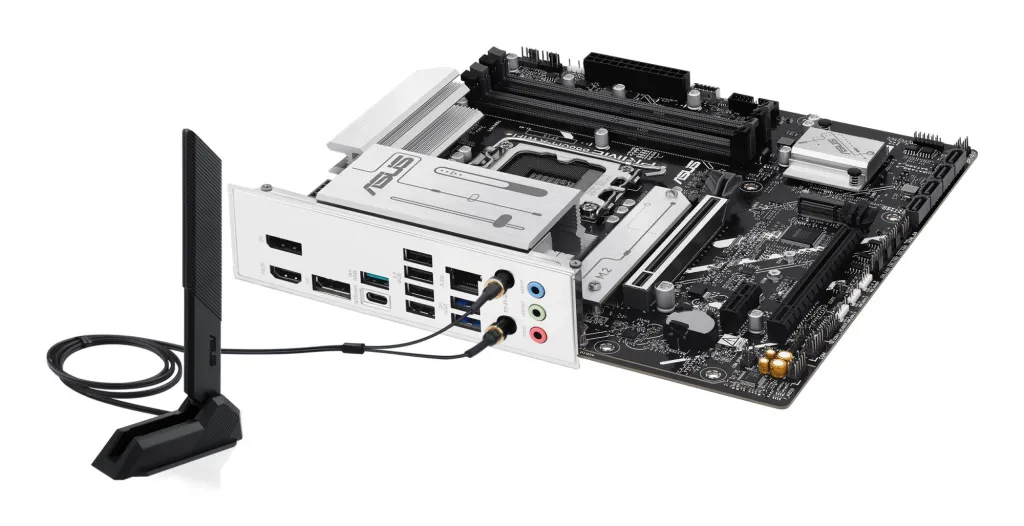

Mainboard|ASUS|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|7xUSB 2.0|1xUSB-C|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|3xAudio port|PRIMEB860M-AWIFI

Muud näitajad

Compatible processor series

Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

Number of chassis fan connectors

3

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Number of M.2 (M) slots

2

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

WiFi-AP antenna jack

1

Supported storage drive interfaces

M.2,SATA III

Screws included

Jah

Processor manufacturer

Intel

Antenna included

Jah

RGB LED pin header

Jah

USB-C w/Thunderbolt

1

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI-Express 4.0 1x

1

PCI Express x16 (Gen 5.x) slots

1

PCI-Express 5.0 16x

1

Unit Box Height

0.276

Unit Box Length

0.28

Unit Box Width

0.07

CnCode

84733020

ECC сompatibility

Non-ECC

Unit Calculated Volume

0.00622 cubm

Unit Calculated Weight

1.48 kg

Summary

ASUS PRIME B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Jah

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Jah

PCI Express x1 (Gen 4.x) slots

1

Kogus transpordikasti kohta

10

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

Component for

PC

2nd M.2 highest PCI Express generation

4.0

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/prime/prime-b860m-a-wifi/techspec/

Transpordipakendi kaal

14.8 kg

Transpordipakendi kõrgus

30 cm

Transpordipakendi laius

36.5 cm

Transpordipakendi sügavus

56.8 cm

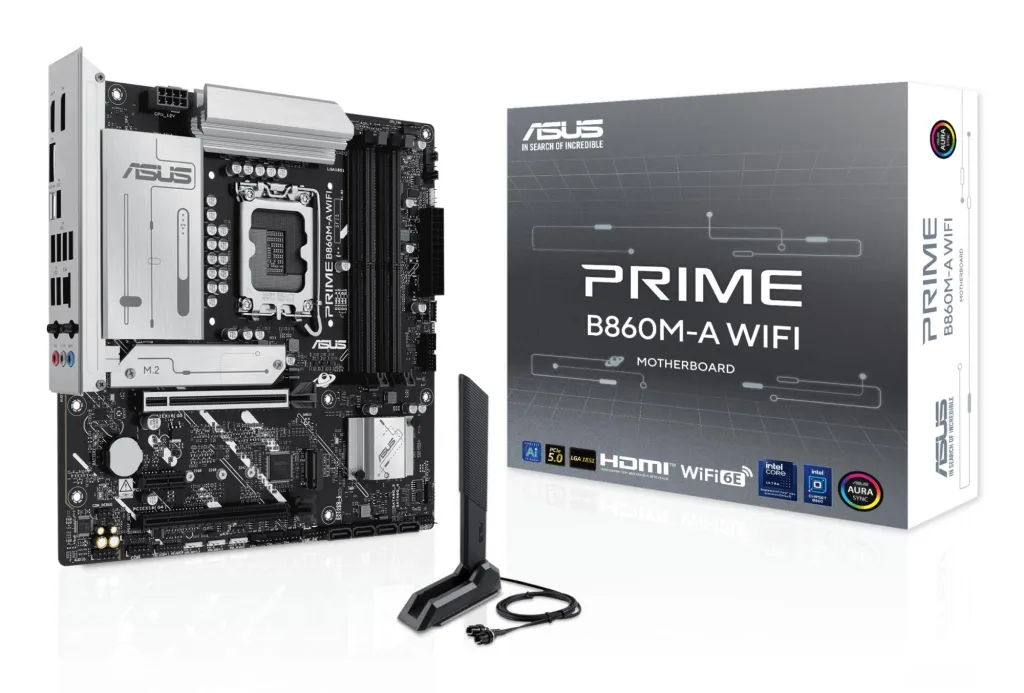

Tarvikud kaasa arvatud

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide

DisplayPorts quantity

2

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Motherboard chipset

Intel B860

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11

BIOS memory size

256 Mbit

DisplayPort

1

Mudel

PRIME B860M-A WIFI

Number of memory slots

4

Optical S/PDIF

1

Pakendi sügavus

275 mm

Pakendi kõrgus

67.5 mm

Pakendi kaal

1440 g

Pakendi laius

275 mm

Processor Socket

LGA 1851 (Socket V1)

Raid Levels

0/1/10/5

Thunderbolt

Jah

USB 2.0 connectors

1

USB-C

Jah
