Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|5xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B860GAMINGXWIFI6E1.0
186.40€
E1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 9.35 €. Taotle järelmaksu ostukorvis.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
- M.2 Gen5 (Up to 25110) with EZ-Latch Plus
- Advanced MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
- Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen 2 Type-C
- Q-Flash Plus
Tootja
GIGABYTE
Tootekood
B860 GAMING X WIFI6E 1.0
EAN
4719331866532
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- LGA1851
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel B860 Express
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Jah
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 7.1 channels
- Sisseehitatud mikrofon
- 1
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x16 pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

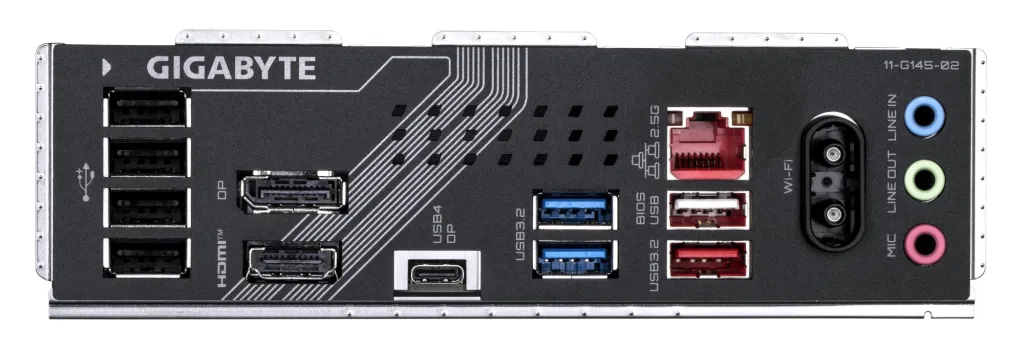

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 1
- USB 2.0 portide arv
- 5
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 2.21 kg
- Netokaal
- 1.8 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 6
- Pakendi maht
- 0.01047 cubm
Muud n?itajad
- Compatible processor series
- Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
- Supported processor sockets
- LGA 1851
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Number of chassis fan connectors
- 4
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 3
- Line-in
- Jah
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- WiFi-AP antenna jack
- 2
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- Intel
- Antenna included
- Jah
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- Supported memory clock speed (max)
- 9066 MHz
- Unit Box Height
- 0.275
- Unit Box Length
- 0.34
- Unit Box Width
- 0.08
- CnCode
- 84733020
- Warranty period
- 3 year(s)
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.01047 cubm
- Product Net Weight
- 1.8 kg
- Unit Calculated Weight
- 2.21 kg
- Summary
- GIGABYTE B860 GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Products per shipping (inner) case
- 1 pc(s)
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Number of HDDs supported
- 4
- USB4 Gen 2x2 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- DisplayPort versioon
- 2.1
- Kogus transpordikasti kohta
- 6
- Toote värv
- Dark brown
- Number of CPU fan connectors
- 2
- Kaasas tarkvara
- Norton Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 4
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/
- Transpordipakendi kaal
- 13.24 kg
- Transpordipakendi kõrgus
- 38 cm
- Transpordipakendi laius
- 31.5 cm
- Transpordipakendi sügavus
- 52.5 cm
- Kõrgus
- 35 mm
- Toote kaal
- 1930 g
- Jahutuse tüüp
- Passive
- Country of origin
- China
- DirectX version
- 12.0
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- Intel B860
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8125
- Mudel
- B860 GAMING X WIFI6E
- Number of memory slots
- 4
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2210 g
- Package width
- 335 mm
- Processor Socket
- LGA 1851 (Socket V1)
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 5600/6400/9066 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
