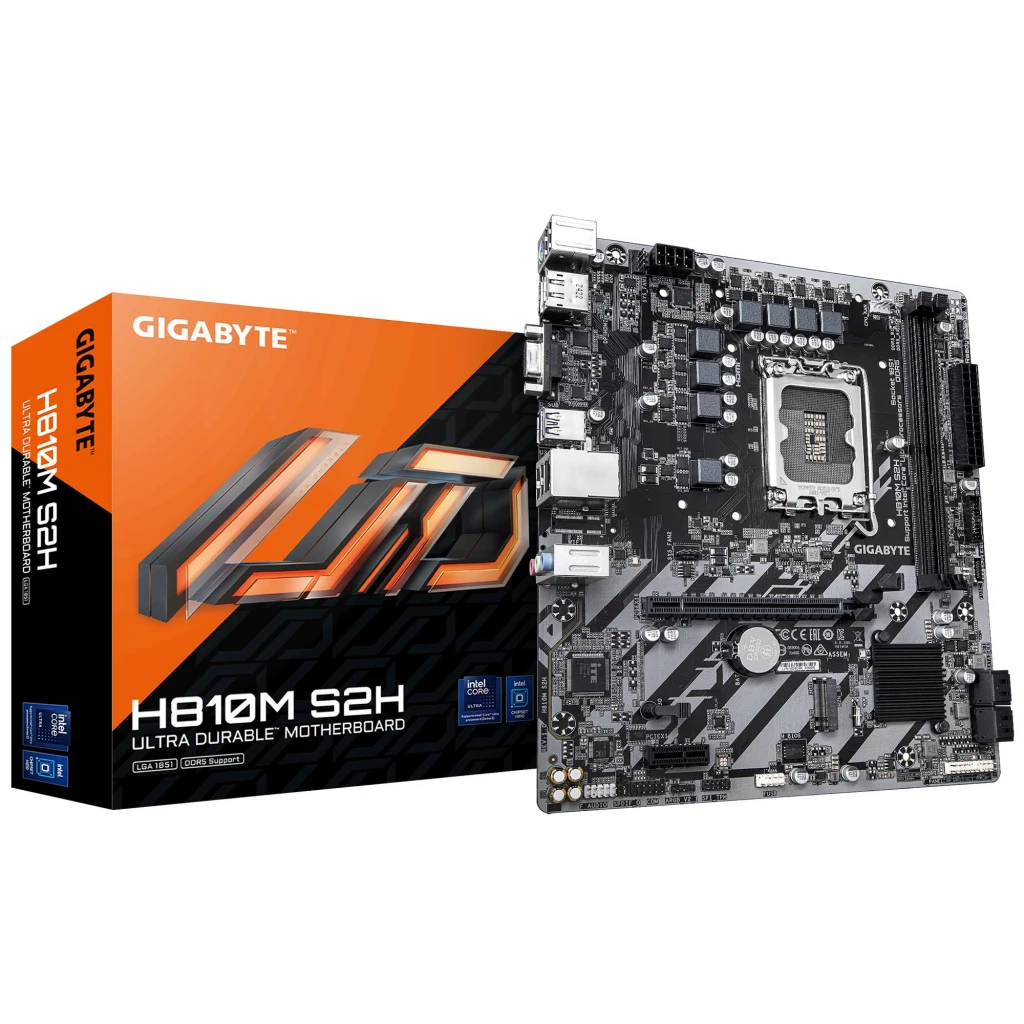

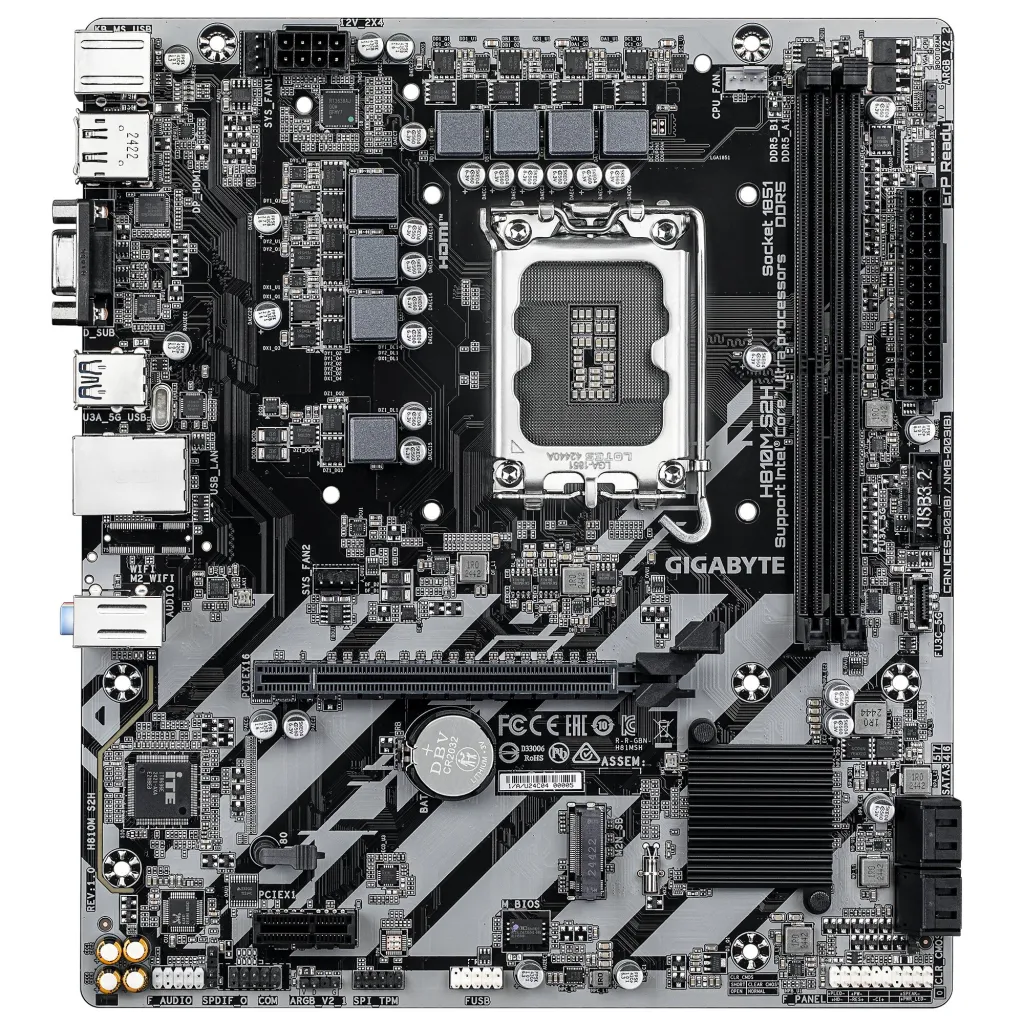

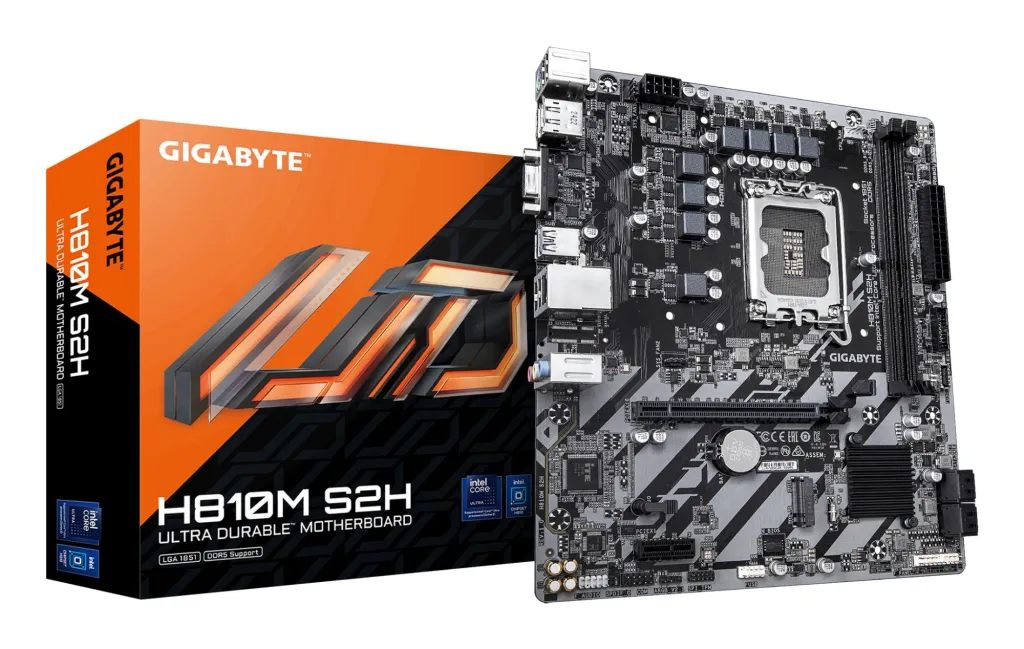

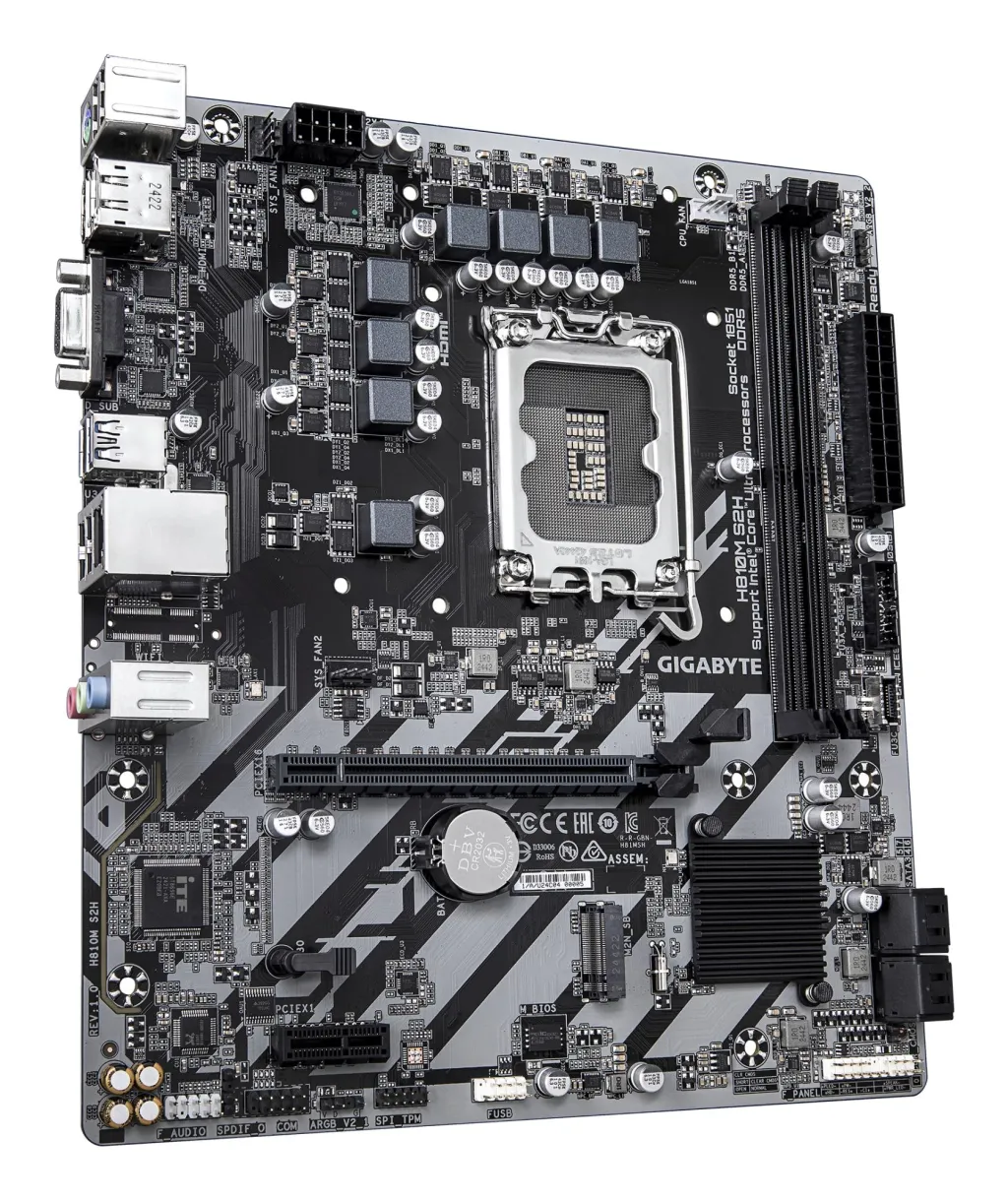

Mainboard|GIGABYTE|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|H810MS2H
AL1
AC
Toote on läbimüüdud kuid võimalik tellida, tellimiseks võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 244 mm
- Sügavus
- 215 mm
.: Protsessor :.
- Protsessori pesa
- LGA1851
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 5600/6400 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

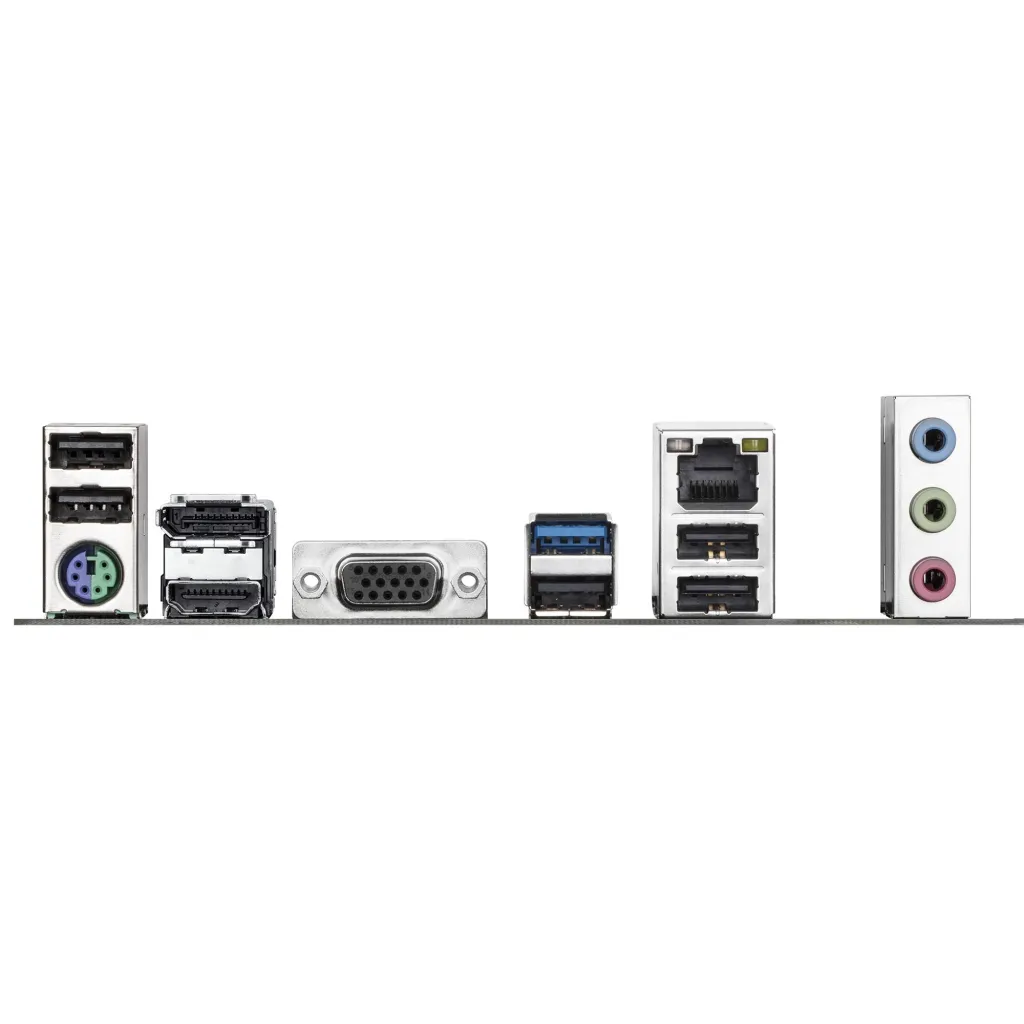

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 5
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Muud n?itajad
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Number of chassis fan connectors
- 2
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 1
- Line-in
- Jah
- Number of storage drives supported
- 5
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported storage drive interfaces
- M.2,PCI Express 4.0,SATA III
- Screws included
- Jah
- Processor manufacturer
- Intel
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Supported memory clock speed (max)
- 6400 MHz
- Unit Box Height
- 0.055
- Unit Box Length
- 0.265
- Unit Box Width
- 0.27
- CnCode
- 84733020
- Warranty period
- 3 year(s)
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.00471 cubm
- Product Net Weight
- 0.5 kg
- Unit Calculated Weight
- 0.875 kg
- Summary
- GIGABYTE H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Products per shipping (inner) case
- 1 pc(s)
- Audio chip
- Realtek ALC897
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- DisplayPort versioon
- 2.1
- Kogus transpordikasti kohta
- 10
- Toote värv
- Dark brown
- Number of CPU fan connectors
- 1
- Kaasas tarkvara
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 2
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- Component for
- PC
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/
- Kõrgus
- 35 mm
- Toote kaal
- 790 g
- Jahutuse tüüp
- Passive
- DirectX version
- 12.0
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- Intel H810
- RAID support
- Jah
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8111H
- Mudel
- H810M S2H
- Number of memory slots
- 2
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 872 g
- Package width
- 265 mm
- Processor Socket
- LGA 1851 (Socket V1)
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 5600/6400 MHz
- USB 2.0 connectors
- 1
