TV SET ACC WALL MOUNT/40-75"/WHITE M6L-W ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron-uk.co.uk/products/onkron-tv-wall-mount-swivel-tilt-for-40-75-inch-flat-curved-led-tvs-vesa-wall-mount-min-100x100-600x400-max-supports-screens-up-to-45-5-kg-white-m6l-w?_pos=1&_psq=M6L-W&_ss=e&_v=1.0

Mudel

M6L

Seadme tüüp

Täis liikumine

.: Disain :.

Kokkuvõte

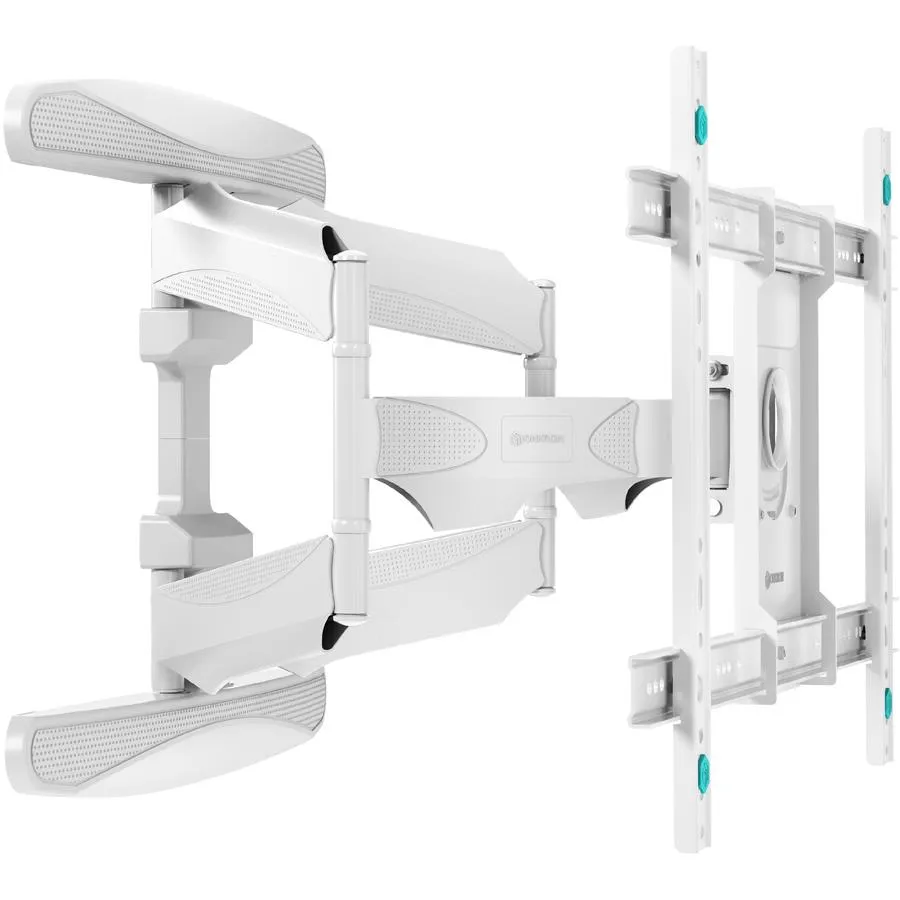

ONKRON Tilting and swiveling TV bracket for 40"-75" max 46 kg, white. Maximum weight capacity: 45.5 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 8°, Swivel angle range: -70 - 70°, Angle of rotation: 8°, Distance to the wall (min): 5.4 cm, Distance to the wall (max): 50 cm. Product colour: White

Toote värv

Valge

Ergonoomika

Pöördenurga ulatus

8 °

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

585 mm

Pakendi kõrgus

65 mm

Kasutusjuhend

Jah

Pakendi tüüp

Karp

Pakendi sügavus

440 mm

Pakendi kaal

7600 g

Tehnilised andmed

Üksuse kalkuleeritud kaal

7.69 kg

Netokaal

7.6 kg

Tehnilised andmed

Swivel angle

140 °

Easy to install

Jah

Distance to the wall (max)

500 mm

Fits screens sized

40"- 75"

Maximum Weight Capacity

45.5 kg

Unit Box Height

0.075

Unit Box Length

0.585

Unit Box Width

0.44

CnKood

83021000

Üksuse kalkuleeritud maht

0.0193 cubm

Rotating

Jah

Tilt angle range

-5 - 8 °

Panel mounting interface

200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm

Maximum screen size

75 "

Maximum VESA mount

600 x 400 mm

Minimum screen size

40 "

Minimum VESA mount

200 x 100 mm

Maximum weight capacity (per display)

45.5 kg

Easy to adjust

Jah

Cable management

Jah

Swivelling

Jah

Number of displays supported

1

Tilt adjustment

Jah

Mounting type

Sein

600 mm x 400 mm

Jah

Distance to the wall (min)

54 mm

Housing material

Plastic/SPCC

Max. weight

45 kg

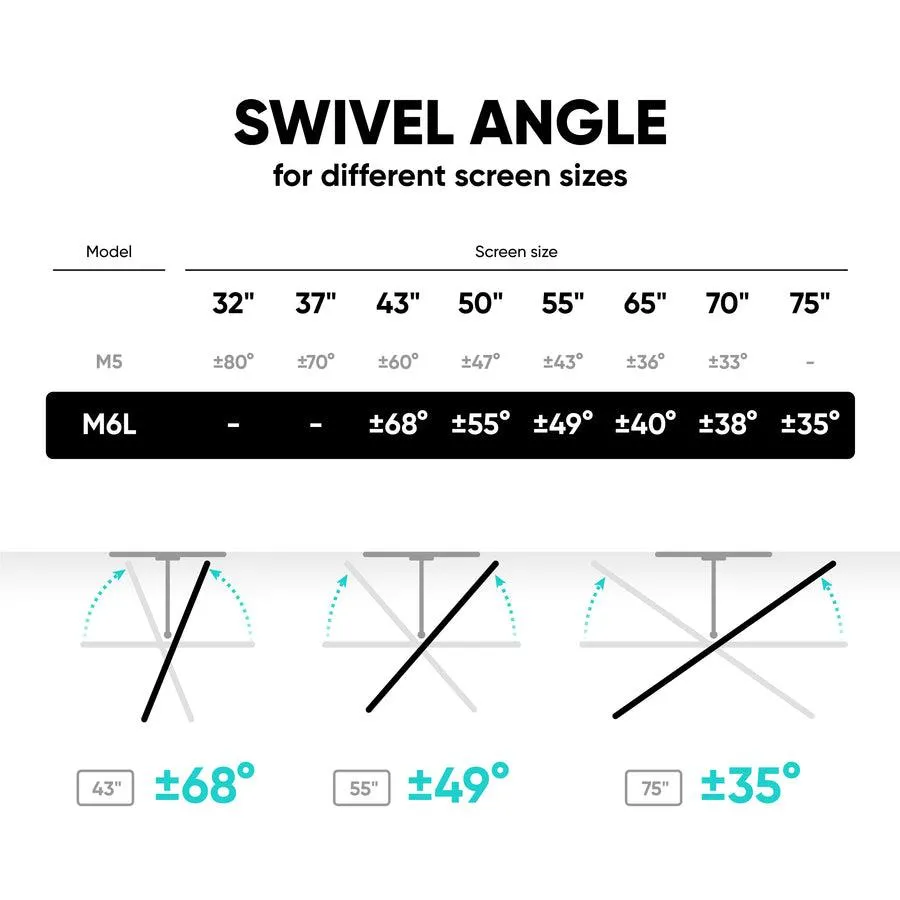

Swivel angle range

-70 - 70 °

Tilt angle

13 °

Tehnilised andmed

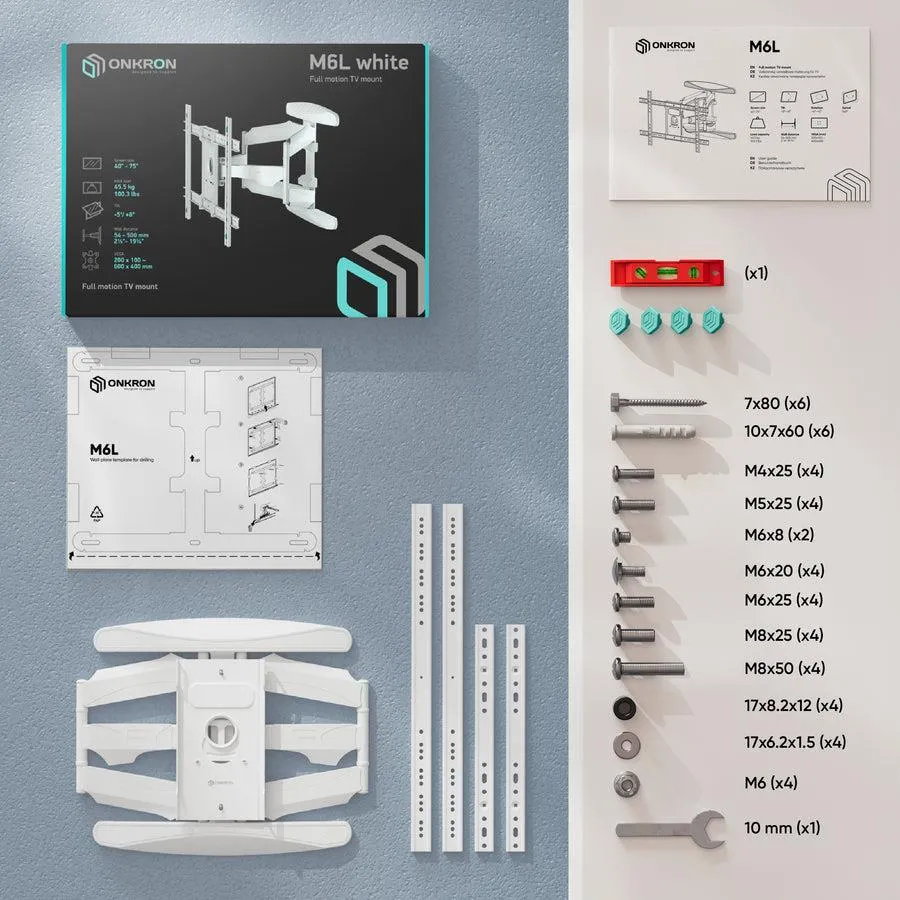

Paigalduskomplekt

Jah
