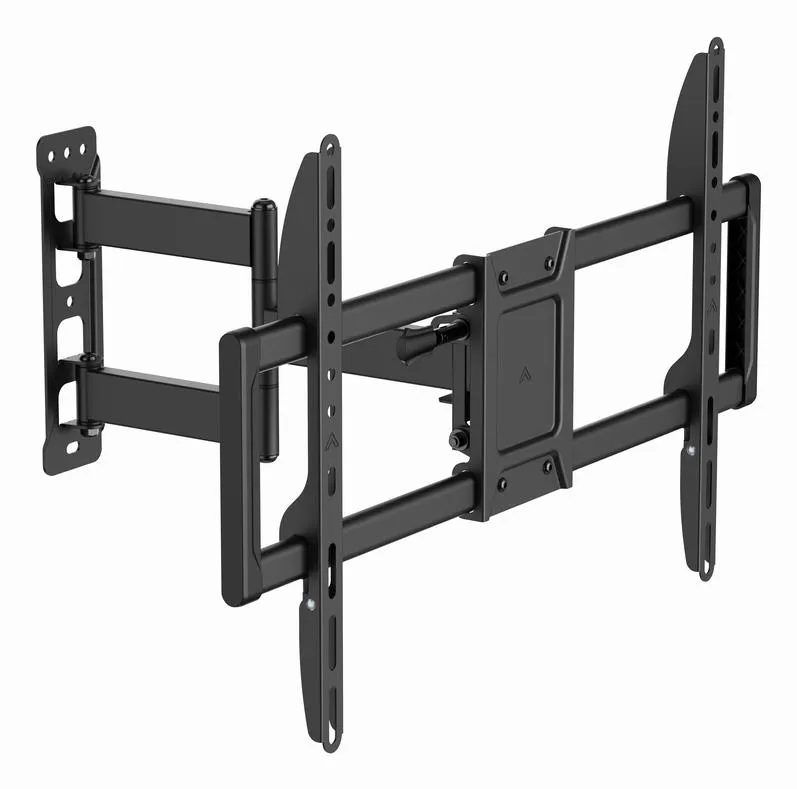

TV SET ACC WALL MOUNT 37-90"/WM-90ST-01 GEMBIRD

.: Üldised andmed :.

Tootja koduleht

https://gembird.com/item.aspx?id=13514

Mudel

WM-90ST-01

.: Disain :.

Kokkuvõte

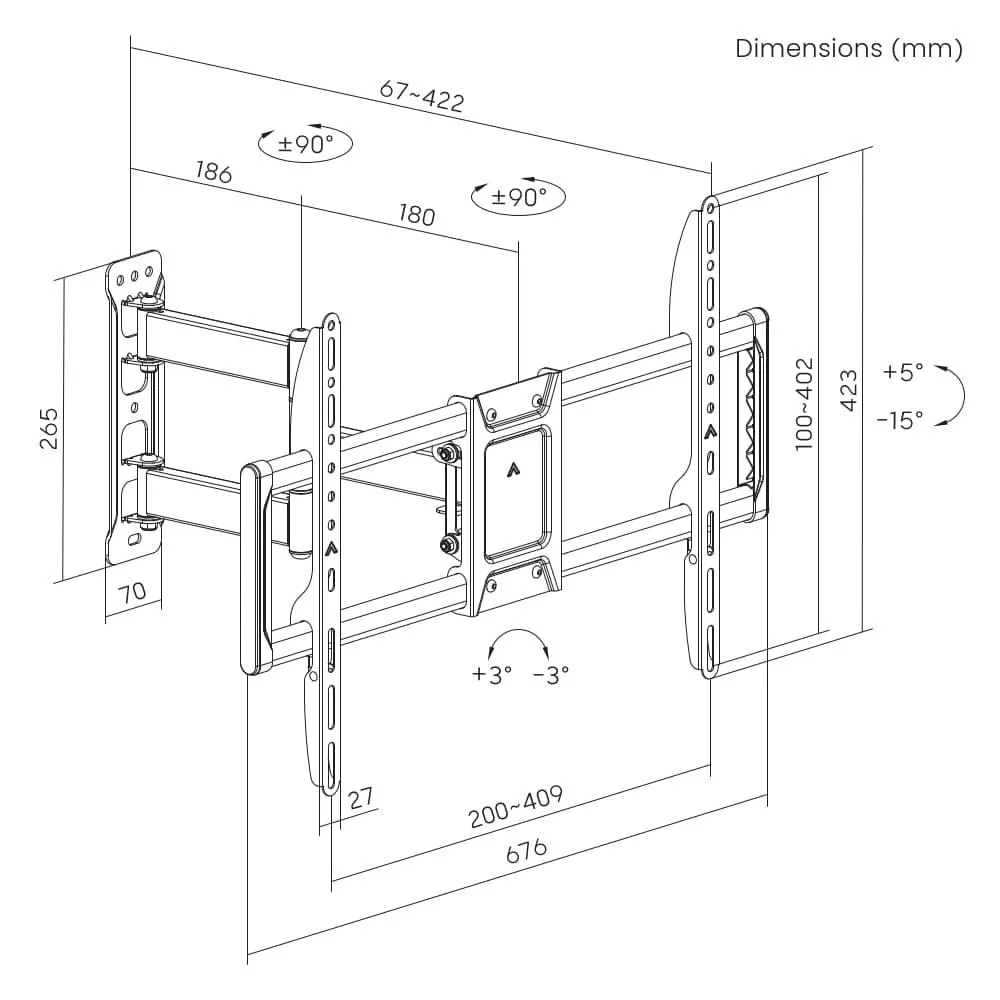

Gembird WM-90ST-01. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 5 - -15°, Swivel angle range: 90 - -90°, Distance to the wall (min): 6.7 cm, Distance to the wall (max): 42.2 cm. Product colour: Black

Toote värv

Must

.: Tehnilised andmed :.

Vastavussertifikaadid

CE/RoHS

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

276 mm

Pakendi kõrgus

85 mm

Kasutusjuhend

Jah

Pakendi tüüp

Karp

Pakendi sügavus

444 mm

Tehnilised andmed

Panel mounting interface

200 x 100/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/500 x 300/500 x 400/600 x 200/600 x 300/600 x 400 mm

Maximum Weight Capacity

50 kg

Unit Box Height

0.085

Unit Box Length

0.44

Unit Box Width

0.28

Üksuse kalkuleeritud maht

0.01047 cubm

Tilt angle range

5 - -15 °

Distance to the wall (max)

422 mm

Customs product code (TARIC)

8302500000

Maximum screen size

90 "

Maximum VESA mount

600 x 400 mm

Minimum screen size

37 "

Minimum VESA mount

200 x 100 mm

Maximum weight capacity (per display)

50 kg

Depth (max)

422 mm

Depth (min)

67 mm

Swivel angle

180 °

Swivelling

Jah

Number of displays supported

1

Tilt adjustment

Jah

Mounting type

Sein

Distance to the wall (min)

67 mm

Housing material

Teras

Orientation

Landscape

Swivel angle range

90 - -90 °

Tilt angle

20 °

Tehnilised andmed

Üksuse kalkuleeritud kaal

4.4 kg

Laius

676 mm

Kõrgus

423 mm

Tehnilised andmed

Kogus pakis

1 pair(s)

Paigalduskomplekt

Jah
