UPS|EATON|920 Watts|1150 VA|LineInteractive|5P1150IRNG2

.: Üldised andmed :.

Tootja koduleht

https://www.eaton.com/gr/en-gb/skuPage.5P1150IRNG2.html

Mudel

Eaton 5P Gen2

.: Üldised omadused :.

Müratase

35 dB

.: Disain :.

Kujutegur

Rackmount

LED-indikaatorid

Jah

Toote värv

Black / Silver

.: Pesad & liidesed :.

USB port

Jah

.: Aku & Toiteallikas :.

Aku mahutavus

9 Ah

Akuelementide arv

4

Akutehnoloogia

Sealed Lead Acid (VRLA)

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

920 W

.: Tehnilised andmed :.

Compliance certificates

Low Voltage Directive (LVD)/RoHS

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 90 %

.: Pakendi sisu :.

Kiirpaigaldusjuhend

Jah

.: Pakendi andmed :.

Kaablid kaasa arvatud

USB cable

Tehnilised andmed

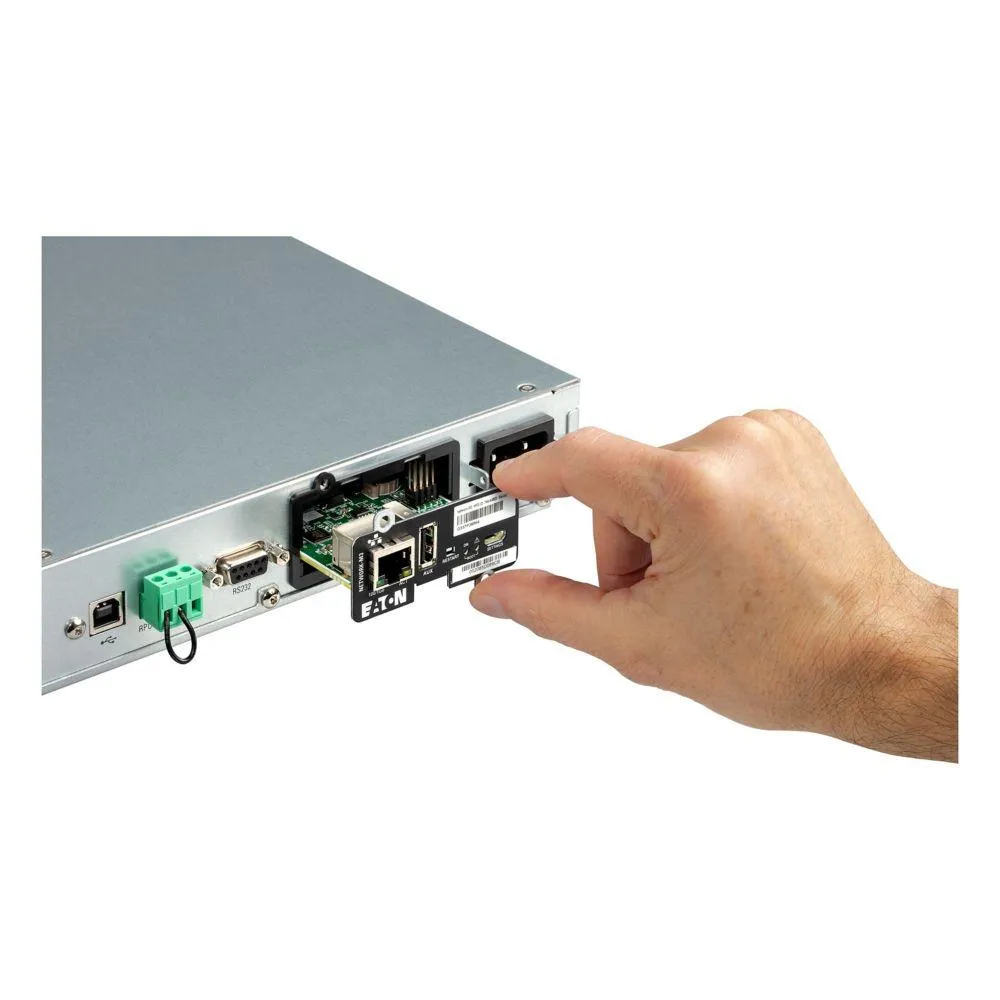

Network card slot

Jah

Serial interface type

RS-232

Input operation voltage (min)

150 V

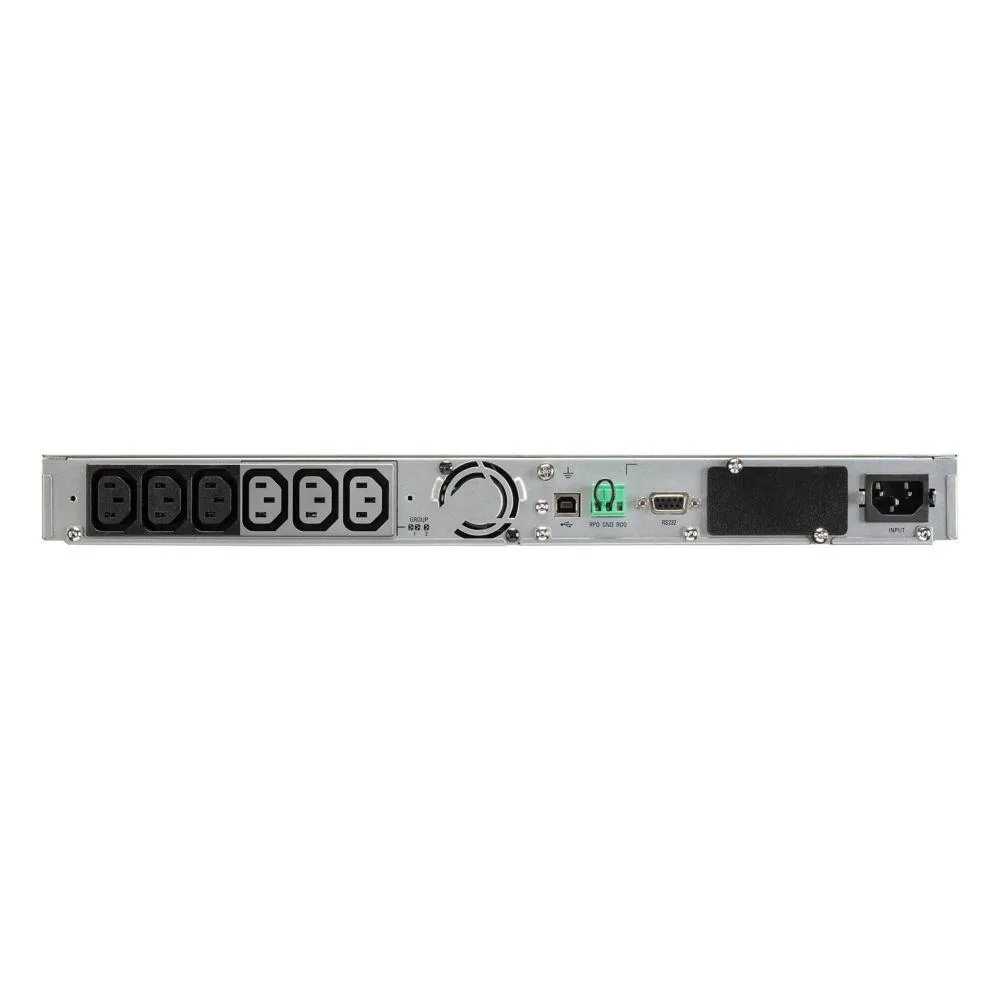

AC outlet types

C13 coupler

AC outlets quantity

6 AC outlet(s)

Waveform

Sine

Hot-swap battery

Jah

Automatic Voltage Regulation (AVR)

Jah

Power plug

C14 coupler

Rack capacity

1U

Rack mount kit

Jah

Unit Box Height

0.175

Unit Box Length

0.59

Unit Box Width

0.54

Üksuse kalkuleeritud maht

0.055755 cubm

Summary

Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Waste Electrical and Electronic Equipment (WEEE) compliance

Jah

Number of input phases

1

Number of output phases

1

USB port type

USB Type-B

Serial interface

Jah

Serial ports quantity

1

UPS topology

Line-Interactive

Battery voltage

6 V

Certification

EMC
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS

Efficiency

98.2 %

Heat dissipation

465 BTU/h

Input frequency

47/70 Hz

Input operation voltage (max)

294 V

Input ports

Single, IEC320 C14

Operating altitude

0 - 3000 m

Output operation voltage (max)

240 V

Output operation voltage (min)

200 V

Output power capacity

1.15 kVA

Output power capacity, VA

1150 VA

Output power capacity, W

920 Watts

Power factor

0.8

Rack 1U

Jah

RS232

1

Topology

LineInteractive

Typical backup time at half load

12.5 min

USB

1

Tehnilised andmed

Üksuse kalkuleeritud kaal

19.2 kg

Netokaal

14.2 kg

Laius

438 mm

Sügavus

509 mm

Kõrgus

43.2 mm

Toote kaal

14280 g

Tehnilised andmed

Ekraani tüüp

LCD
