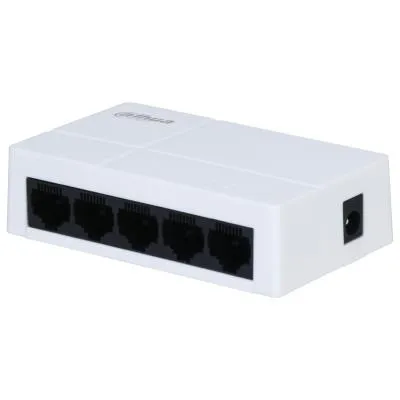

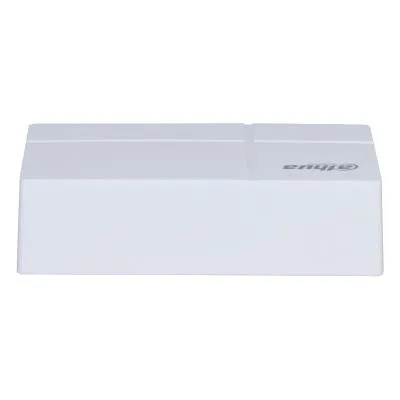

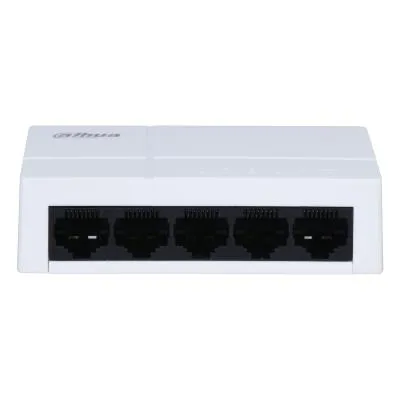

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
| Tootja | DAHUA |
| Tootekood | SG1005L-EUR |
| EAN | 6923172583543 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/SG1005L |
| .: Disain :. | |
| Toote värv | White |
| Võimsus ja energiatarve | |
| Sisendvool | 1 A |
| Power over Ethernet (PoE) | Ei |
| .: Tehnilised andmed :. | |
| Compliance certificates | CE |
| Logistika andmed | |
| Kogus transpordikasti kohta | 30 |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | 0 - 45 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 5 - 95 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Unit Box Length | 0.115 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Switch layer | L2 |
| Store-and-forward | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| DC input voltage | 5 V |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-T/10BASE-T |
| Unit Box Height | 0.065 |
| Unit Box Width | 0.095 |
| Unit Calculated Volume | 0.000852 cubm |
| Product Net Weight | 0.12 kg |
| Unit Calculated Weight | 0.2 kg |
| Summary | Dahua Technology SG1005L-EUR. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. DC input voltage: 5 V |
| Power supply included | Jah |
| 10Base-T / 100Base-TX / 1000Base-T | 5 |
| Forwarding rate | 7.44 Mpps |
| Housing material | Plastic |
| MAC address table | 2000 entries |
| Operating temperature range | 0 °C to +45 °C |
| Package depth | 94 mm |
| Package height | 67 mm |
| Package weight | 230 g |
| Package width | 111 mm |
| Packet buffer memory | 1 MB |
| Power Source | DC |
| Primary port count | 5 |
| Storage relative humidity (H-H) | 5 - 95 % |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Laius | 86.4 mm |
| Sügavus | 52 mm |
| Kõrgus | 23 mm |
| Mõõtmed (l x s x k) | 86.4 mm × 52.0 mm × 23.0 mm |
| Toote kaal | 120 g |
