UPS|EATON|520 Watts|650 VA|Wave form type Sinewave|LineInteractive|Phase 1phase|5P650IRNG2

.: Üldised andmed :.

Tootja koduleht

https://www.eaton.com/gr/en-gb/skuPage.5P650IRNG2.html

.: Üldised omadused :.

Müratase

35 dB

.: Disain :.

Toote värv

Black,Silver

Kujutegur

Rackmount

Toote värv

Black / Silver

.: Pesad & liidesed :.

USB port

Jah

.: Aku & Toiteallikas :.

Akuelementide arv

2

Akutehnoloogia

Sealed Lead Acid (VRLA)

Aku mahutavus

9 Ah

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

520 W

.: Tehnilised andmed :.

Compliance certificates

Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 90 %

.: Pakendi sisu :.

Kiirpaigaldusjuhend

Jah

Tarvikud kaasa arvatud

Rack-mounting kit Cable locking system USB cable (2) IEC-IEC cables Quickstart guide Safety instructions Network card

.: Pakendi andmed :.

Kaablid kaasa arvatud

USB cable

Tehnilised andmed

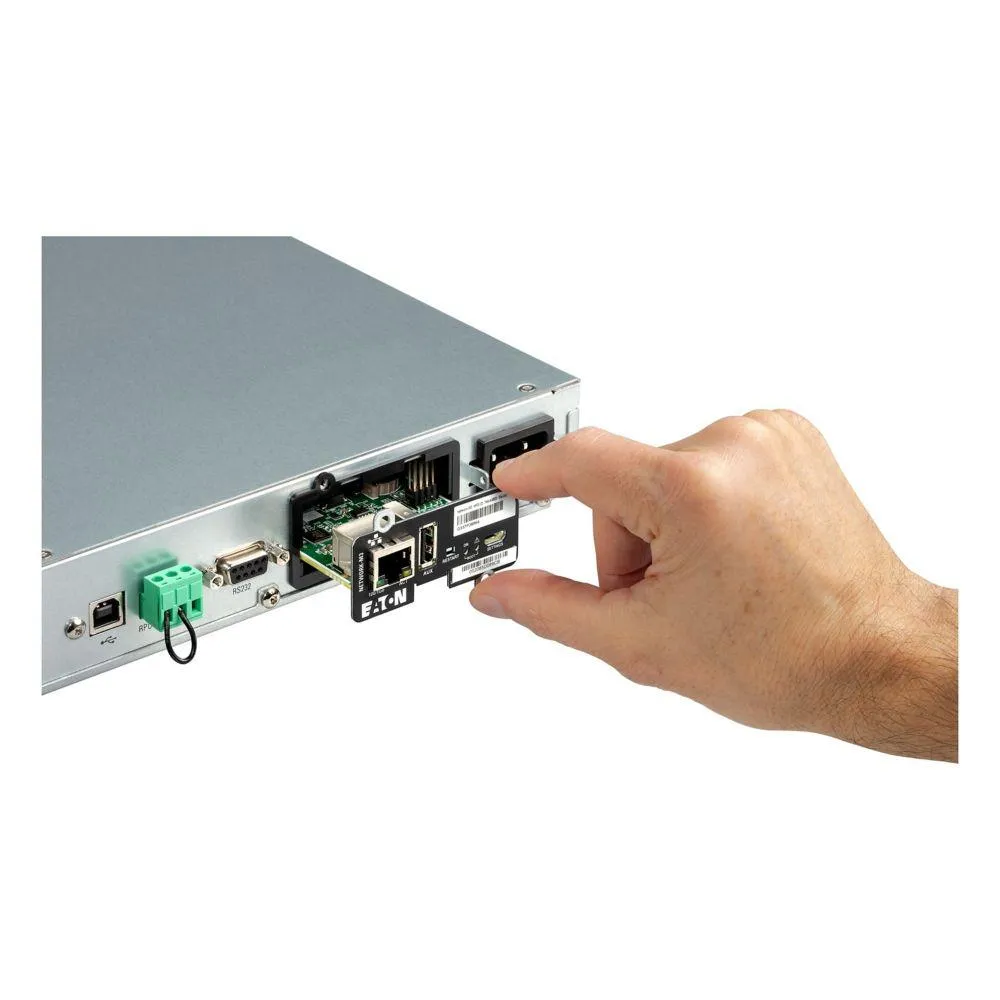

Network card slot

Jah

Serial interface type

RS-232

Input operation voltage (min)

150 V

AC outlet types

C13 coupler

AC outlets quantity

4 AC outlet(s)

Waveform

Sine

Hot-swap battery

Jah

Automatic Voltage Regulation (AVR)

Jah

Power plug

C14 coupler

Rack mount kit

Jah

Unit Box Height

0.17

Unit Box Length

0.585

Unit Box Width

0.45

Unit Calculated Volume

0.04475 cubm

Unit Calculated Weight

11.3 kg

Summary

Eaton 5P650IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Waste Electrical and Electronic Equipment (WEEE) compliance

Jah

Number of input phases

1

Number of output phases

1

USB port type

USB Type-B

Serial interface

Jah

RS-232 ports

1

Serial ports quantity

1

UPS topology

Line-Interactive

Battery voltage

6 V

Certification

IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Efficiency

97 %

Heat dissipation

461 BTU/h

Input frequency

47/70 Hz

Input operation voltage (max)

294 V

Operating altitude

0 - 3000 m

Output operation voltage (max)

240 V

Output operation voltage (min)

200 V

Output power capacity

0.65 kVA

Output power capacity, VA

650 VA

Output power capacity, W

520 Watts

Phase

1phase

Power factor

0.8

Rack 1U

Jah

Topology

LineInteractive

Typical backup time at half load

7 min

Typical runtime at full load

1 min

Typical runtime at half load

7 min

Wave form type

Sinewave

Tehnilised andmed

Netokaal

8.68 kg

Laius

438 mm

Sügavus

361 mm

Kõrgus

43.2 mm

Mõõtmed (l x s x k)

361 x 43.2 x 438 mm

Toote kaal

8680 g
