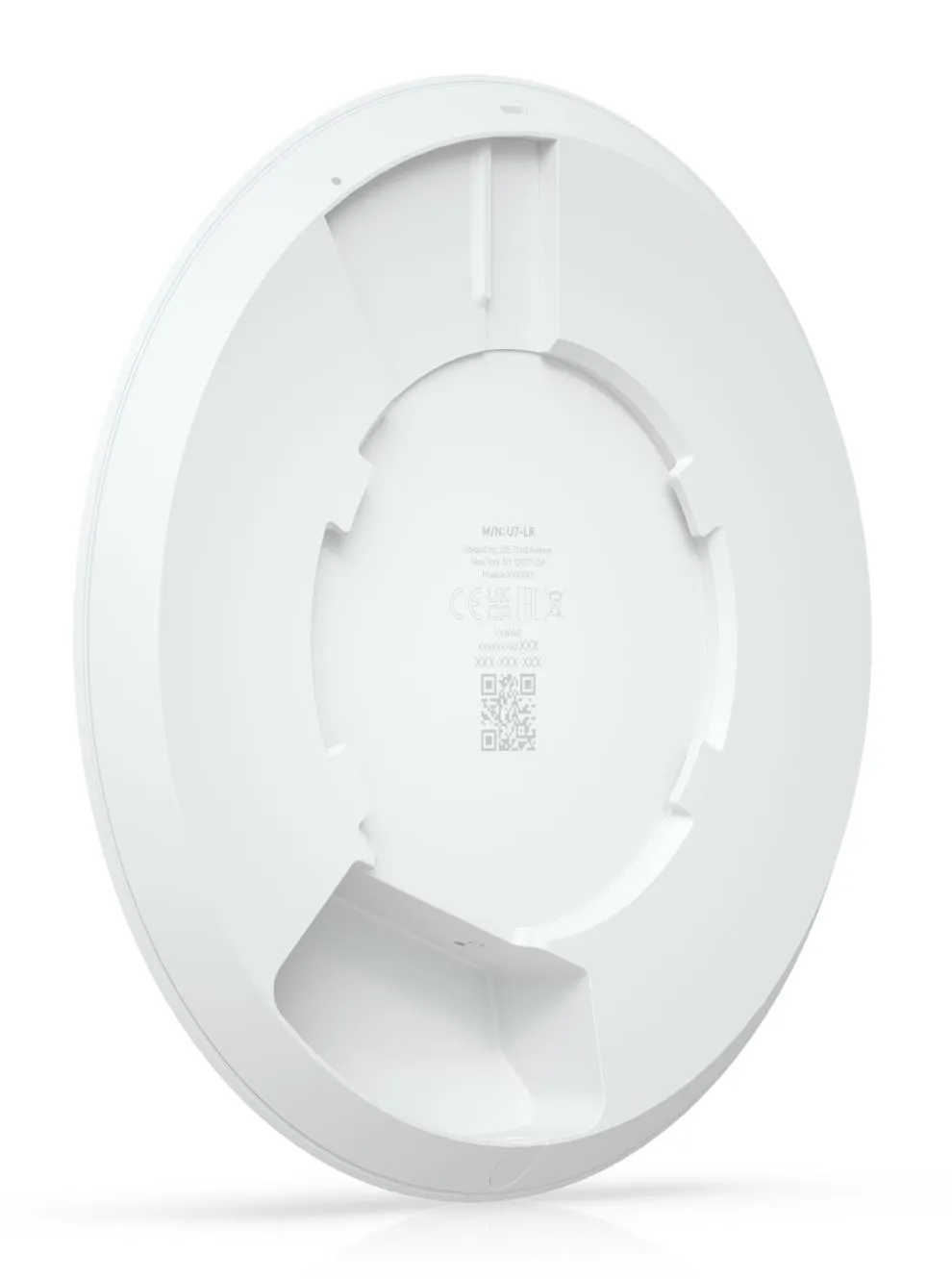

WRL ACCESS POINT/U7-LR UBIQUITI

.: Üldised andmed :.

Tootja koduleht

https://eu.store.ui.com/eu/en/category/wifi-flagship/products/u7-lr

.: Üldised omadused :.

5 GHz

Jah

.: Disain :.

Toote värv

White

Toote värv

White

LED-indikaatorid

Jah

.: Toimimine :.

Band Steering

Jah

Remote Authentication Dial-In User Service (RADIUS)

Jah

MIMO

Jah

.: Võrgustumine :.

Võrgustandardid

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v

VLAN-i tugi

Jah

Ethernet LAN-i andmeedastuskiirused

1000/2500 Mbit/s

Võimsus ja energiatarve

Power over Ethernet (PoE)

Jah

Turvalisus

Turvaalgoritmid

PPSK/TLS

Antenn

Antenni tüüp

Internal

Juhtmevaba LAN-i omadused

Wi-Fi laineala

2.4/5 ГГц

.: Tehnilised andmed :.

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)

Toide

Toitenõuded

PoE

Ergonoomika

Lähtestusnupp

Jah

Funktsioonid

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Fit AP mode features

Hotspot 2.0

6 GHz

Ei

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Mudeli originaalnimi

U7 Long-Range

Logistika andmed

Kogus transpordikasti kohta

16

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 50 °C

Suhteline õhuniiskus kasutamisel (H-H)

5 - 95 %

.: Pakendi sisu :.

Paigalduskomplekt

Jah

Tehnilised andmed

Spatial streams

5

Quantity per pack

1 pc(s)

2.4 GHz

Jah

Rate limiting

Jah

Unit Box Height

0.51

Unit Box Length

0.485

Unit Box Width

0.0247

Wi-Fi 7

Jah

Unit Calculated Volume

0.006106 cubm

Unit Calculated Weight

0.959 kg

Summary

Ubiquiti U7 Long-Range. 2.4 GHz, 5 GHz, Maximum data transfer rate: 7300 Mbit/s. Security algorithms: PPSK, TLS. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 14 W

Long Description

Ubiquiti U7 Long-Range. 2.4 GHz, 5 GHz, Maximum data transfer rate: 7300 Mbit/s. Security algorithms: PPSK, TLS. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 14 W

MIMO type

Multi User MIMO

DC voltage range

42.5 - 57 V

Fast roaming

Jah

Wireless meshing

Jah

Coverage area

160 m²

Maximum Tx power (2.4 GHz)

26 dBmW

Maximum Tx power (5 GHz)

27 dBmW

Access point management

Wi-Fi schedule

Ethernet LAN (RJ-45) ports

1

Placement

Ceiling,Wall

Antenna gain level (max)

6 dBi

Frequency Band

2.4 - 5 GHz

Housing material

Aluminium,Polycarbonate (PC)

Maximum data transfer rate

7300 Mbit/s

Number of users

300 user(s)

Operating temperature range

-30 — 50° C

Tehnilised andmed

Netokaal

0.448 kg

Laius

175.7 mm

Sügavus

175.7 mm

Kõrgus

43 mm

Mõõtmed (l x s x k)

Ø175.7 x 43 мм

Toote kaal

448 g
