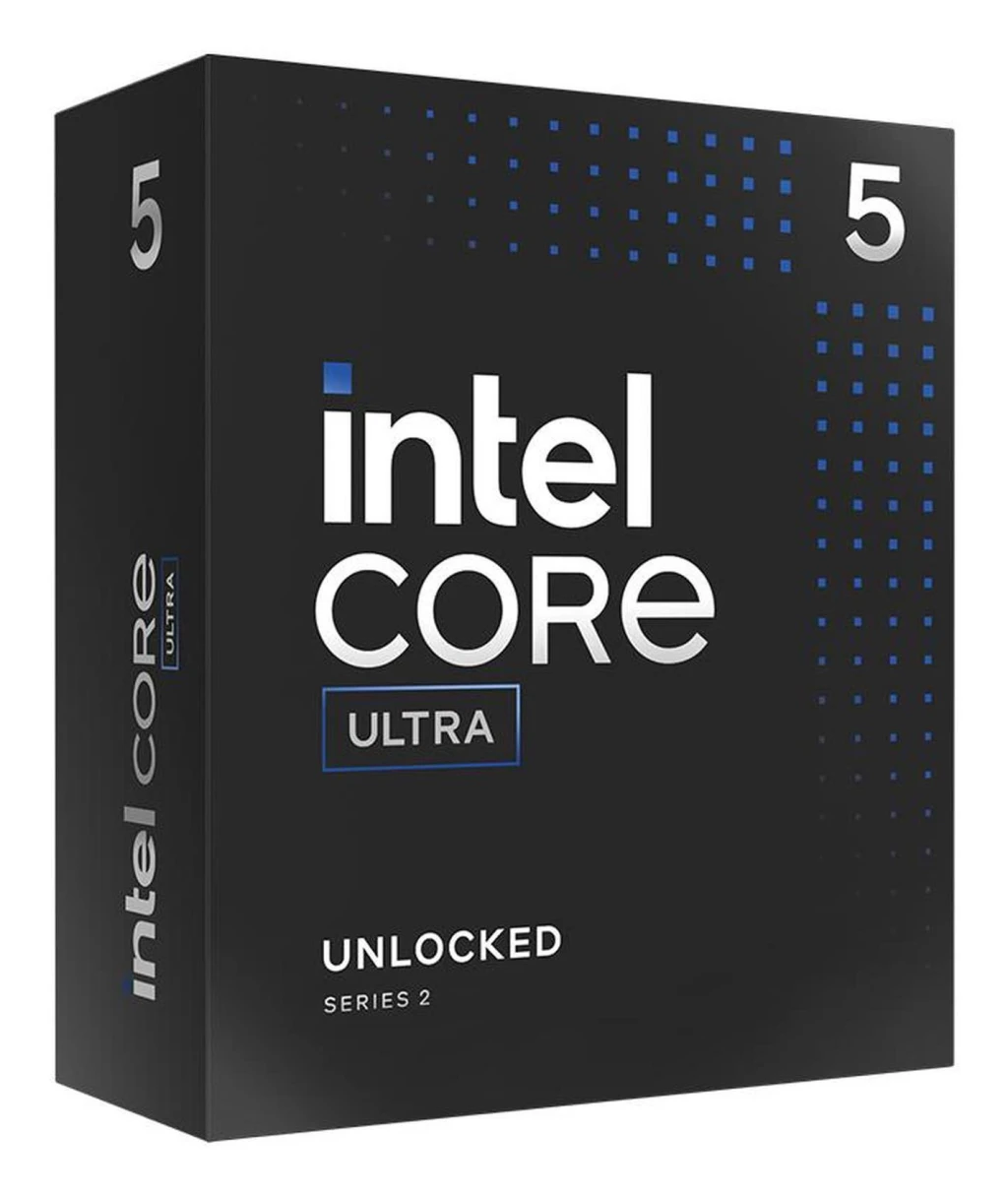

CPU|INTEL|Desktop|Intel Core Ultra|225|Arrow Lake|3300 MHz|Cores 10|Socket LGA1851|65 Watts|BOX|BX80768225SRQCZ

Muud näitajad

Discrete graphics card model

Not available

On-board graphics card

Jah

On-board graphics card model

Intel® Graphics

GPU performance up to

4 TOPs

Performance cores

6

Sparsity support

Jah

Total processor performance up to

23 TOPs

Windows Studio effects support

Jah

Discrete graphics card

Ei

OpenCL version

3.0

Processor manufacturer

Intel

Intel® Speed Shift Technology

Jah

Launch date

Q1'25

Scalability

1S

Market segment

Desktop

Memory channels

Dual-channel

Processor generation

Intel Core Ultra (Series 2)

Üksuse kalkuleeritud maht

0.001312 cubm

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Jah

Xe-cores

2

Intel® Standard Manageability (ISM)

Jah

CnKood

85423190

Unit Box Width

0.08

Unit Box Length

0.12

Unit Box Height

0.11

Thermal Monitoring Technologies

Jah

Üksuse kalkuleeritud kaal

0.5 kg

Neural Processor Unit (NPU)

Intel AI Boost

Efficient-core boost frequency

4.4 GHz

Use conditions

PC/Client/Tablet

Summary

Intel Core Ultra 5 225. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 23 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0

NPU performance up to

13 TOPs

AI software frameworks supported by NPU

DirectML/ONNX RT/OpenVINO/WebNN/Windows ML

Intel® Secure Key

Jah

Graphics output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Intel® Quick Sync Video Technology

Jah

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Jah

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card outputs supported

DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1

On-board graphics card OpenGL version

4.5

On-board graphics card ID

0x7D67

On-board graphics card DirectX version

12.0

Number of displays supported (on-board graphics)

4

L2 cache

22528 KB

AI software frameworks supported by CPU

DirectML/ONNX RT/OpenVINO/WebNN/Windows ML

On-board graphics card base frequency

300 MHz

Intel® Turbo Boost Technology

2.0

Embedded options available

Jah

Supported instruction sets

AVX 2.0/SSE4.1/SSE4.2

PCI Express slots version

4.0/5.0

Memory types supported by processor

DDR5-SDRAM

Processor operating modes

64-bit

Maximum number of PCI Express lanes

24

Processor codename

Arrow Lake

Intel VT-x with Extended Page Tables (EPT)

Jah

Idle States

Jah

Intel® AES New Instructions (Intel® AES-NI)

Jah

Intel Trusted Execution Technology

Jah

Enhanced Intel SpeedStep Technology

Jah

Intel 64

Jah

Intel Virtualization Technology for Directed I/O (VT-d)

Jah

Intel Virtualization Technology (VT-x)

Jah

On-board graphics card dynamic frequency (max)

1800 MHz

Tootja koduleht

https://www.intel.com/content/www/us/en/products/sku/241070/intel-core-ultra-5-processor-225-20m-cache-up-to-4-90-ghz/specifications.html

Direct Media Interface (DMI) Revision

4.0

Efficient-core base frequency

2.7 GHz

Efficient cores

4

Performance-core boost frequency

4.9 GHz

Intel® Thunderbolt 4

Jah

Mode-based Execute Control (MBE)

Jah

Performance-core base frequency

3.3 GHz

Intel® Volume Management Device (VMD)

Jah

Processor base power

65 W

Maximum turbo power

121 W

Maximum number of DMI lanes

8

Intel® Control-flow Enforcement Technology (CET)

Jah

Intel® Thread Director

Jah

Processor ARK ID

241070

Kogus transpordikasti kohta

5

Pakendi tüüp

Box

Mudeli number

225

Protsessori Turbo Boost sagedus

4.9 GHz

Maximum internal memory supported by processor

192 GB

Maximum operating temperature

105 °C

Memory clock speeds supported by processor

6400 MHz

Processor Socket

LGA 1851 (Socket V1)

Status

Launched
