Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFast Ethernet (copper) ports quantity|TSF010000000
AC
AL1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

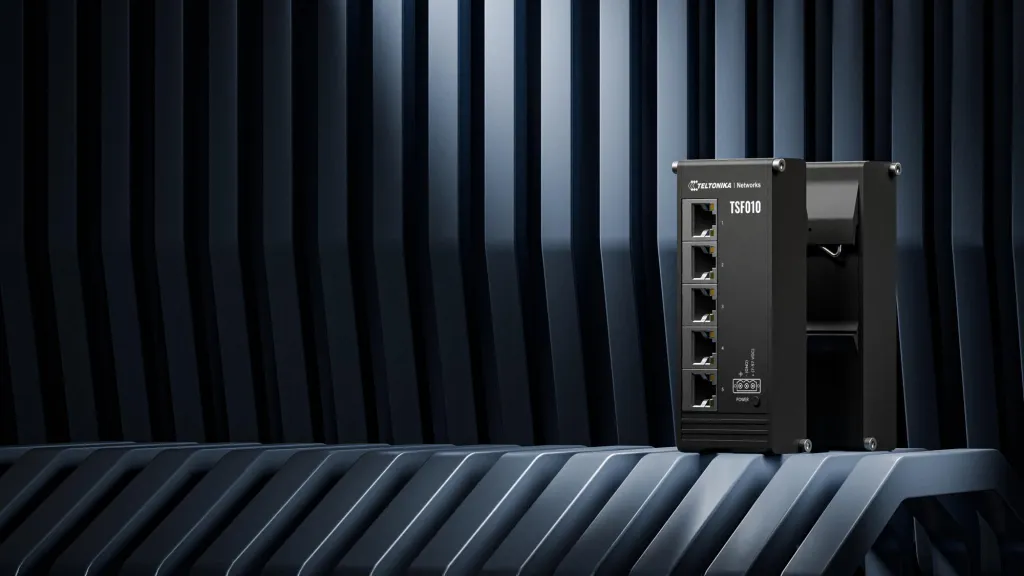

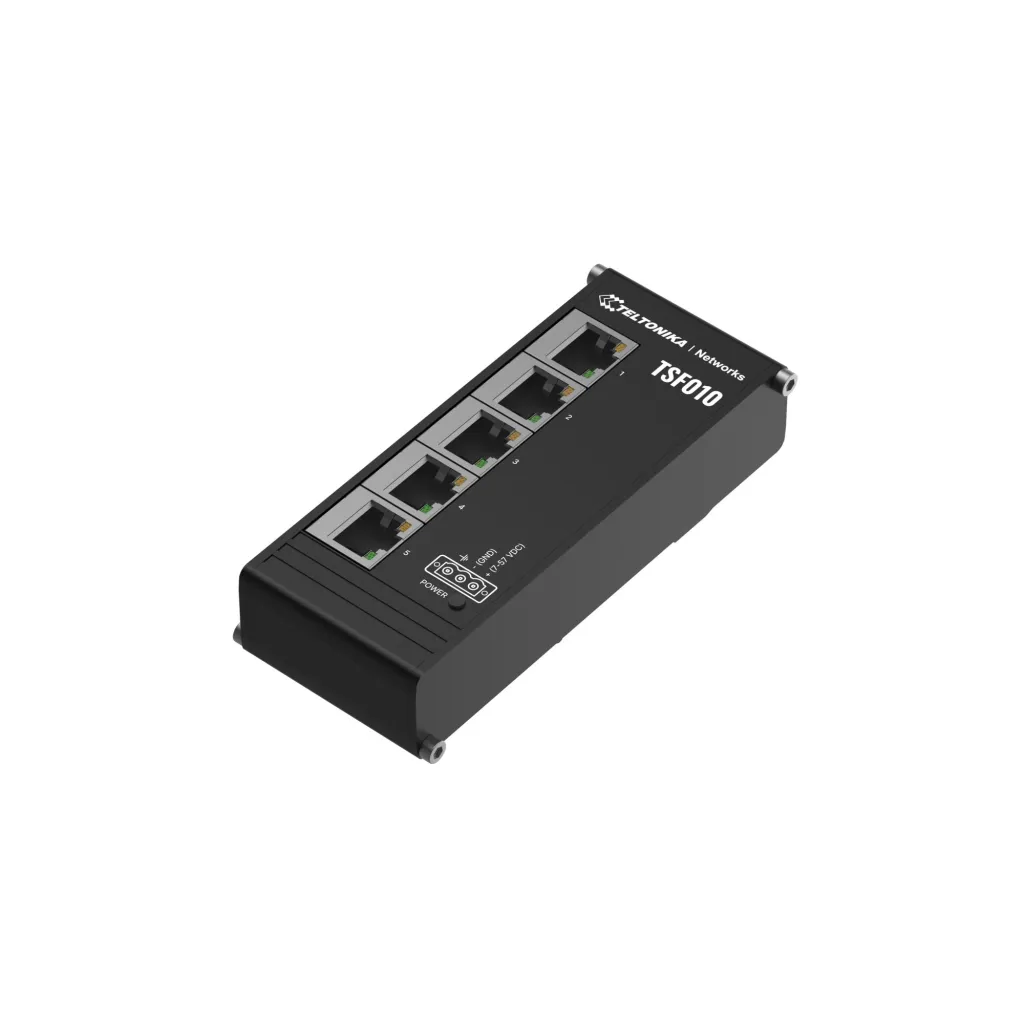

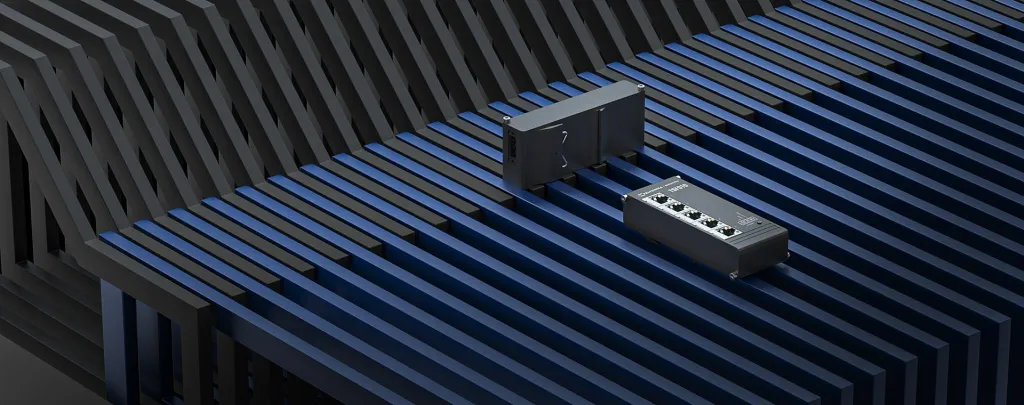

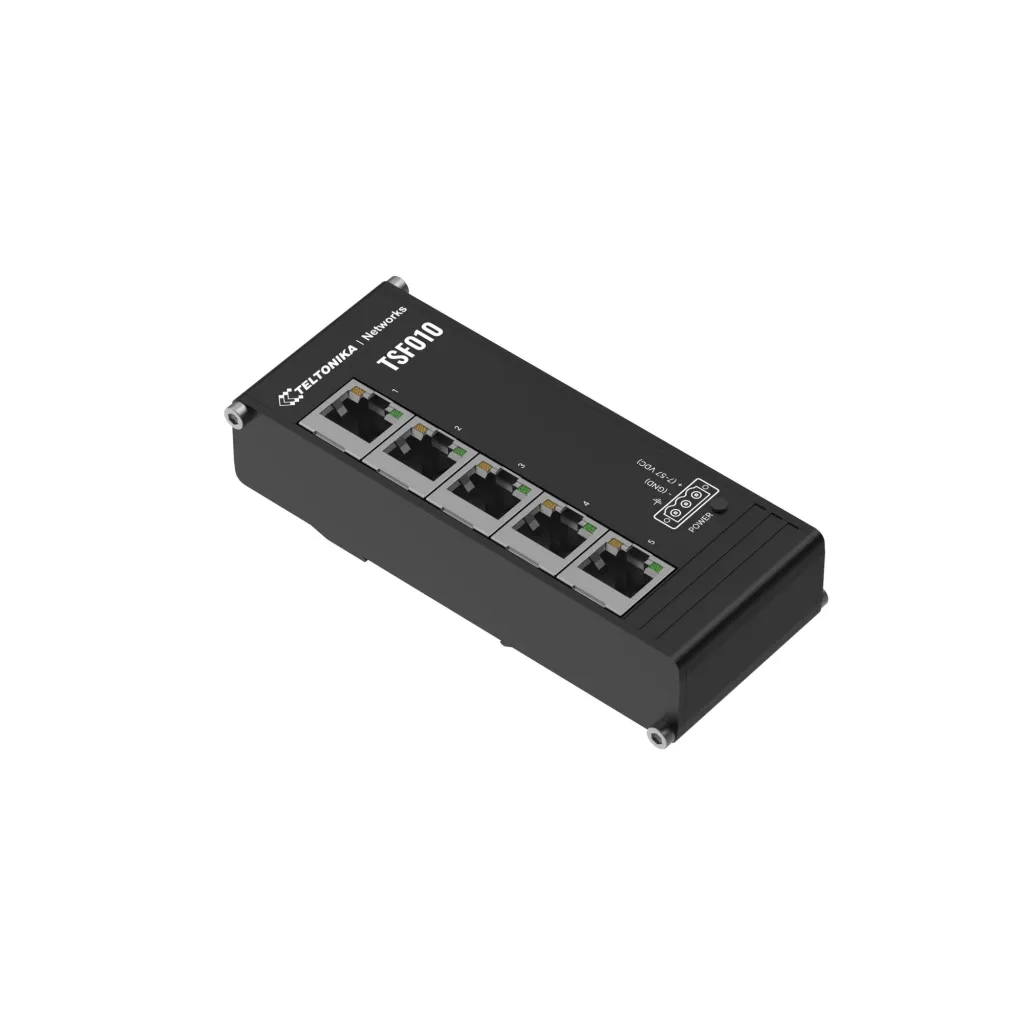

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
- 3-PIN POWER INPUT
- Flexible and tailor-made for industrial use
- FLAT & COMPACT
- Flat and compact design weighing only 142 g
- INTEGRATED DIN RAIL BRACKET
- Easy mounting for plug-and-play deployment
- 7-57 VDC
- Suitable voltage range for industrial applications
.: Üldised andmed :.
- Tootja koduleht
- https://teltonika-networks.com/products/ethernet-switches/TSF010/
.: Disain :.
- Toote värv
- Black
- Kujutegur
- DIN rail
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Auto MDI/MDI-X
- Jah
Võimsus ja energiatarve
- Sisendpinge
- 7 - 57 V
- Power over Ethernet (PoE)
- Ei
- Võimsustarve (tüüpiline)
- 1 W
Andmeedastus
- Jumbo frames
- 9216
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 75 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
Tehnilised andmed
- Unit Calculated Weight
- 0.15 kg
- Fast Ethernet (copper) ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- Ei
- Jumbo frames support
- Jah
- Full duplex
- Jah
- Rack mounting
- Ei
- Unit Box Height
- 0.031
- Unit Box Length
- 0.139
- Unit Box Width
- 0.055
- Unit Calculated Volume
- 0.000237 cubm
- Summary
- Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail
- DIN rail mounting
- Jah
- Power supply included
- Ei
- Housing material
- Aluminium
- MAC address table
- 2048 entries
- Power Source
- DC
- Stackable
- Ei
- Switch type
- Unmanaged
- Switching capacity
- 10 Gbit/s
Tehnilised andmed
- Laius
- 113 mm
- Sügavus
- 50 mm
- Kõrgus
- 28 mm
- Toote kaal
- 142 g
