Switch|TELTONIKA|TSW040000000|PoE+ ports 8|240 Watts|TSW040
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

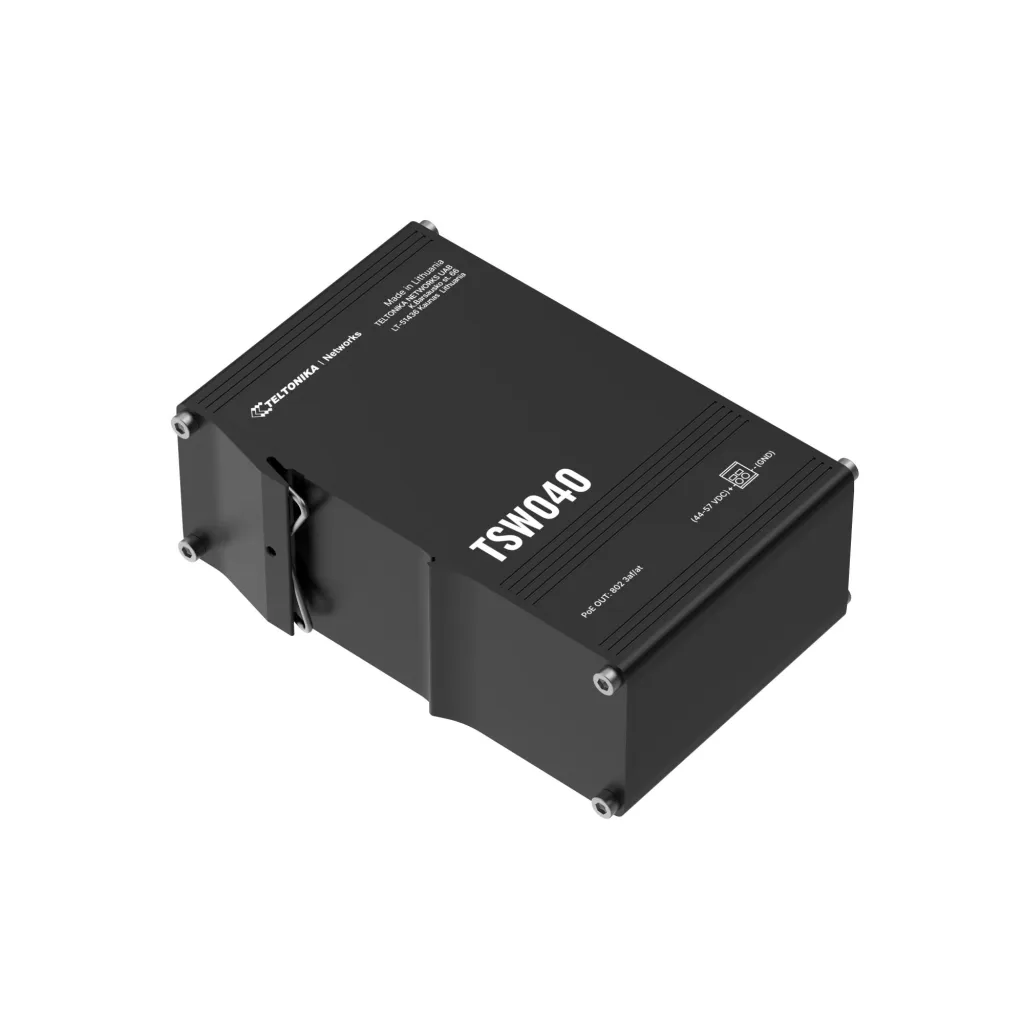

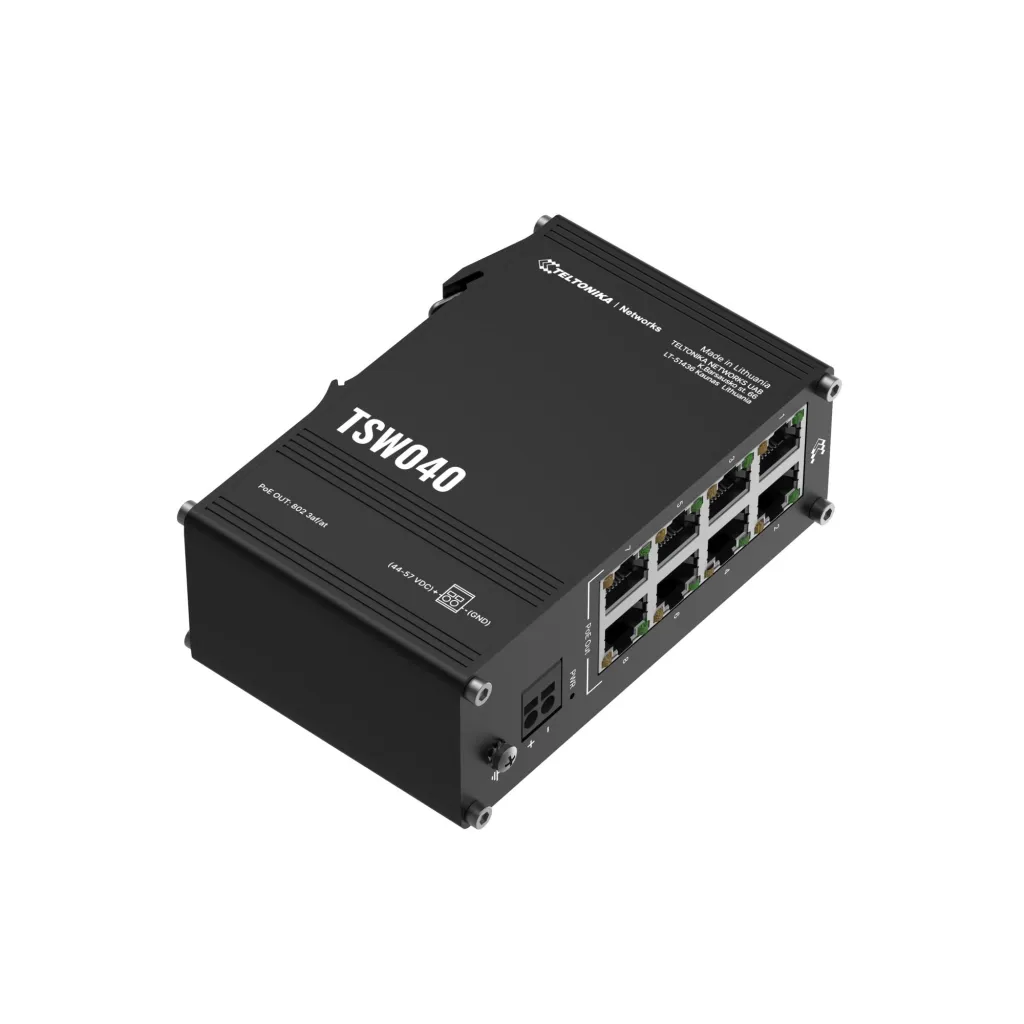

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
- 8 X POE-OUT RJ45
- Eight PoE-out Ethernet ports with a total power budget of 240 W
- 2-PIN POWER INPUT
- Simple and suitable for industrial applications
- INTEGRATED DIN RAIL
- Easy mounting for plug-and-play deployment
- WIDE VOLTAGE RANGE
- 7-57 VDC, or 44-57 VDC for PoE-out
.: Üldised andmed :.
- Tootja koduleht
- https://teltonika-networks.com/products/ethernet-switches/TSW040/
.: Disain :.
- Toote värv
- Black
- LED-indikaatorid
- Link/Power/Status
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
.: Pesad & liidesed :.
- Ethernet LAN (RJ-45) pordid
- 8
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
Toide
- Toiteallikas
- DC
Ergonoomika
- Lähtestusnupp
- Ei
Funktsioonid
- Mudeli originaalnimi
- TSW040000000
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet (PoE) type supported
- Active PoE
- Internet elektrivõrgu kaudu (PoE) pinge vahemik
- 48 V
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 75 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
.: Pakendi sisu :.
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.00052 cubm
- Transpordipakendi kaal
- 0.28 kg
- Transpordipakendi kõrgus
- 8 cm
- Transpordipakendi laius
- 5 cm
- Transpordipakendi sügavus
- 13 cm
Tehnilised andmed
- Unit Box Width
- 0.05
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Power over Ethernet (PoE) ports quantity
- 8
- DC input voltage
- 7 - 57 V
- Fast Ethernet (copper) ports quantity
- 8
- PoE power budget
- 240 Watts
- Unit Box Height
- 0.08
- Unit Box Length
- 0.13
- CnCode
- 85176200
- Unit Calculated Volume
- 0.00052 cubm
- Unit Calculated Weight
- 0.28 kg
- Summary
- Teltonika NETWORKS TSW040 8-Port PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Power over Ethernet (PoE)
- Rack mounting
- Ei
- Power supply included
- Ei
- Housing material
- Aluminium
- MAC address table
- 2048 entries
- PoE+ ports
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Primary port count
- 8
- Stackable
- Ei
- Switch type
- Unmanaged
- Switching capacity
- 20 Gbit/s
- Total Power over Ethernet (PoE) budget
- 240 W
Tehnilised andmed
- Netokaal
- 0.28 kg
- Netokaal
- 0.28 kg
- Brutokaal
- 0.28 kg
- Laius
- 113.1 mm
- Sügavus
- 74.6 mm
- Kõrgus
- 41.2 mm
- Mõõtmed (l x s x k)
- 113.1 x 41.2 x 74.6 mm
- Toote kaal
- 280 g
