GIGABYTE B850M D3HP (rev. 1.2) AMD B850 Protsessoripesa AM5 Mikro ATX

Muud näitajad

Number of storage drives supported

6

PCI Express x16 (Gen 5.x) slots

1

RGB LED pin header

Jah

System management BIOS (SMBIOS) version

2.7

Antenna included

Jah

Serial port headers

1

Processor manufacturer

AMD

Screws included

Jah

Supported storage drive interfaces

M.2,SATA III

WiFi-AP antenna jack

2

Supported storage drive types

HDD & SSD

Supported memory clock speed (max)

8200 MHz

Number of M.2 (M) slots

2

ACPI version

5.0

Clear CMOS button

Jah

Clear CMOS jumper

Jah

Parallel processing technology support

Not supported

CPU fan connector

Jah

Front panel audio connector

Jah

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Lithium weight per battery

0.07 g

Front panel connector

Jah

12V power connector

Jah

Desktop Management Interface (DMI) version

2.7

PC health monitoring

Fan/Temperature/Voltage/Water cooling

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Products per shipping (inner) case

1 pc(s)

Number of SATA III connectors

4

Summary

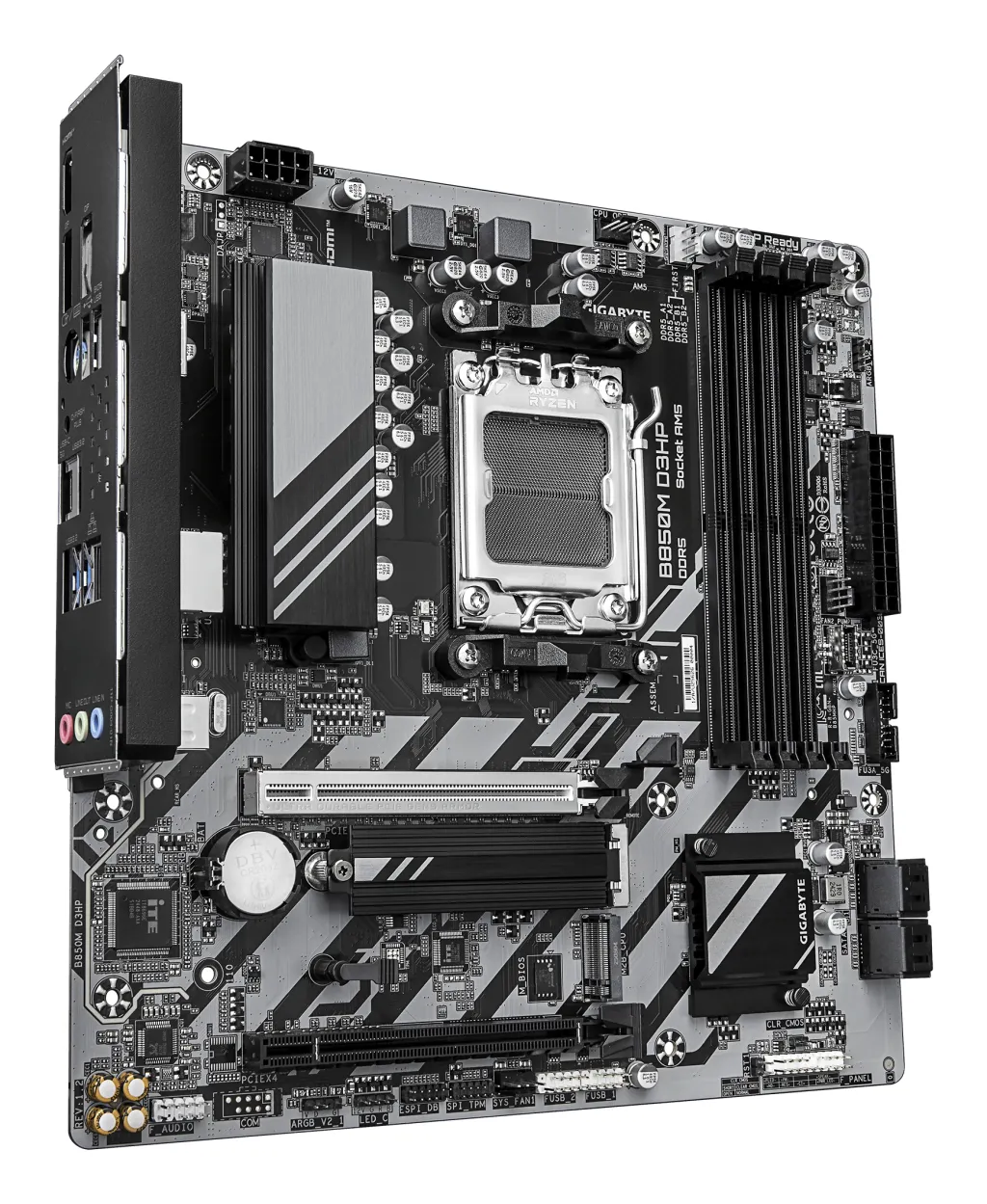

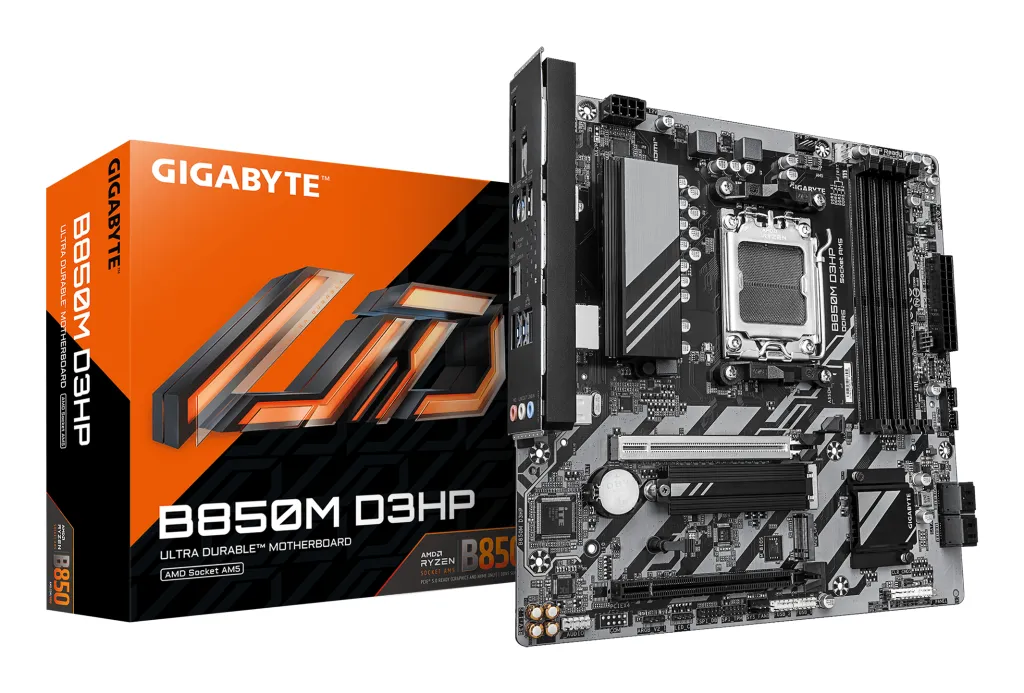

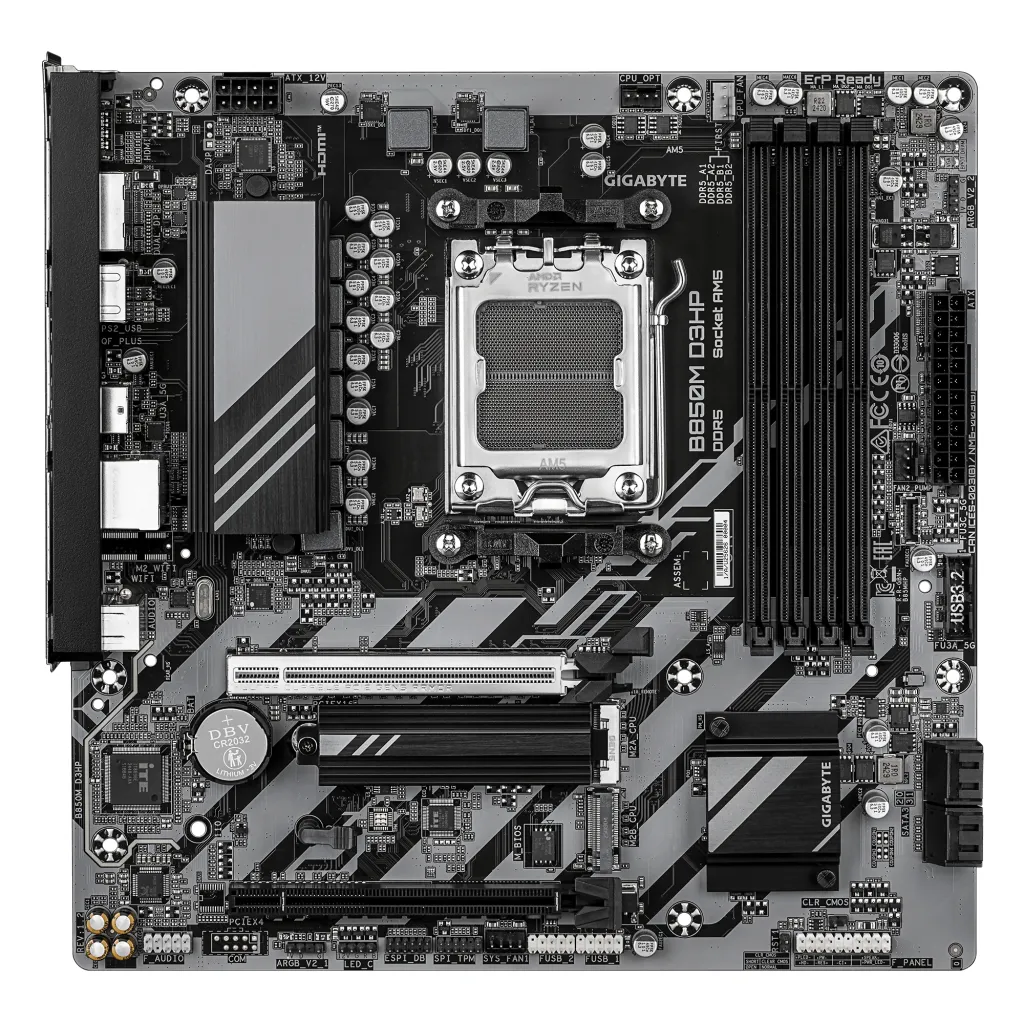

GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet

Unit Calculated Weight

1.18 kg

Unit Calculated Volume

0.006244 cubm

Maximum internal memory per slot

64 GB

ECC сompatibility

Non-ECC

CnCode

84733020

Unit Box Width

0.07

Unit Box Length

0.27

Unit Box Height

0.27

Memory slots type

DIMM

EPS power connector (8-pin)

Jah

ATX Power connector (24-pin)

Jah

BIOS type

UEFI AMI

Supported processor sockets

Socket AM5

Motherboard chipset family

AMD

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Garantiiaeg

3 year(s)

DisplayPort versioon

2.1

Kogus transpordikasti kohta

10

Toote värv

Brown

Number of CPU fan connectors

2

Kaasas tarkvara

Norton Internet Security (OEM version) LAN bandwidth management software

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

1st M.2 largest key size

2580

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

Component for

PC

2nd M.2 highest PCI Express generation

4.0

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

HDCP

Jah

Tootja koduleht

https://www.gigabyte.com/

Kõrgus

35 mm

Toote kaal

1300 g

Päritoluriik

China

DirectX version

12.0

DisplayPorts quantity

1

Ethernet interface type

Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD B850

Peripheral (Molex) power connectors (4-pin)

1

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

Number of memory slots

4

Processor Socket

Socket AM5

Raid Levels

0/1/10

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz

USB 2.0 connectors

2
