Mainboard|GIGABYTE|AMD B650|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B650M GAMING WIFI6E (rev. 1.4)|B650MGAMINGWIFI6E1.4

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

2

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Clear CMOS jumper

Jah

ACPI version

5.0

Number of M.2 (M) slots

1

Line-in

Jah

Number of storage drives supported

5

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Screws included

Jah

Processor manufacturer

AMD

Antenna included

Jah

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

USB 3.2

Jah

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

Supported memory clock speed (max)

6400 MHz

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.27

CnCode

84733020

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Unit Calculated Volume

0.006327 cubm

Unit Calculated Weight

1.12 kg

Summary

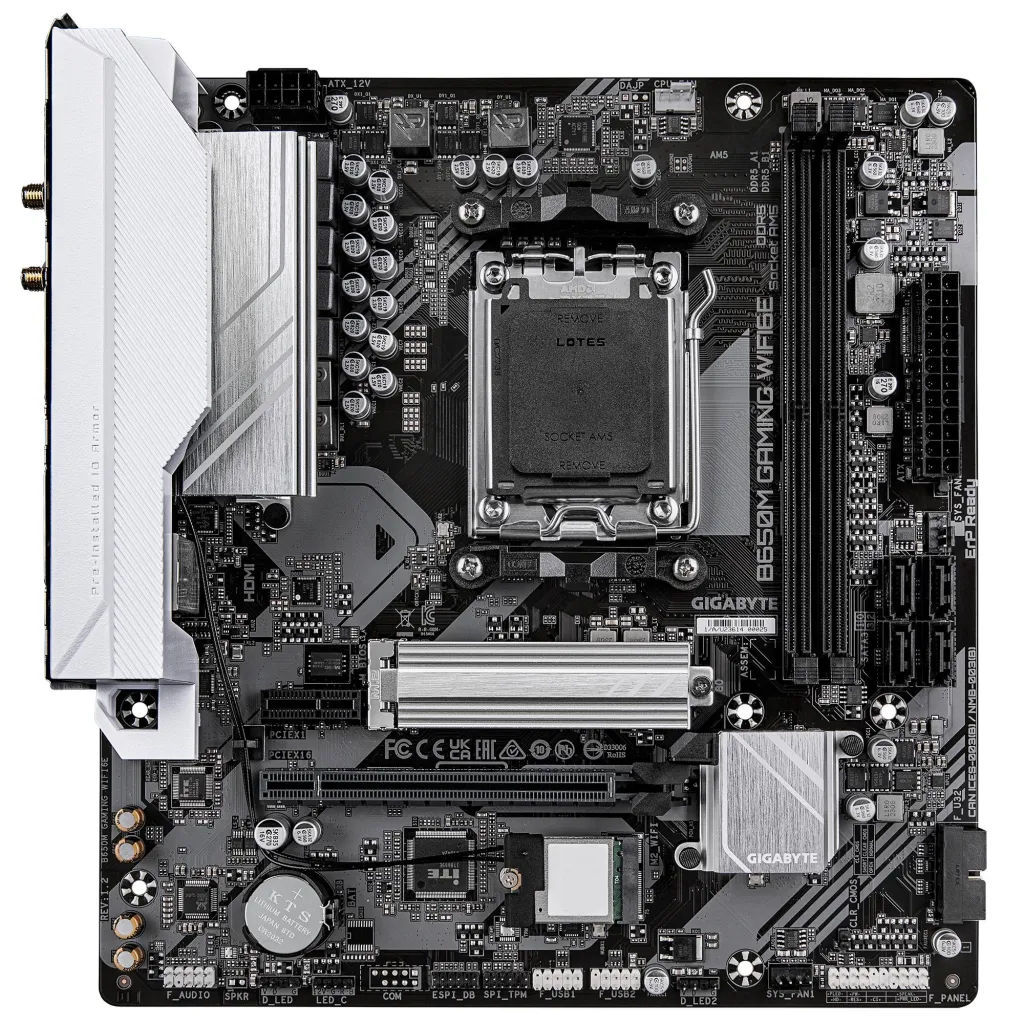

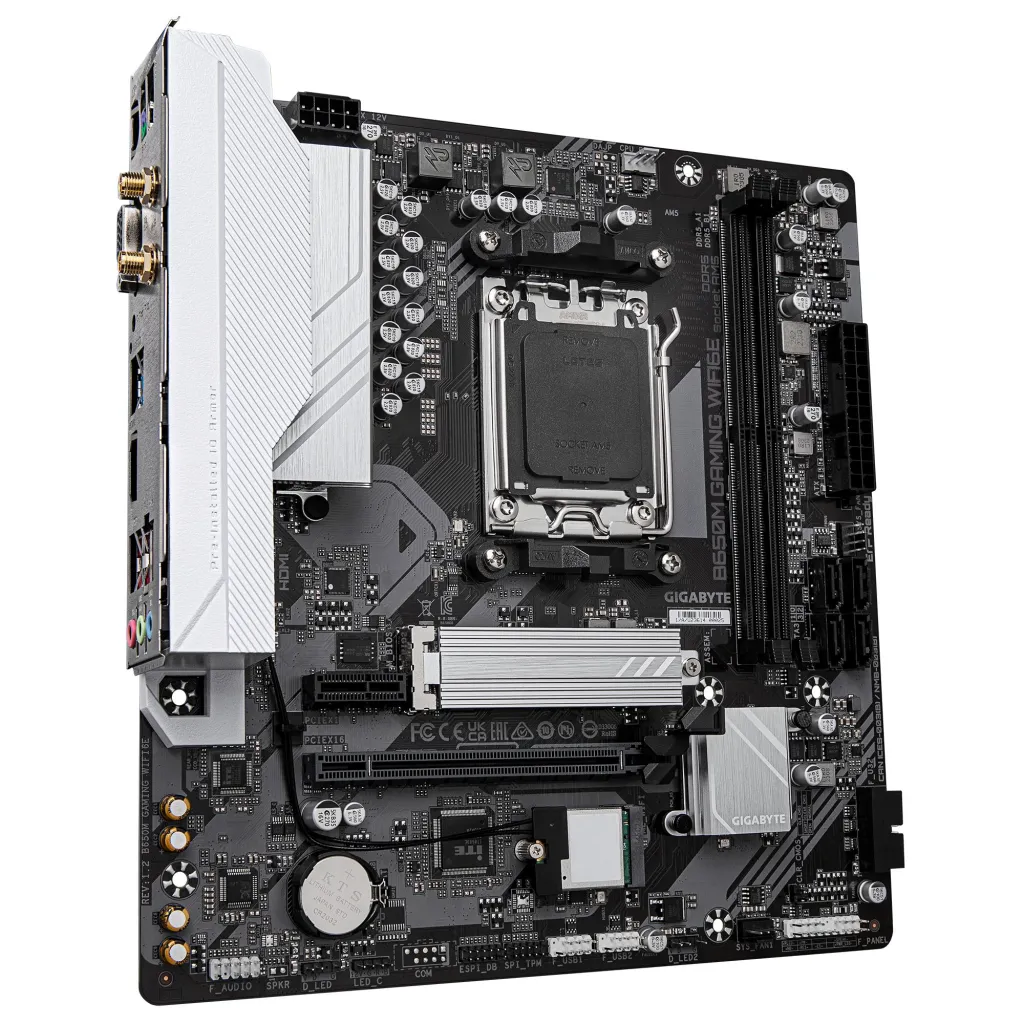

GIGABYTE B650M GAMING WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5 GbE LAN, WIFI 6E, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Products per shipping (inner) case

1 pc(s)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

PC health monitoring

Fan/Temperature/Voltage

Desktop Management Interface (DMI) version

2.7

Front panel connector

Jah

Lithium weight per battery

0.07 g

Garantiiaeg

3 year(s)

Kogus transpordikasti kohta

10

Number of CPU fan connectors

1

Kaasas tarkvara

Norton® Internet Security (OEM version) LAN bandwidth management software

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2580

1st M.2 highest PCI Express generation

4.0

Component for

PC

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Maksimaalne resolutsioon

4096 x 2160 pixels

HDCP

Jah

Tootja koduleht

https://www.gigabyte.com/

Kõrgus

35 mm

Toote kaal

720 g

Päritoluriik

China

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD B650

RAID support

Jah

Unbuffered memory

Jah

VGA (D-Sub) ports quantity

1

Windows operating systems supported

Windows 10 x64/Windows 11

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

Mudel

B650M GAMING WIFI6E (rev. 1.4)

Number of memory slots

2

Pakendi sügavus

268 mm

Pakendi kõrgus

68 mm

Pakendi kaal

1210 g

Pakendi laius

270 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400 MHz

USB 2.0 connectors

2
