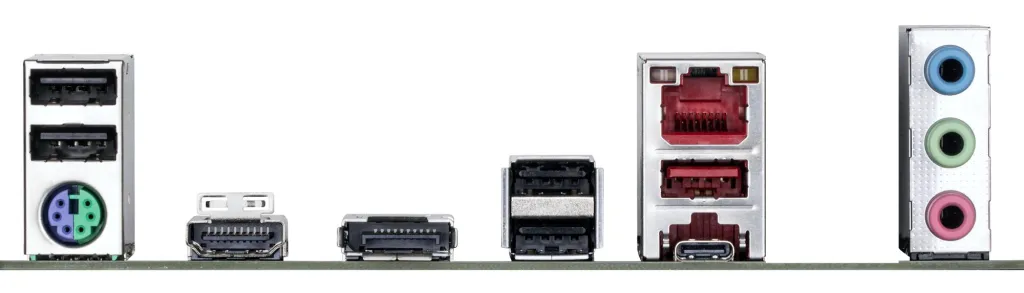

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H

Muud n?itajad

Compatible processor series

Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)

Supported processor sockets

LGA 1851

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

Number of chassis fan connectors

4

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Clear CMOS jumper

Jah

ACPI version

5.0

Number of M.2 (M) slots

2

Line-in

Jah

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2,SATA III

Screws included

Jah

Processor manufacturer

Intel

Serial port headers

1

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

PCI Express x16 (Gen 4.x) slots

4

PCI Express x16 (Gen 5.x) slots

1

Supported memory clock speed (max)

9066 MHz

Unit Box Height

0.27

Unit Box Length

0.34

Unit Box Width

0.08

CnCode

84733020

Warranty period

3 year(s)

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Unit Calculated Volume

0.01011 cubm

Unit Calculated Weight

1.58 kg

Summary

GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

Products per shipping (inner) case

1 pc(s)

Audio chip

Realtek ALC897

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Desktop Management Interface (DMI) version

2.7

Front panel connector

Jah

Lithium weight per battery

0.07 g

DisplayPort versioon

2.1

Kogus transpordikasti kohta

8

Toote värv

Dark brown

Number of CPU fan connectors

2

Kaasas tarkvara

Norton® Internet Security (OEM version) LAN bandwidth management software

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

3

Number of RGB LED pin headers

4

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

25110

Component for

PC

2nd M.2 highest PCI Express generation

4.0

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Maksimaalne resolutsioon

4096 x 2160 pixels

HDCP

Jah

Tootja koduleht

https://www.gigabyte.com/

Kõrgus

35 mm

Toote kaal

2000 g

Jahutuse tüüp

Passive

Country of origin

China

DirectX version

12.0

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

Intel B860

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

LAN controller

Realtek RTL8125

Mudel

B860 DS3H

Number of memory slots

4

Package depth

270 mm

Package height

80 mm

Package width

335 mm

Processor Socket

LGA 1851 (Socket V1)

Raid Levels

0/1/10/5

Supported memory clock speeds

5600/6400/9066 MHz

USB 2.0 connectors

2
