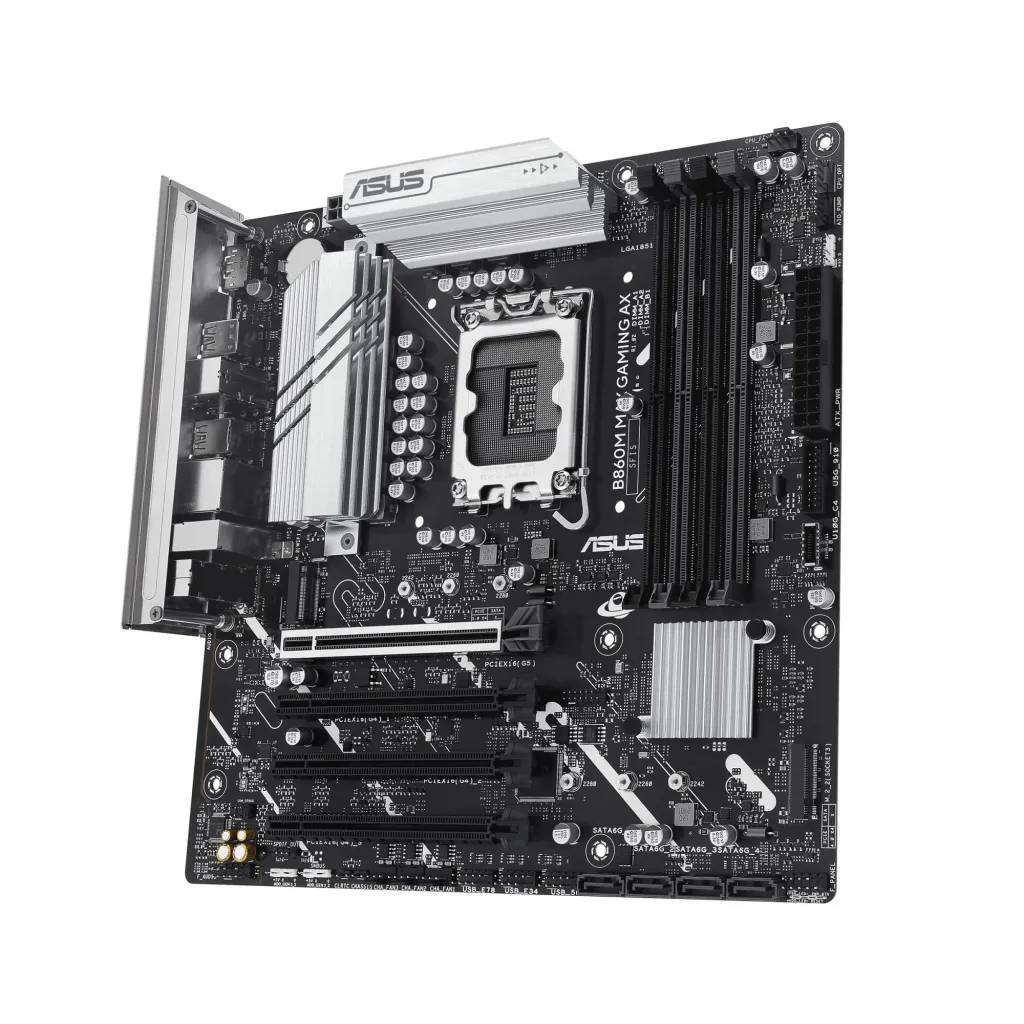

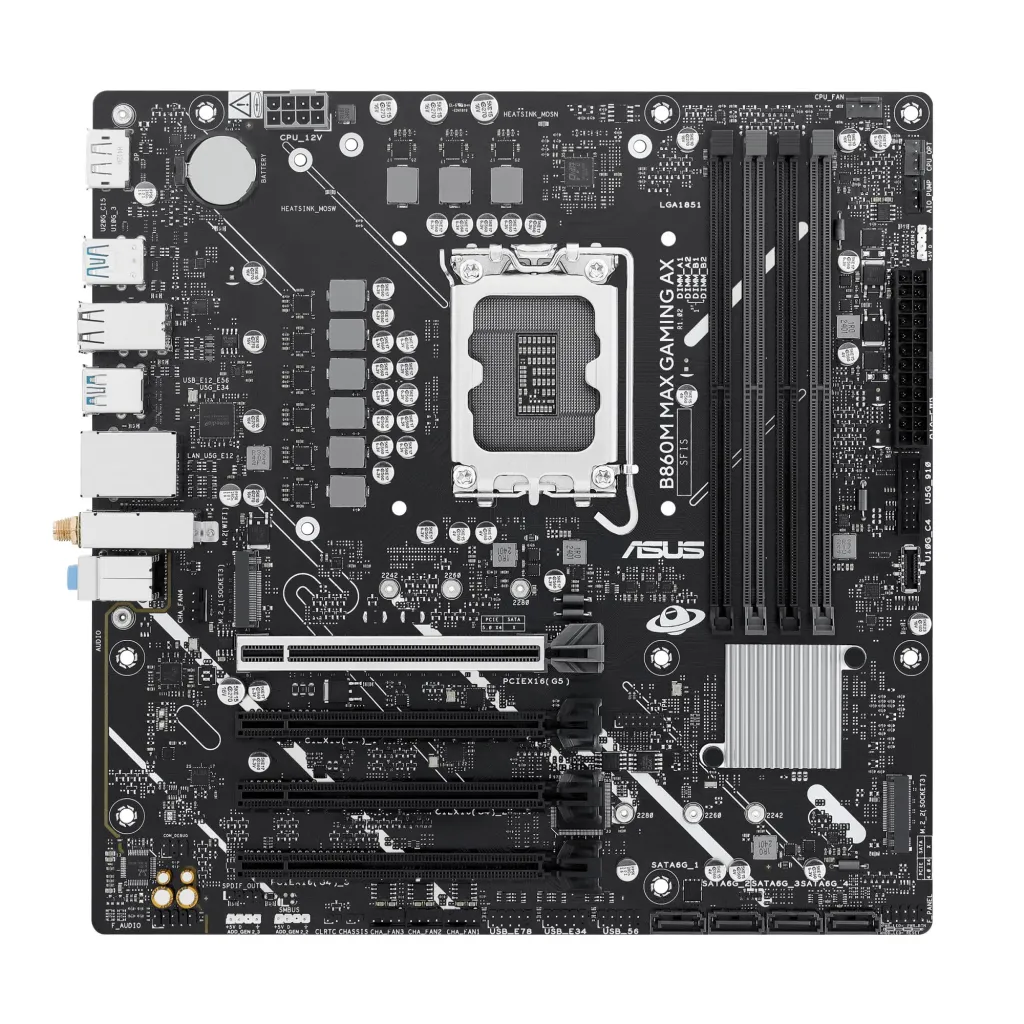

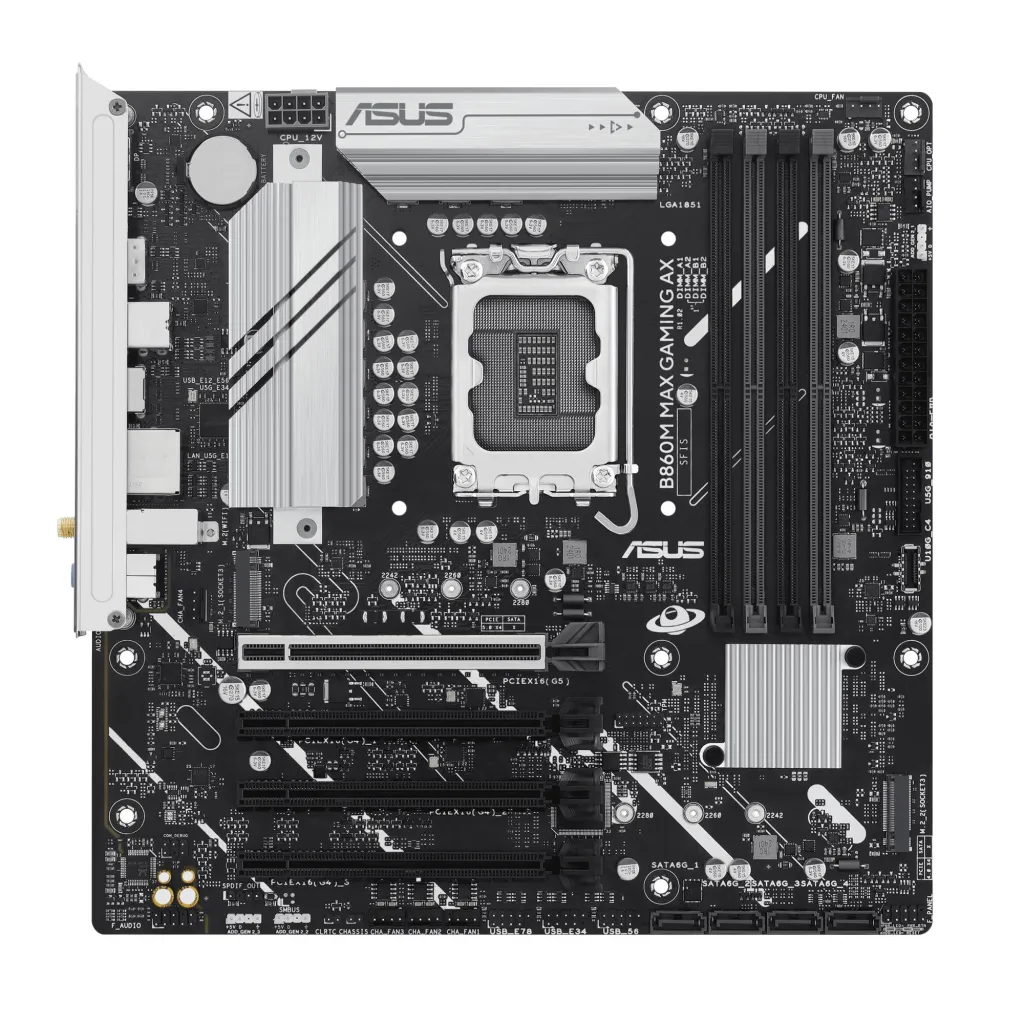

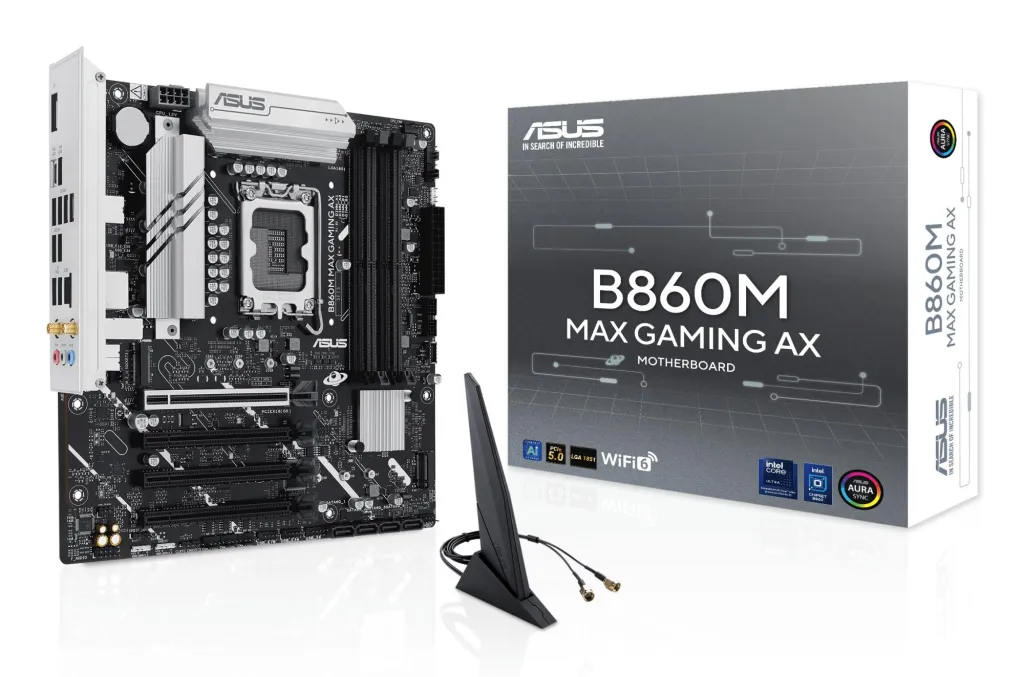

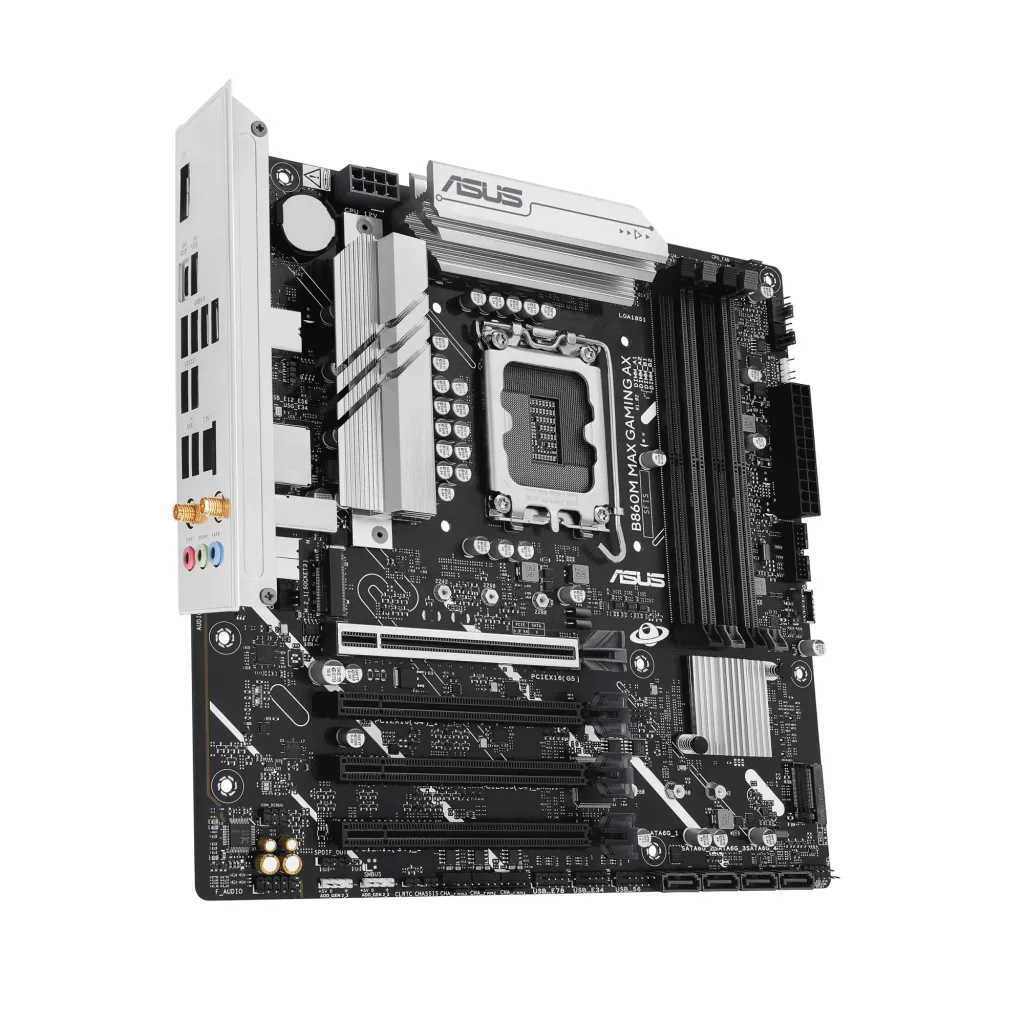

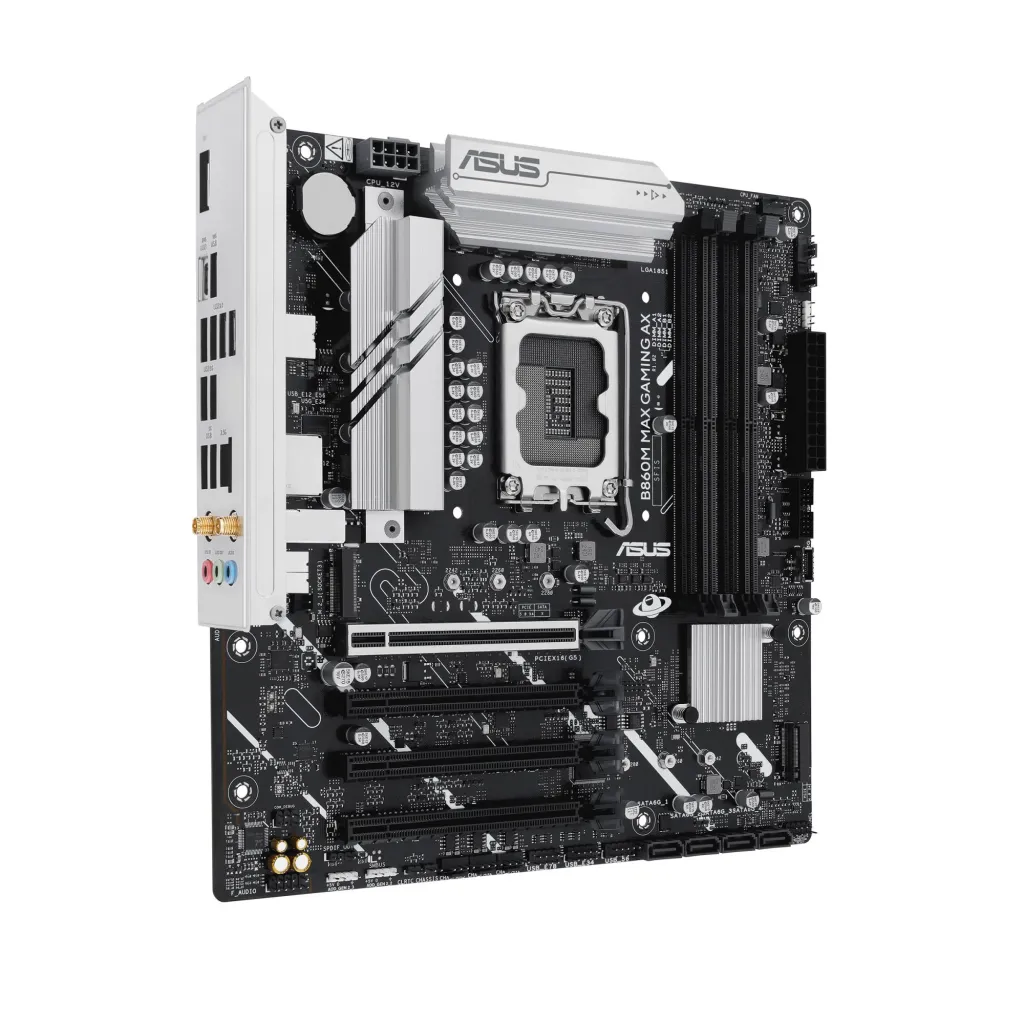

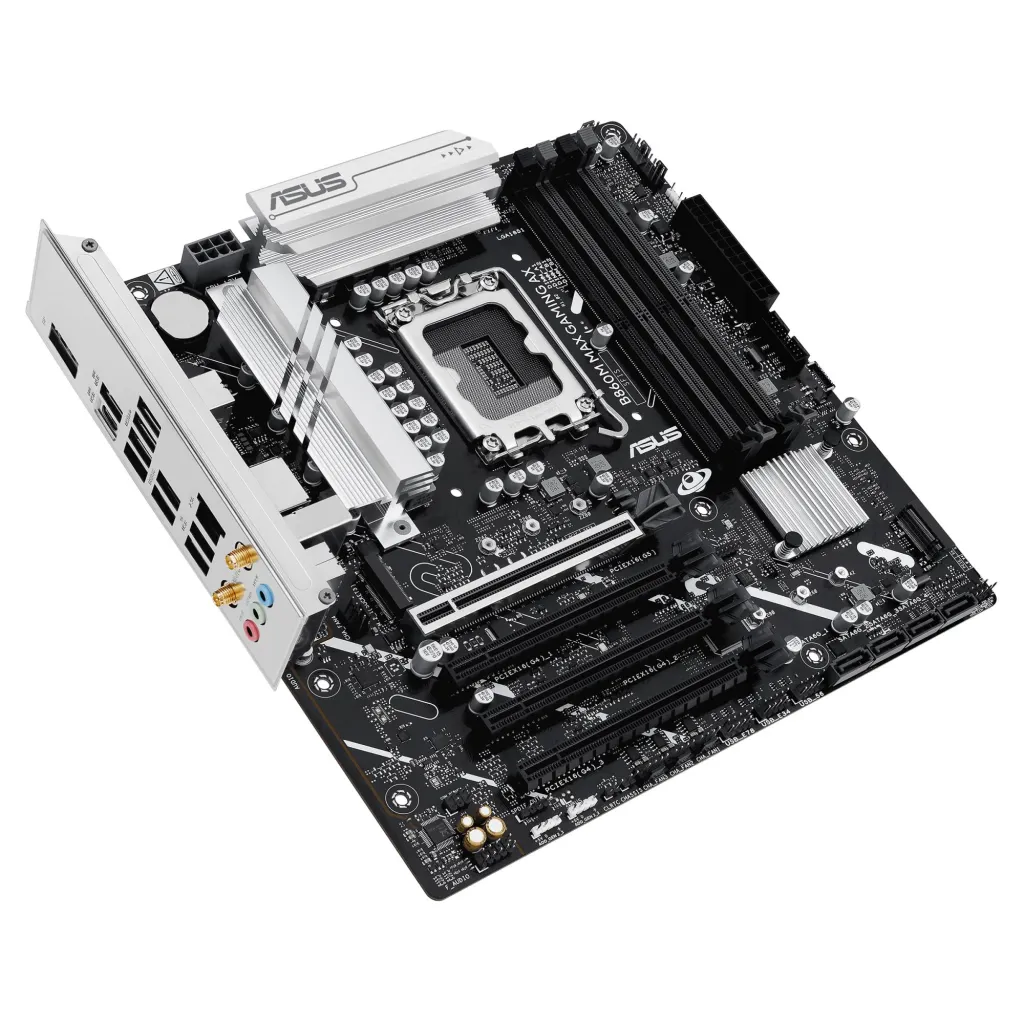

ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the B860M MAX GAMING AX motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance
Robust power design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The B860M MAX GAMING AX is designed to meet the needs of high-core-count CPUs. It features 6(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
Enhanced Memory & Storage Performance
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Three M.2 slots (up to 128Gbps)
The B860M MAX GAMING AX offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooling
Cooler by design
The B860M MAX GAMING AX motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Cooling
Smart cooling precision
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
Flexibility
Empowering connections
The B860M MAX GAMING AX motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.

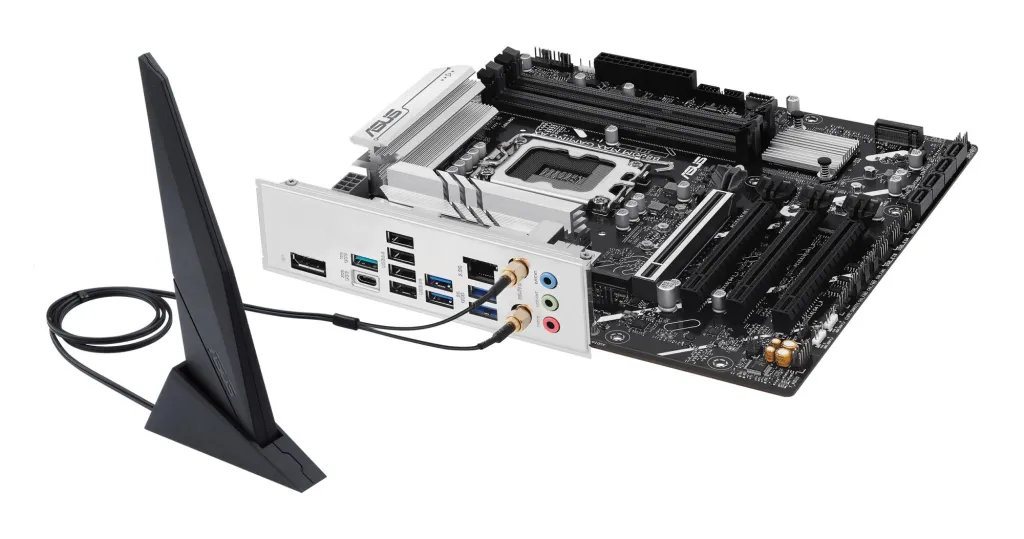

WiFi 6
The WiFi 6 module is compatible with the 802.11ax. Perhaps more importantly for users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic.
USB 20Gbps port
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Customization
Personalization
The B860M MAX GAMING AX enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
Addressable Gen2 RGB headers
Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
Customization
DIY friendly
The B860M MAX GAMING AX motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

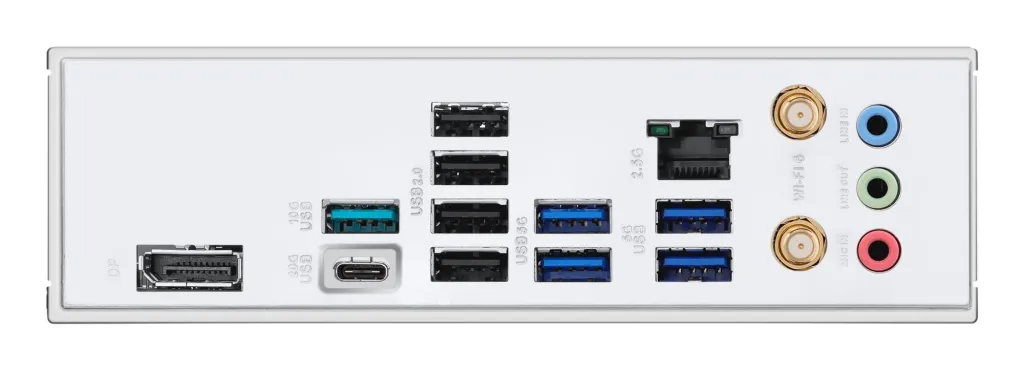

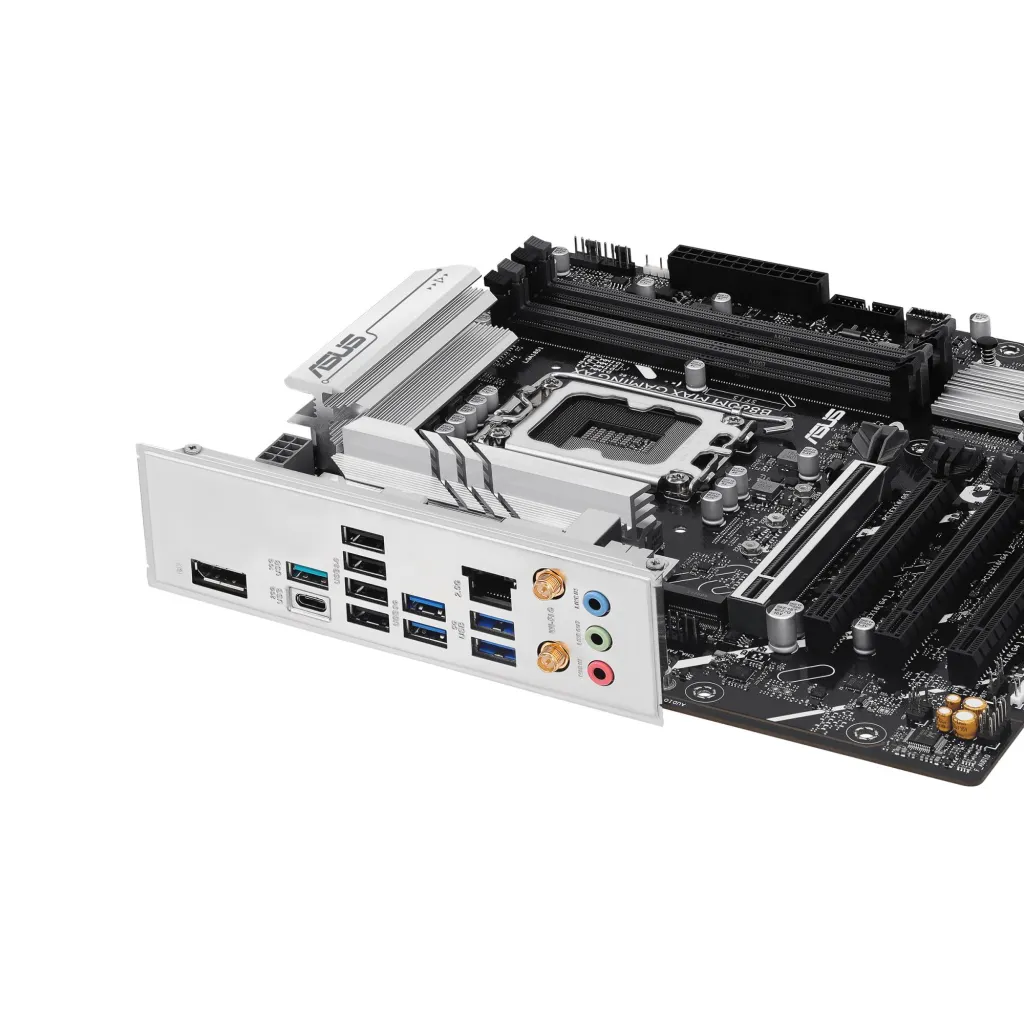

Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

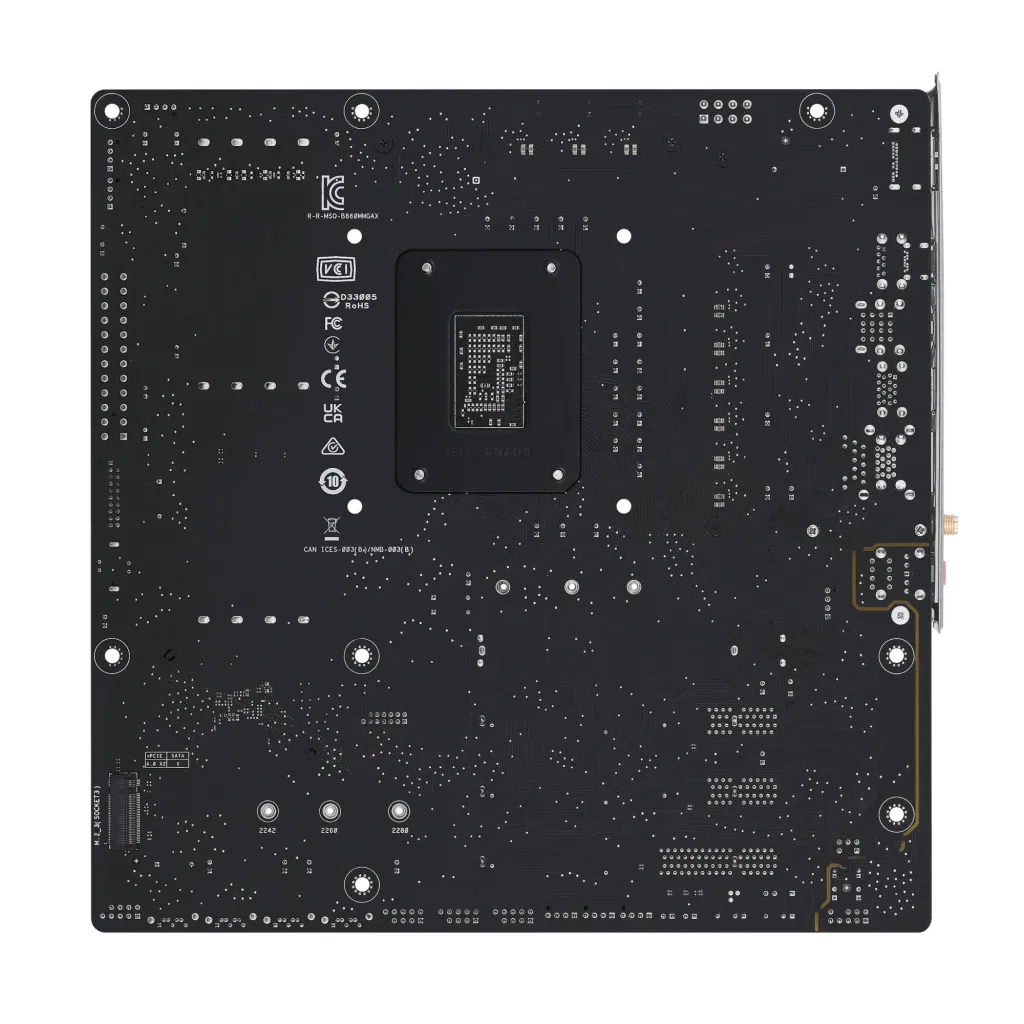

On the back of the motherboard.
Availability of ASUS AI Advisor may vary by region.
AI Advisor functions may vary by platform.
Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
Actual transmission speeds will be lower than the theoretical maximum speed.
| Tootja | ASUS |
| Tootekood | B860M MAX GAMING AX |
| EAN | 4711387831694 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 256 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Jah |
| WiFi-standardid | Wi-Fi 6 (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.3 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |
| Tagapaneeli I/O pesad | |
| USB 2.0 portide arv | 4 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| Muud näitajad | |
| Line-in | Jah |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| RGB LED pin header | Jah |
| Antenna included | Jah |
| Processor manufacturer | Intel |
| Screws included | Jah |
| Supported storage drive interfaces | PCI Express 4.0,PCI Express 5.0 |
| WiFi-AP antenna jack | 2 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 7 |
| Supported memory clock speed (max) | 8666 MHz |
| Number of M.2 (M) slots | 3 |
| Quick installation guide | Jah |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Jah |
| Front panel audio connector | Jah |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Chassis intrusion connector | Jah |
| Summary | ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax) |
| Front panel connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Product colour | Grey |
| CPU fan connector | Jah |
| Unit Calculated Weight | 1.435 kg |
| Unit Calculated Volume | 0.0061551 cubm |
| Units per Shipping Box | 10 |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | ECC & Non-ECC |
| CnCode | 84733020 |
| Unit Box Width | 0.275 |
| Unit Box Length | 0.279 |
| Unit Box Height | 0.068 |
| DisplayPort version | 1.4 |
| Number of chassis fan connectors | 4 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Component for | PC |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Maksimaalne resolutsioon | 3840 x 2160 pixels |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/others/b860m-max-gaming-ax/ |
| Cooling type | Passive |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B860 |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 256 Mbit |
| Mudel | B860M MAX GAMING AX |
| Number of memory slots | 4 |
| Processor Socket | LGA 1851 (Socket V1) |
| Raid Levels | 0/1/10/5 |
| USB 2.0 connectors | 3 |
