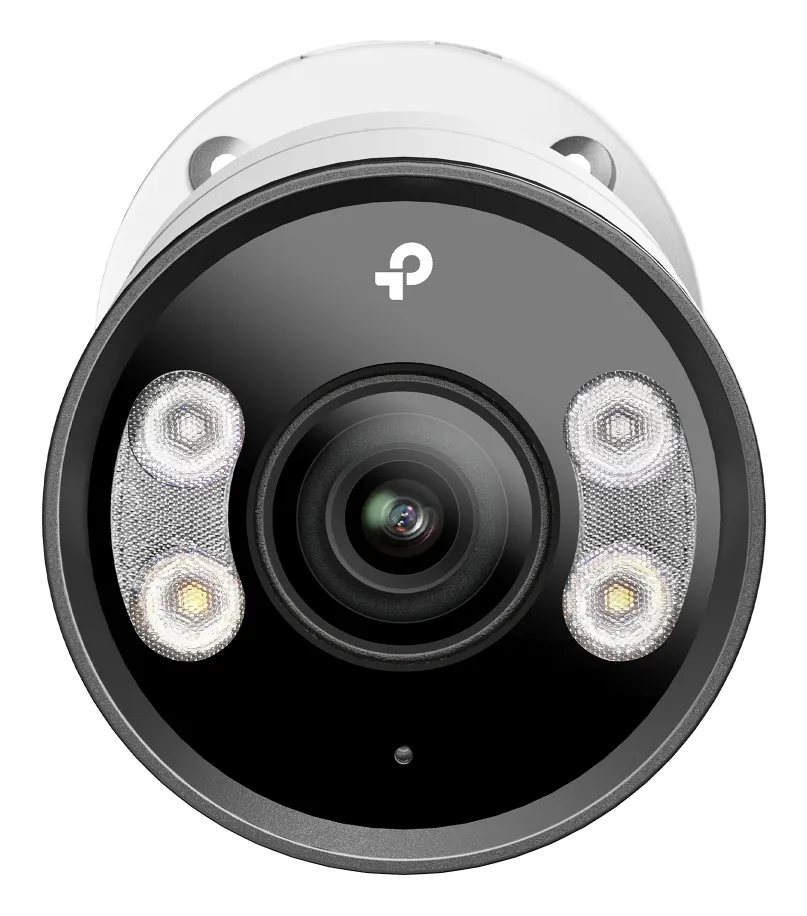

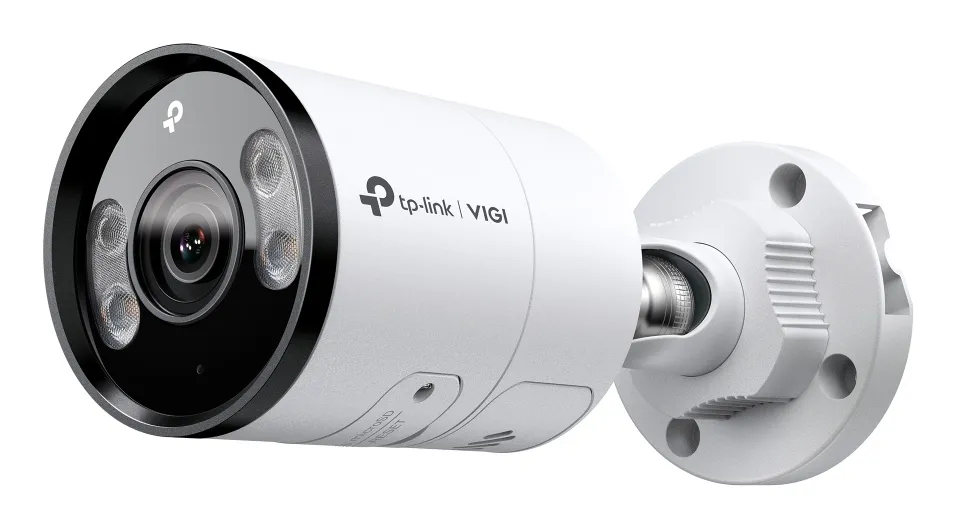

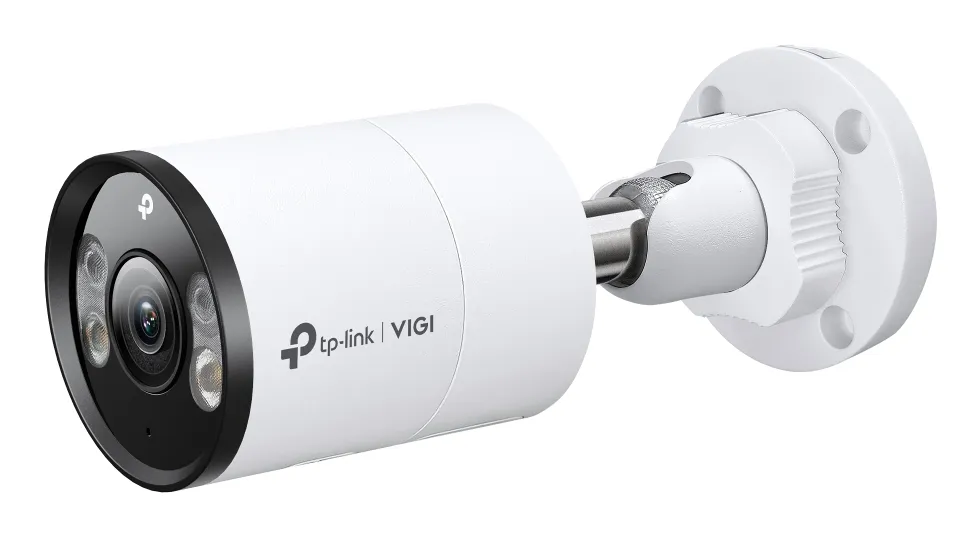

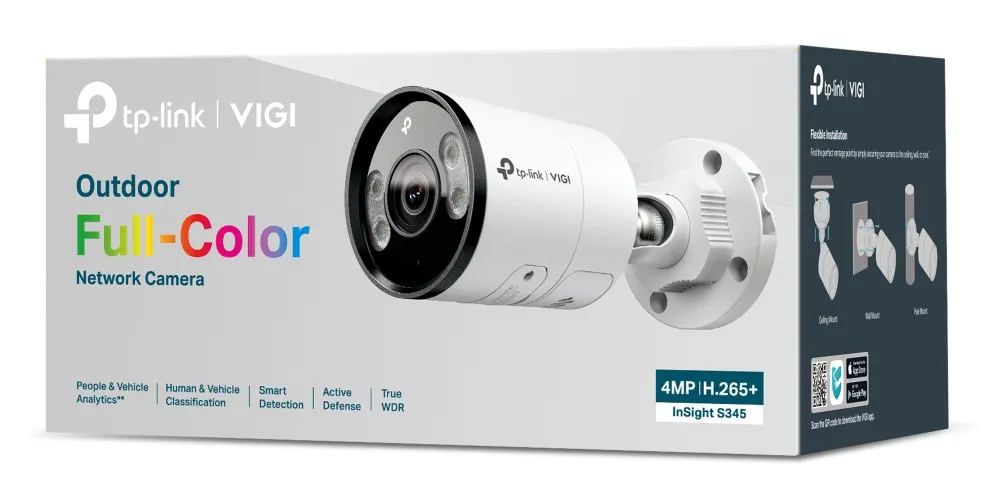

TP-Link INSIGHT S345 Kuul (kuju) IP süsteemiga turvakaamera Hooneväline 2688 x 1520 pikslit Sein

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.tp-link.com/us/business-networking/vigi-network-camera/insight-s345/v1%20(2.8mm%20lens)/#highlights

.: Disain :.

Toote värv

White

Kujutegur

Bullet

.: Mälu :.

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 A-law

.: Kaamera :.

Lens viewing angle, vertical

54 °

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3af/IEEE 802.3at

Web browser

Jah

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Pildisensor

Progressiivne skaneerimine

Jah

Juhtimisfunktsioonid

Veebipõhine haldus

Jah

Objektiivi süsteem

Lens viewing angle, horizontal

100 °

Lens viewing angle, diagonal

118 °

Öövaatluse funktsioon

Öönägemine

Jah

Ergonoomika

Lähtestusnupp

Jah

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi sisu :.

Paigalduskomplekt

Jah

.: Pakendi andmed :.

Kasutusjuhend

Jah

Tehnilised andmed

LED type

IR/White

Unit Calculated Volume

0.00286 cubm

Unit Box Width

0.13

Unit Box Length

0.22

Unit Box Height

0.1

HTTPS encryption

Jah

Alert notification type

Push notification

Remote viewing

Jah

Screws included

Jah

Number of microphones

1

Video motion detection

Jah

Sample rate

8 kHz

Motion sensor

Jah

Live view

Jah

Password protection

Jah

Placement supported

Outdoor

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Wide Dynamic Range (WDR)

Jah

Number of cameras

1

IP address filtering

Jah

Image quality adjustment

Brightness/Contrast/Mirror/Saturation/Sharpness

Observe distance

27 m

Drilling template included

Jah

Built-in siren

Jah

Cloud-managed

Jah

Power consumption (Power over Ethernet (PoE))

10.7 W

Bit rate range

0 - 64 Kbit/s

Audio input channels

1.0 channels

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Dynamic range

120 dB

Weatherproof

Jah

Recognize distance

13 m

Unit Calculated Weight

0.83 kg

Identify distance

6 m

Detect distance

64 m

Infrared (IR) cut-off filter

Jah

Human and vehicle targets classification

Jah

Digest authentication

Jah

Mirror

Jah

Highlight Compensation (HLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Back Light Compensation (BLC)

Jah

Tilt angle range

0 - 90 °

Summary

TP-Link INSIGHT S345. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 100°, Lens viewing angle, vertical: 54°, Lens viewing angle, diagonal: 118°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m

Built-in speaker(s)

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mounting type

Wall

Protection features

Waterproof

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+

Video recording

Jah

Audio system

2-way

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Built-in microphone

Jah

Camera shutter speed

1/3 to 1/10000 s

Connectivity Technology

Wired

Fixed focal length

2.8 mm

Housing material

Metal

Maximum memory card size

512 GB

Maximum operating distance

64 m

Optical sensor size

1/2.7 "

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

4 MP

Tehnilised andmed

Laius

74 mm

Kõrgus

74 mm

Toote kaal

525 g

Pikkus

184 mm
