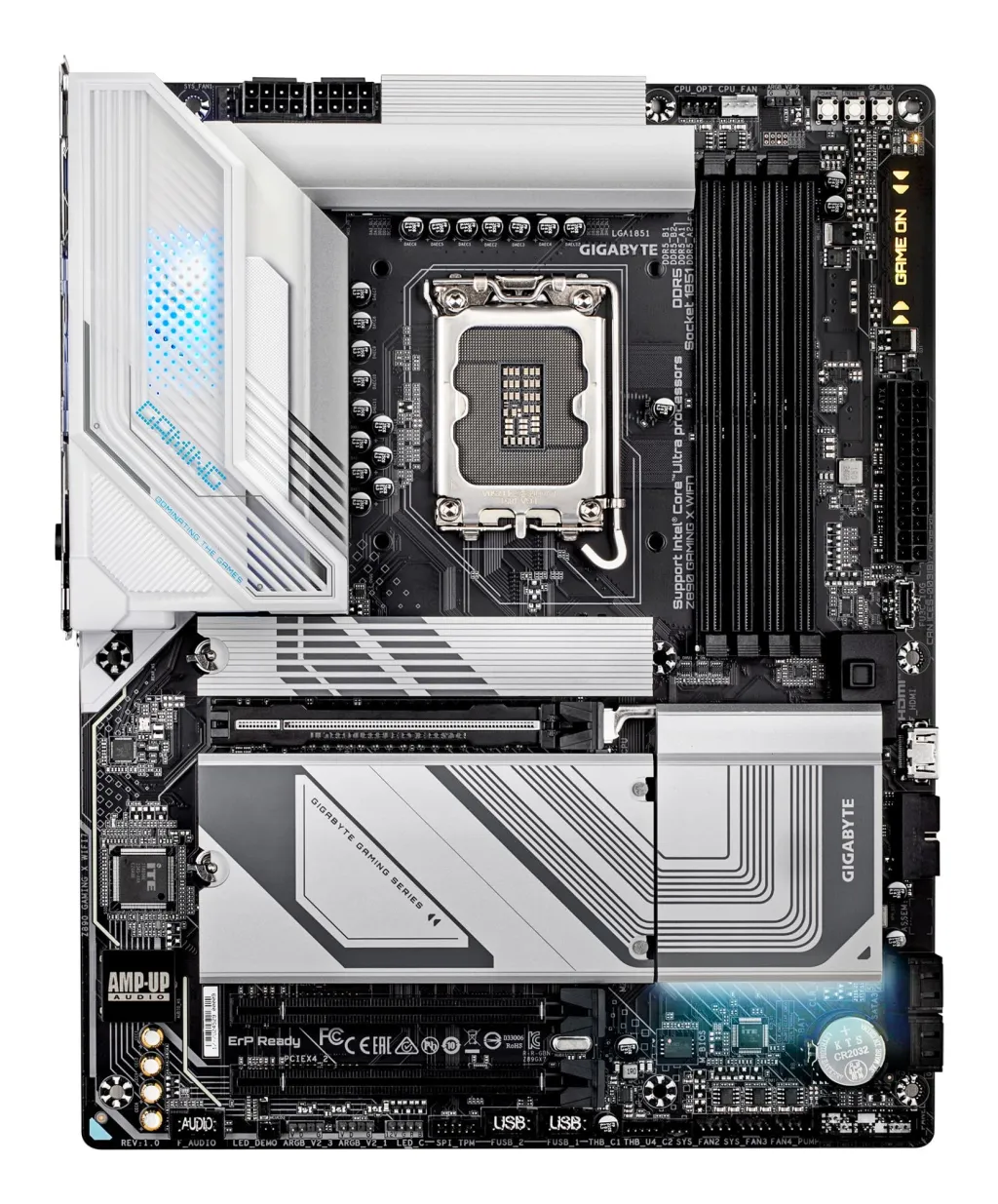

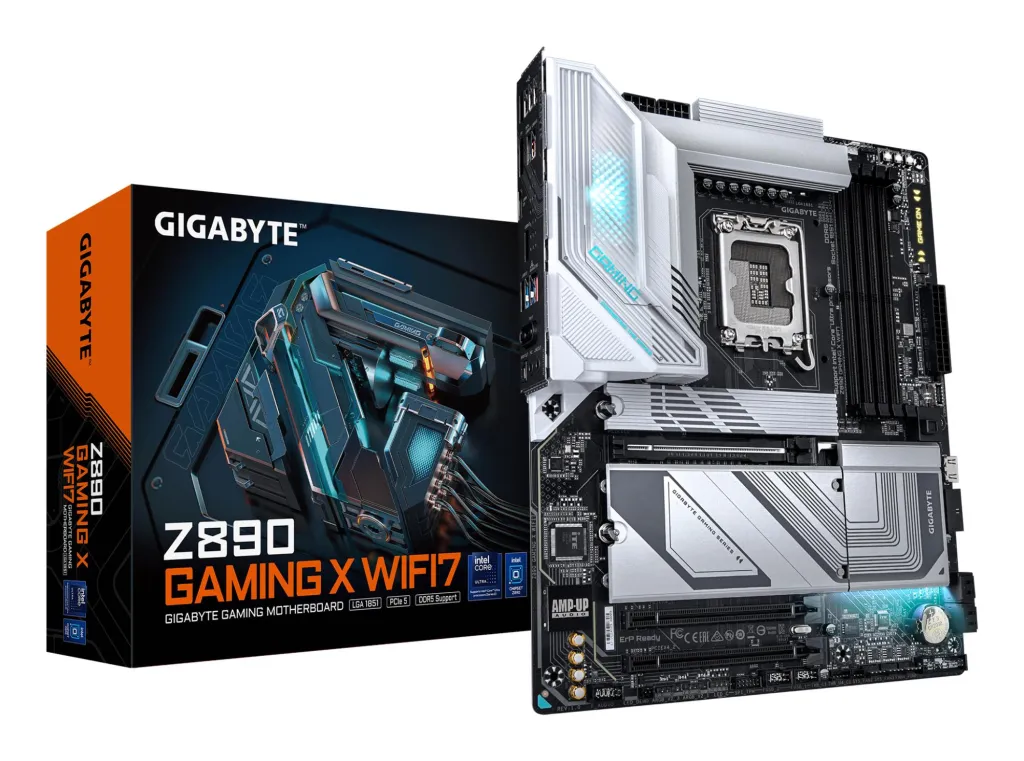

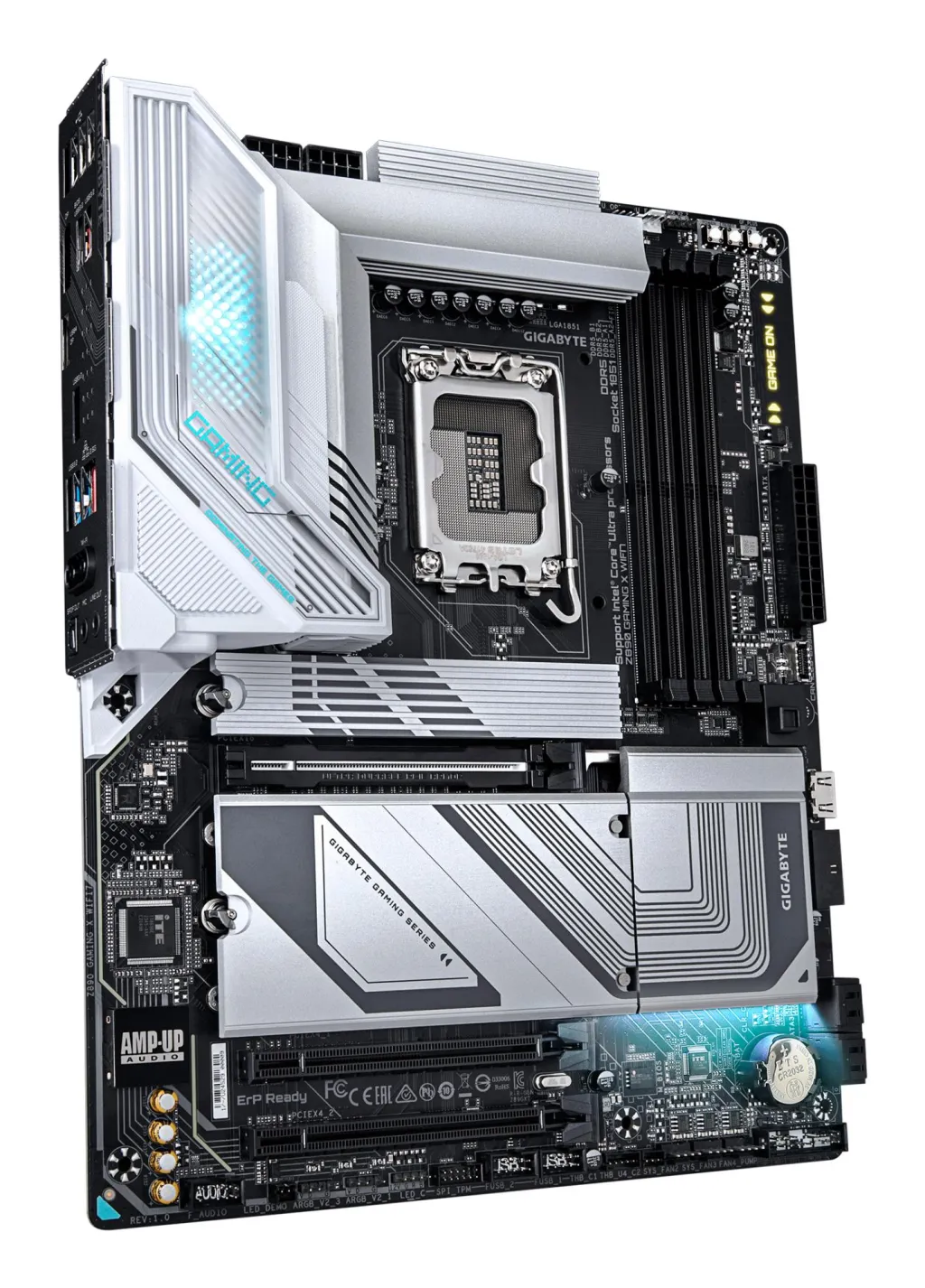

Mainboard|GIGABYTE|GIGABYTE Z890 GAMING X WIFI7|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|1xPCI Express x16 slots|4xNumber of M.2 (M) slots|Z890GAMINGXWIFI71.1

Muud näitajad

ACPI version

5.0

Unit Box Height

0.08

Supported memory clock speed (max)

8800 MHz

RGB LED pin header

Jah

System management BIOS (SMBIOS) version

2.7

Processor manufacturer

Intel

Thunderbolt ports quantity

2

Supported storage drive interfaces

M.2,SATA III

Supported memory module capacities

12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB

Supported storage drive types

HDD & SSD

Number of storage drives supported

4

Number of M.2 (M) slots

4

Unit Box Length

0.34

Clear CMOS button

Jah

Clear CMOS jumper

Jah

Number of SATA III connectors

4

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

S/PDIF out port

Jah

Motherboard chipset family

Intel

Memory slots type

DIMM

EPS power connector (8-pin)

Jah

BIOS type

UEFI AMI

WLAN controller model

MediaTek MT7925

Kokkuvõte

GIGABYTE Z890 GAMING X WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Lithium weight per battery

0.07 g

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

12V power connector

Jah

Desktop Management Interface (DMI) version

2.7

PC health monitoring

Fan/Temperature/Voltage

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of HDDs supported

8

Total number of SATA connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Audio chip

Realtek ALC1220

ATX Power connector (24-pin)

Jah

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Products per shipping (inner) case

1 tk

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Üksuse kalkuleeritud kaal

2.38 kg

Üksuse kalkuleeritud maht

0.01041 cubm

ECC сompatibility

Non-ECC

Garantiiaeg

3 aasta(s)

CnKood

84733020

Unit Box Width

0.275

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

PCI Express x16 slots

1

Tootja koduleht

https://www.gigabyte.com/Motherboard/Z890-GAMING-X-WIFI7

Mudel

GIGABYTE Z890 GAMING X WIFI7

Pakendi laius

335 mm

Pakendi kõrgus

80 mm

Kaasas tarkvara

Norton® Internet Security (OEM version)
LAN bandwidth management software

Component for

PC

Kogus transpordikasti kohta

6

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Pakendi sügavus

270 mm

Pakendi kaal

2550 g

Kõrgus

35 mm

Toote kaal

2270 g

DirectX version

12.0

DisplayPorts quantity

2

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Päritoluriik

China

Toote värv

Must

Microphone in

Jah

Motherboard chipset

Intel Z890

RAID support

Jah

Windows operating systems supported

Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

Maximum internal memory supported by processor

256 GB

Number of memory slots

4

Processor Socket

LGA 1851 (Socket V1)

Raid Levels

0/1/10/5

Supported memory clock speeds

5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600 MHz

USB 2.0 connectors

2
