SALE OUT. ASUS M5A78L-M LX3 / AMD 760G (780L)/SB710 / 2 x DIMM, Max. 16GB, DDR3, Dual channel / Expansion: 1 x PCIe 2.0(x16), 1 x PCIe 2.0(x1), 1 x PCI / Storage: 4 x SATA 3Gb/s port(s), Raid ( 0, 1, 10, JBOD ) / Qualcomm Atheros, 1 x Gigabit LAN Controller / 8 x USB 2.0 / uATX Asus M5A78L-M LX3 Processor family AMD, Processor socket Socket AM3+,

.: Ühendus :.

I/O-pordid

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)4 x SATA 3Gb/s connector(s)1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s)

.: Üldised omadused :.

Audioväljundi kanalid

7.1

Emaplaadi kujutegur

Mikro ATX

Graafikaprotsessor

Integrated ATI Radeon™ HD 3000 GPU VGA output support : RGB port- Supports RGB with max. resolution 2560 x 1440 @ 75 HzMaximum shared memory of 1024 MBHybrid CrossFireX™ Support *1Supports DirectX 10

.: Disain :.

Kujutegur

uATX Form Factor 9.6 inch x 7.4 inch ( 24.4 cm x 18.8 cm )

Laienduspesade arv

1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 1 x PCI

.: Protsessor :.

Protsessori perekond

AMD

.: Mälu :.

Component for

PC

Maksimaalne sisemälu

16 GB

Mälupesad

2

Sisemälu

2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered MemoryDual Channel Memory Architecture GB

.: Võrgustumine :.

WiFi

Ei

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

USB 2.0 portide arv

4

USB port

Built-in Controller : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

USB versioon

Built-in Controller : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

.: Salvestusruum :.

Salvestusmaht kokku

AMD SB710 controller : 4 x SATA 3Gb/s port(s), blueSupport Raid 0, 1, 10, JBOD GB

.: Tehnilised andmed :.

Garantii

3 kuu(s)

Tagapaneeli I/O pesad

PS/2-portide kogus

2

Graafikad

Eraldiseisva graafika adapteri mudel

Integrated ATI Radeon™ HD 3000 GPU VGA output support : RGB port- Supports RGB with max. resolution 2560 x 1440 @ 75 HzMaximum shared memory of 1024 MBHybrid CrossFireX™ Support *1Supports DirectX 10

.: Toetatud operatsioonisüsteemid :.

Muud toetatud operatsioonisüsteemid

DriversASUS PC Probe IIASUS Update Anti-virus software (OEM version)

.: Pakendi andmed :.

Kaablid kaasa arvatud

SATA

Tehnilised andmed

Drivers included

Jah

Memory slots type

DIMM

ATX Power connector (24-pin)

Jah

Motherboard chipset family

AMD

Chassis intrusion connector

Jah

Supported memory types

DDR3-SDRAM

Memory channels

Kahekordne

Front panel audio connector

Jah

CPU fan connector

Jah

Non-ECC

Jah

Number of EATX power connectors

1

Parallel processing technology support

Hybrid CrossFireX

ACPI version

2.0

FSB Parity

Up to 5.2 GT/s HyperTransport™ 3

Networking features

Gigabit Ethernet

Graphics adapter

Radeon HD 3000

Compatible processor series

Athlon, Athlon FX, P

PCI Express slots version

2.0

PCI Express x16 slots

1

Plastic (No PET)

15 g

Controller interface type

AMD SB710

PCI Express slots quantity

2

Number of SATA II connectors

4

Processor thermal power (max)

95 W

Motherboard southbridge

AMD SB710

S/PDIF in port

Ei

BIOS type

AMI

COM ports quantity

1

Discrete graphics support

Ei

PCI Express x1 slots

1

DirectX version

10

Mudeli number

M5A78L-M LX3

Ethernet interface type

Gigabit

Ethernet LAN (RJ-45) ports

1

Graphics adapter family

ATI

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD 760G

On-board graphics adapter

Jah

PCI slots

1

Saleout

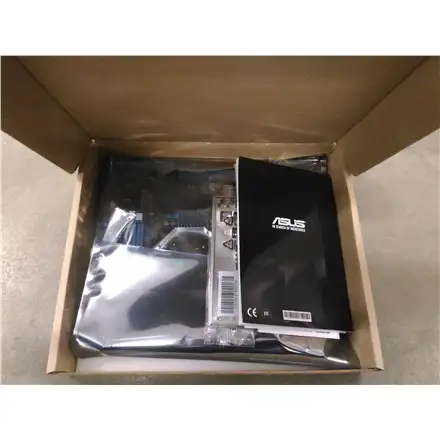

REFURBISHED. USED. BACK PANEL INCLUDED, WITHOUT ORIGINAL PACKAGING AND ACCESSORIES.

Supported hard disk drive interfaces

SATA, Serial ATA II

Unbuffered memory

Jah

VGA (D-Sub) ports quantity

1

Audio system

Realtek ALC887

BIOS memory size

2 MB

Expansion slots

1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 1 x PCI

Maximum graphics adapter memory

1024 MB

Processor Socket

Pesa AM3+

Raid Levels

0, 1, 10, JBOD

Special features

ASUS EPU :- EPU Core UnlockerASUS Exclusive Features :- Anti-SurgeASUS Quiet Thermal Solution :- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2

Supported memory clock speeds

1066,1333,1600,1866 MHz

USB 2.0 connectors

2

Tehnilised andmed

Maksimaalne resolutsioon

2560 x 1440 pixels

Tehnilised andmed

Kiibistik ( Chipset)

AMD 760G (780L)/SB710

Tehnilised andmed

Netokaal

0.70 kg

Brutokaal

0.90 kg

Laius

24.4 cm

Sügavus

18.8 cm

Tehnilised andmed

Tarvikud kaasa arvatud

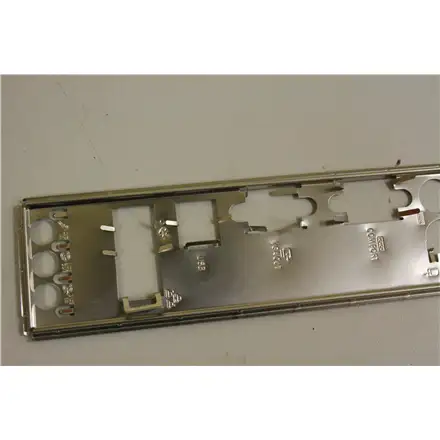

User's manualI/O Shield2 x SATA 3Gb/s cable(s)
