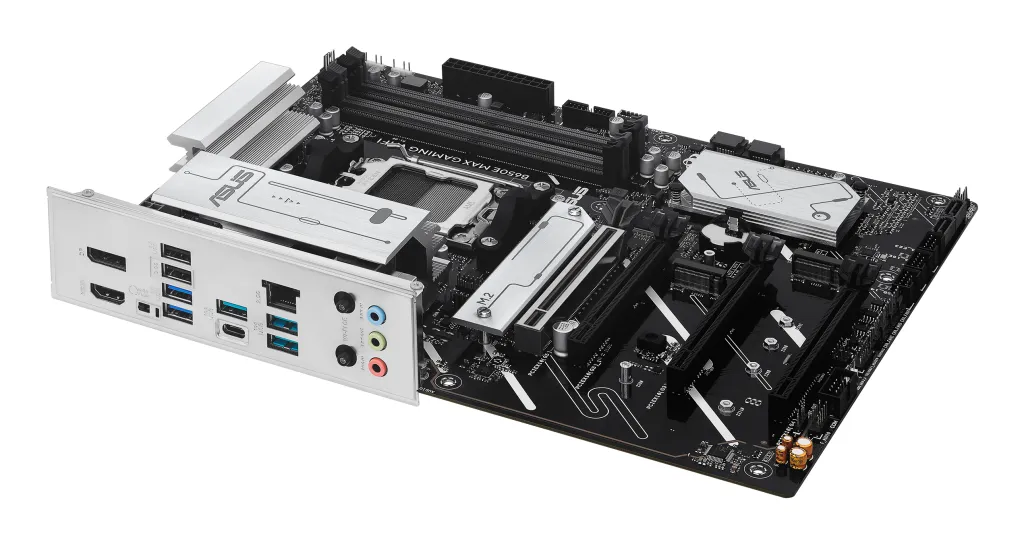

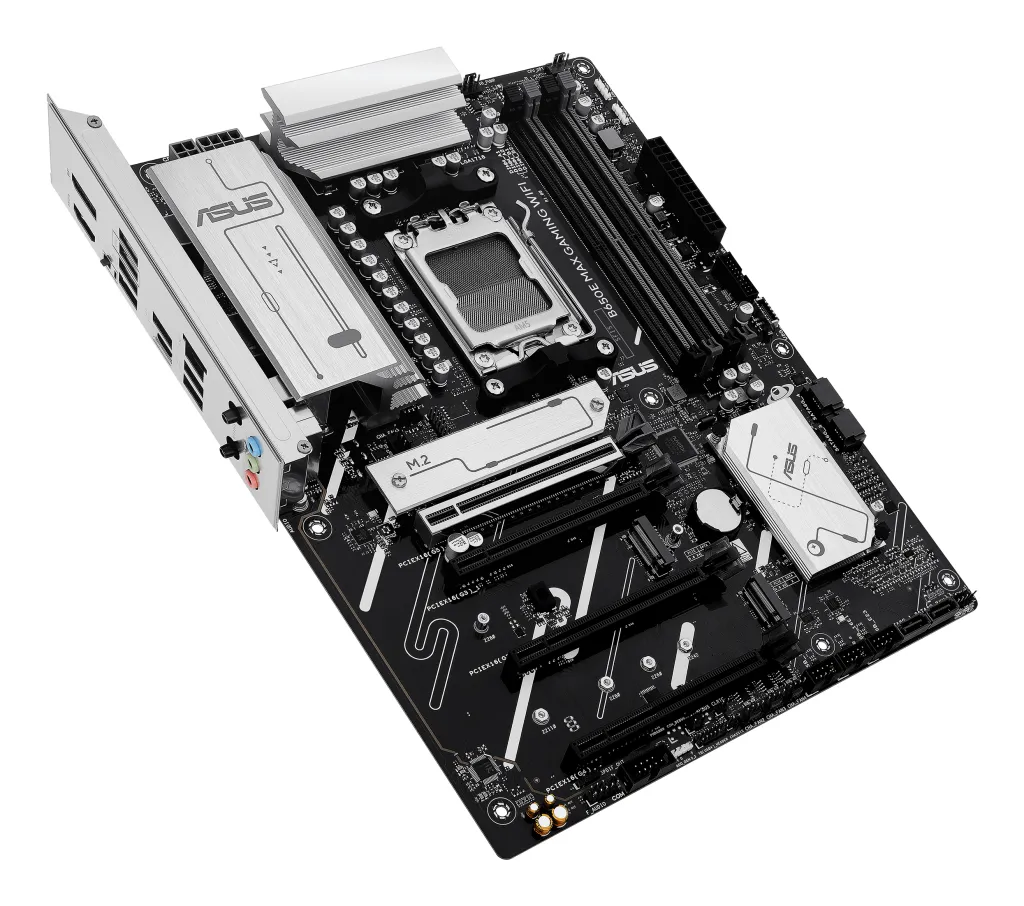

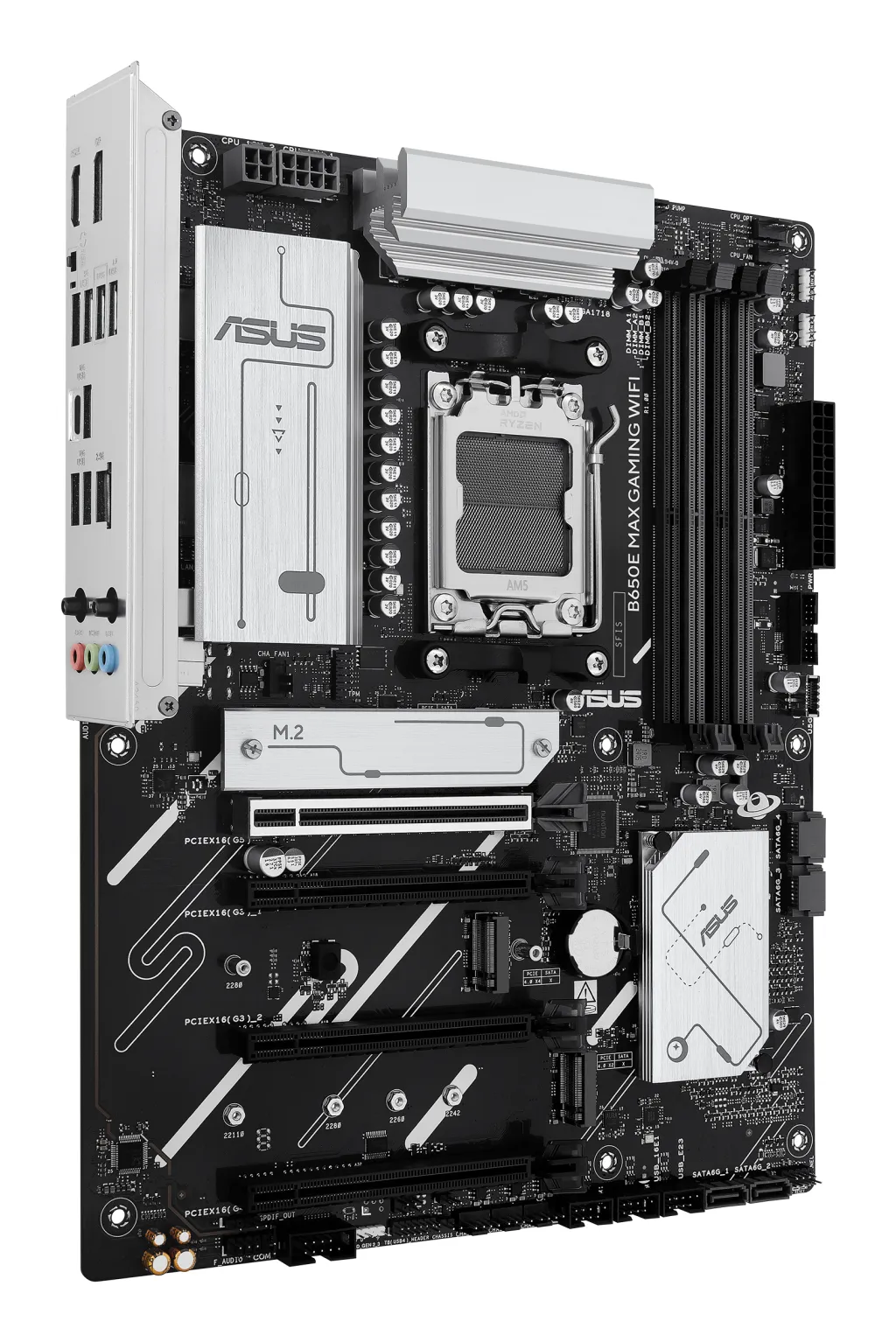

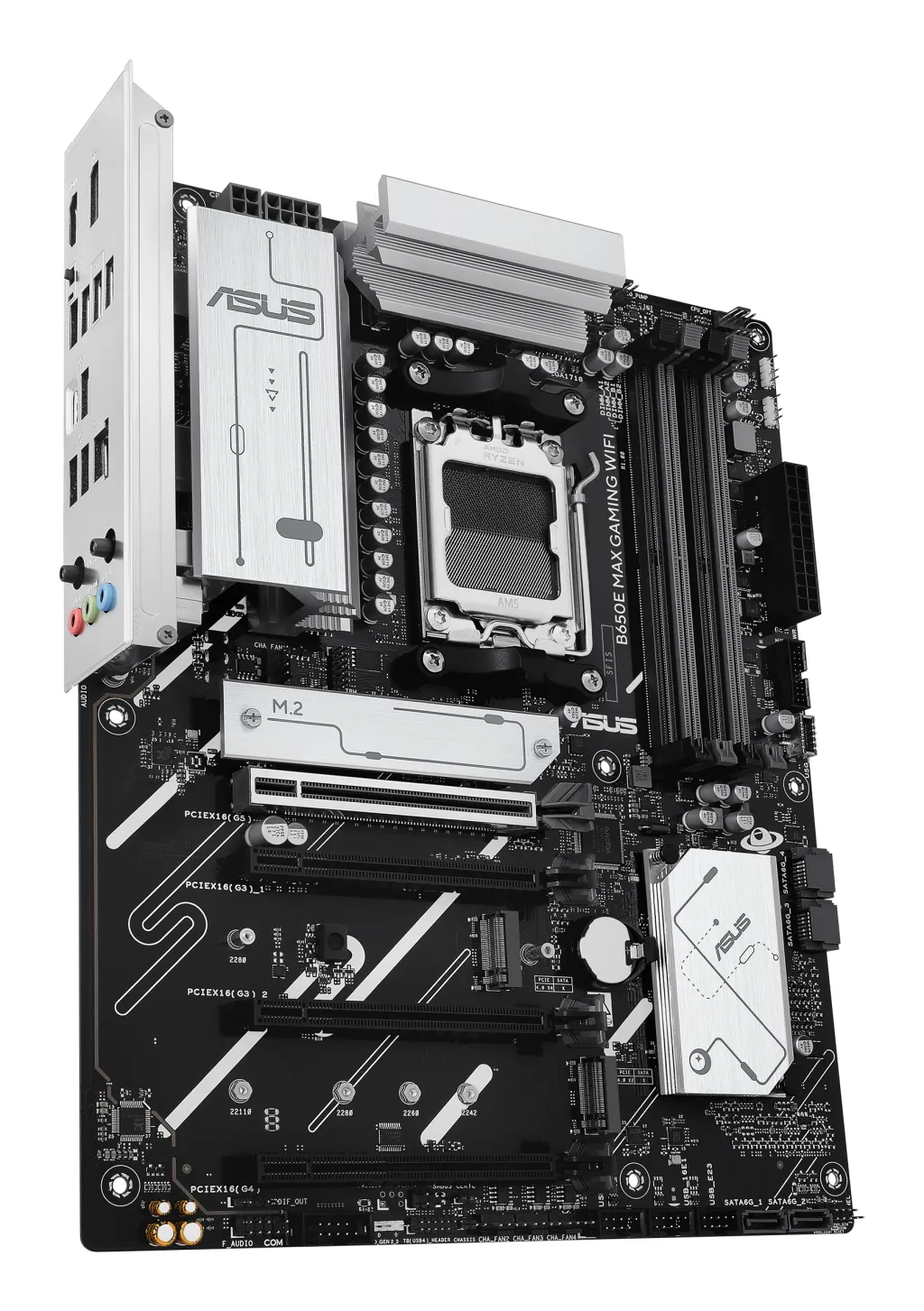

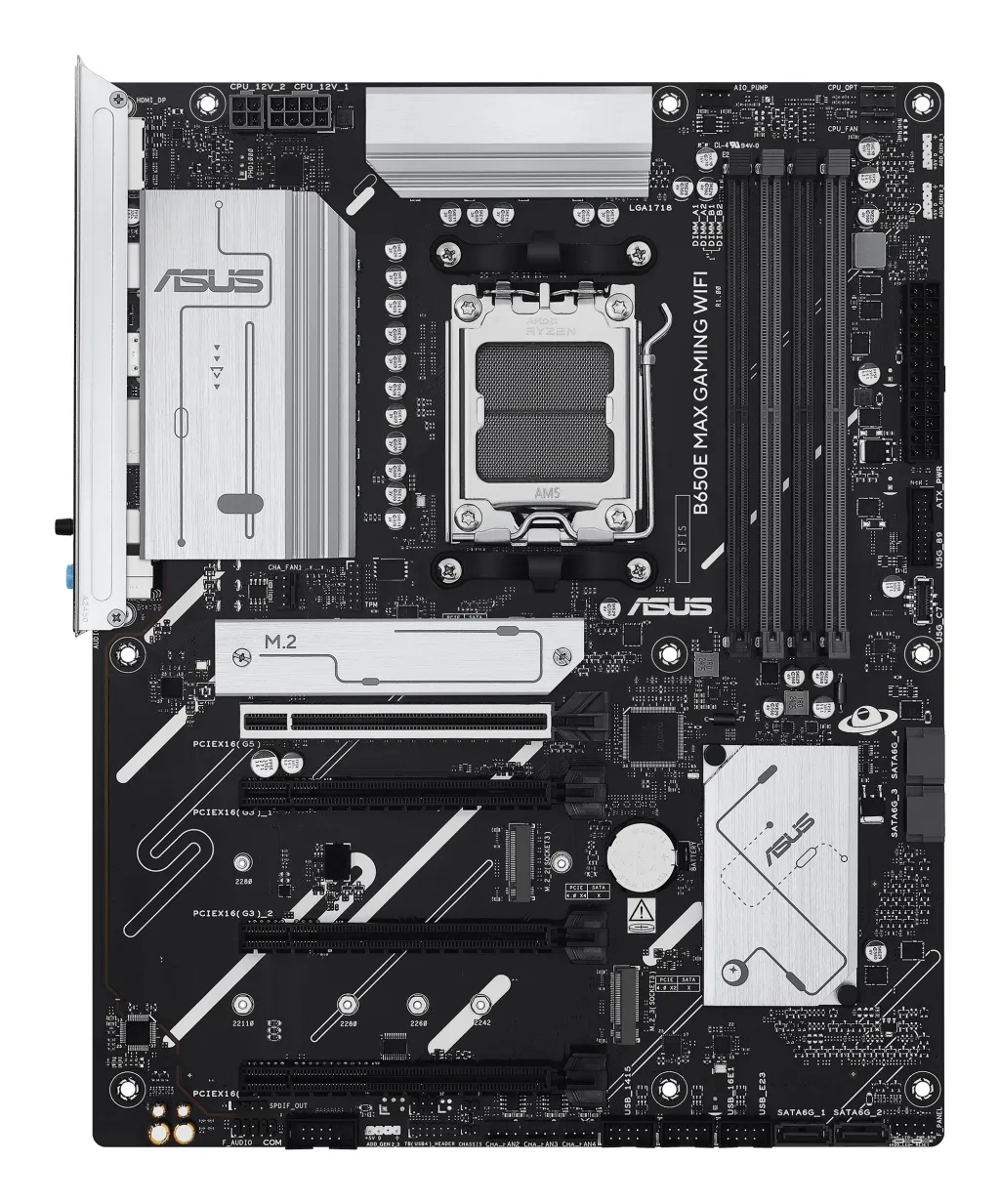

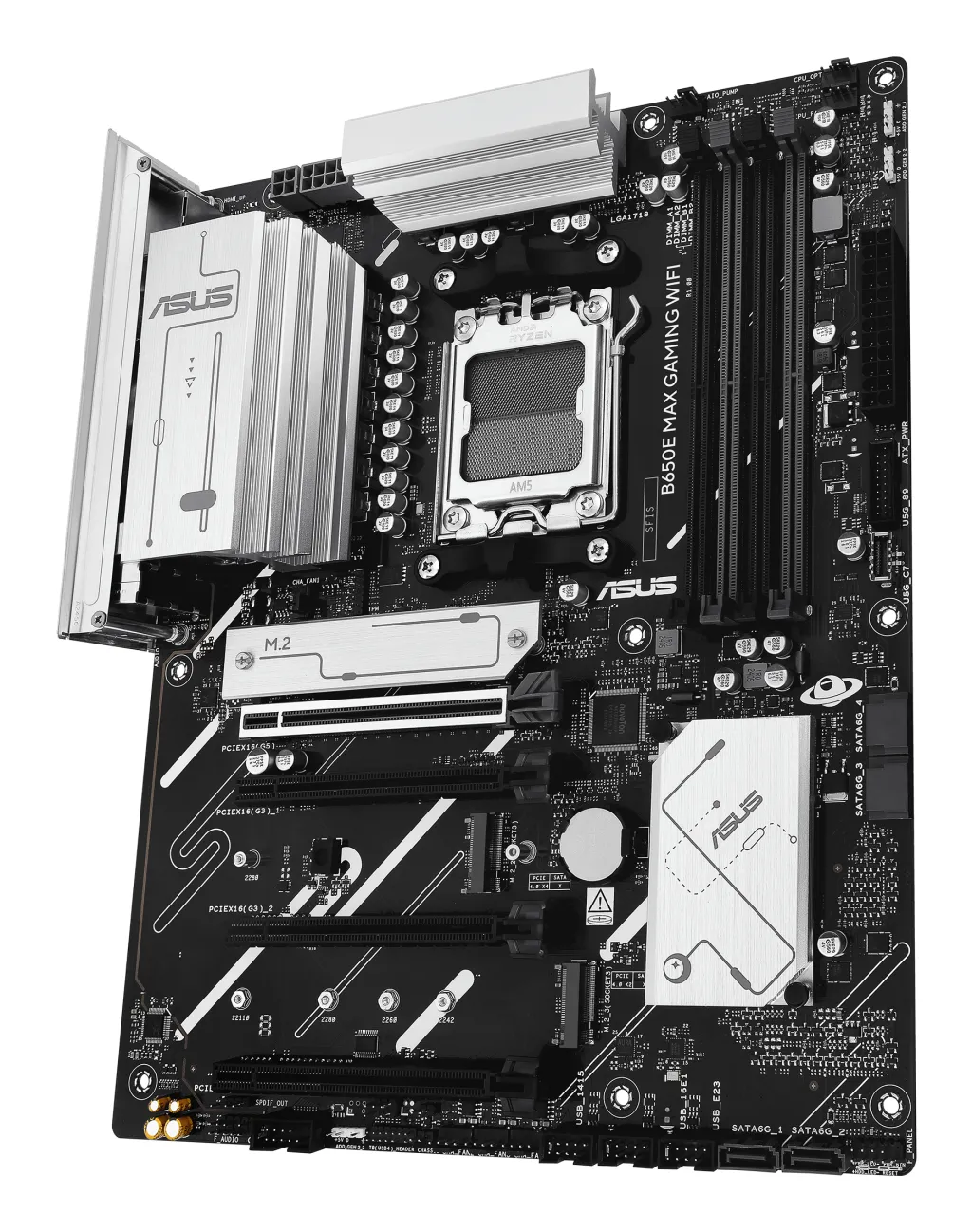

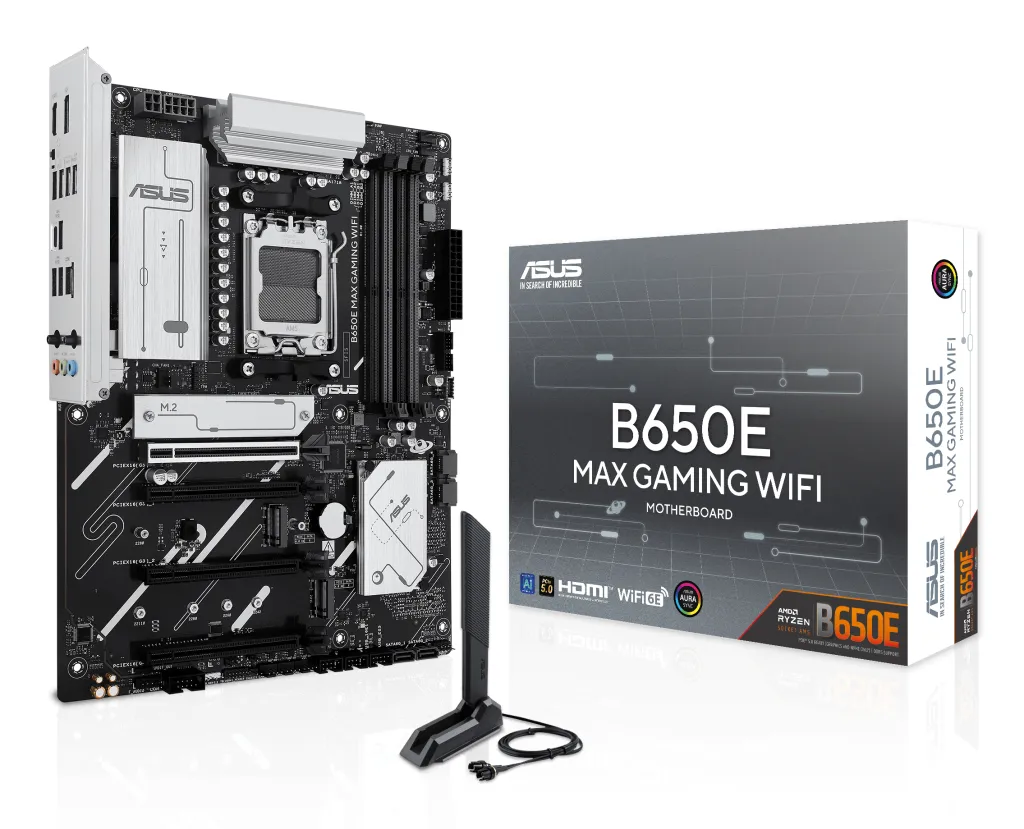

ASUS B650E MAX GAMING WIFI AMD B650 Protsessoripesa AM5 ATX

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

4

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

PCI Express x16 (Gen 3.x) slots

2

Parallel processing technology support

Not supported

Number of M.2 (M) slots

3

Line-in

Jah

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,PCI Express 5.0,SATA III

Screws included

Jah

Processor manufacturer

AMD

Antenna included

Jah

RGB LED pin header

Jah

USB 3.2

Jah

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.071

Unit Box Length

0.355

Unit Box Width

0.274

CnCode

84733020

ECC сompatibility

Non-ECC

Unit Calculated Volume

0.007963 cubm

Unit Calculated Weight

1.82 kg

Summary

ASUS B650E MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Front panel connector

Jah

DisplayPort versioon

1.4

Kogus transpordikasti kohta

5

Toote värv

Black

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

Component for

PC

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi/

Transpordipakendi kaal

9.1 kg

Transpordipakendi kõrgus

29.4 cm

Transpordipakendi laius

36.7 cm

Transpordipakendi sügavus

36.9 cm

Kõrgus

48 mm

Tarvikud kaasa arvatud

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide

Toote kaal

1050 g

Jahutuse tüüp

Passive

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD B650

Peripheral (Molex) power connectors (4-pin)

1

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11

BIOS memory size

256 Mbit

DisplayPort

1

Mudel

B650E MAX GAMING WIFI

Number of memory slots

4

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Pakendi kaal

1260 g

Pakendi laius

353 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10/5

USB 2.0 connectors

3

USB-C

Jah
