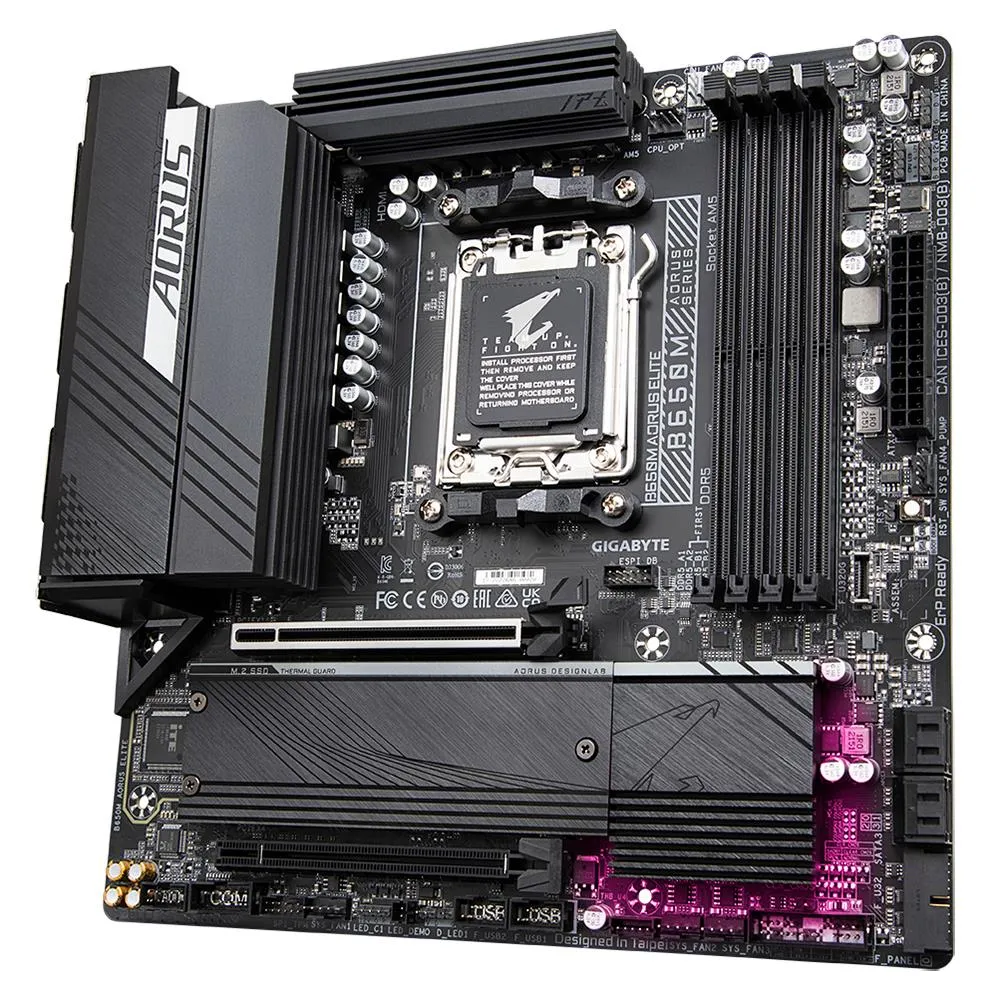

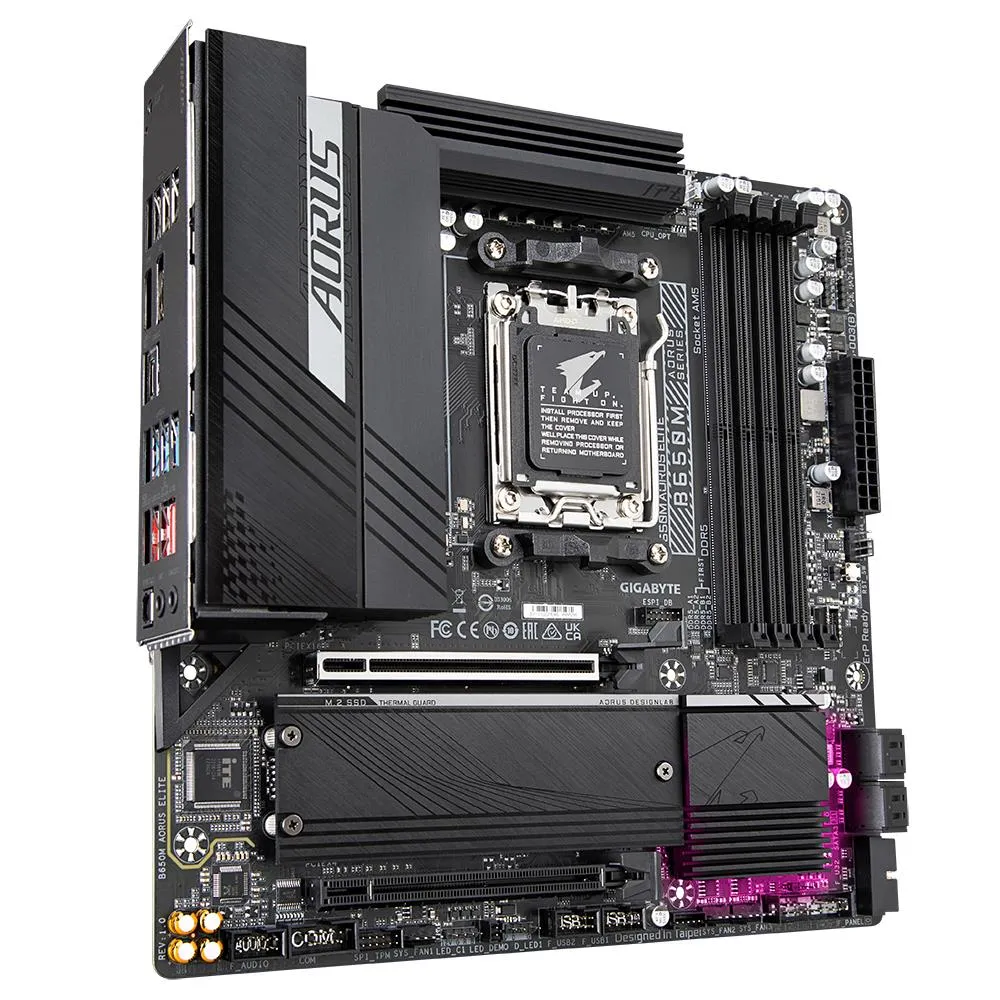

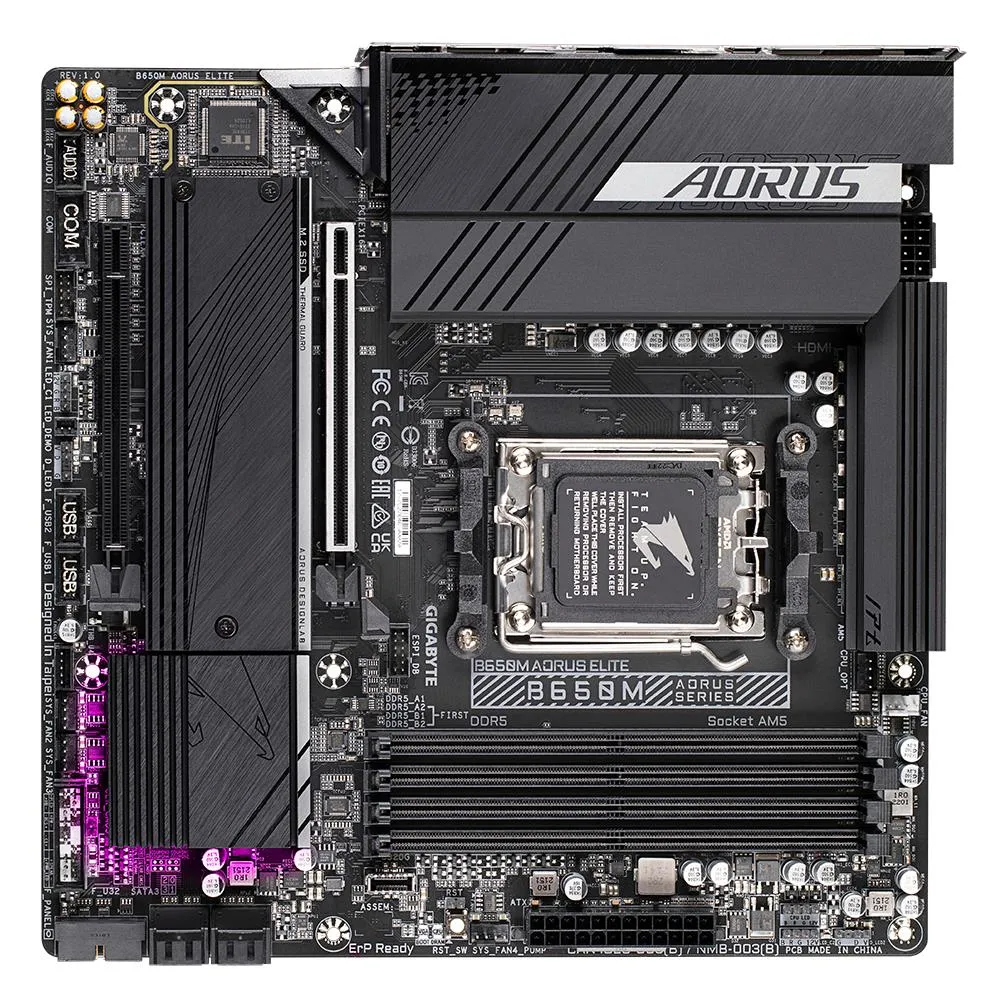

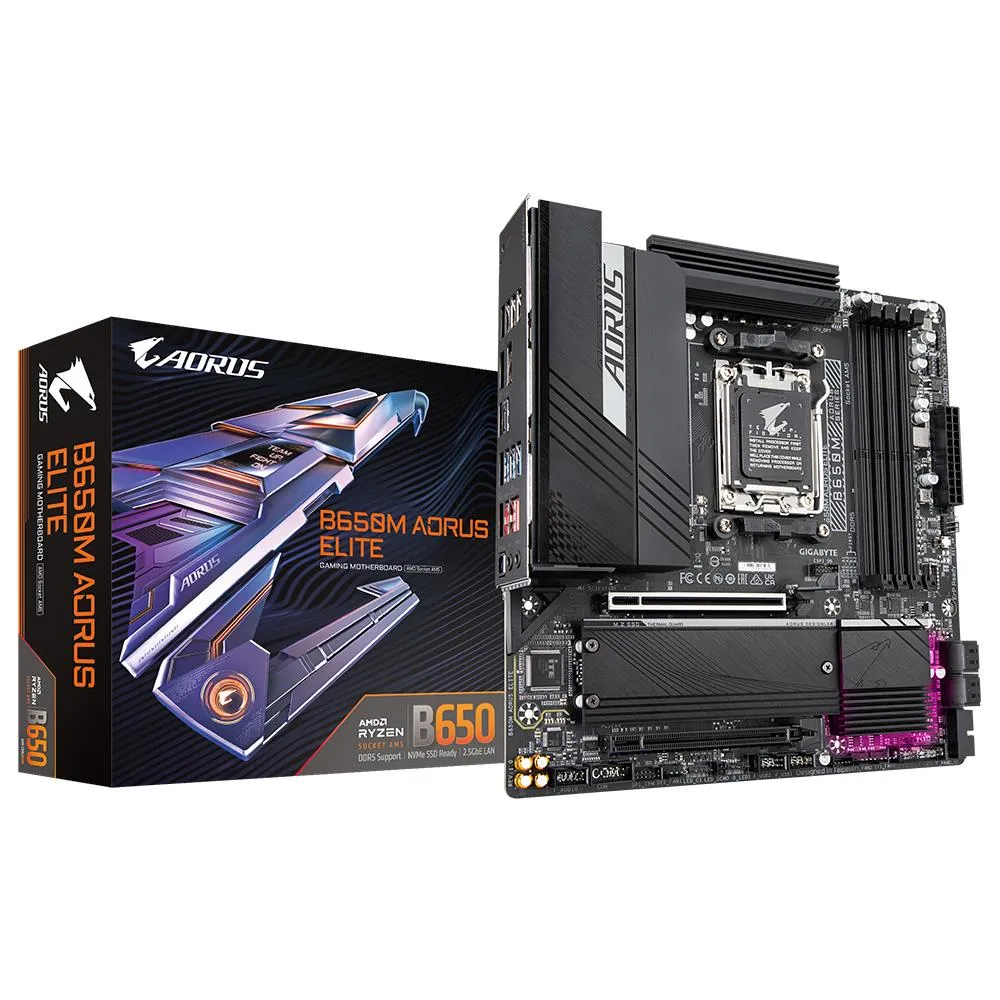

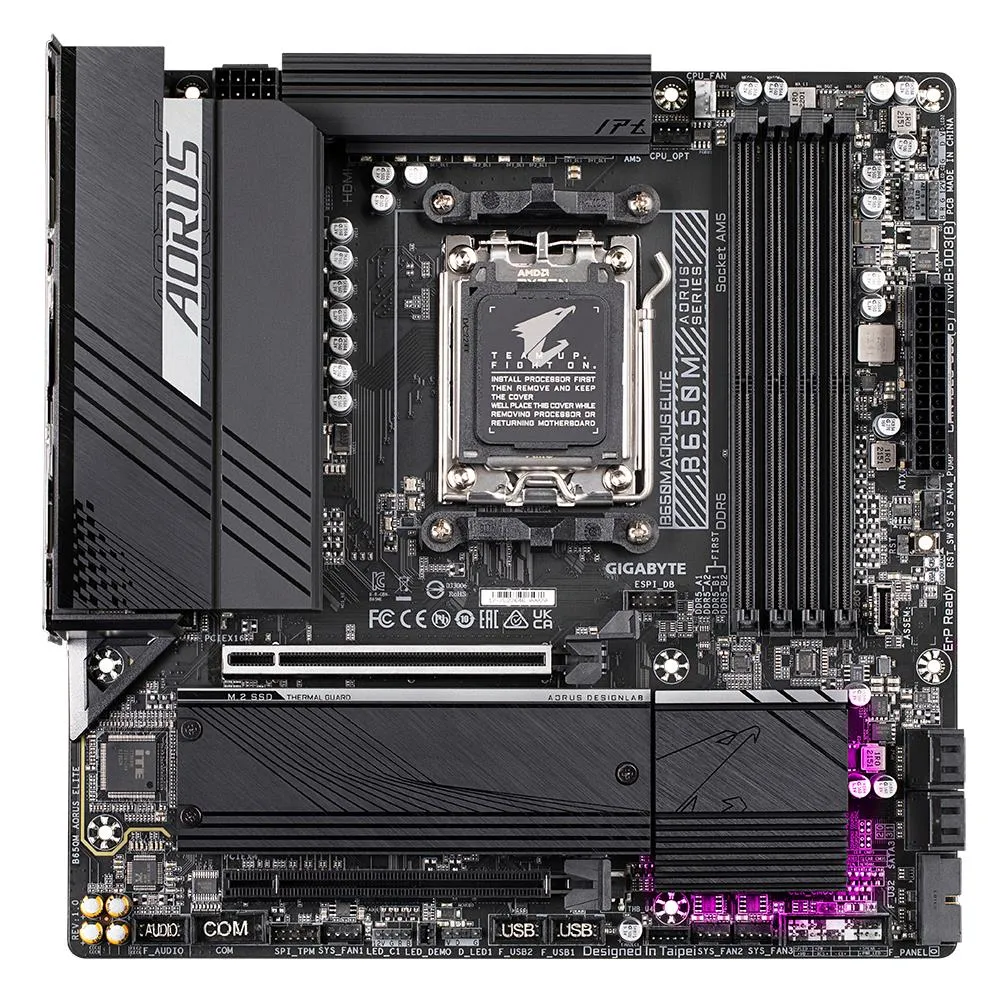

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MAORUSELITE1.3
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.84 €. Taotle järelmaksu ostukorvis.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
- Superfast Storage: 1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks: 2.5GbE LAN
- Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- Micro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 244 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B650
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Ei
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

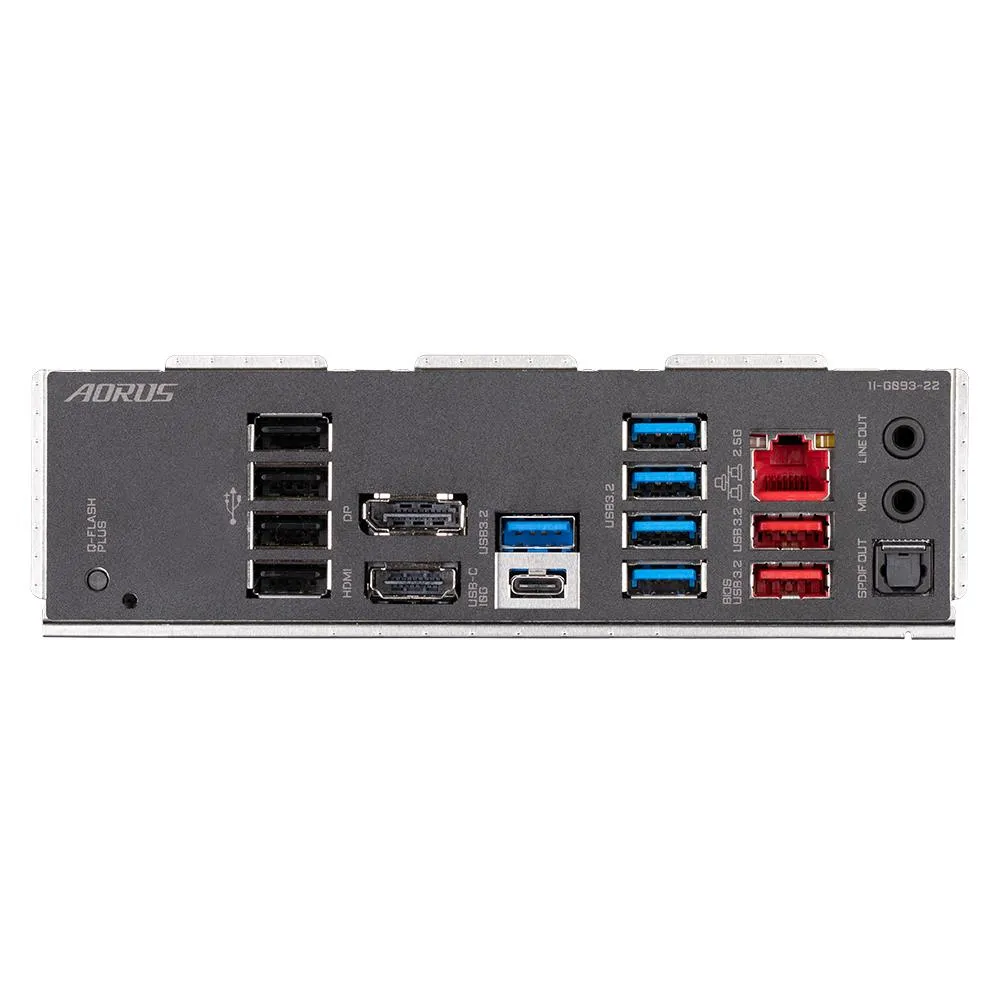

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- 4
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Netokaal
- 0.7 kg
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 4
- S/PDIF out port
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 2
- Line-in
- Jah
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Thunderbolt headers
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- 7
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI-Express 4.0 4x
- 1
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.069
- Unit Box Length
- 0.274
- Unit Box Width
- 0.267
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.007239 cubm
- Unit Calculated Weight
- 1.86 kg
- Summary
- GIGABYTE B650M AORUS ELITE Motherboard - AMD Ryzen 9000 CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- Products per shipping (inner) case
- 1 pc(s)
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- USB 3.2 Gen 2x2 connectors
- 1
- DisplayPort versioon
- 1.4
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 8
- Toote värv
- Black
- Number of CPU fan connectors
- 2
- Kaasas tarkvara
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 5
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-rev-10#kf
- Kõrgus
- 35 mm
- Toote kaal
- 1660 g
- Jahutuse tüüp
- Passive
- Päritoluriik
- China
- DirectX version
- 12.0
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Motherboard chipset
- AMD B650
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8125
- Mudel
- B650M AORUS ELITE 1.3
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Pakendi sügavus
- 268 mm
- Pakendi kõrgus
- 68 mm
- Pakendi kaal
- 1900 g
- Pakendi laius
- 270 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
