Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.0|2xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGB850EDGETIWIFI
E1
AC
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 12.65 €. Taotle järelmaksu ostukorvis.

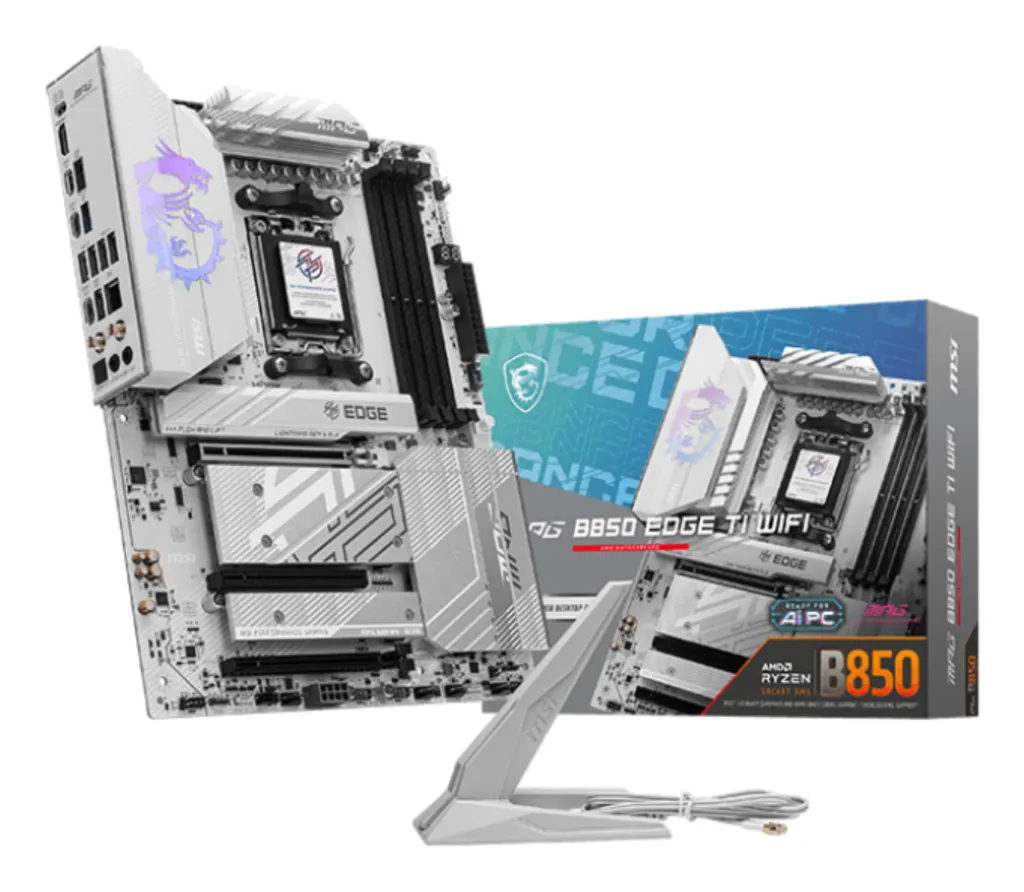

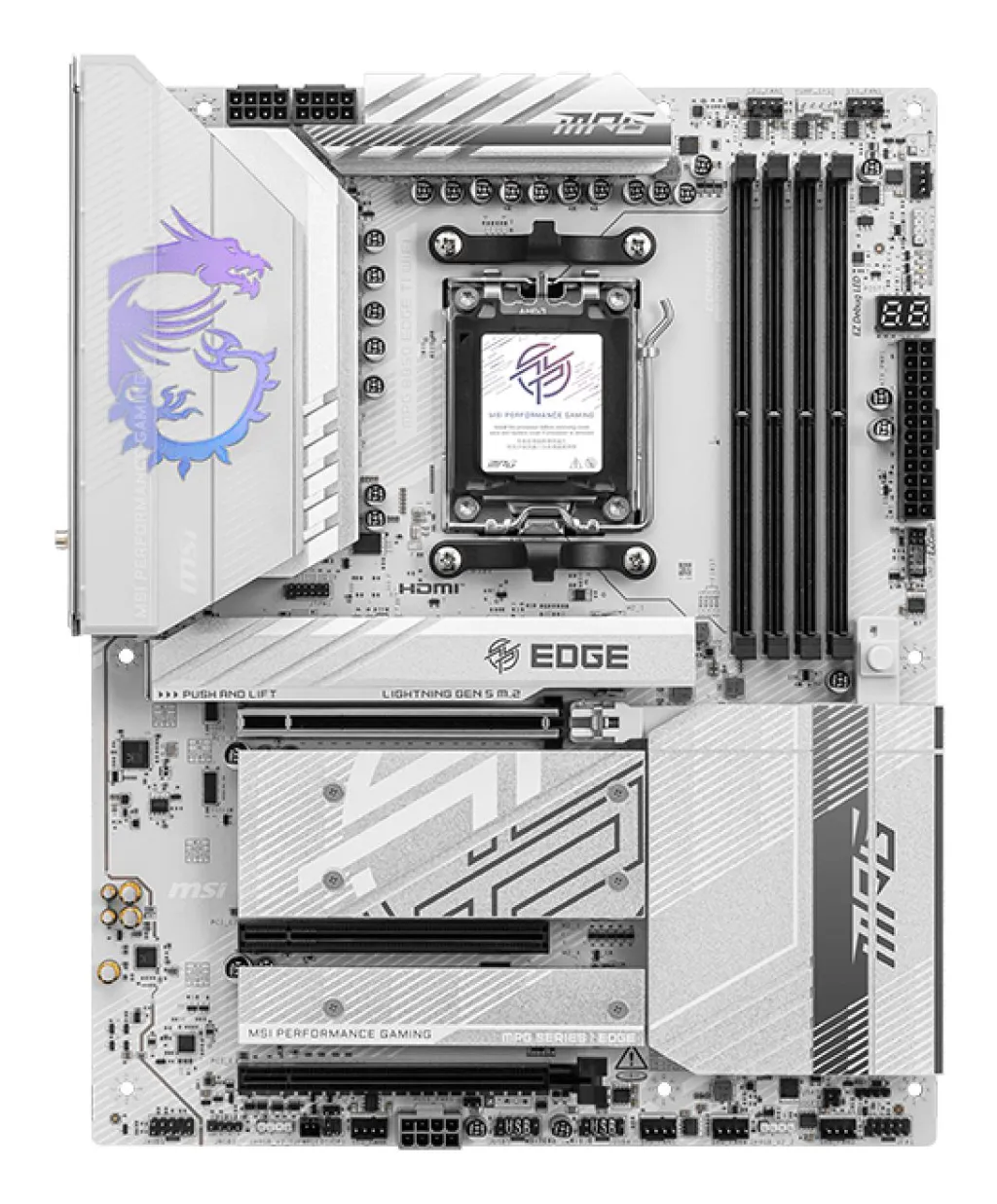

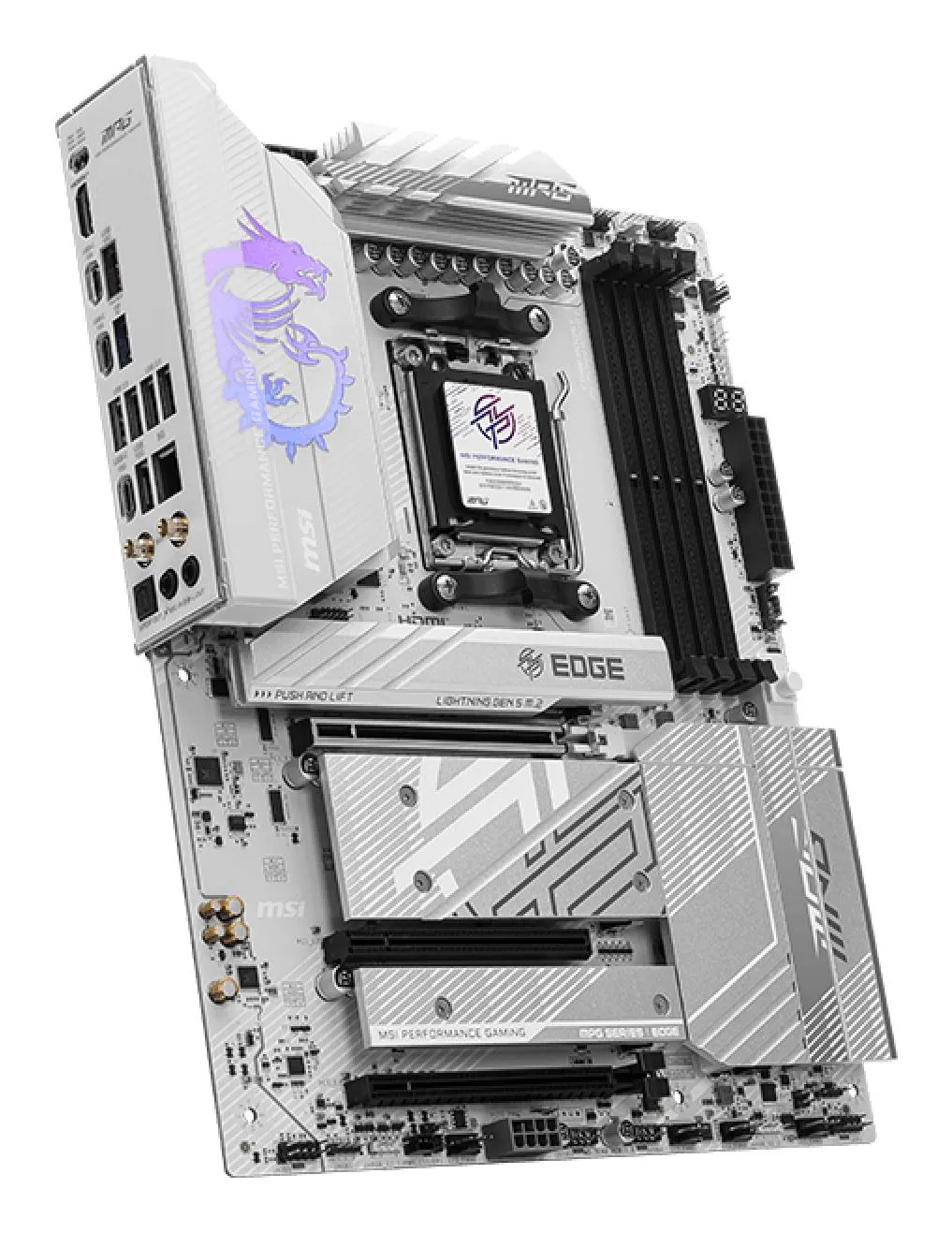

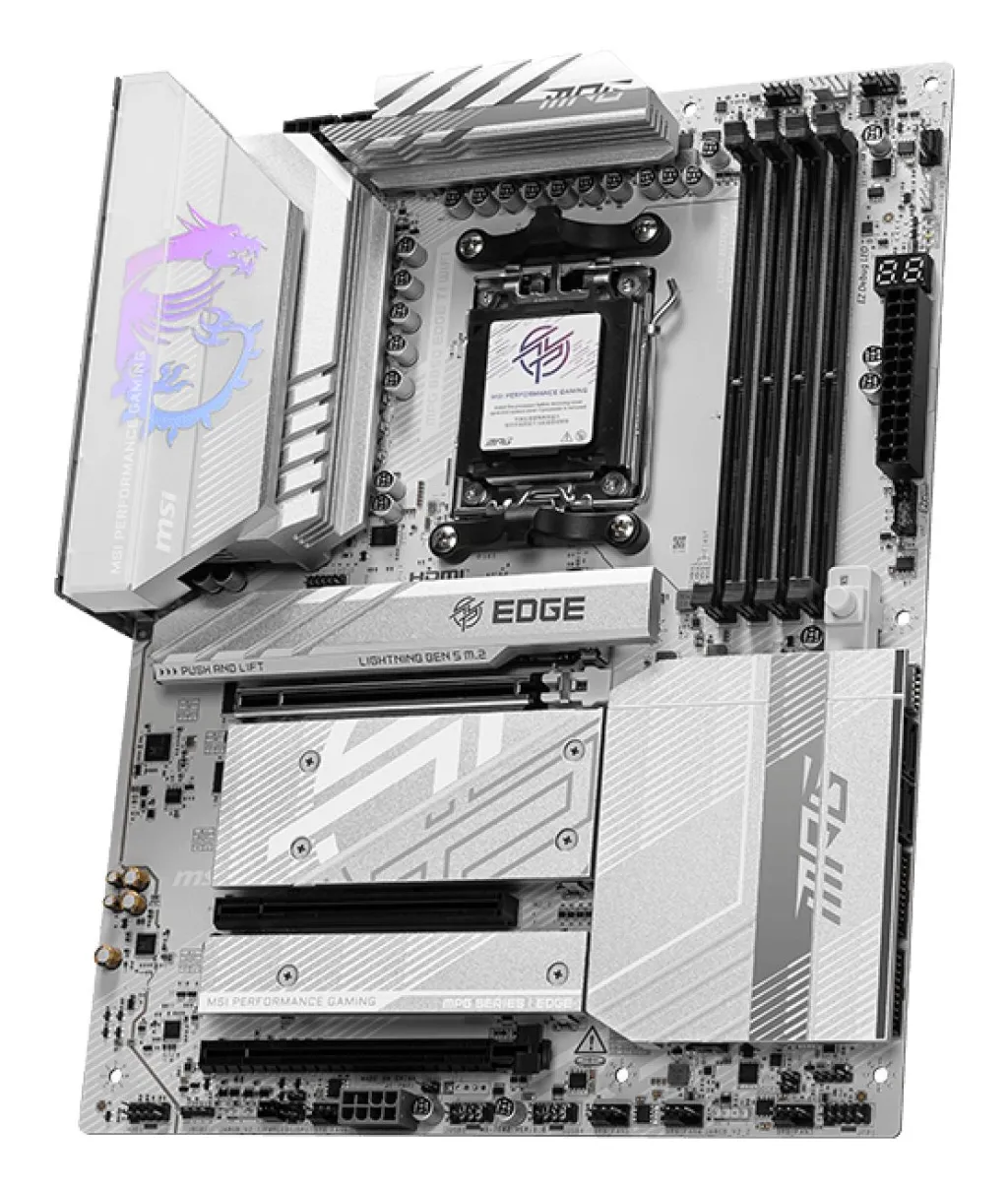

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 304.8 mm
- Sügavus
- 243.84 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B850
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7467/7500/7600/7800/7900/7950/8000/8200/8266/8400 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Laienduspesad
- PCI Expressi x16 pesad
- 3
Kõvaketta tugi
- SATA
- Jah
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 4
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

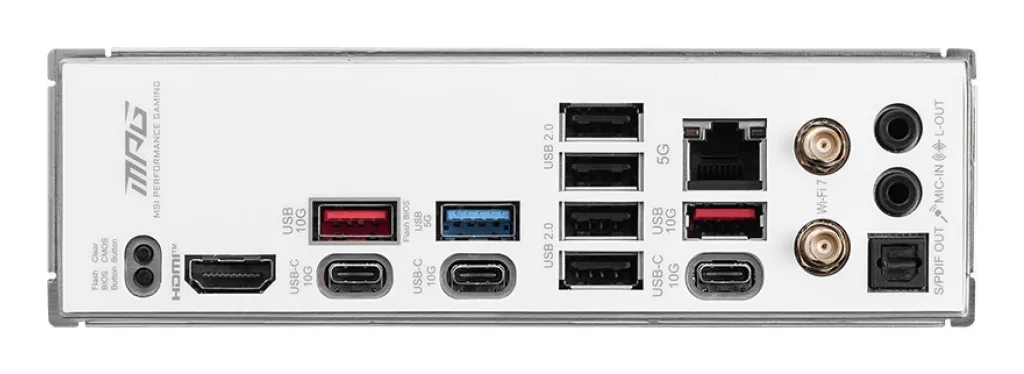

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 2.25 kg
- Netokaal
- 1.8 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.007116 cubm
Muud n?itajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- Number of M.2 (M) slots
- 4
- Number of storage drives supported
- 8
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,Micro SATA III
- Processor manufacturer
- AMD
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Supported memory clock speed (max)
- 8400 MHz
- Unit Box Height
- 0.275
- Unit Box Length
- 0.345
- Unit Box Width
- 0.075
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Unit Calculated Volume
- 0.008155 cubm
- Product Net Weight
- 1.8 kg
- Unit Calculated Weight
- 2.5 kg
- Summary
- MSI MPG B850 EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 3
- Audio chip
- Realtek ALC4080
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Kogus transpordikasti kohta
- 5
- Toote värv
- White
- Number of CPU fan connectors
- 6
- Number of water pump connectors
- 1
- Number of RGB LED pin headers
- 3
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 4.0
- Tootja koduleht
- https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI/Overview
- Transpordipakendi kaal
- 2.25 kg
- Transpordipakendi kõrgus
- 27.5 cm
- Transpordipakendi laius
- 7.5 cm
- Transpordipakendi sügavus
- 34.5 cm
- USB 3.0
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Motherboard chipset
- AMD B850
- RAID support
- Jah
- Windows operating systems supported
- Windows 11 x64
- Maximum internal memory supported by processor
- 256 GB
- Mudel
- MPG B850 EDGE TI WIFI
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/5600/8400 MHz
- USB 2.0 connectors
- 4
- USB-C
- Jah
