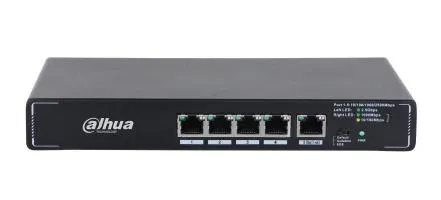

Switch|DAHUA|DH-SMG1005|Switch type Unmanaged|5x2.5G Ethernet (copper) ports quantity|SMG1005

.: Üldised andmed :.

Tootja koduleht

https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/MetalSwitch/SMG1005

.: Disain :.

Toote värv

Black

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Ethernet LAN-i andmeedastuskiirused

10,100,1000,2500 Mbit/s

Võimsus ja energiatarve

Sisendvool

1 A

.: Tehnilised andmed :.

Compliance certificates

CE

Andmeedastus

Jumbo frames

12

Toide

Toiteallikas

External

Toiteallikas

DC

Ethernet LAN-funktsioonid

IEEE 802.3

Jah

IEEE 802.3ab

Jah

IEEE 802.3ad

Jah

IEEE 802.3ae

Jah

IEEE 802.3az

Jah

IEEE 802.3u

Jah

IEEE 802.3x

Jah

IEEE 802.3z

Jah

Funktsioonid

Mudeli originaalnimi

SMG1005

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

-10 - 55 °C

Suhteline õhuniiskus kasutamisel (H-H)

5 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 70 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Pakendi sügavus

163 mm

Pakendi kõrgus

71 mm

Pakendi kaal

942 g

Pakendi laius

297 mm

Tehnilised andmed

Jumbo frames support

Jah

Basic switching RJ-45 Ethernet ports quantity

5

Summary

Dahua Technology SMG1005. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE.... DC input voltage: 12 V

Unit Calculated Weight

1.18 kg

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Unit Calculated Volume

0.004274 cubm

DC input voltage

12 V

CnCode

85176200

Unit Box Width

0.185

Unit Box Length

0.385

Unit Box Height

0.06

2.5GbE

5

Plug and Play

Jah

Power protection features

Over current/Over voltage/Static electricity

Power supply included

Jah

Desktop/pedestal

Jah

Forwarding rate

18.6 Mpps

Housing material

Metal

MAC address table

4000 entries

Operating temperature range

–10 °C to +55 °C

Packet buffer memory

8 MB

Power Options

12V

Primary port count

5

Storage relative humidity (H-H)

10 - 90 %

Switch type

Unmanaged

Switching capacity

25 Gbit/s

Throughput

18.6 Mpps

Tehnilised andmed

Netokaal

0.69 kg

Laius

220 mm

Sügavus

141 mm

Kõrgus

30 mm

Mõõtmed (l x s x k)

220 mm × 141 mm × 30 mm

Toote kaal

680 g
