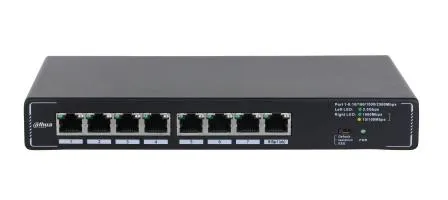

Switch|DAHUA|DH-SMG1008|Switch type Unmanaged|8x2.5G Ethernet (copper) ports quantity|SMG1008

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/fr/products/All-Products/Transmission/IT-Channel-Products/SOHO-Switch/SMG1008

.: Disain :.

Toote värv

Black

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Ethernet LAN-i andmeedastuskiirused

10,100,1000,2500 Mbit/s

Võimsus ja energiatarve

Sisendvool

2 A

.: Tehnilised andmed :.

Compliance certificates

CE

Andmeedastus

Jumbo frames

12

Toide

Toiteallikas

External

Toiteallikas

DC

Funktsioonid

Mudeli originaalnimi

SMG1008

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

-10 - 55 °C

Suhteline õhuniiskus kasutamisel (H-H)

5 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 70 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Pakendi sügavus

163 mm

Pakendi kõrgus

71 mm

Pakendi kaal

942 g

Pakendi laius

297 mm

Tehnilised andmed

Jumbo frames support

Jah

Basic switching RJ-45 Ethernet ports quantity

8

Summary

Dahua Technology SMG1008. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE.... DC input voltage: 12 V

Unit Calculated Weight

1.26 kg

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

DC input voltage

12 V

Unit Calculated Volume

0.004104 cubm

CnCode

85176200

Unit Box Width

0.18

Unit Box Length

0.38

Unit Box Height

0.06

2.5GbE

8

Plug and Play

Jah

Power protection features

Over current/Over voltage/Static electricity

Power supply included

Jah

Desktop/pedestal

Jah

Forwarding rate

29.76 Mpps

Housing material

Metal

MAC address table

4000 entries

Operating temperature range

–10 °C to +55 °C

Packet buffer memory

8 MB

Primary port count

8

Storage relative humidity (H-H)

10 - 90 %

Switch type

Unmanaged

Switching capacity

40 Gbit/s

Throughput

29.76 Mpps

Tehnilised andmed

Netokaal

0.73 kg

Laius

220 mm

Sügavus

141 mm

Kõrgus

30 mm

Mõõtmed (l x s x k)

220 mm × 141 mm × 30 mm

Toote kaal

730 g
