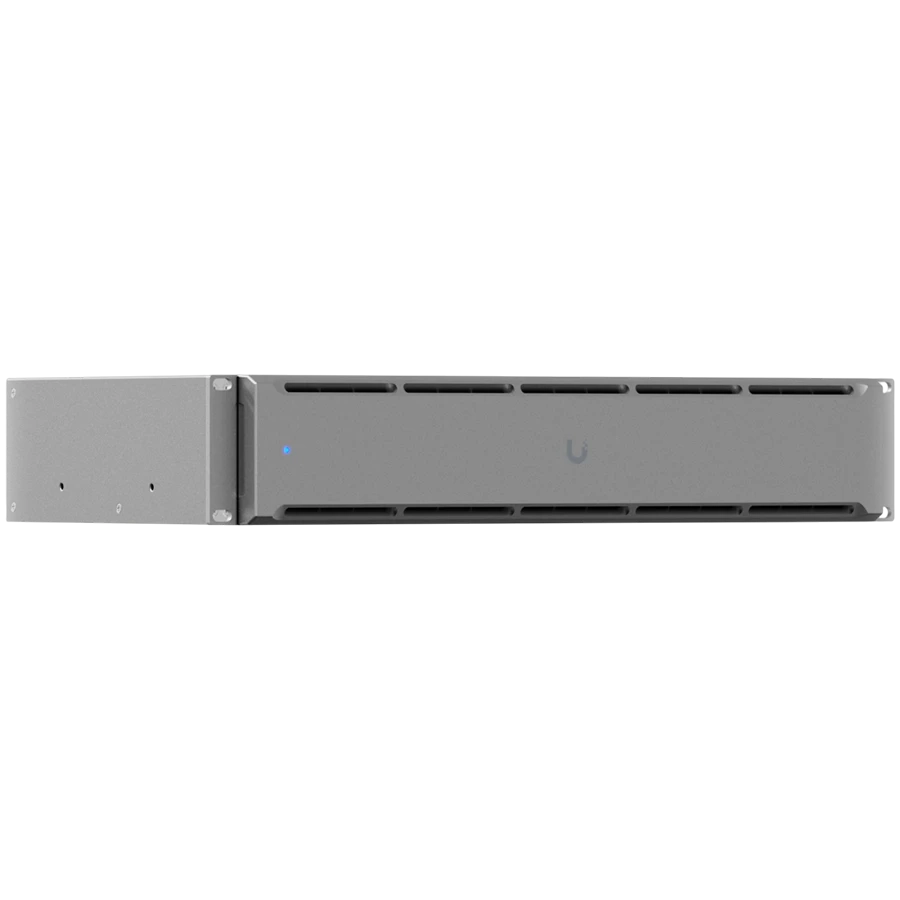

Ubiquiti UPS-2U-EU UniFi managed 1.5kVA rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, IEC 62040-1

Korpuse värv

Hall

Logistika andmed

Transpordikarbi brutokaal

1 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

13.7 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

95 %

.: Pakendi andmed :.

Pakendi tüüp

Retail

Kogus pakendi kohta

1

Tehnilised andmed

Input Power Connectors Type

IEC-320 C14

Pack Width (mm)

300 mm

Pack Height (mm)

87 mm

UPS Technology

Line Interactive

Maximum Electrical Power Rating

1500 VA

Status Notification Method

Alarm LED

Circuit Protection

Over Current Short Circuit Protection Over Load

Output Waveform

Sinewave

Maximum Output Voltage

240 V

Minimum Output Voltage

220 V

Maximum Output Frequency

60 Hz

Minimum Output Frequency

50 Hz

Input Power Connectors Quantity

1

Pack Length (mm)

442 mm

Battery Location

Sisemine

Maximum Non-Operating Ambient Temperature

50 °C

Minimum Non-Operating Ambient Temperature

-20 °C

Mounting Capability

Räkikinnitus

Standard Rack Height

2 U

Management Port Quantity

1

Management Port Connector Type

RJ-45

Voltage Phase

Ühekordne

LAN Interface Quantity

2

Max. Altitude Operating

3000 m

IEC-320 C13

8

Nominal Weight

13.7 kg

Maximum Input Frequency

60 Hz

Maximum Input Voltage

280 V

Minimum Input Frequency

50 Hz

Minimum Input Voltage

170 V

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

0 °C

Minimum Operating Humidity

0 %

Depth (mm)

442.4 mm

Height (mm)

87.4 mm

Width (mm)

300 mm

Warranty Products Returnable

Jah

Nominal output voltage

220/240 V

Packs in Box

1

Ethernet 10Base-T/100Base-TX Port Quantity

2

Battery recharge time

8 hr

Output power capacity

1000 W

Tehnilised andmed

Tarvikud kaasa arvatud

Kiire algus juhend
