Mainboard ASROCK AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 4.0 16x 1xPCI-Express...

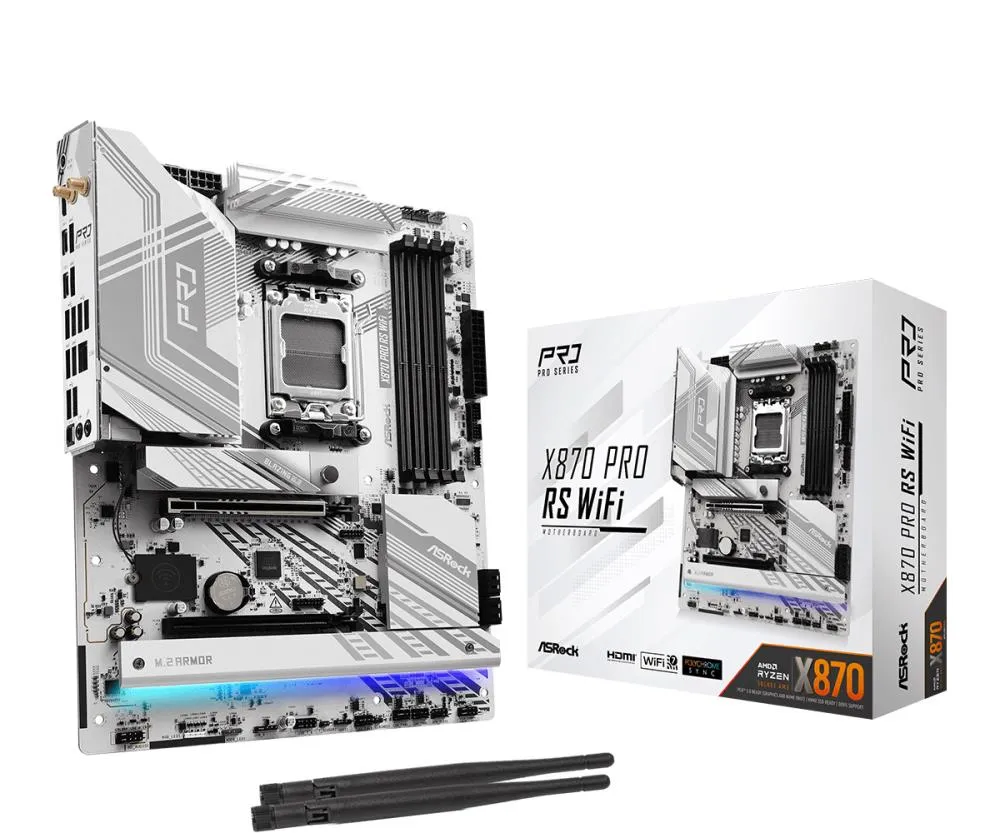

X870 Pro RS WiFi
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
- 4 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front)
- 9 USB 2.0 (6 Rear, 3 Front)
- Realtek 2.5G LAN
- 802.11be WiFi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
AMD X870
SAM5, ATX
DDR5, 8000 MHz
Memory slots 4, 1xPCI-Express 4.0 16x
1xPCI-Express 5.0 16x, 4xM.2
1xHDMI, 6xUSB 2.0
4xUSB 3.2, 2xUSB-C
1xOptical S/PDIF, 1xRJ45
2xAudio port, USB-C
USB 2.0, USB 3.2
Bluetooth, WiFi
SATA 3.0, Video Depending on CPU
Audio Realtek ALC1220, LAN 2.5 Gigabit
RAID SATA 0, 1; NVMe 0, 1, 10
