Mainboard|ASROCK|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS
50.34€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
- 6 x USB 2.0(2 x Rear, 4 x Front)
- Realtek Gigabit LAN
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 230 mm
- Sügavus
- 201 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD A520
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC887
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Realtek (Gigabit)
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

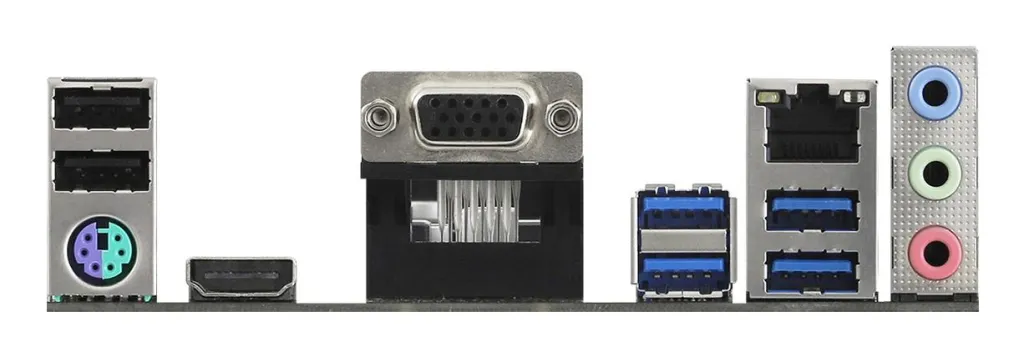

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 2
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.85 kg
- Netokaal
- 0.6 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 20
- Pakendi maht
- 0.00465 cubm
Muud näitajad
- ATX Power connector (24-pin)
- Jah
- Üksuse kalkuleeritud maht
- 0.00465 cubm
- ECC сompatibility
- Non-ECC
- CnKood
- 84733020
- Unit Box Width
- 0.0145
- Unit Box Length
- 0.61
- Unit Box Height
- 0.51
- USB 3.2
- 4
- Processor manufacturer
- AMD
- Supported storage drive interfaces
- M.2,SATA III
- PCI Express x1 (Gen 3.x) slots
- 1
- Compatible processor series
- AMD Ryzen 3000 Series
- BIOS type
- UEFI AMI
- Kokkuvõte
- Asrock A520M-HVS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 1
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- PCI Express x16 (Gen 3.x) slots
- 1
- Drivers included
- Jah
- Wake-on-LAN ready
- Jah
- Üksuse kalkuleeritud kaal
- 0.85 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of HDDs supported
- 5
- Graphics card family
- AMD
- Graphics card
- Radeon Vega
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Harmonized System (HS) code
- 84733020
- Tootja koduleht
- https://www.asrock.com/mb/AMD/A520M-HVS/index.asp#Overview
- Component for
- PC
- Transpordipakendi kaal
- 17 kg
- Transpordipakendi kõrgus
- 50 cm
- Transpordipakendi laius
- 30 cm
- Transpordipakendi sügavus
- 62 cm
- Kogus transpordikasti kohta
- 20
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD A520
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- LAN controller
- Realtek RTL8111H
- Number of memory slots
- 2
- Processor Socket
- Pesa AM4
- Supported memory clock speeds
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4500/4533 MHz
- USB 2.0 connectors
- 2
