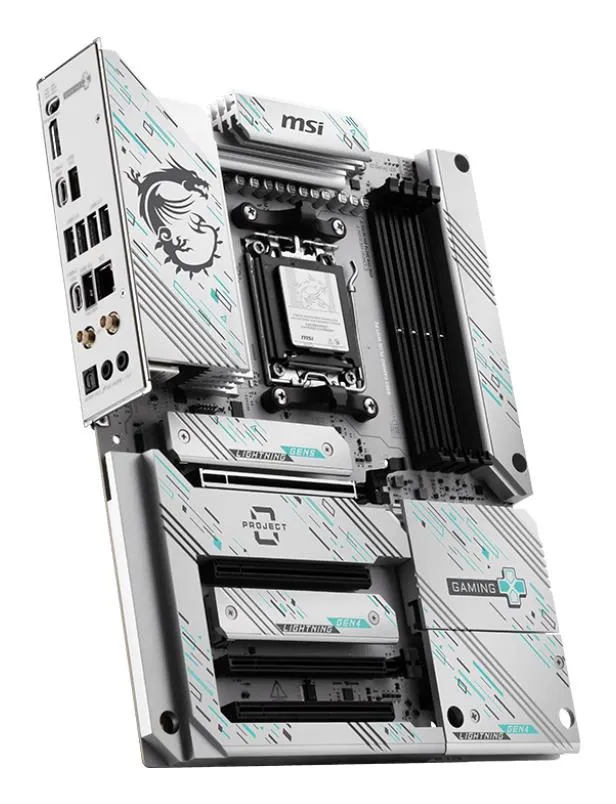

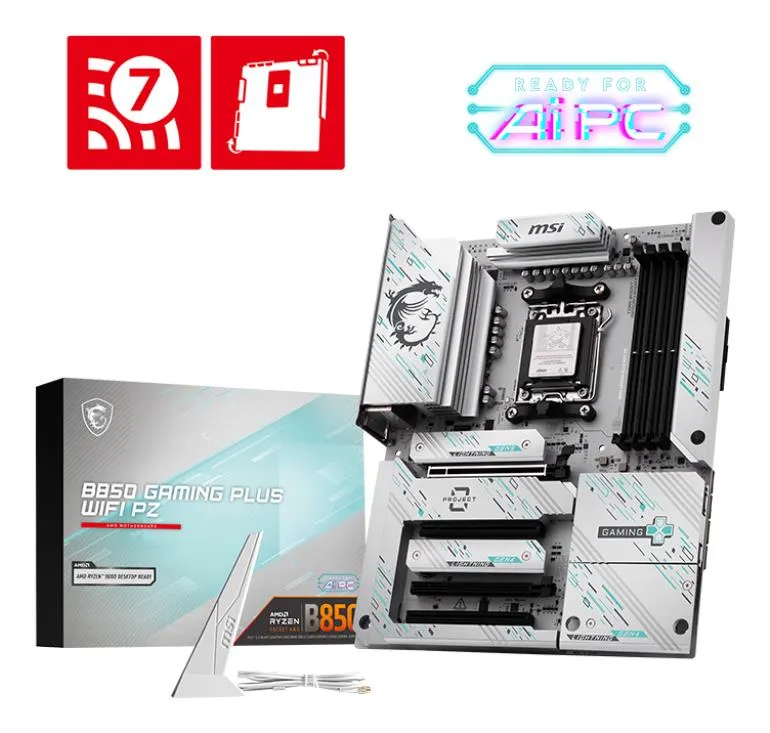

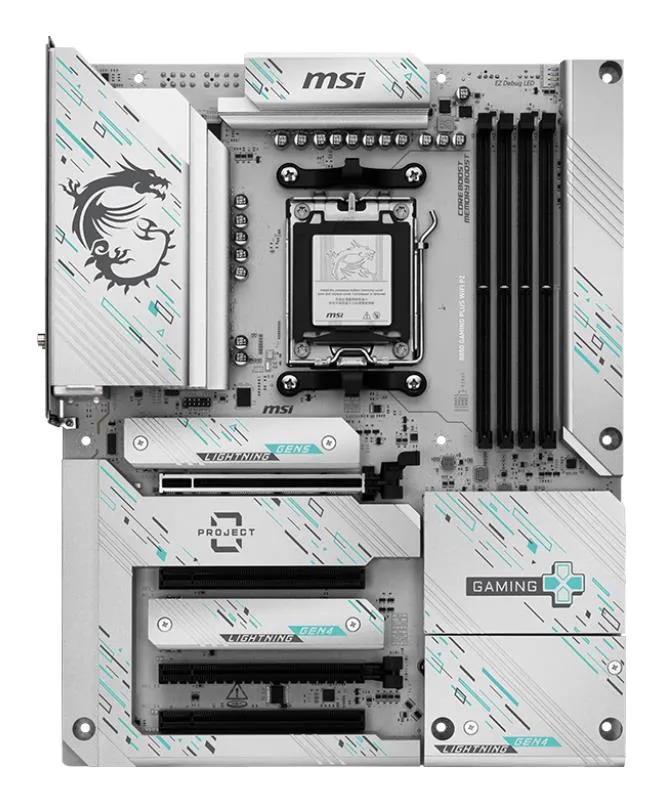

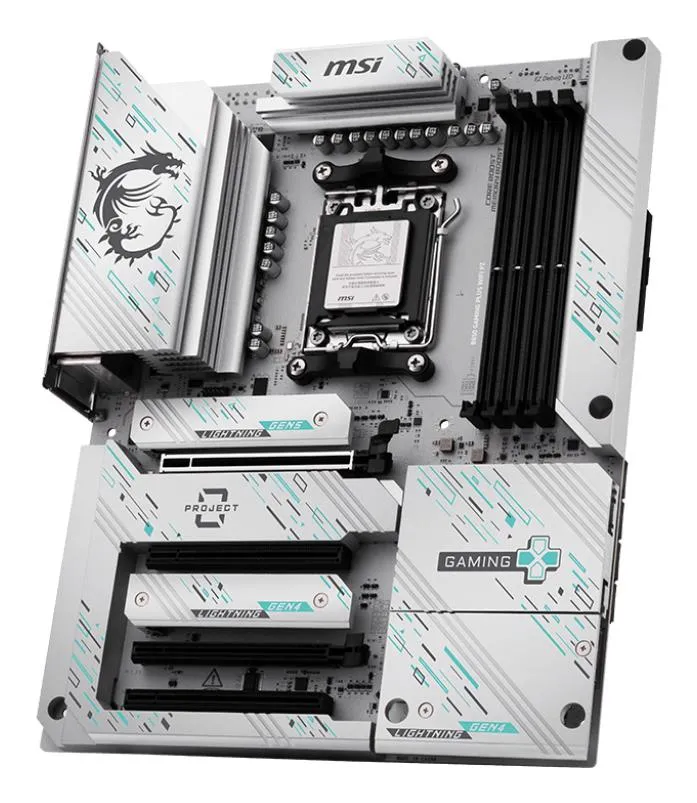

B850 GAMING PLUS WIFI PZ
The B850 GAMING PLUS WIFI PZ is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Back-Connect Design
The B850 GAMING PLUS WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
12+2+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI PZ is ready to sustain heavy gaming loadings.
Cooling Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- High-Speed Connectivity: 5G LAN with full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Tootja
MSI
Tootekood
B850 GAMING PLUS WIFI PZ
EAN
4711377365284
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 243.84 mm
- Sügavus
- 304,8 mm
.: Protsessor :.
- Protsessori tootja
- AMD
- Ühilduvad protsessoriseeriad
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- AMD
- Kiibistik ( Chipset)
- AMD B850
- Emaplaadi kiip
- AMD B850
.: Mälu :.
- Toetatud mälutüübid
- DDR5-SDRAM
- Sisemälu tüüp
- DDR5
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 4800,5600,6400,8200 MHz
- Taktsagedus
- 4800/5600/8200 MHz
- Pesade arv
- 4
- Mälupesad
- 4
- Mälukanalid
- Kahe kanaliga
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Helikiip
- Realtek ALC897
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 2
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- Ethernet-liidese tüüp
- 5 Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 2
- PCI Expressi x16 (Gen 3.x) pesad
- 2
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- M.2, Micro SATA III
- SATA
- Jah
- SATA-ühenduste arv
- 0
- SATA II ühenduste arv
- 0
- SATA III ühenduste arv
- 4
- M.2 (M) siinide arv
- 3
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1, 5, 10
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 5
Sisemine I/O moodul
- CPU-ventilaatori pistmik
- Jah
- USB 2.0 pistmikud
- 4
- S/PDIF-väljundpistmik
- Jah
- TPM-ühenduspesa
- Header

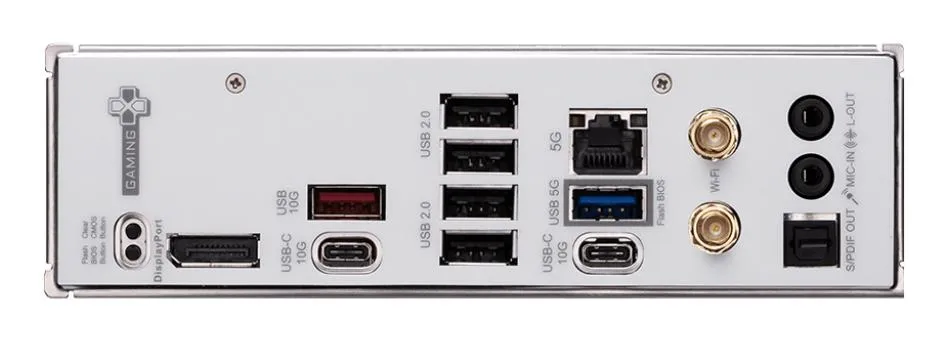

Tagapaneeli I/O pesad
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- USB 2.0 portide arv
- 4
- USB 2.0
- 4
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- System management BIOS (SMBIOS) versioon
- 3.7
- ACPI versioon
- 6.5
.: Kaal ja mõõtmed :.
- Netokaal
- 0.5 kg
Muud näitajad
- DisplayPort versioon
- 1.2
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Pesa AM5
- BIOS type
- UEFI AMI
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 2
- ACPI version
- 6.5
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,Micro SATA III
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 3.7
- RGB LED pin header
- Jah
- DisplayPort arv
- 1
- RGB LED pin ots
- Jah
- USB 3.2
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) pilud
- 1
- PCI-Express 4.0 1x
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 1
- PCI Express x16 (Gen 5.x) slotid
- 1
- Supported memory clock speed (max)
- 8200 MHz
- Unit Box Height
- 0.08
- Unit Box Length
- 0.285
- Unit Box Width
- 0.35
- CnKood
- 84733020
- Toetatud mälu taktsageduse kiirus (maks)
- 8200 MHz
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Üksuse kalkuleeritud maht
- 0.009405 cubm
- Üksuse kalkuleeritud kaal
- 2.32 kg
- Kokkuvõte
- MSI B850 GAMING PLUS WIFI PZ. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Toetatud Windows operatsioonisüsteemid
- Windows 11 x64
- Tootja koduleht
- https://www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI-PZ
- HDMI versioon
- 2.1
- Mudel
- B850 GAMING PLUS WIFI PZ
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 1
- Number of CPU fan connectors
- 4
- Protsessoriventilaatori ühenduste arv
- 4
- Number of water pump connectors
- 1
- Veepumba liitmike arv
- 1
- Number of RGB LED pin headers
- 3
- RGB LED-pooljuhtide arv
- 3
- 1st M.2 largest key size
- 2280
- 1. M.2 suurim võtme suurus
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 1. M.2 kõrgeima PCI Expressi põlvkonna M.2
- 5.0
- 2nd M.2 largest key size
- 22110
- 2. M.2 suurim võtme suurus
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- 2. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- 3rd M.2 largest key size
- 2280
- 3. M.2 suurim võtme suurus
- 2280
- Transpordipakendi kaal
- 11.6000003814697 kg
- 3rd M.2 highest PCI Express generation
- 4.0
- 3. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- Transpordipakendi kõrgus
- 31 cm
- Transpordipakendi laius
- 37 cm
- mSATA-pesade arv
- 0
- Transpordipakendi sügavus
- 41 cm
- Kogus transpordikasti kohta
- 5
- Toetatud kõvaketaste arv
- 4
- Protsessori poolt toetatud maksimaalne operatiivmälu
- 256 GB
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 7
- HDMI-versioon
- 2.1
- DisplayPorts quantity
- 1
- SATA-ühenduste koguarv
- 4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Toote värv
- Must
- Motherboard chipset
- AMD B850
- RAID support
- Jah
- Toetatud protsessoripesad
- Protsessoripesa AM5
- Windows operating systems supported
- Windows 11 x64
- DisplayPort
- 1
- Maximum internal memory supported by processor
- 256 GB
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Processor Socket
- Pesa AM5
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5600/6400/8200 MHz
- USB 2.0 connectors
- 4
- USB-C
- Jah
