Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|TUFGAMINGB850-EWIFI

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

4

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Ei ole toetatud

Number of M.2 (M) slots

3

Line-in

Jah

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

AMD

Antenna included

Jah

RGB LED pin header

Jah

DisplayPort arv

1

RGB LED pin ots

Jah

USB 3.2

4

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

3

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

1

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

1

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

0

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

PCI-Express 4.0 1x

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.275

Unit Box Length

0.36

Unit Box Width

0.07

CnKood

84733020

PCI Express x1 (Gen 4.x) pesad

1

Toetatud mälu taktsageduse kiirus (maks)

8000 MHz

USB 3.2 Gen 2x2 ühendused

1

ECC сompatibility

ECC & Non-ECC

ECC ühilduvus

ECC ja mitte-ECC

Üksuse kalkuleeritud maht

0.008436 cubm

Üksuse kalkuleeritud kaal

2 kg

Kokkuvõte

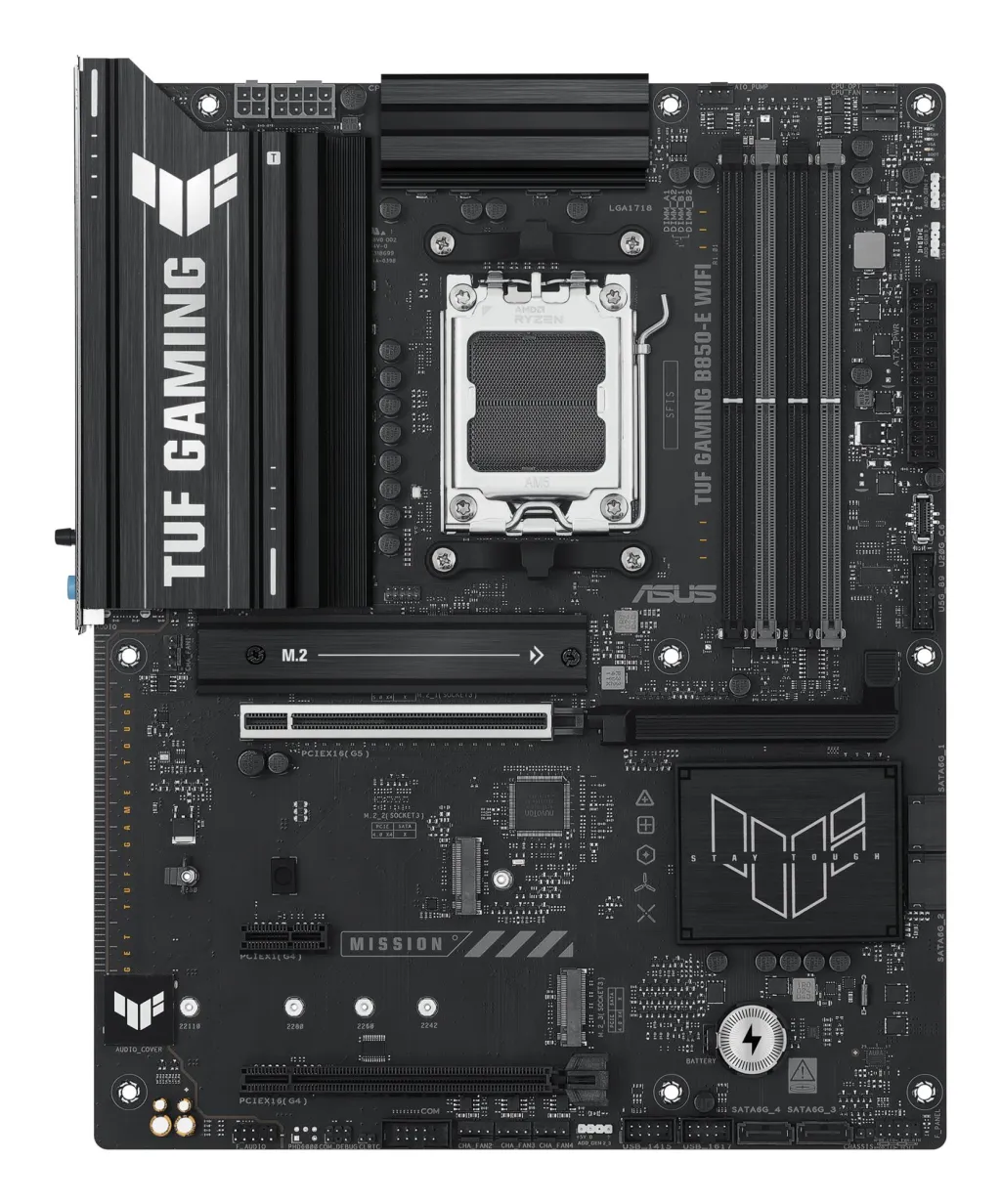

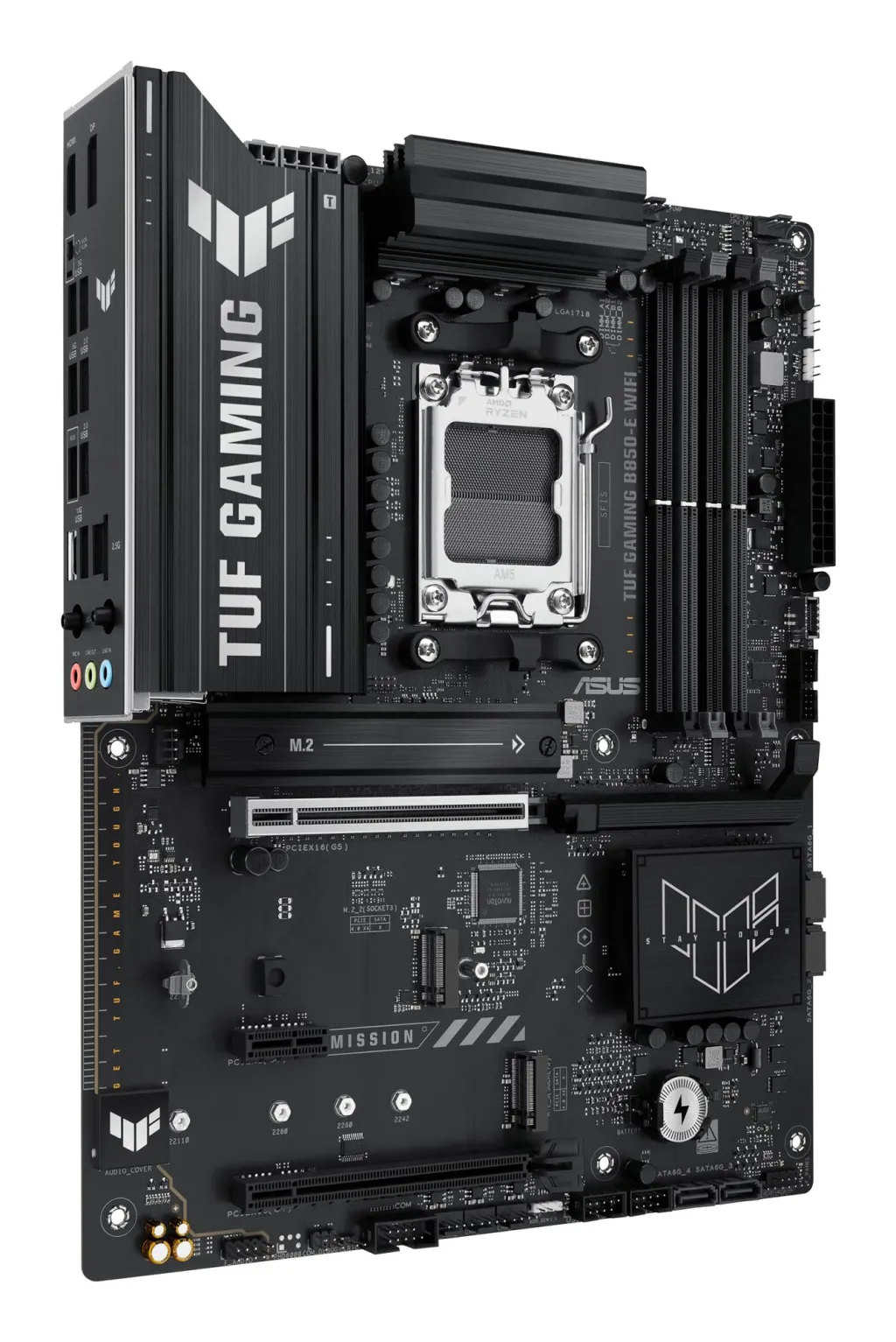

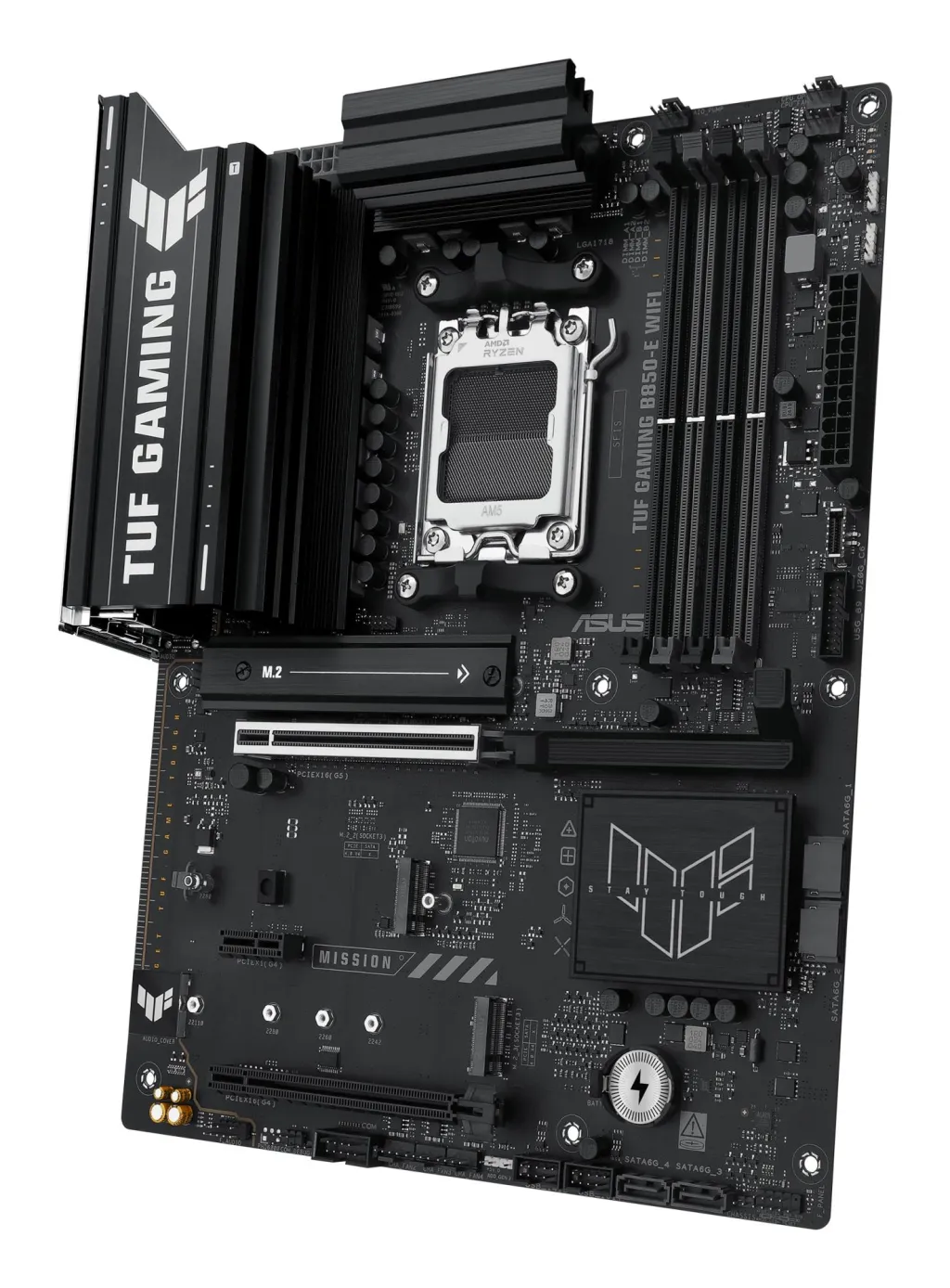

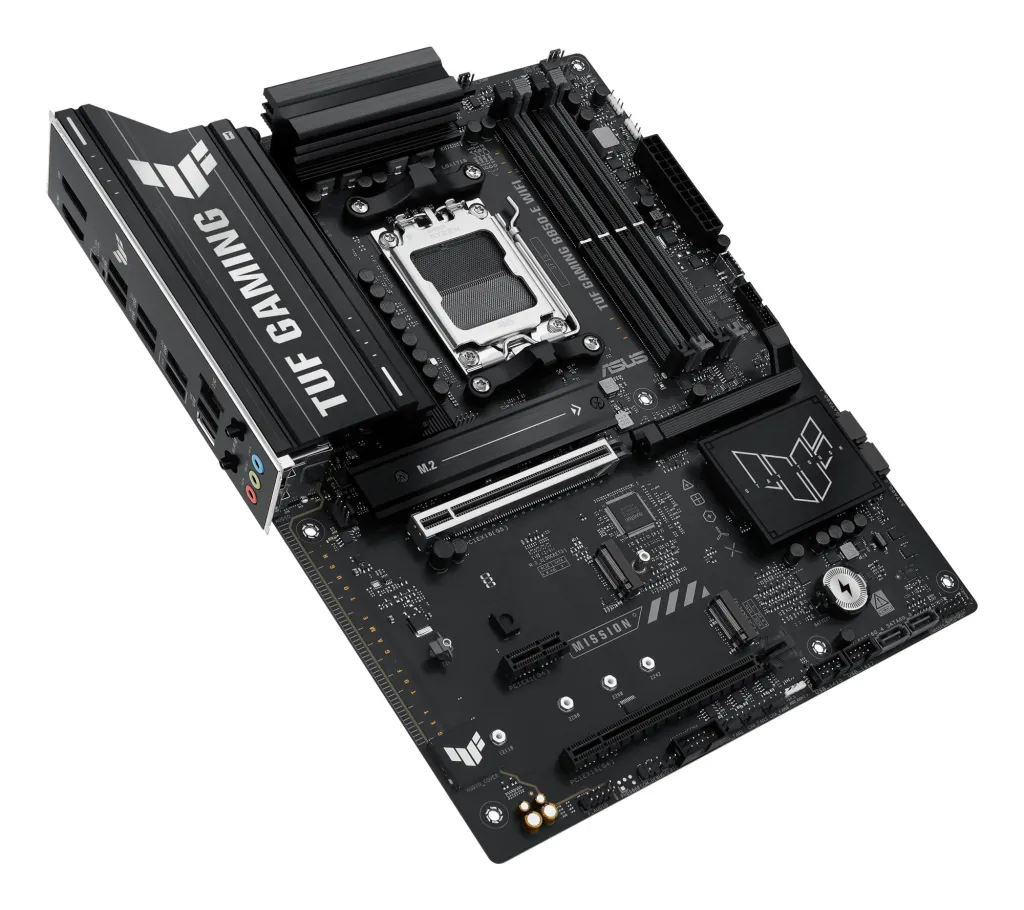

ASUS TUF GAMING B850-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Jah

Front panel connector

Jah

PCI Express x1 (Gen 4.x) slots

1

USB 3.2 Gen 2x2 connectors

1

Toetatud Windows operatsioonisüsteemid

Windows 10 x64, Windows 11

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-e-wifi/

Mudel

TUF GAMING B850-E WIFI

Pakendi laius

353 mm

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

1

Number of CPU fan connectors

1

Protsessoriventilaatori ühenduste arv

1

Pakendi kõrgus

68 mm

WiFi-AP antennipesa

2

Number of water pump connectors

1

Veepumba liitmike arv

1

Number of RGB LED pin headers

3

RGB LED-pooljuhtide arv

3

1st M.2 largest key size

22110

1. M.2 suurim võtme suurus

22110

1st M.2 highest PCI Express generation

5.0

1. M.2 kõrgeima PCI Expressi põlvkonna M.2

5.0

Component for

PC

Transpordipakendi kaal

10 kg

Transpordipakendi kõrgus

30 cm

Transpordipakendi laius

37 cm

mSATA-pesade arv

0

Transpordipakendi sügavus

38 cm

COM-pistmike arv

1

Kogus transpordikasti kohta

5

Toetatud kõvaketaste arv

4

Pakendi sügavus

273 mm

Pakendi laius ( mm )

353 mm

Pakendi kõrgus ( mm )

68 mm

Pakendi kaal

1780 g

Toetatud ketaste tüübid

HDD & SSD

Toetatud ketaste arv

7

Kaasas antenn

Jah

Kõrgus

48 mm

Toote kaal

1210 g

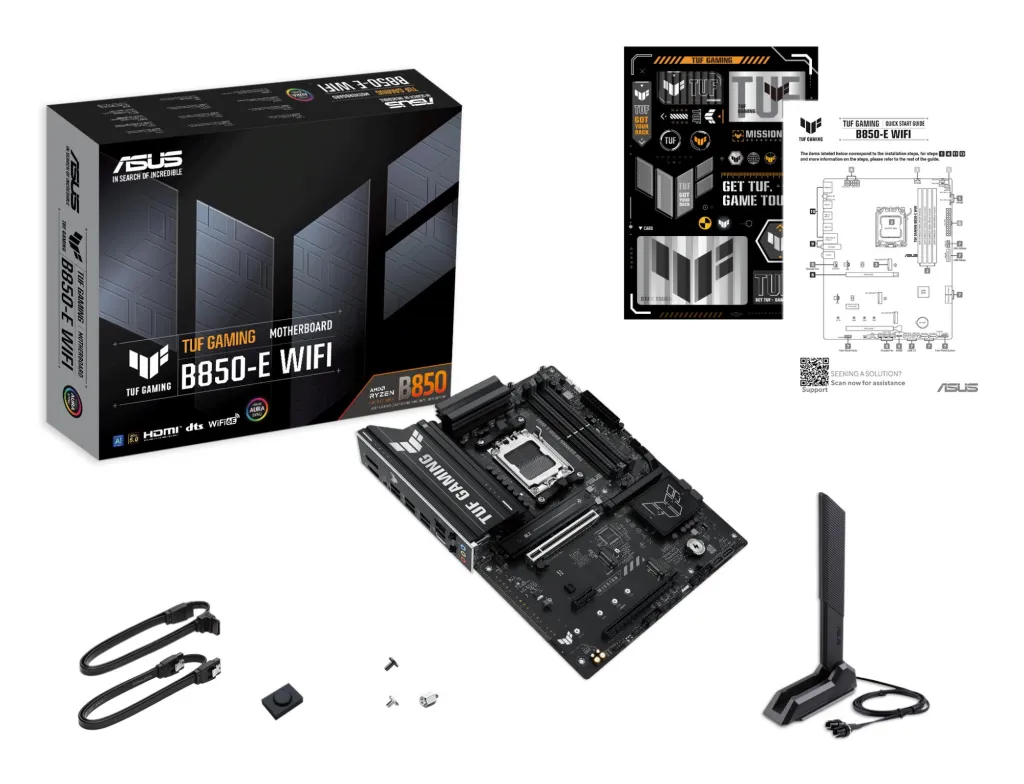

Tarvikud kaasa arvatud

Cables
2 x SATA 6Gb/s cables
Miscellaneous

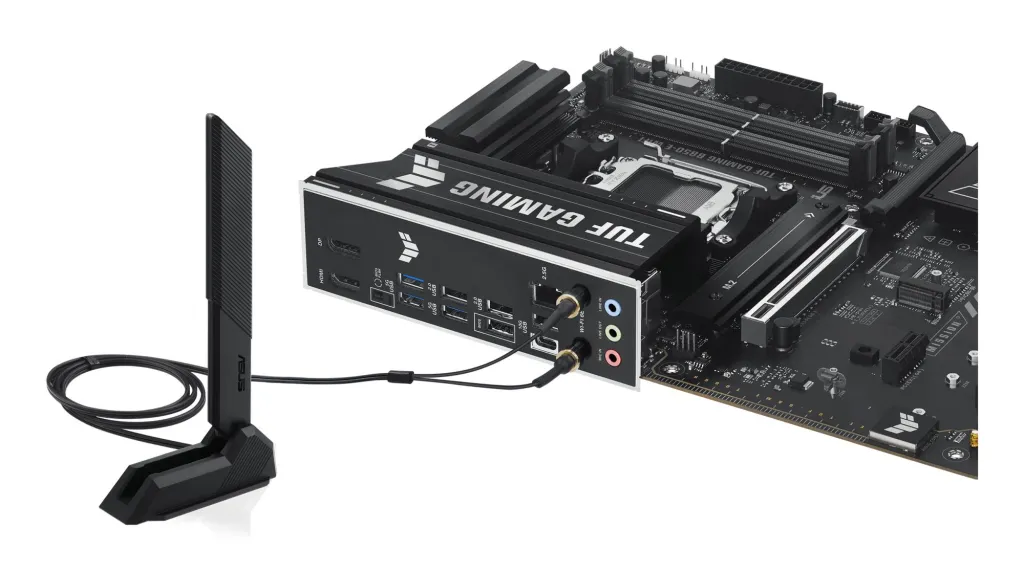

1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

DisplayPorts quantity

1

Sisendkanal

Jah

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

USB-pistmiku tüüp

USB tüüp A, USB tüüp-C

Jahutuse tüüp

Passiivne

Toote värv

Mitmevärviline

Microphone in

Jah

Motherboard chipset

AMD B850

RAID support

Jah

Unbuffered memory

Jah

USB connector type

USB tüüp-/USB tüüp-C

Windows operating systems supported

Windows 10 x64/Windows 11

BIOS memory size

256 Mbit

DisplayPort

1

Number of memory slots

4

Processor Socket

Pesa AM5

Raid Levels

0/1/10/5

USB 2.0 connectors

2

USB-C

1
