Tulen ise kaubale järele
Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MGAMINGPLUSWIFI
Toode on läbimüüdud
Tellimine ei ole võimalik.

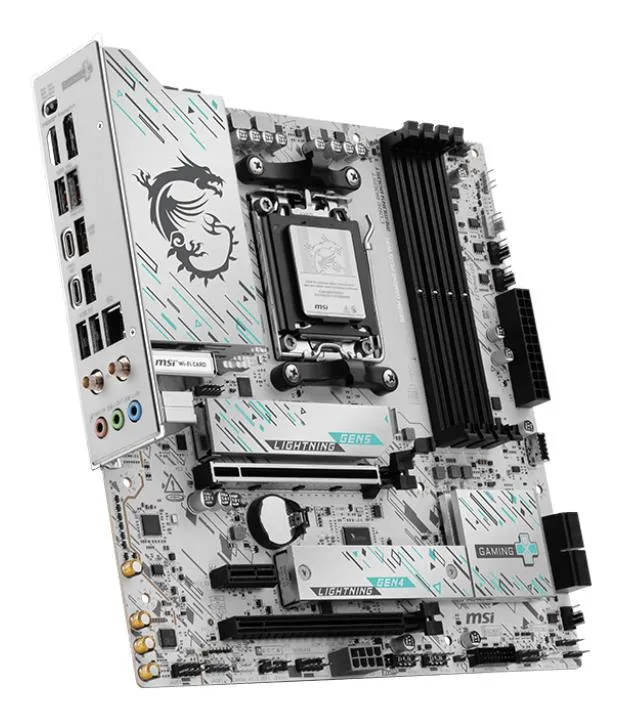

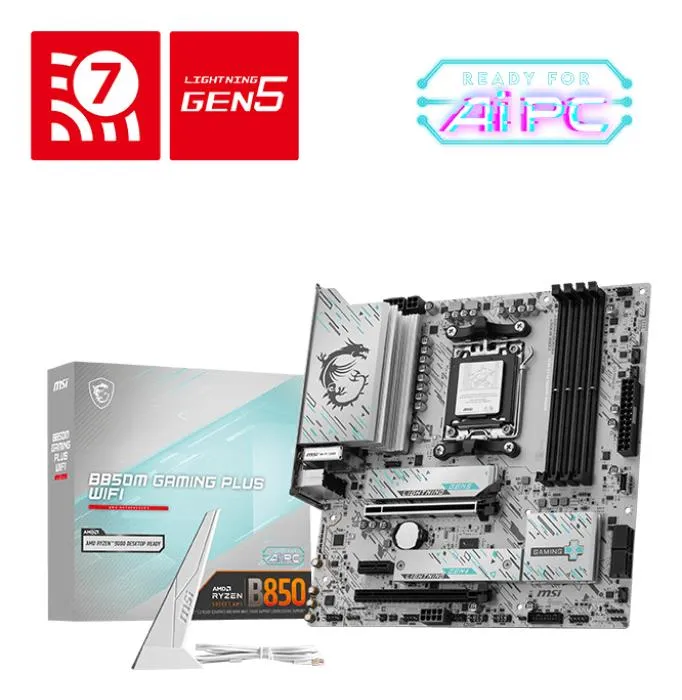

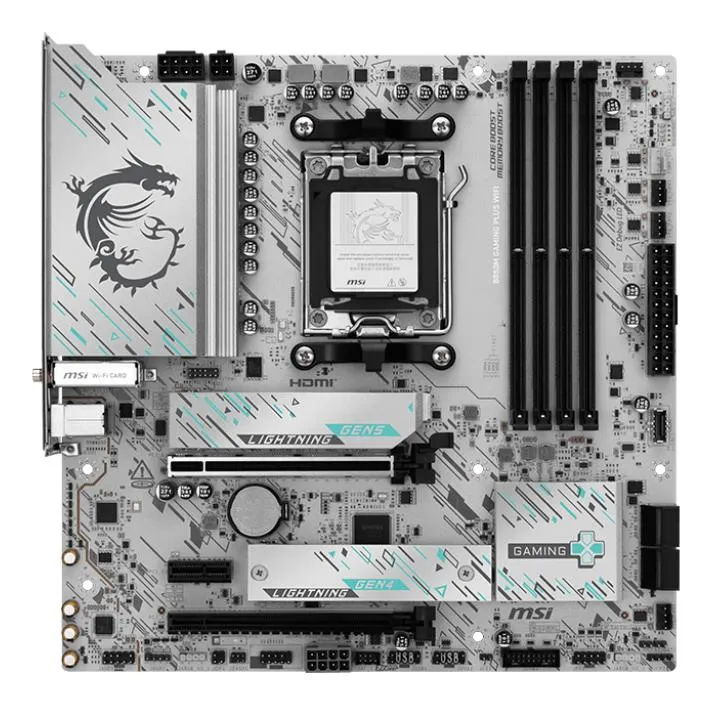

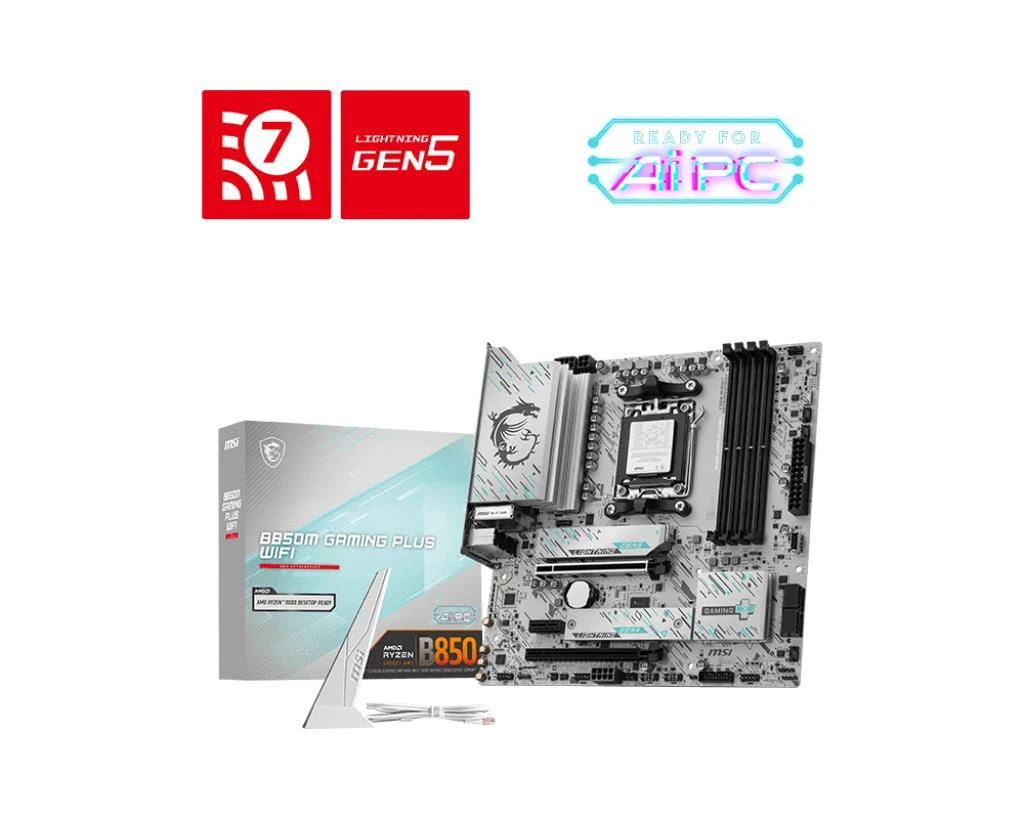

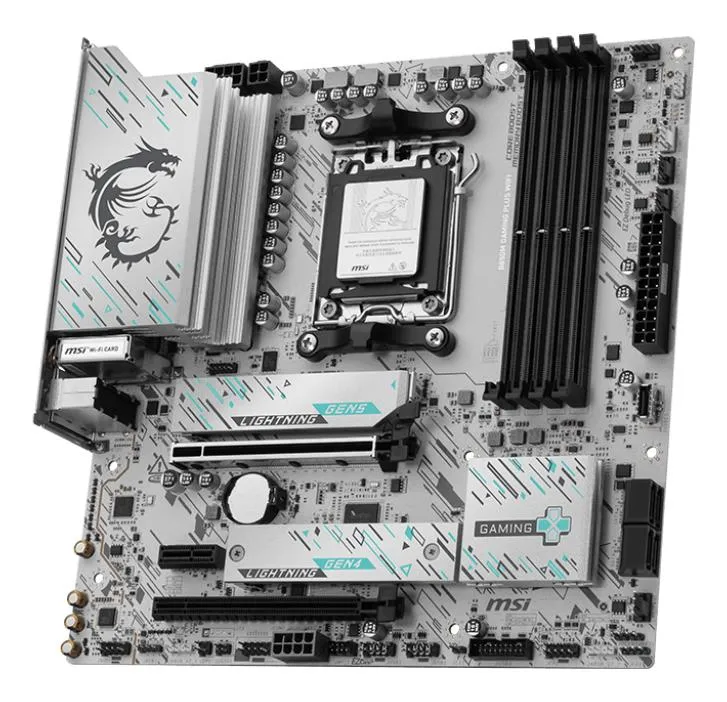

B850M GAMING PLUS WIFI
The B850M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the latest Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 8+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8+4-pin power connectors and exclusive Core Boost technology, the B850M GAMING PLUS WIFI is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Tootja
MSI
Tootekood
B850M GAMING PLUS WIFI
EAN
4711377347570
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 243.84 mm
- Sügavus
- 243,8 mm
.: Protsessor :.
- Protsessori tootja
- AMD
- Ühilduvad protsessoriseeriad
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- AMD
- Kiibistik ( Chipset)
- AMD B850
- Emaplaadi kiip
- AMD B850
.: Mälu :.
- Toetatud mälutüübid
- DDR5-SDRAM
- Sisemälu tüüp
- DDR5
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 4800,6400,8200 MHz
- Taktsagedus
- 4800/5600/8200 MHz
- Pesade arv
- 4
- Mälupesad
- 4
- Mälukanalid
- Kahe kanaliga
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Helikiip
- Realtek ALC897
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- LAN-kontroller
- Realtek RTL8126
- Ethernet LAN
- 5 Gigabit
- Ethernet-liidese tüüp
- 5 Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Laienduspesad
- PCI Expressi x4 pesad
- 1
- PCI Expressi x16 pesad
- 1
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- M.2
- SATA
- Jah
- SATA-ühenduste arv
- 0
- SATA II ühenduste arv
- 0
- SATA III ühenduste arv
- 4
- M.2 (M) siinide arv
- 2
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1, 10
- RAID
- SATA 0, 1, 10; NVMe 0, 1
Sisemine I/O moodul
- ATX-toitepistmik (24 kontakti)
- Jah
- CPU-ventilaatori pistmik
- Jah
- USB 2.0 pistmikud
- 4
- Esipaneeli audiopistik
- Jah
- Esipaneeli konnektor
- Jah

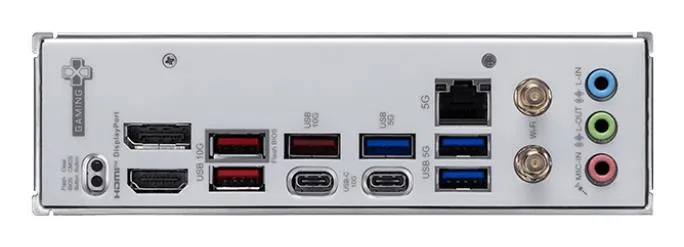

Tagapaneeli I/O pesad
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- USB 2.0 portide arv
- 0
- USB 2.0
- 3
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- System management BIOS (SMBIOS) versioon
- 3.7
- ACPI versioon
- 6.5
- BIOS-i mälu suurus
- 256 Mbit
.: Kaal ja mõõtmed :.
- Netokaal
- 1 kg
Muud näitajad
- PCI Express x16 slots
- 1
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Pesa AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 6.5
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 3.7
- RGB LED pin header
- Jah
- RGB LED pin ots
- Jah
- USB 3.2
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) pilud
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 2
- PCI Express x16 (Gen 5.x) slotid
- 1
- Supported memory clock speed (max)
- 8200 MHz
- Unit Box Height
- 0.28
- Unit Box Length
- 0.28
- Unit Box Width
- 0.07
- CnKood
- 84733020
- Toetatud mälu taktsageduse kiirus (maks)
- 8200 MHz
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Üksuse kalkuleeritud maht
- 0.006462 cubm
- Üksuse kalkuleeritud kaal
- 1.58 kg
- Kokkuvõte
- MSI B850M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Jah
- PCI Express x4 slots
- 1
- Toetatud Windows operatsioonisüsteemid
- Windows 11 x64
- Tootja koduleht
- https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI/Overview
- HDMI versioon
- 2.1
- Mudel
- B850M GAMING PLUS WIFI
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 3
- Number of CPU fan connectors
- 2
- Protsessoriventilaatori ühenduste arv
- 2
- Number of water pump connectors
- 1
- Veepumba liitmike arv
- 1
- Number of RGB LED pin headers
- 3
- RGB LED-pooljuhtide arv
- 3
- 1st M.2 largest key size
- 2280
- 1. M.2 suurim võtme suurus
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 1. M.2 kõrgeima PCI Expressi põlvkonna M.2
- 5.0
- 2nd M.2 largest key size
- 2280
- 2. M.2 suurim võtme suurus
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 2. M.2 kõrgeima PCI Express põlvkonna M.2
- 5.0
- 3rd M.2 largest key size
- 2280
- 3. M.2 suurim võtme suurus
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 3. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- mSATA-pesade arv
- 0
- Kogus transpordikasti kohta
- 10
- Toetatud kõvaketaste arv
- 4
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 7
- HDMI-versioon
- 2.1
- SATA-ühenduste koguarv
- 4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Toote värv
- Must
- Motherboard chipset
- AMD B850
- RAID support
- Jah
- Toetatud protsessoripesad
- Protsessoripesa AM5
- Windows operating systems supported
- Windows 11 x64
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8126
- Number of memory slots
- 4
- Processor Socket
- Pesa AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/6400/8200 MHz
- USB 2.0 connectors
- 4
- USB-C
- Jah
