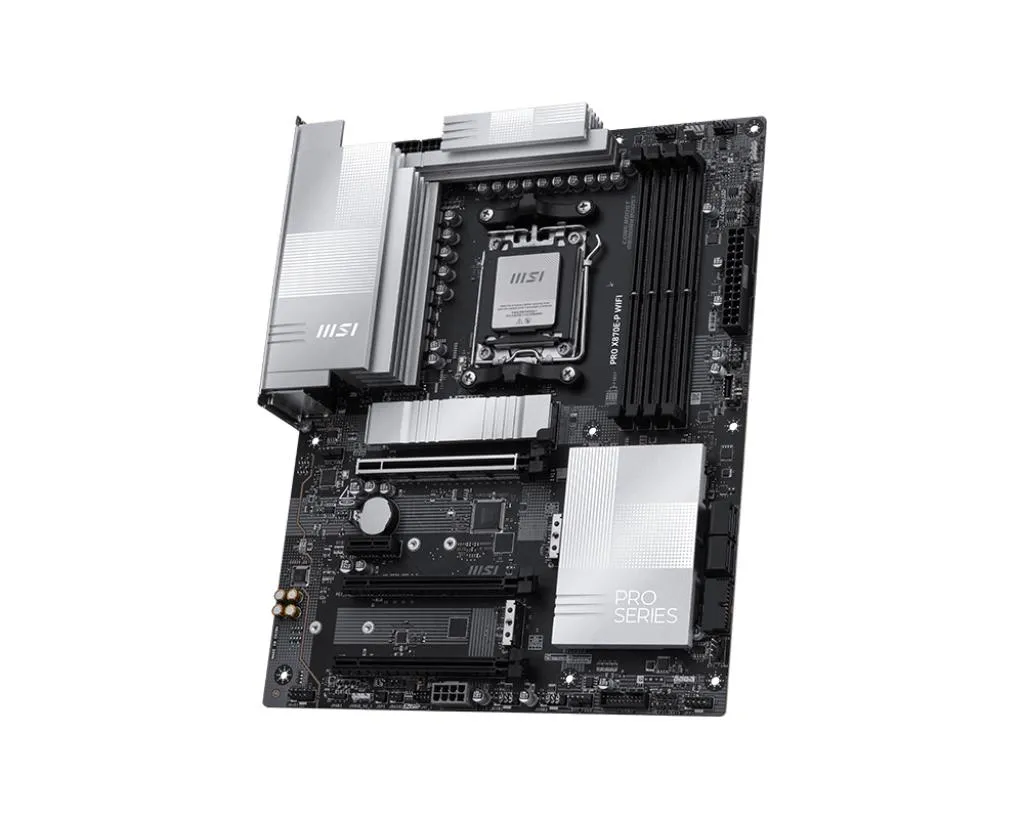

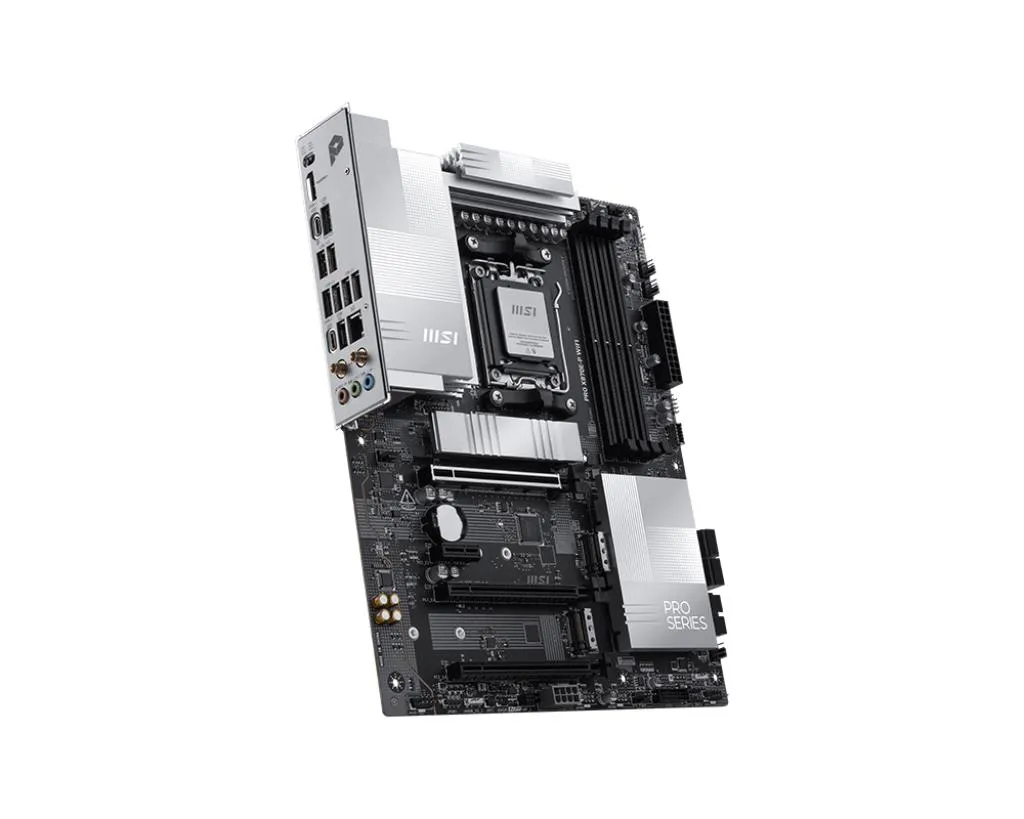

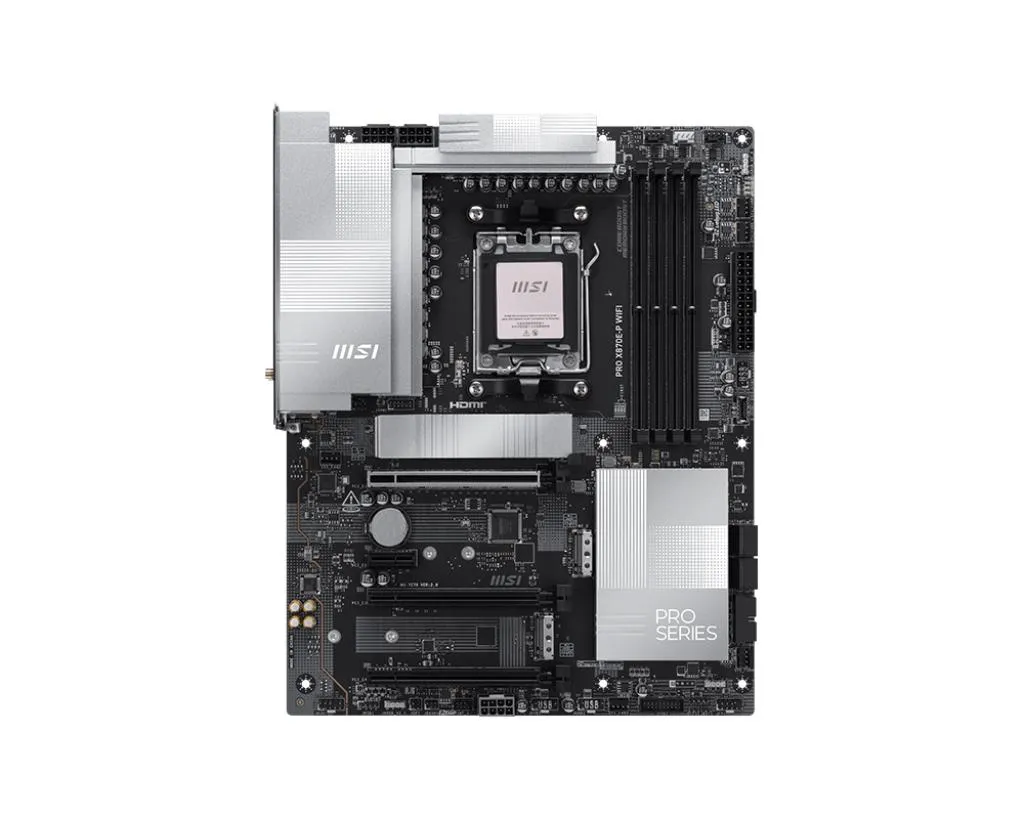

PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-P WIFI is ready for the challenge of high-end processors.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver the world-class memory performance.
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 243.84 mm
- Sügavus
- 304,8 mm
- PC tervise monitoorimine
- CPU, Ventilaator, Temperatuur, Pinge
.: Protsessor :.
- Protsessori tootja
- AMD
- Ühilduvad protsessoriseeriad
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- AMD
- Kiibistik ( Chipset)
- AMD X870E
- Emaplaadi kiip
- AMD X870E
.: Mälu :.
- Toetatud mälutüübid
- DDR5-SDRAM
- Sisemälu tüüp
- DDR5
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 4800,5600,8200 MHz
- Taktsagedus
- 4800/5600/8200 MHz
- Pesade arv
- 4
- Mälupesad
- 4
- Mälukanalid
- Kahe kanaliga
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- Ethernet-liidese tüüp
- 5 Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Laienduspesad
- PCI Expressi x1 pesad
- 1
- PCI Expressi x16 pesad
- 3
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- M.2, SATA III
- SATA
- Jah
- SATA-ühenduste arv
- 0
- SATA II ühenduste arv
- 0
- SATA III ühenduste arv
- 4
- M.2 (M) siinide arv
- 3
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 5
Sisemine I/O moodul
- EPS-toitepistmik (8 kontakti)
- Jah
- ATX-toitepistmik (24 kontakti)
- Jah
- CPU-ventilaatori pistmik
- Jah
- USB 2.0 pistmikud
- 6
- TPM-ühenduspesa
- Jah

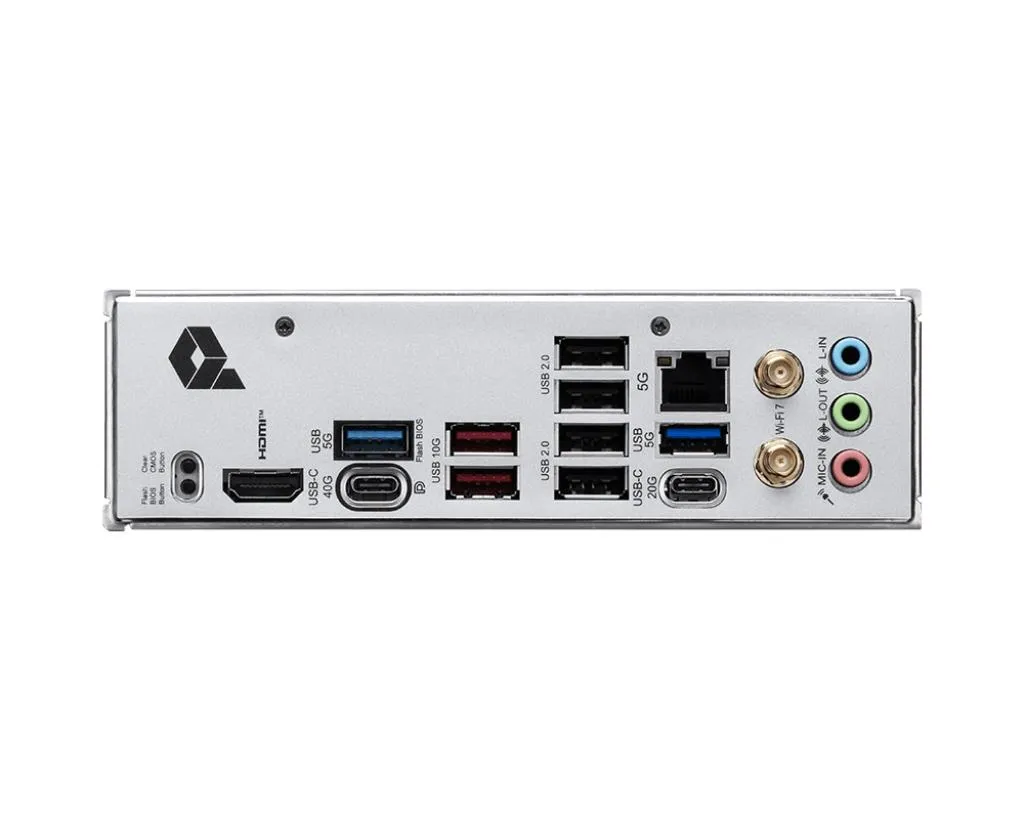

Tagapaneeli I/O pesad
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- USB 2.0 portide arv
- 4
- USB 2.0
- 4
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Netokaal
- 1 kg
Muud näitajad
- DisplayPort versioon
- 1.4
- PCI Express x16 slots
- 3
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Pesa AM5
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 4
- Supported storage drive types
- HDD & SSD
- PCI Express x1 slots
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- RGB LED pin header
- Jah
- DisplayPort arv
- 2
- RGB LED pin ots
- Jah
- USB 3.2
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 1
- PCI-Express 4.0 4x
- 1
- USB4 Gen 2x2 portide arv
- 1
- PCI-Express 5.0 16x
- 1
- Supported memory clock speed (max)
- 8200 MHz
- Unit Box Height
- 0.275
- Unit Box Length
- 0.345
- Unit Box Width
- 0.075
- CnKood
- 84733020
- Toetatud mälu taktsageduse kiirus (maks)
- 8200 MHz
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Üksuse kalkuleeritud maht
- 0.007909 cubm
- Üksuse kalkuleeritud kaal
- 2.15 kg
- Kokkuvõte
- MSI PRO X870E-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax),.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 7
- USB4 Gen 2x2 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- PC health monitoring
- CPU/Fan/Temperature/Voltage
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Toetatud Windows operatsioonisüsteemid
- Windows 11 x64
- Tootja koduleht
- https://www.msi.com/Motherboard/PRO-X870E-P-WIFI
- HDMI versioon
- 2.1
- Mudel
- PRO X870E-P WIFI
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 2
- USB4 Gen 3x2 ports quantity
- 1
- USB4 Gen 3x2 portide arv
- 1
- 1st M.2 largest key size
- 2280
- 1. M.2 suurim võtme suurus
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 1. M.2 kõrgeima PCI Expressi põlvkonna M.2
- 5.0
- 2nd M.2 largest key size
- 2580
- 2. M.2 suurim võtme suurus
- 2580
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- 2. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- 3rd M.2 largest key size
- 22110
- 3. M.2 suurim võtme suurus
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- mSATA-pesade arv
- 0
- Kogus transpordikasti kohta
- 5
- Toetatud kõvaketaste arv
- 7
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 4
- HDMI-versioon
- 2.1
- DisplayPorts quantity
- 2
- SATA-ühenduste koguarv
- 4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Toote värv
- Must
- Motherboard chipset
- AMD X870E
- RAID support
- Jah
- Toetatud protsessoripesad
- Protsessoripesa AM5
- Windows operating systems supported
- Windows 11 x64
- Number of memory slots
- 4
- Processor Socket
- Pesa AM5
- Raid Levels
- 0/1
- Supported memory clock speeds
- 4800/5600/8200 MHz
- USB 2.0 connectors
- 6
- USB-C
- 2
