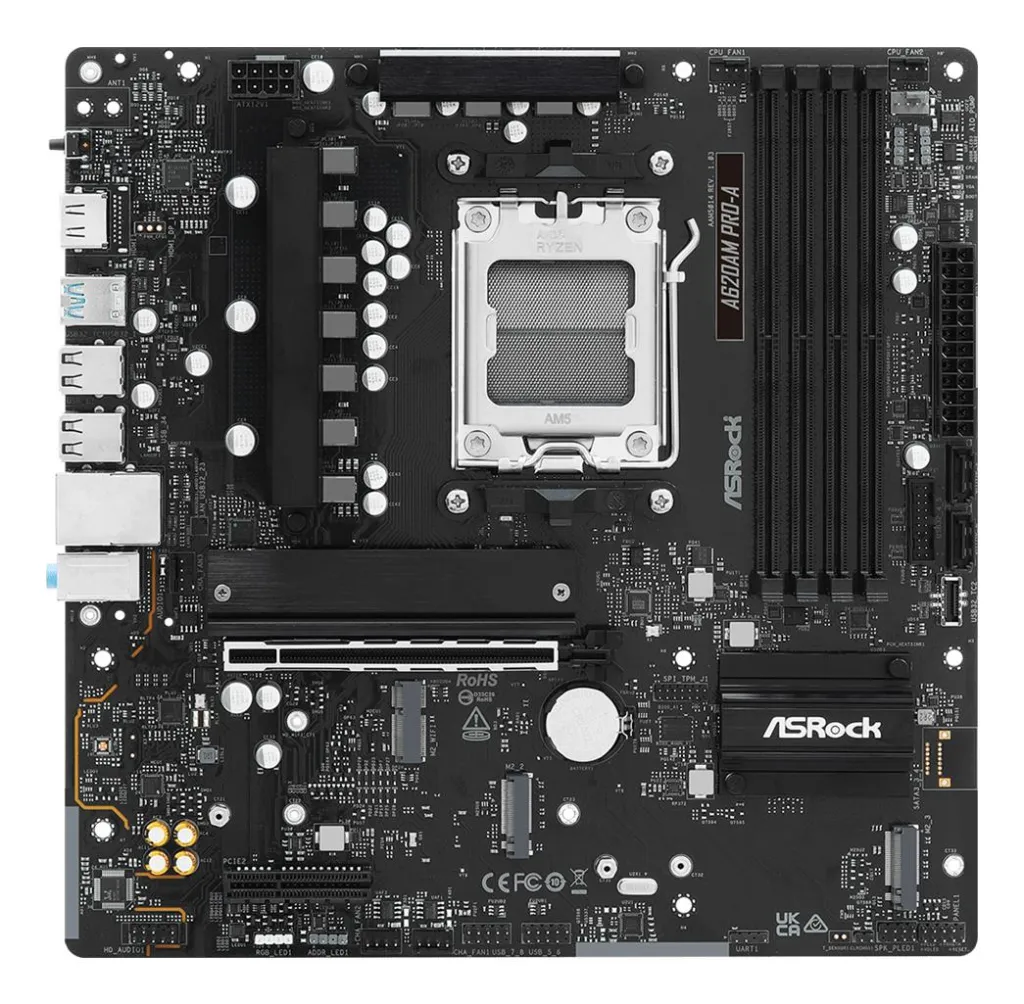

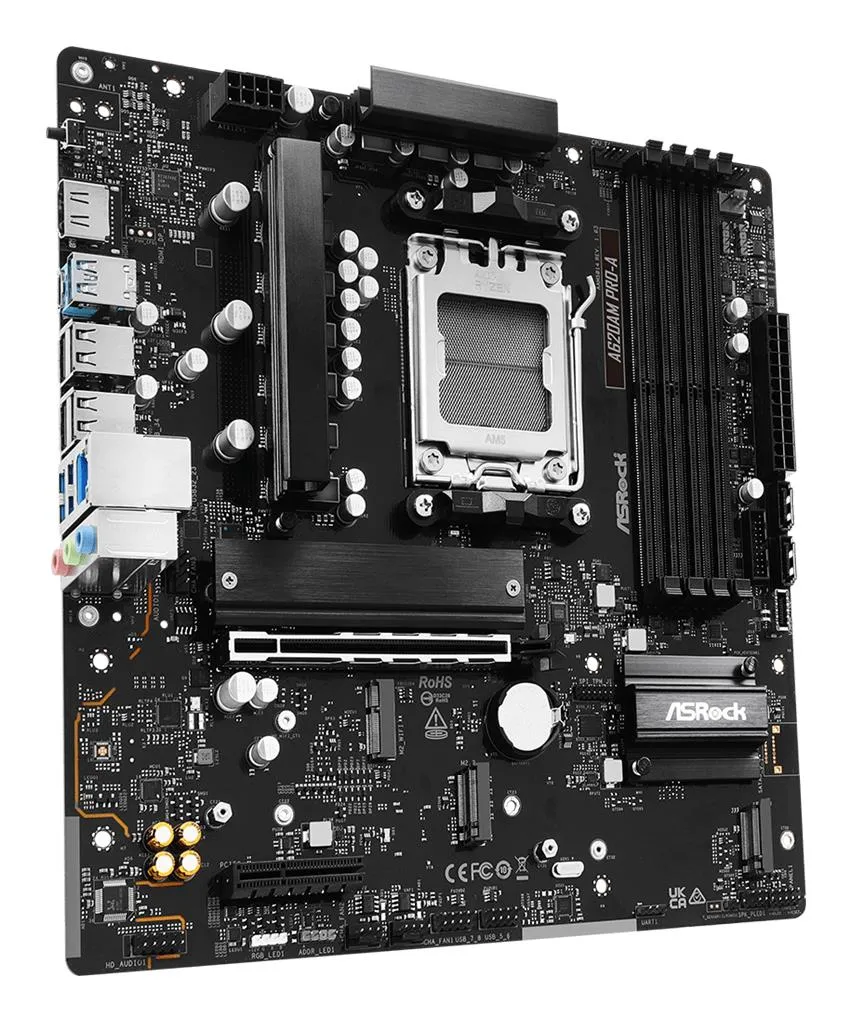

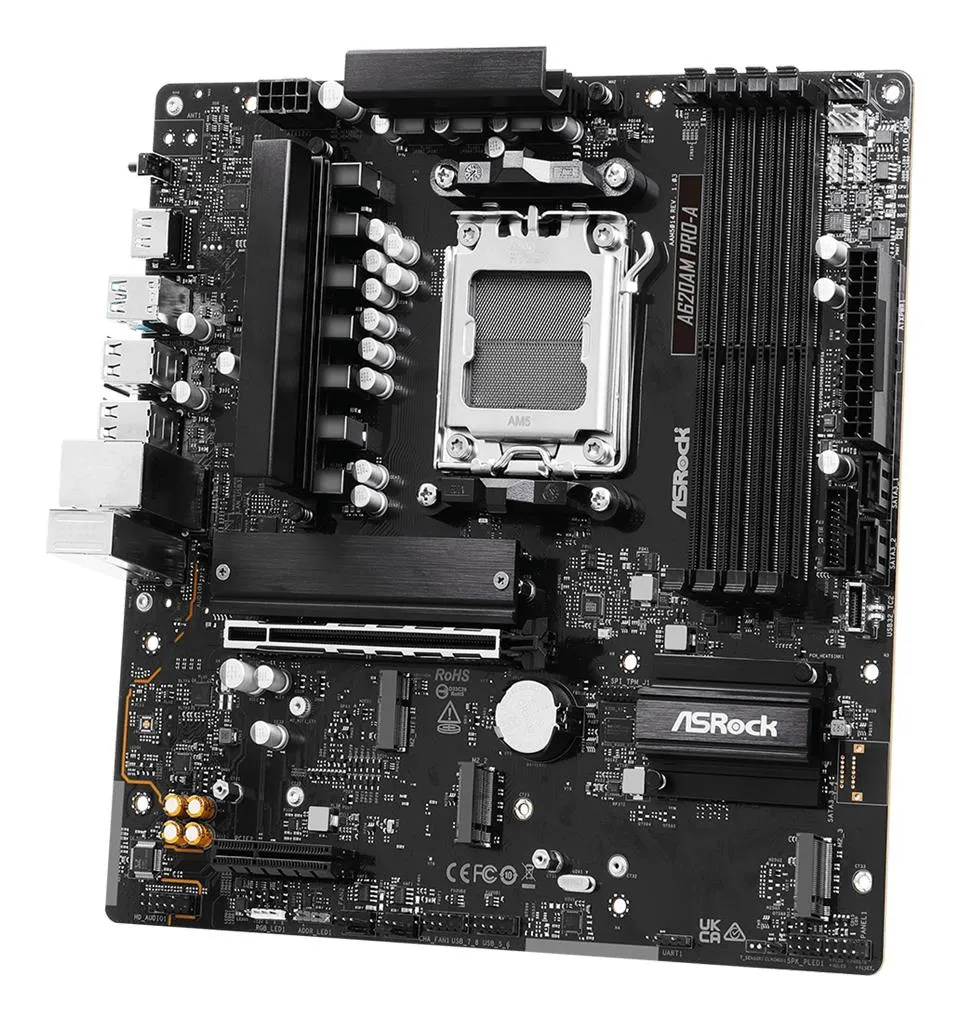

Mainboard|ASROCK|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|3xNumber of M.2 (M) slots|A620AM Pro-A|A620AMPRO-A
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Connectivity
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Stylish Design
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
DIY Friendly
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
- Optimized VRM Design
- 6 Layer PCB
- DDR5 XMP & EXPO Support
- High Speed M.2 Solution
- Intelligent Cooling Design
- POLYCHROME RGB
- M.2 (KEY E) For WiFi
- BIOS Flashback
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Laius
- 244 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD A620A
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Ei
- Bluetooth
- Ei
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1; NVMe 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

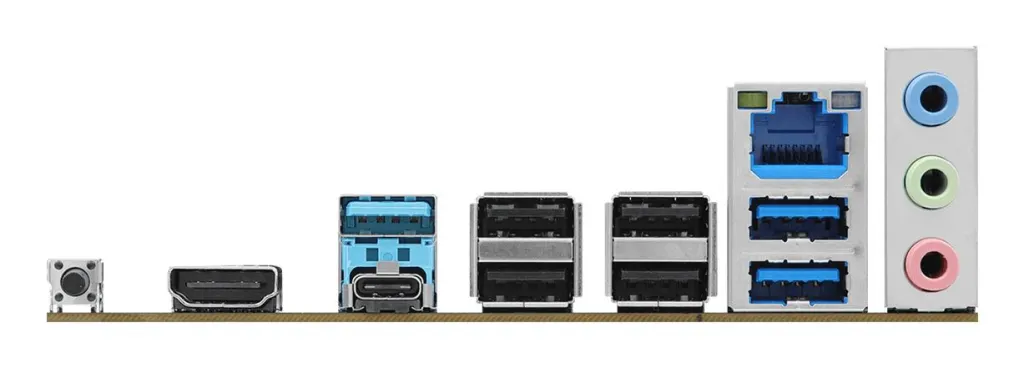

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 2
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Netokaal
- 0.7 kg
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 3
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 2
- Parallel processing technology support
- Not supported
- Number of M.2 (M) slots
- 3
- Line-in
- Jah
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,NVMe,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Unit Box Height
- 0.265
- Unit Box Length
- 0.295
- Unit Box Width
- 0.06
- CnCode
- 84733020
- Compliance certificates
- CE/Federal Communications Commission (FCC)
- ECC сompatibility
- ECC & Non-ECC
- Unit Calculated Volume
- 0.005406 cubm
- Unit Calculated Weight
- 1.21 kg
- Summary
- Asrock A620AM PRO-A. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG
- HDCP version
- 2.3
- High Dynamic Range (HDR) supported
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- On-board graphics card
- Jah
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- PCI Express x4 (Gen 3.x) slots
- 1
- Graphics card
- AMD RDNA 2
- Graphics card family
- AMD
- Number of HDDs supported
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- 12V power connector
- Jah
- Audio connector
- Jah
- Rear speaker out
- Jah
- BIOS flashback button
- Jah
- AMD Extended Profiles for Overclocking (EXPO)
- Jah
- M.2 standoff included
- Jah
- Kogus transpordikasti kohta
- 10
- Toote värv
- Black
- Number of CPU fan connectors
- 2
- Number of water pump connectors
- 1
- Number of RGB LED pin headers
- 1
- Component for
- PC
- Intel Extreme Memory Profile (XMP)
- Jah
- Maksimaalne resolutsioon
- 3840 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.asrock.com/MB/AMD/A620AM%20Pro-A/index.asp#Overview
- Tarvikud kaasa arvatud
- - 1 x I/O Shield - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
- Jahutuse tüüp
- Passive
- Ethernet interface type
- 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Microphone in
- Jah
- Motherboard chipset
- AMD A620
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 256 Mbit
- LAN controller
- Dragon RTL8125BG
- Mudel
- A620AM Pro-A
- Number of memory slots
- 4
- PCI Expressi x4 (Gen 3.x) pesad
- 1
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 8000 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
