Mainboard|GIGABYTE|AMD B650|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B650 EAGLE AX (rev. 1.2)|B650EAGLE1.2
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.78 €. Taotle järelmaksu ostukorvis.

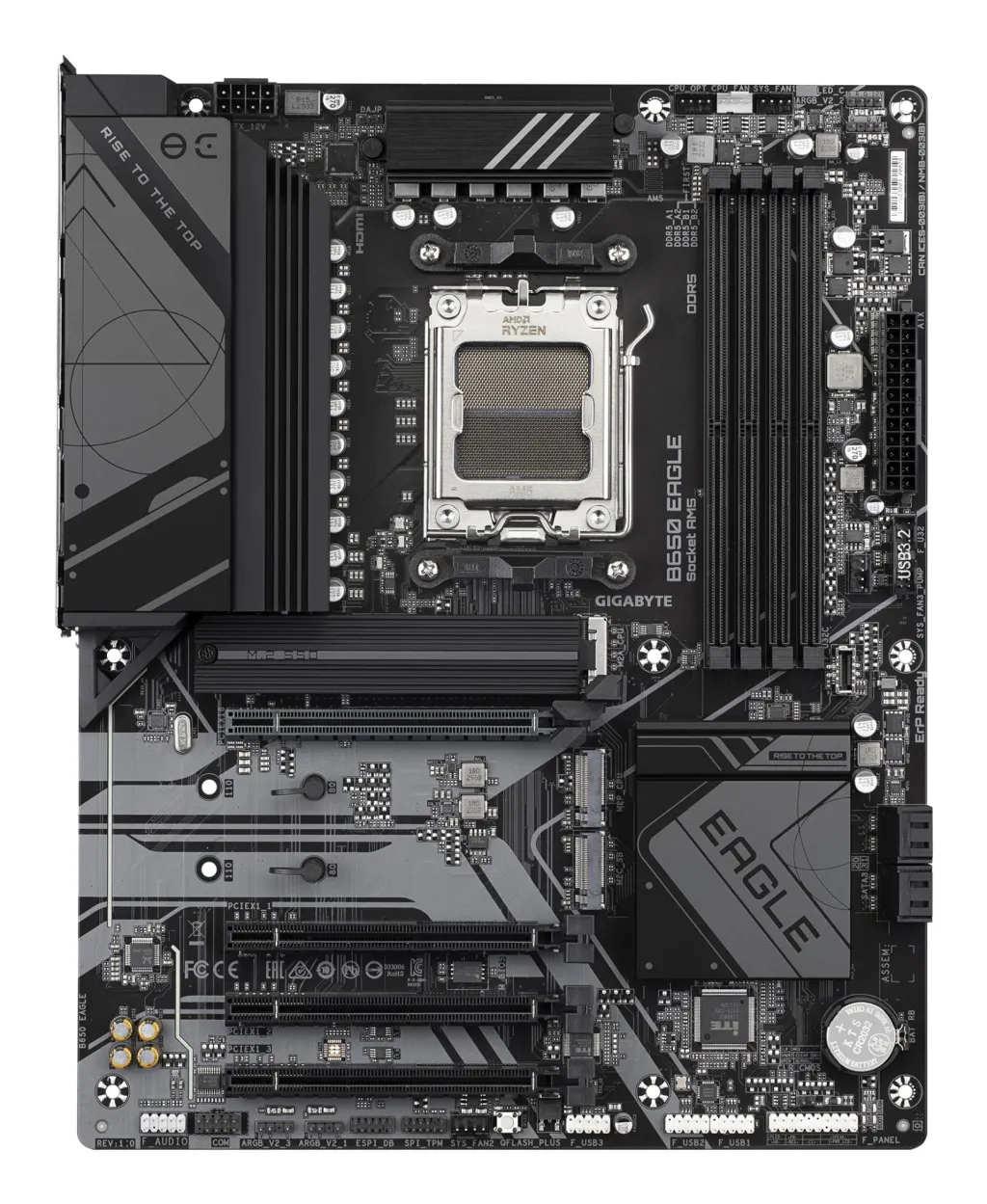

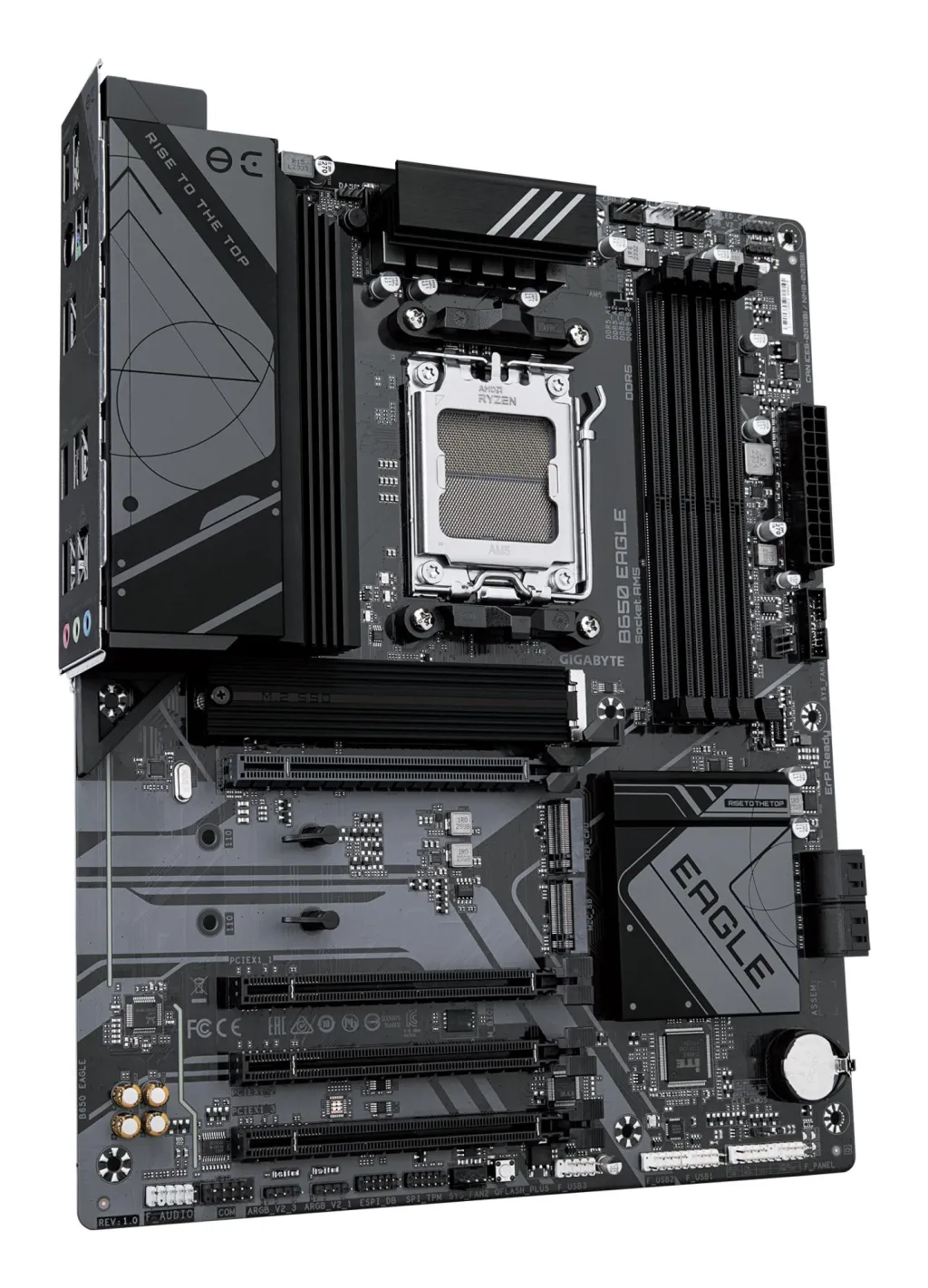

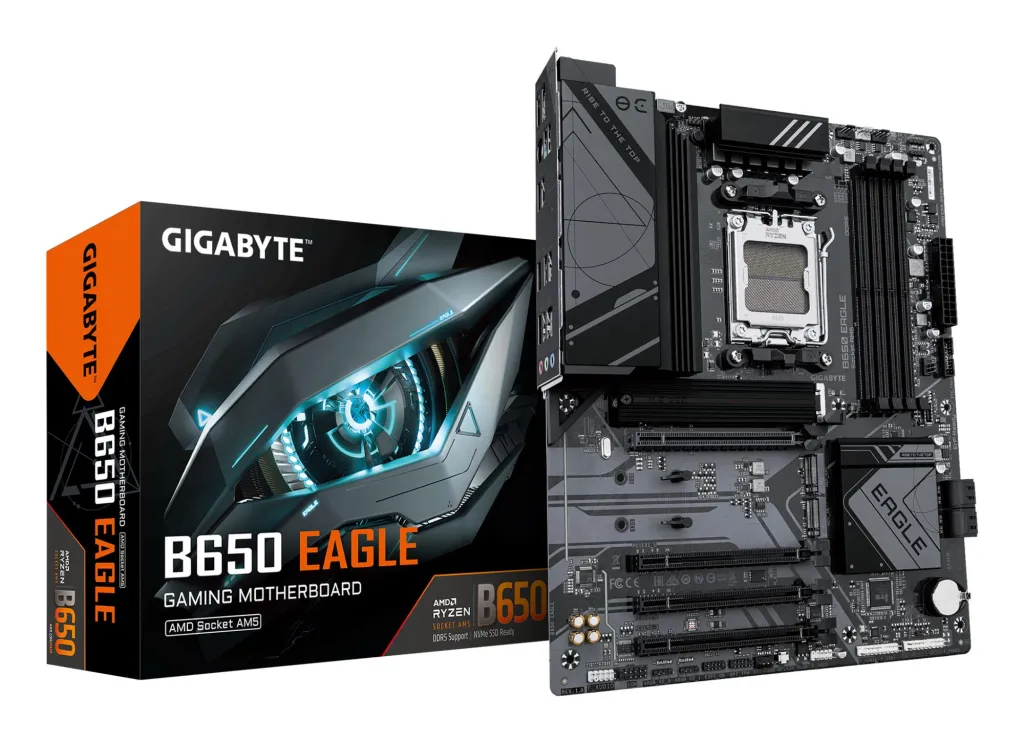

GIGABYTE B650 EAGLE AX (rev. 1.2)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI, Rear USB 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Mälu :.
- Maksimaalne sisemälu
- 256 GB
.: Audio :.
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Jah
- WiFi
- Ei
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

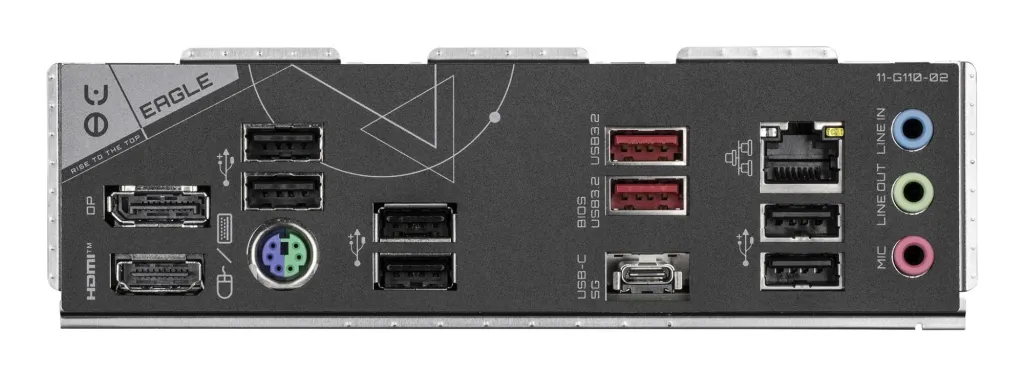

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 6
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 3
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 3
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 3
- Line-in
- Jah
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Jah
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- PCI Express x16 (Gen 4.x) slots
- 1
- Supported memory clock speed (max)
- 7600 MHz
- Unit Box Height
- 0.27
- Unit Box Length
- 0.335
- Unit Box Width
- 0.08
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.009838 cubm
- Unit Calculated Weight
- 1.9 kg
- Summary
- GIGABYTE B650 EAGLE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- Products per shipping (inner) case
- 1 pc(s)
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- DisplayPort versioon
- 1.4
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 8
- Toote värv
- Brown
- Number of CPU fan connectors
- 2
- Kaasas tarkvara
- Norton Internet Security (OEM version) LAN bandwidth management software
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 4
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/Motherboard/B650-EAGLE-rev-12
- Kõrgus
- 35 mm
- Päritoluriik
- China
- DirectX version
- 12.0
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B650
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- LAN controller
- Realtek RTL8111H
- Mudel
- B650 EAGLE AX (rev. 1.2)
- Number of memory slots
- 4
- Pakendi sügavus
- 270 mm
- Pakendi kõrgus
- 80 mm
- Pakendi kaal
- 1818 g
- Pakendi laius
- 335 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
- USB 2.0 connectors
- 3
