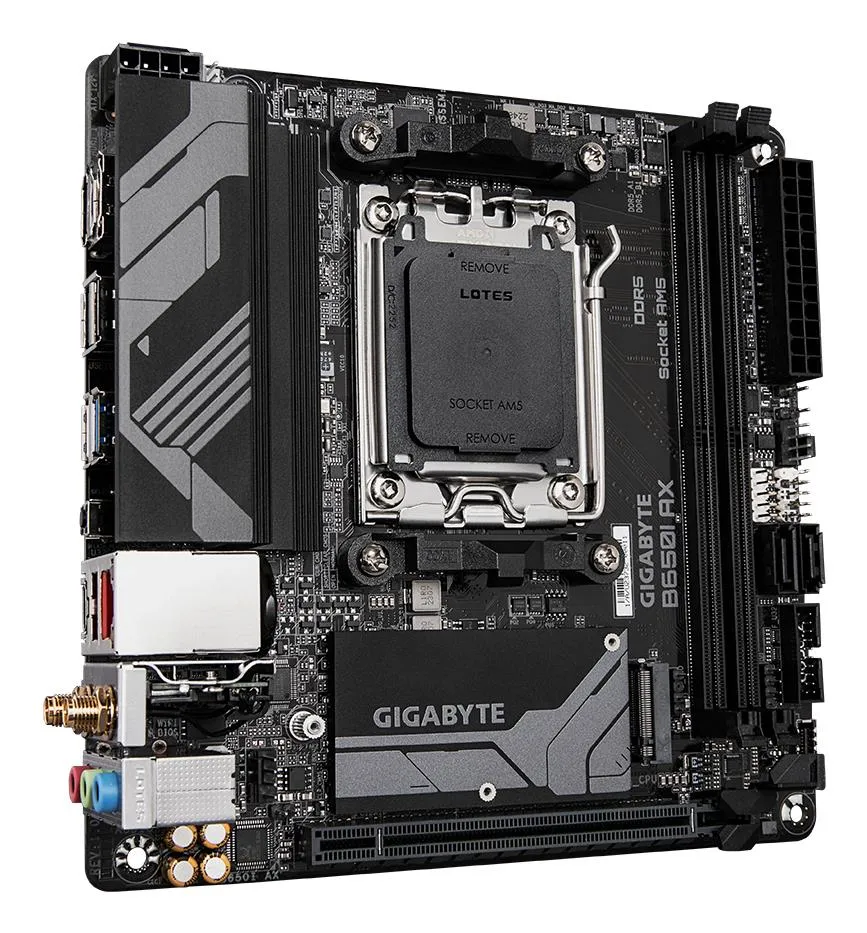

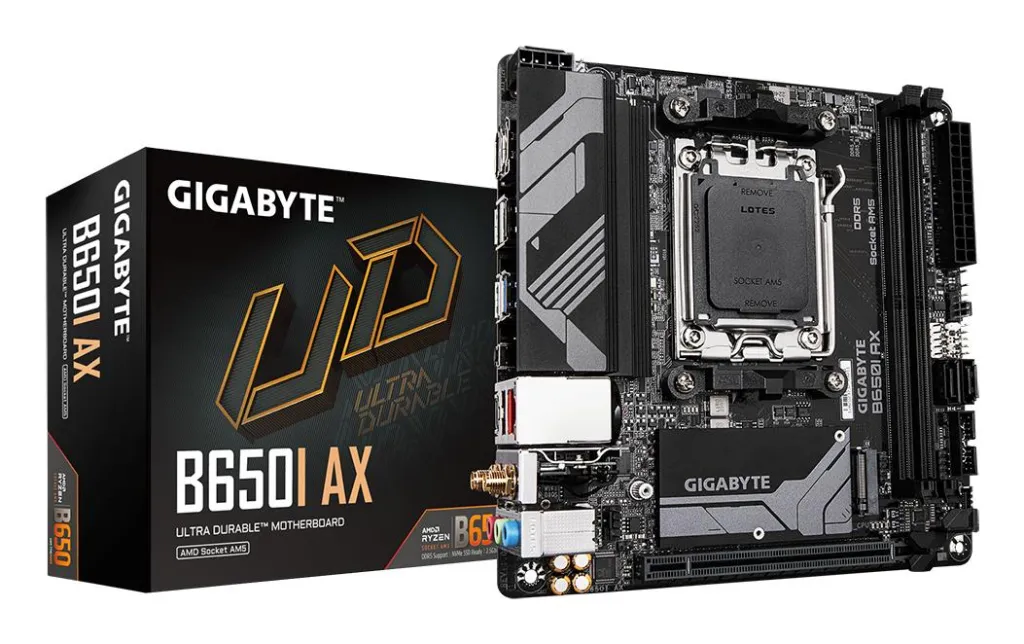

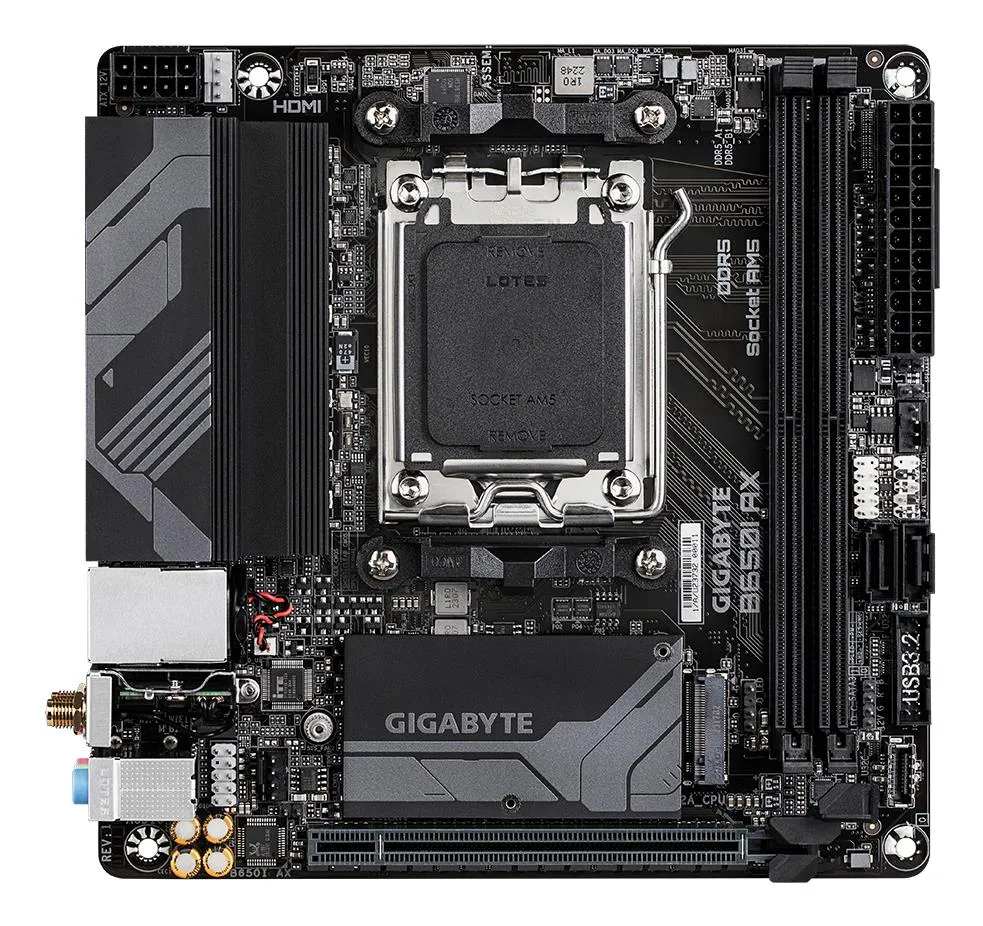

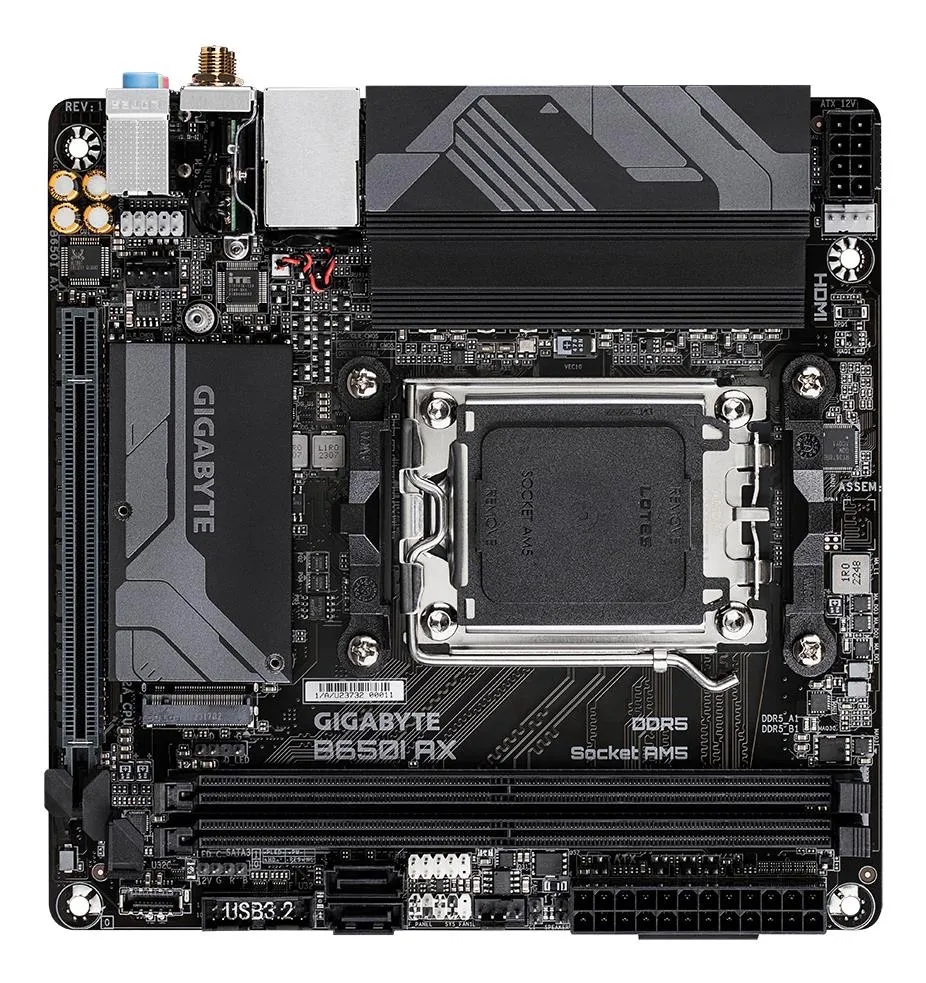

Mainboard|GIGABYTE|AMD B650|Socket AM5|mini ITX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B650IAX1.2

Muud näitajad

DisplayPort versioon

1.4

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Pesa AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

2

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of EATX power connectors

1

Number of SATA III connectors

2

Parallel processing technology support

Ei ole toetatud

Clear CMOS jumper

Jah

ACPI version

5.0

Number of M.2 (M) slots

1

Line-in

Jah

Number of storage drives supported

3

Supported storage drive types

HDD & SSD

Discrete graphics support

Jah

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Screws included

Jah

Processor manufacturer

AMD

Antenna included

Jah

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

PCI Express x16 (Gen 4.x) slots

1

Supported memory clock speed (max)

6400 MHz

Unit Box Height

0.065

Unit Box Length

0.18

Unit Box Width

0.225

CnKood

84733020

Garantiiaeg

3 aasta(s)

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Üksuse kalkuleeritud maht

0.002632 cubm

Üksuse kalkuleeritud kaal

0.77 kg

Kokkuvõte

GIGABYTE B650I AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+1 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Products per shipping (inner) case

1 tk

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Audio chip

Realtek ALC897

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

PC health monitoring

Fan/Temperature/Voltage

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Front panel connector

Jah

Lithium weight per battery

0.07 g

Tootja koduleht

https://www.gigabyte.com/

HDMI versioon

2.1

Pakendi laius

222 mm

Number of CPU fan connectors

1

Pakendi kõrgus

65 mm

Kaasas tarkvara

Norton® Internet Security (OEM version)
LAN bandwidth management software

Number of RGB LED pin headers

2

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Component for

PC

Kogus transpordikasti kohta

1

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Pakendi sügavus

180 mm

Maksimaalne resolutsioon

4096 x 2160 pixels

Pakendi kaal

879 g

HDCP

Jah

Kõrgus

35 mm

DirectX version

12.0

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

Päritoluriik

China

Toote värv

Pruun

Microphone in

Jah

Motherboard chipset

AMD B650

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

LAN controller

Realtek RTL8125

Number of memory slots

2

Processor Socket

Pesa AM5

Raid Levels

0/1

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400 MHz

USB 2.0 connectors

1
