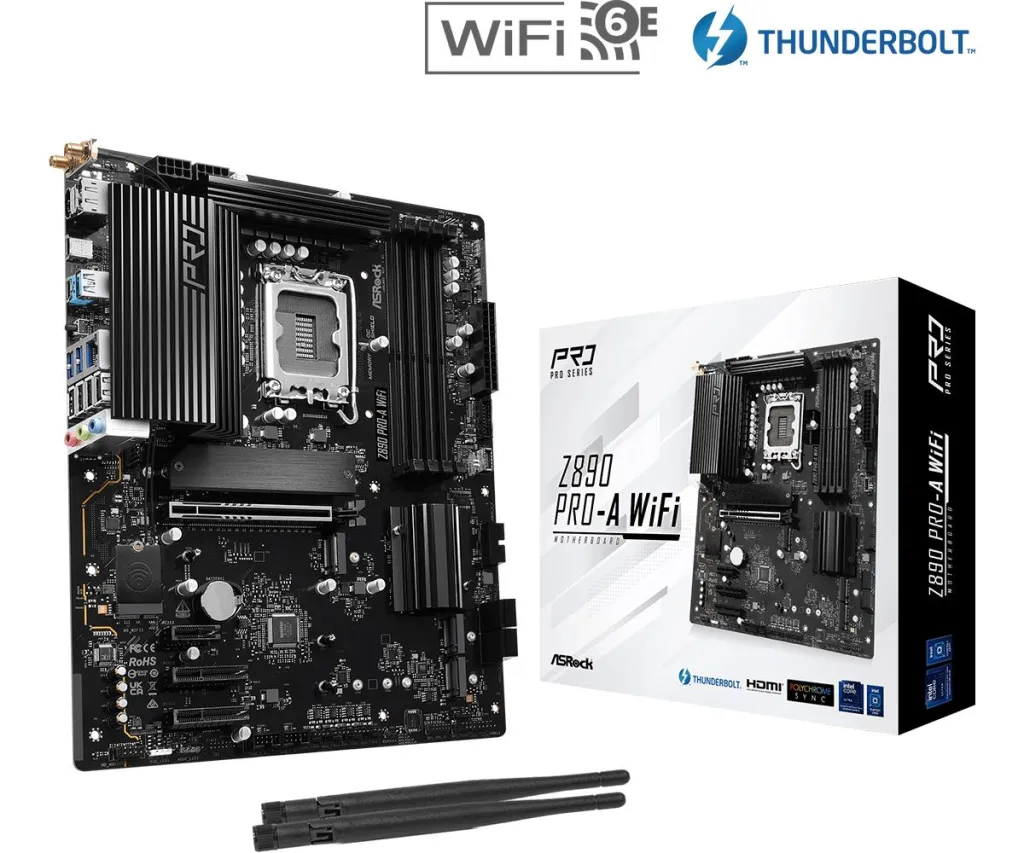

Mainboard ASROCK Intel Z890 LGA1851 ATX Memory DDR5 Memory slots 4 Z890PRO-AWIFI

Z890 Pro-A WiFi

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)

16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT

4 x DDR5 DIMMs

Supports Dual Channel, up to 9066+ (OC)

1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1

Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 Hyper M.2 (PCIe Gen4x4 & SATA3)

1 Thunderbolt™ 4 Type-C (Rear)

2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),

1 USB 3.2 Gen2 Type-A (Rear),

6 USB 3.2 Gen1 (2 Rear, 4 Front),

8 USB 2.0 (4 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe Wi-Fi 6E + Bluetooth

Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Intel Z890
LGA1851, ATX
DDR5, Memory slots 4
Video Depending on CPU, LAN 2.5 Gigabit
Audio Realtek ALC897, RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
TPM Header
