Mainboard|ASROCK|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HDV
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Laius
- 230 mm
- Sügavus
- 201 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD A520
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC887
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Realtek (Gigabit)
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

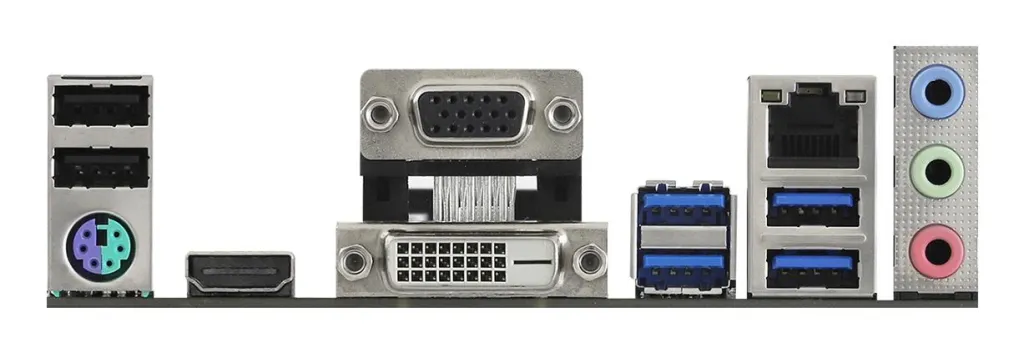

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 2
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.86 kg
- Netokaal
- 0.6 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 20
- Pakendi maht
- 0.00465 cubm
Muud näitajad
- PCI Express x16 (Gen 3.x) slots
- 1
- Unit Calculated Volume
- 0.00465 cubm
- ECC сompatibility
- Non-ECC
- CnCode
- 84733020
- Unit Box Width
- 0.0145
- Unit Box Length
- 0.61
- Unit Box Height
- 0.51
- DVI-D
- 1
- USB 3.2
- 4
- Processor manufacturer
- AMD
- Supported storage drive interfaces
- M.2,SATA III
- PCI Express x1 (Gen 3.x) slots
- 1
- Wake-on-LAN ready
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- CPU fan connector
- Jah
- Front panel audio connector
- Jah
- Memory channels
- Dual-channel
- Supported memory types
- DDR4-SDRAM
- Number of COM connectors
- 1
- Number of chassis fan connectors
- 2
- Motherboard chipset family
- AMD
- Memory slots type
- DIMM
- ATX Power connector (24-pin)
- Jah
- Compatible processor series
- AMD Ryzen 3000 Series
- BIOS type
- UEFI AMI
- Unit Calculated Weight
- 0.86 kg
- Summary
- Asrock A520M-HDV. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- Number of HDDs supported
- 5
- Graphics card family
- AMD
- Graphics card
- Radeon Vega
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Harmonized System (HS) code
- 84733020
- Kogus transpordikasti kohta
- 20
- Component for
- PC
- Tootja koduleht
- https://www.asrock.com/MB/AMD/A520M-HDV/index.asp
- Transpordipakendi kaal
- 17.2 kg
- Transpordipakendi kõrgus
- 50 cm
- Transpordipakendi laius
- 30 cm
- Transpordipakendi sügavus
- 62 cm
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- LAN controller
- Realtek RTL8111H
- Number of memory slots
- 2
- Processor Socket
- Socket AM4
- Supported memory clock speeds
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4500/4533 MHz
- USB 2.0 connectors
- 2
