Mainboard MSI Intel B760 Express LGA1700 ATX Memory DDR4 Memory slots 4 5xPCI-Express 5.0 16x 2xM...

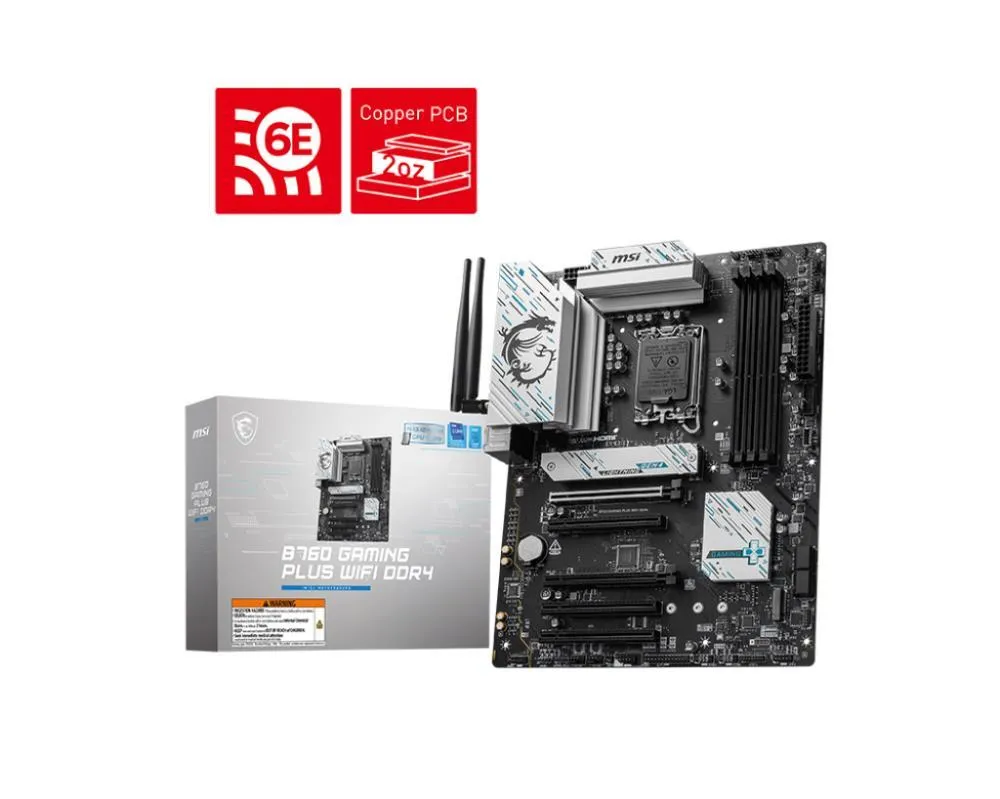

MSI B760 GAMING PLUS WIFI DDR4

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR4 Memory, up to 5333+(OC) MHz

Enhanced Power Design

12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution

Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

Lightning Fast Game experience

PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G

2.5G LAN with Wi-Fi 6E Solution

Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

High Quality PCB

6-layer PCB made by 2oz thickened copper

Audio Boost

Reward your ears with studio grade sound quality for the most immersive gaming experience
Intel B760 Express
LGA1700, ATX
DDR4, 5333/5200/5066/5000/4800/4600/4400/4266/4200/4000/3800/3733/3600/3466/3400/3333/3200/2933/2666/2400/2133 MHz
Memory slots 4, 5xPCI-Express 5.0 16x
2xM.2, 1xHDMI
1xDisplayPort, 4xUSB 2.0
2xUSB 3.2, 1xUSB-C
1xPS/2, 1xOptical S/PDIF
1xRJ45, 5xAudio port
SATA, SATA 3.0
Video, LAN 2.5 Gigabit
Audio Realtek ALC897, RAID SATA 0, 1, 5, 10
TPM Header
