Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|5xUSB 3.2 type B|2xUSB-C|3xAudio port|PRIMEB850-PLUSWIFI
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 9.50 €. Taotle järelmaksu ostukorvis.

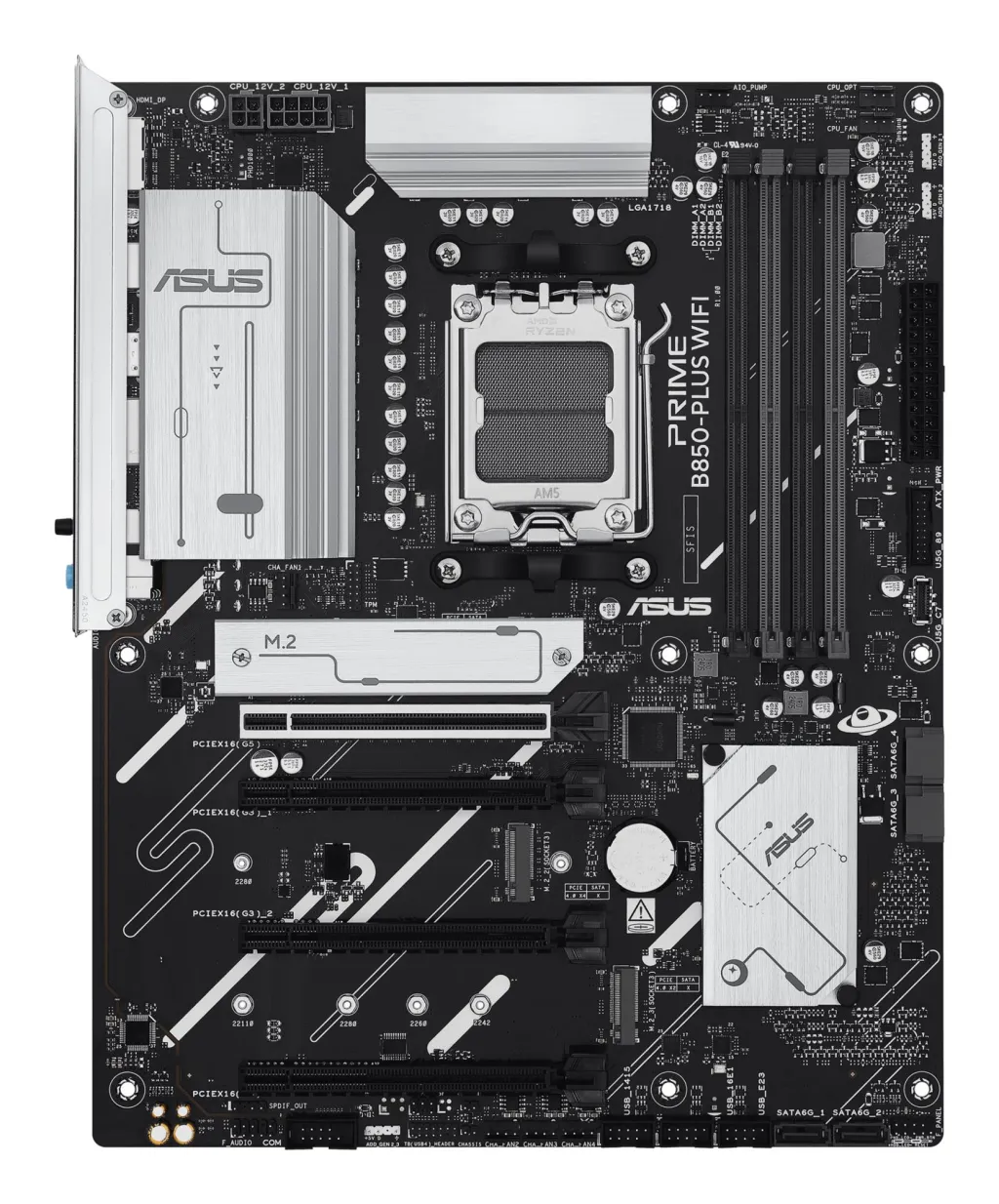

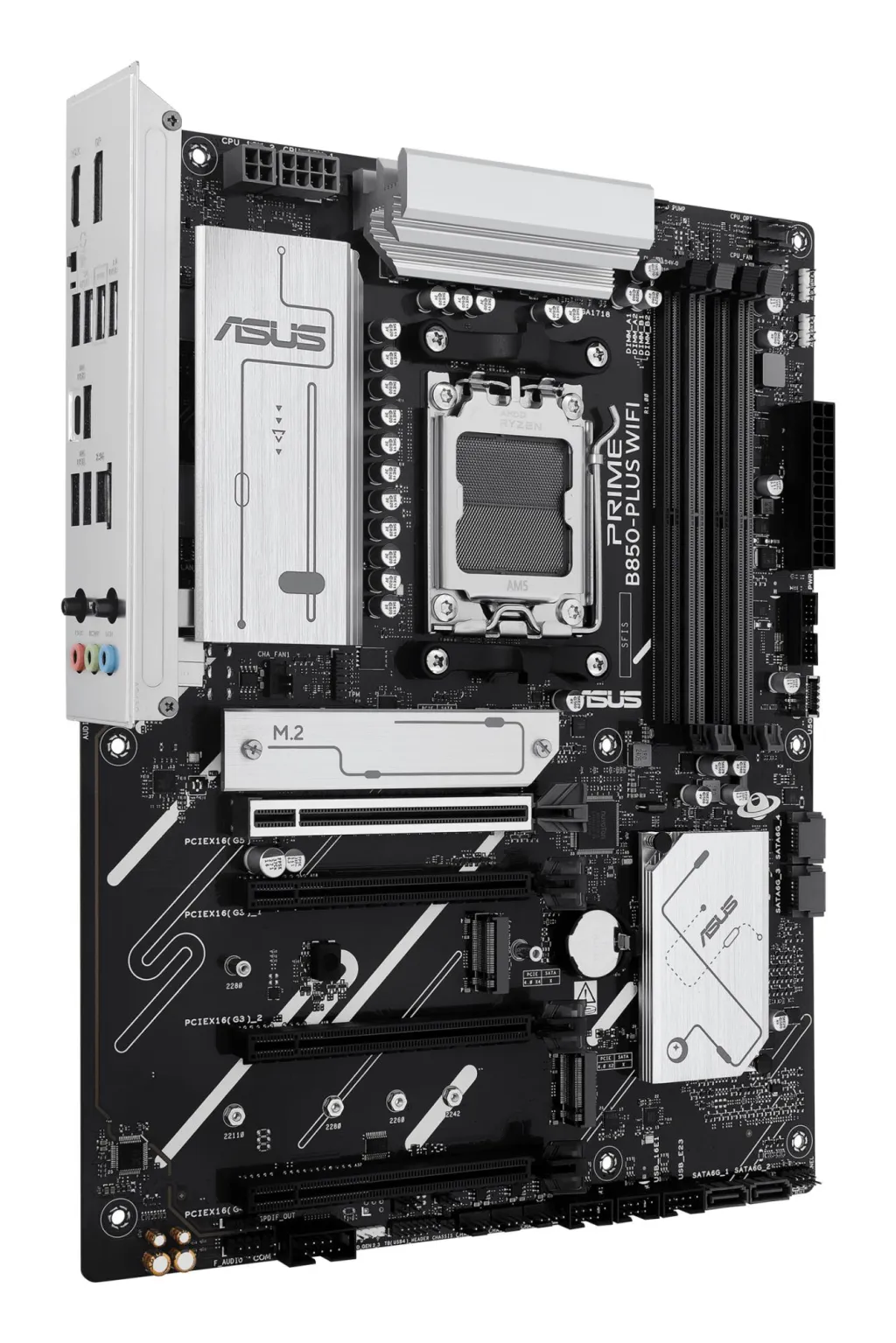

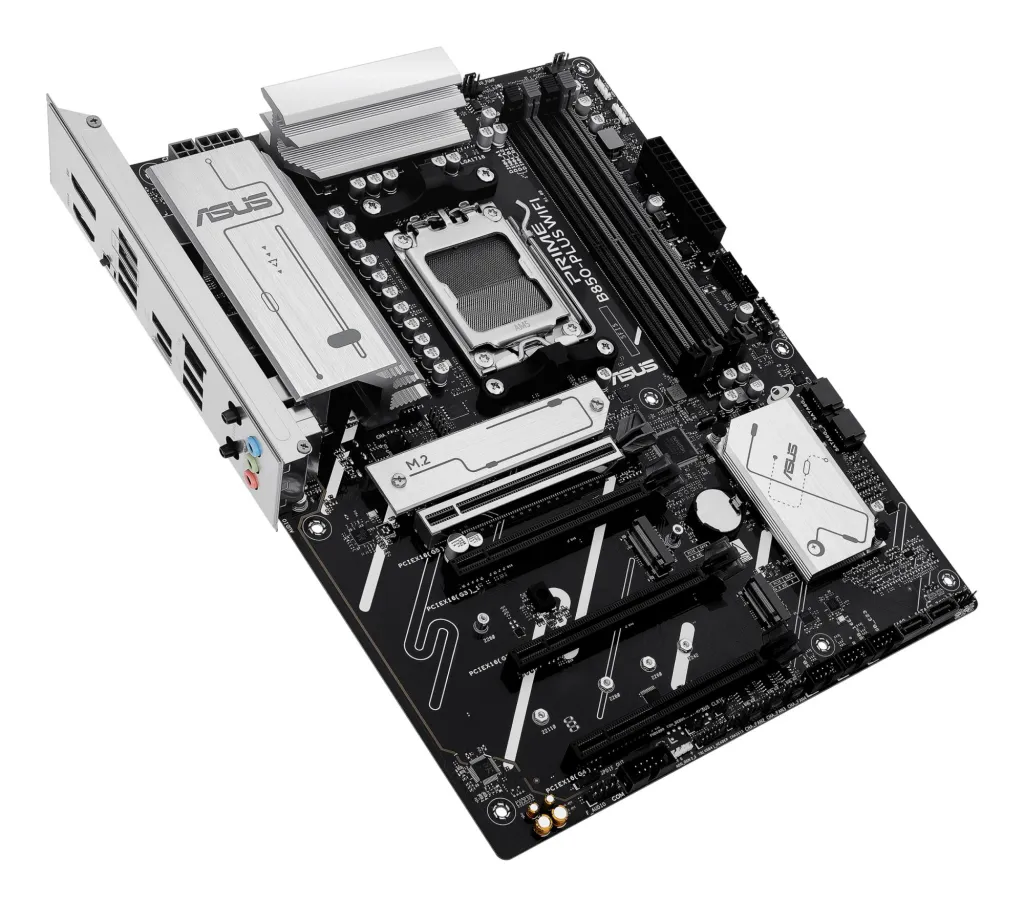

PRIME 850-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
* CEC Tier II ready
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B850
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x16 (Gen 3.x) pesad
- 2
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 3
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

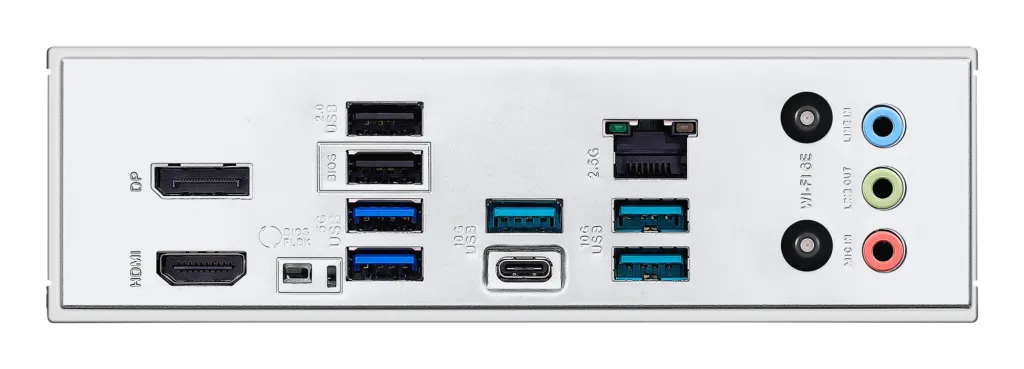

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.81 kg
- Netokaal
- 1.3 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 5
- Pakendi maht
- 0.008044 cubm
Muud näitajad
- Compatible operating systems
- Windows 11, Windows 10 64-bit
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Chassis intrusion connector
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 2
- Parallel processing technology support
- Not supported
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Thunderbolt headers
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- USB 3.2 type B
- 5
- PCI-Express 5.0 16x
- 1
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.274
- Unit Box Length
- 0.357
- Unit Box Width
- 0.068
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Unit Calculated Volume
- 0.008044 cubm
- Unit Calculated Weight
- 1.81 kg
- Summary
- ASUS PRIME B850-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- 12V power connector
- Jah
- Kogus transpordikasti kohta
- 5
- Toote värv
- Multicolour
- Number of CPU fan connectors
- 1
- Component for
- PC
- Tootja koduleht
- https://www.asus.com/motherboards-components/motherboards/prime/prime-b850-plus-wifi/
- Transpordipakendi kaal
- 9.05 kg
- Transpordipakendi kõrgus
- 29.3 cm
- Transpordipakendi laius
- 37 cm
- Transpordipakendi sügavus
- 37.1 cm
- Kõrgus
- 48 mm
- Tarvikud kaasa arvatud

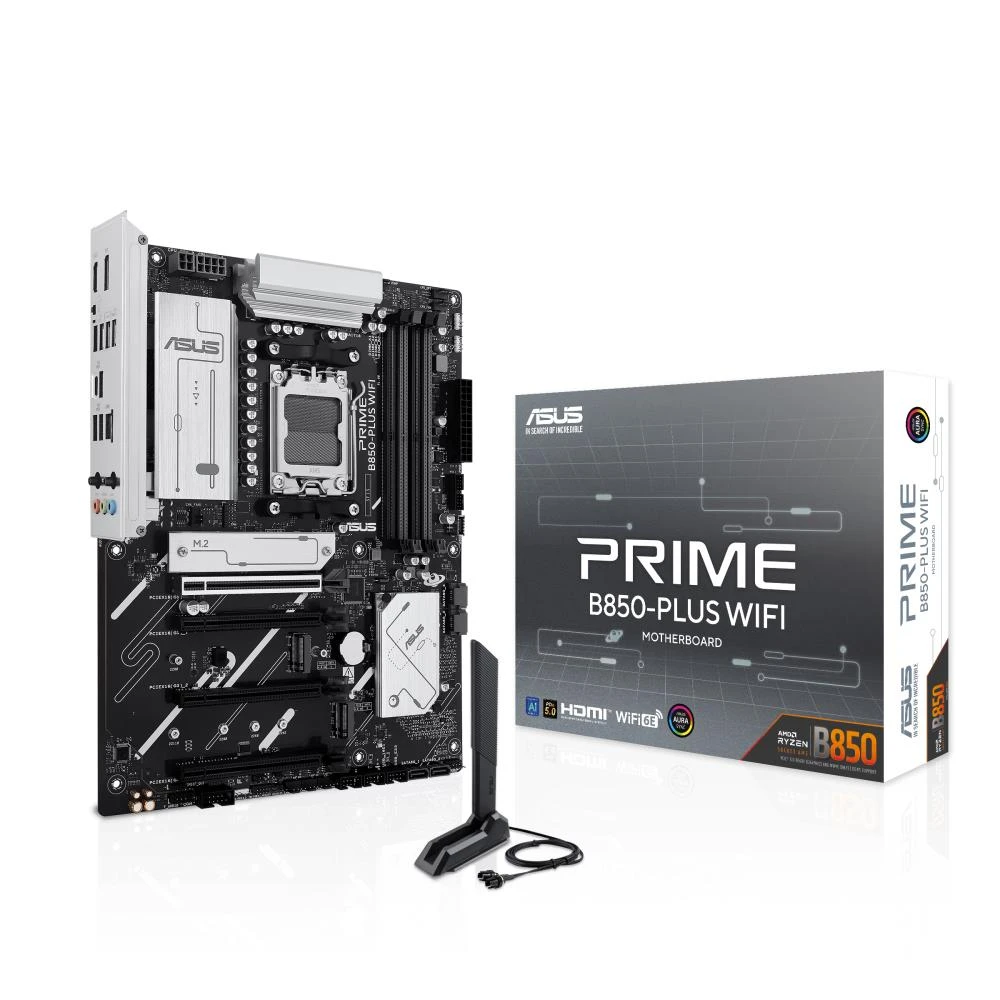

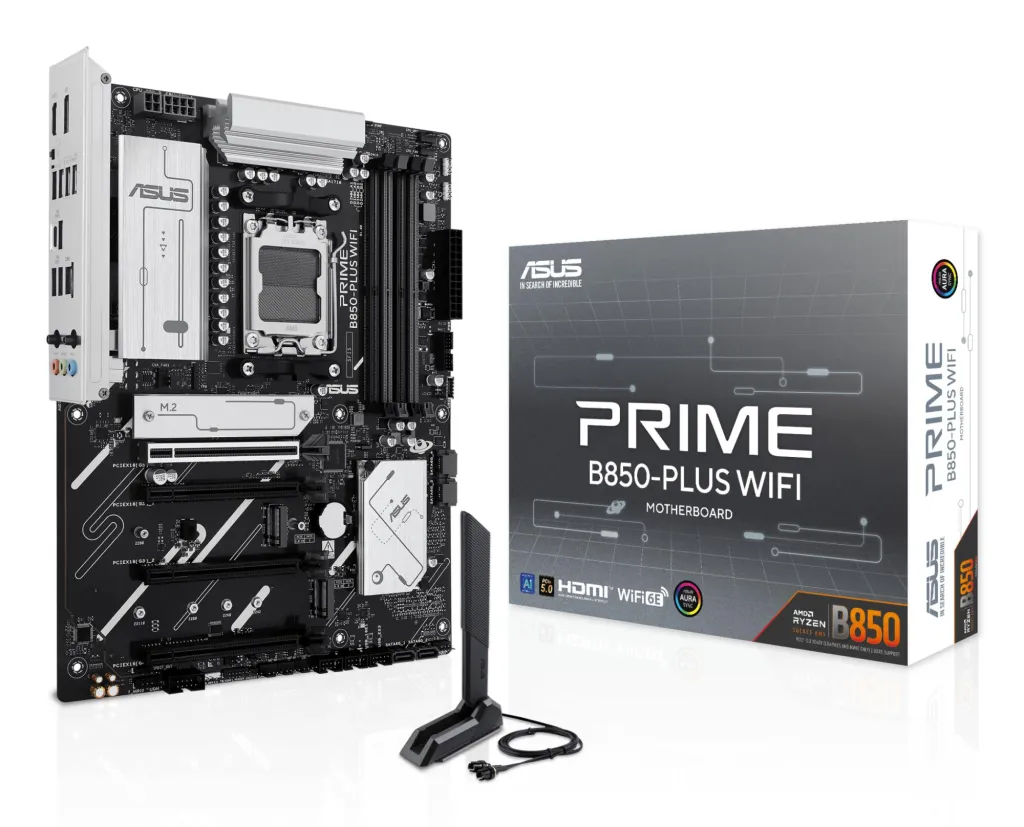

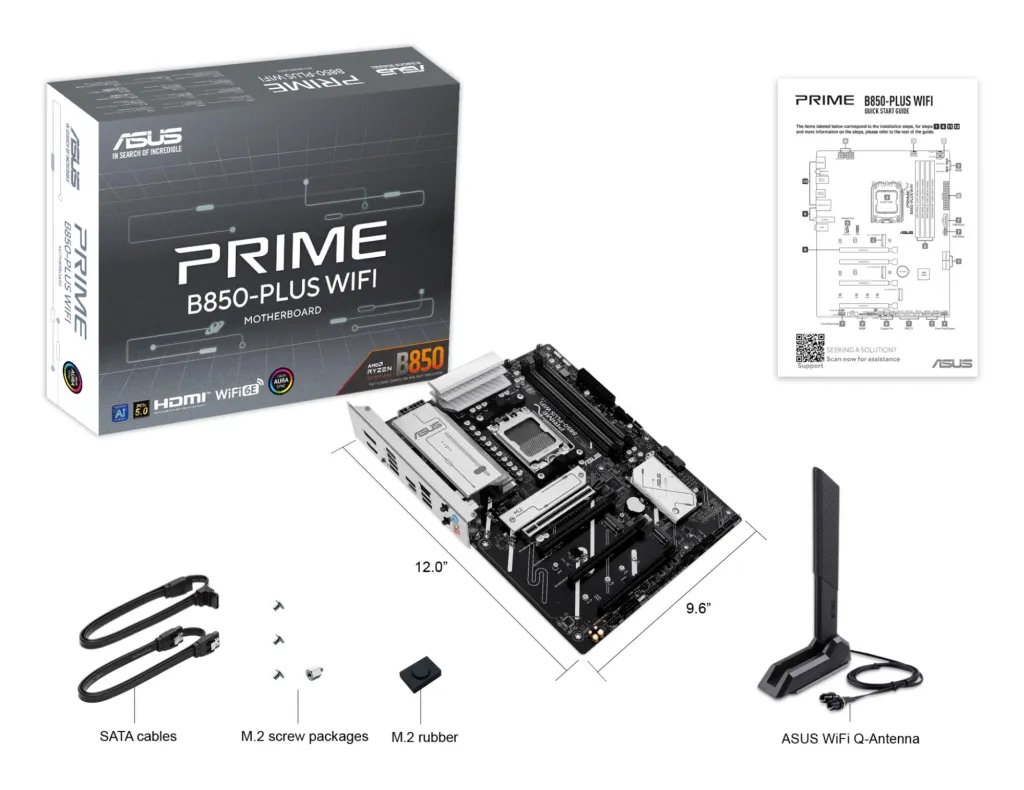

- Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber packages 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide
- Toote kaal
- 1050 g
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B850
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- Mudel
- PRIME B850-PLUS WIFI
- Number of memory slots
- 4
- Pakendi sügavus
- 68 mm
- Pakendi kõrgus
- 273 mm
- Pakendi kaal
- 1260 g
- Pakendi laius
- 353 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10/5
- USB 2.0 connectors
- 3
- USB-C
- Jah
