Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
| Tootja | MSI |

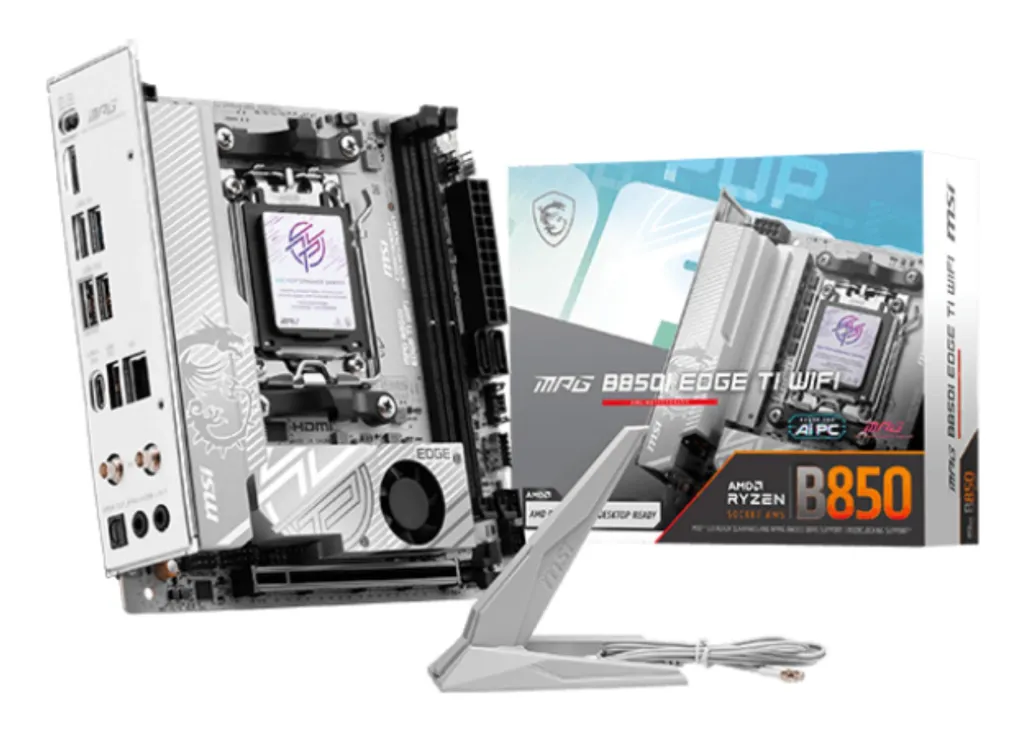

| Tootekood | MPG B850I EDGE TI WIFI |
| EAN | 4711377360906 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | mini ITX |
| Kujutegur | Mini-ITX |
| Laius | 170 mm |
| Sügavus | 170 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B850 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 10000/4800/5600 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC4080 |
| Audioväljundi kanalid | 2 |
| .: Võrgustumine :. | |
| Ethernet LAN | 5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.4 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1; NVMe 0, 1 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |
| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 | 2 |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| Muud näitajad | |
| Number of M.2 (M) slots | 2 |
| CnCode | 84733020 |
| Unit Box Width | 0.275 |
| Unit Box Length | 0.225 |
| Unit Box Height | 0.06 |
| Supported memory clock speed (max) | 8200 MHz |
| PCI-Express 5.0 16x | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| USB 3.2 | 3 |
| RGB LED pin header | Jah |
| Antenna included | Jah |
| Processor manufacturer | AMD |
| Screws included | Jah |
| Supported storage drive interfaces | M.2,NVMe,SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Quick installation guide | Jah |
| Number of SATA III connectors | 2 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| ATX Power connector (24-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Jah |
| S/PDIF out port | Jah |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| CPU fan connector | Jah |
| Unit Calculated Weight | 1.28 kg |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| On-board graphics card | Ei |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Product colour | Grey |
| Summary | MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, RAID levels: 0, 1. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be) |
| Product Net Weight | 0.5 kg |
| Unit Calculated Volume | 0.004394 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | Non-ECC |
| Number of CPU fan connectors | 1 |
| Component for | PC |
| Tootja koduleht | https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Motherboard chipset | AMD B850 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| USB connector type | USB Type-A/USB Type-C |
| LAN controller | Realtek RTL8126 |
| Mudel | MPG B850I EDGE TI WIFI |
| Number of memory slots | 2 |
| Optical S/PDIF | 1 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1 |
| USB 2.0 connectors | 1 |
| USB-C | Jah |
