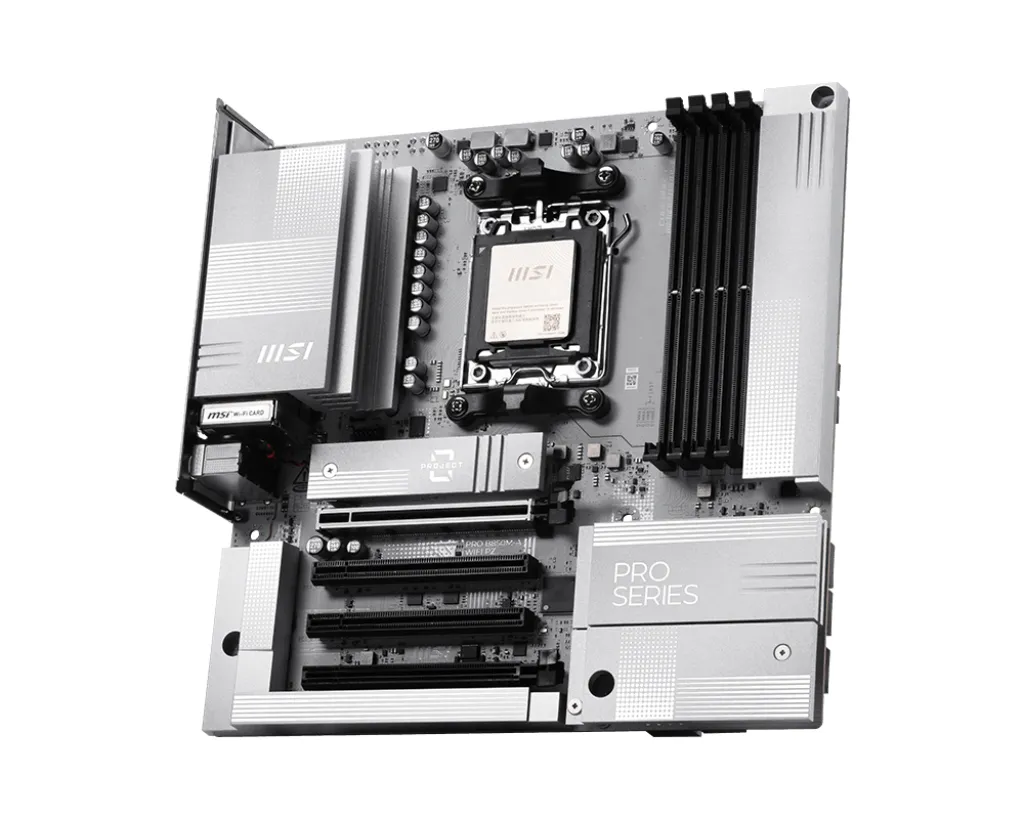

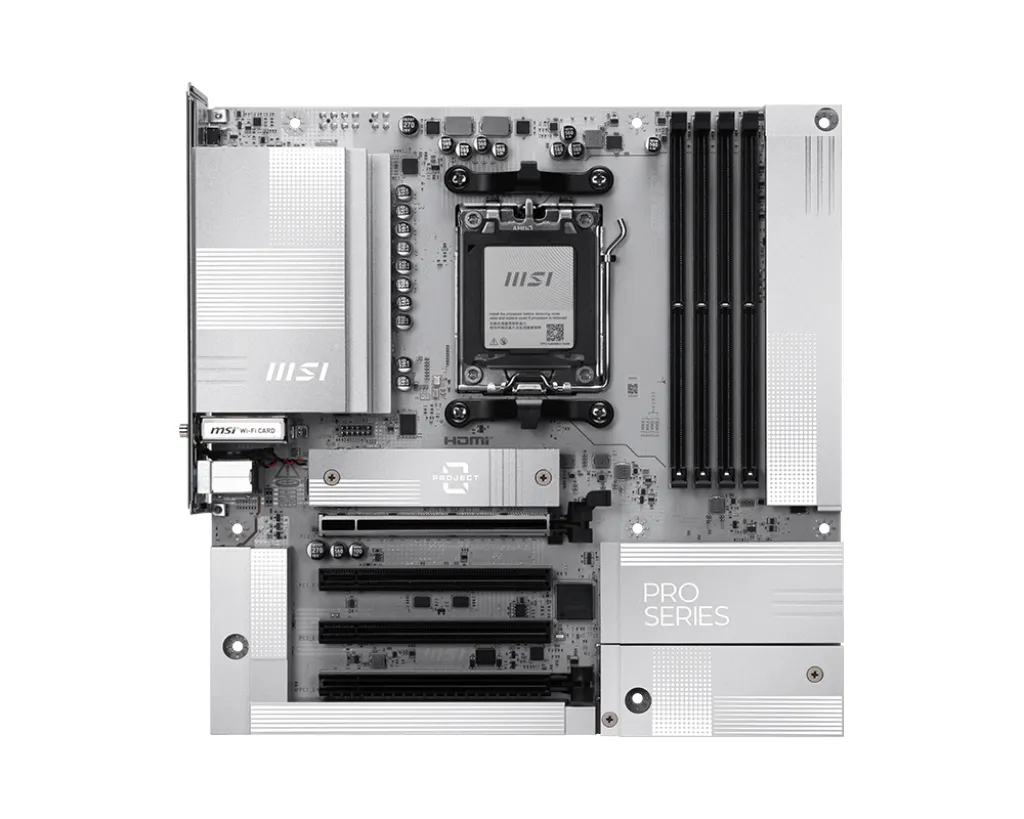

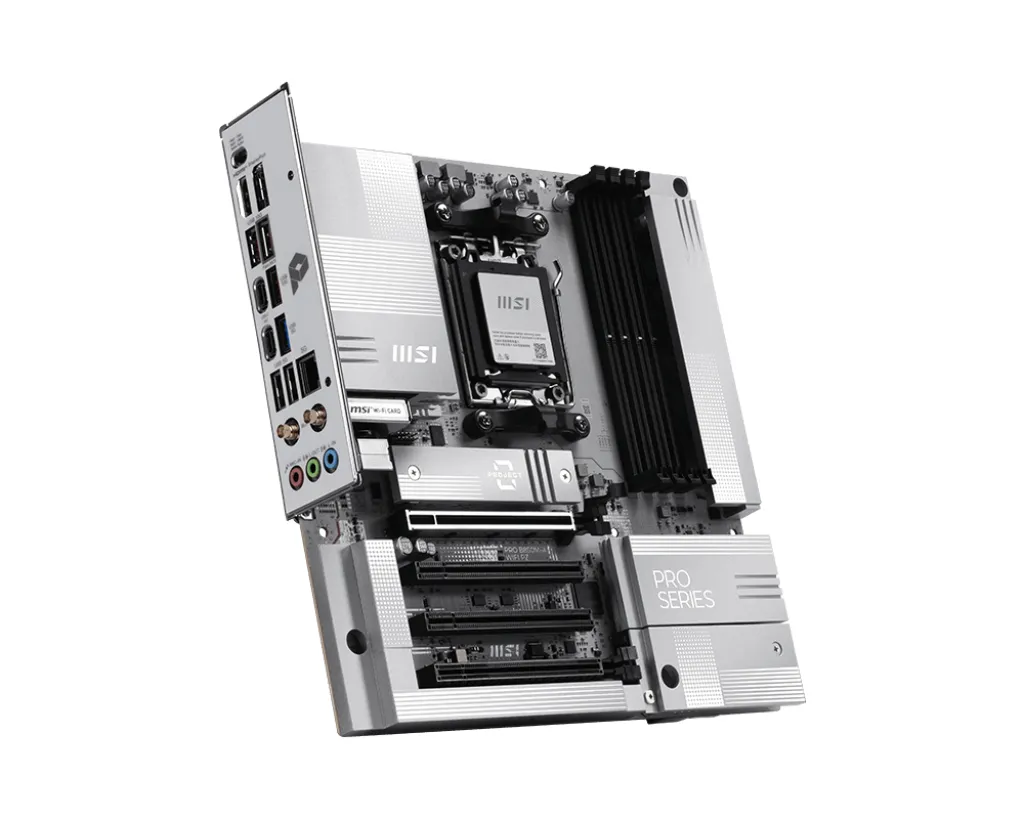

MSI AM5 PRO B850M-A WIFI PZ M-ATX AMD B850 Protsessoripesa AM5 Mikro ATX

Muud näitajad

Supported storage drive interfaces

M.2

Unit Box Length

0.29

Unit Box Height

0.075

Supported memory clock speed (max)

8200 MHz

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

RGB LED pin header

Jah

System management BIOS (SMBIOS) version

3.7

Processor manufacturer

AMD

Unit Box Width

0.285

Supported storage drive types

HDD & SSD

Number of storage drives supported

6

Line-in

Jah

Number of M.2 (M) slots

2

Parallel processing technology support

Not supported

PCI Express x16 (Gen 3.x) slots

1

Number of SATA III connectors

4

CPU fan connector

Jah

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

PCI Express x4 slots

1

Front panel connector

Jah

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of HDDs supported

4

Total number of SATA connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Audio chip

Realtek ALC897

ACPI version

6.5

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

On-board graphics card

Ei

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Summary

MSI AM5 PRO B850M-A WIFI PZ M-ATX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Unit Calculated Weight

1.78 kg

Unit Calculated Volume

0.007378 cubm

ECC сompatibility

Non-ECC

CnCode

84733020

Memory channels

Dual-channel

Front panel audio connector

Jah

PCI Express x16 slots

1

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

DisplayPort versioon

1.4

Kogus transpordikasti kohta

10

Toote värv

Black

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

Component for

PC

2nd M.2 highest PCI Express generation

4.0

Tootja koduleht

https://www.msi.com/Motherboard/PRO-B850M-A-WIFI-PZ/Overview

DisplayPorts quantity

1

Ethernet interface type

5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Microphone in

Jah

Motherboard chipset

AMD B850

RAID support

Jah

Windows operating systems supported

Windows 11 x64

BIOS memory size

256 Mbit

Number of memory slots

4

Processor Socket

Socket AM5

Raid Levels

0/1/10

Supported memory clock speeds

6000/6400/8200 MHz

USB 2.0 connectors

4
