Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|5xNumber of M.2 (M) slots|GIGABYTE X870E AORUS MASTER X3D|X870EAMASTERX
539.97€
E1
E1
603.72€
AL1
AL1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 18.45 €. Taotle järelmaksu ostukorvis.

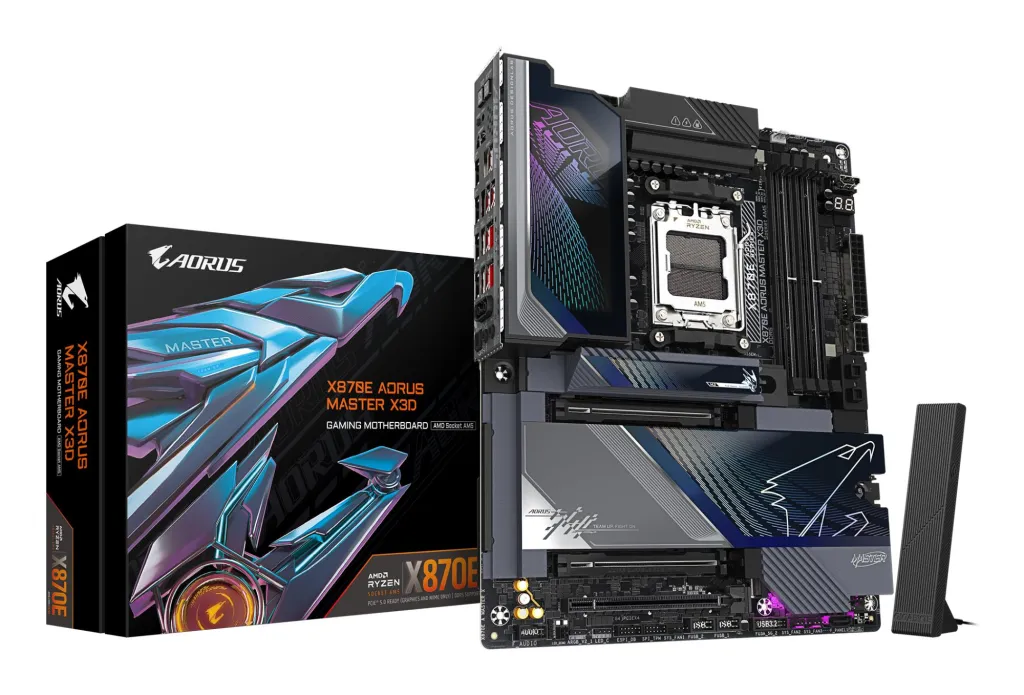

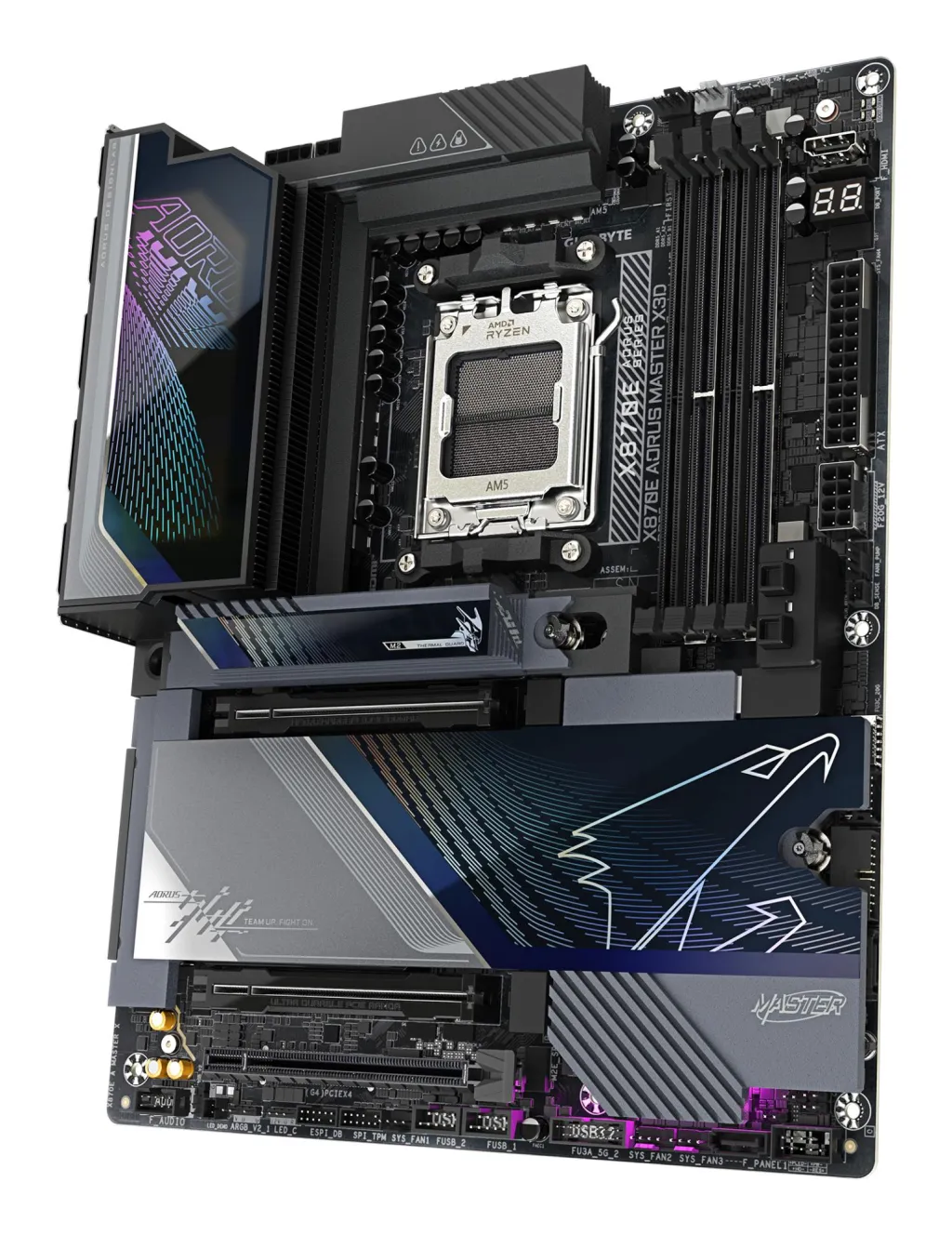

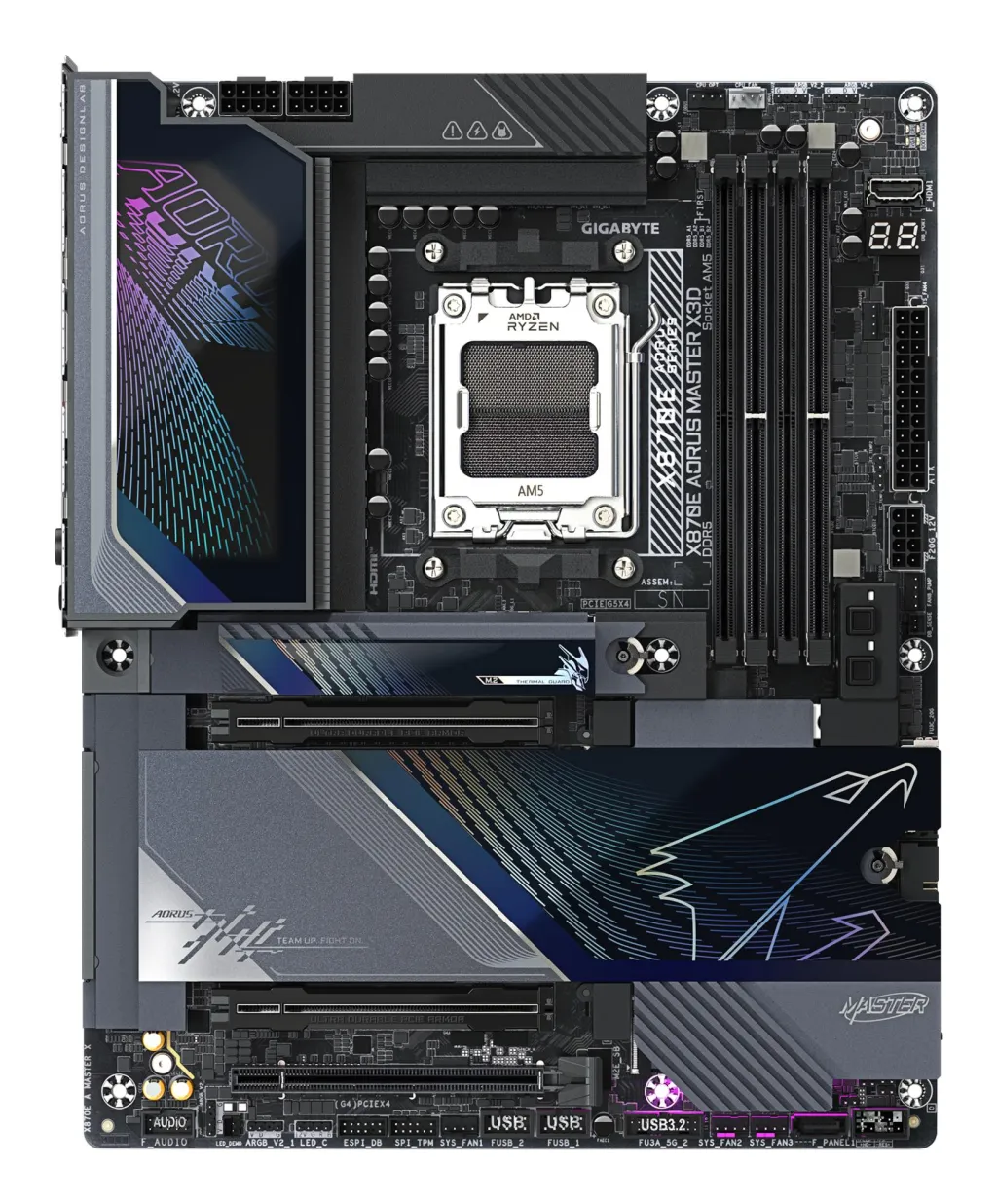

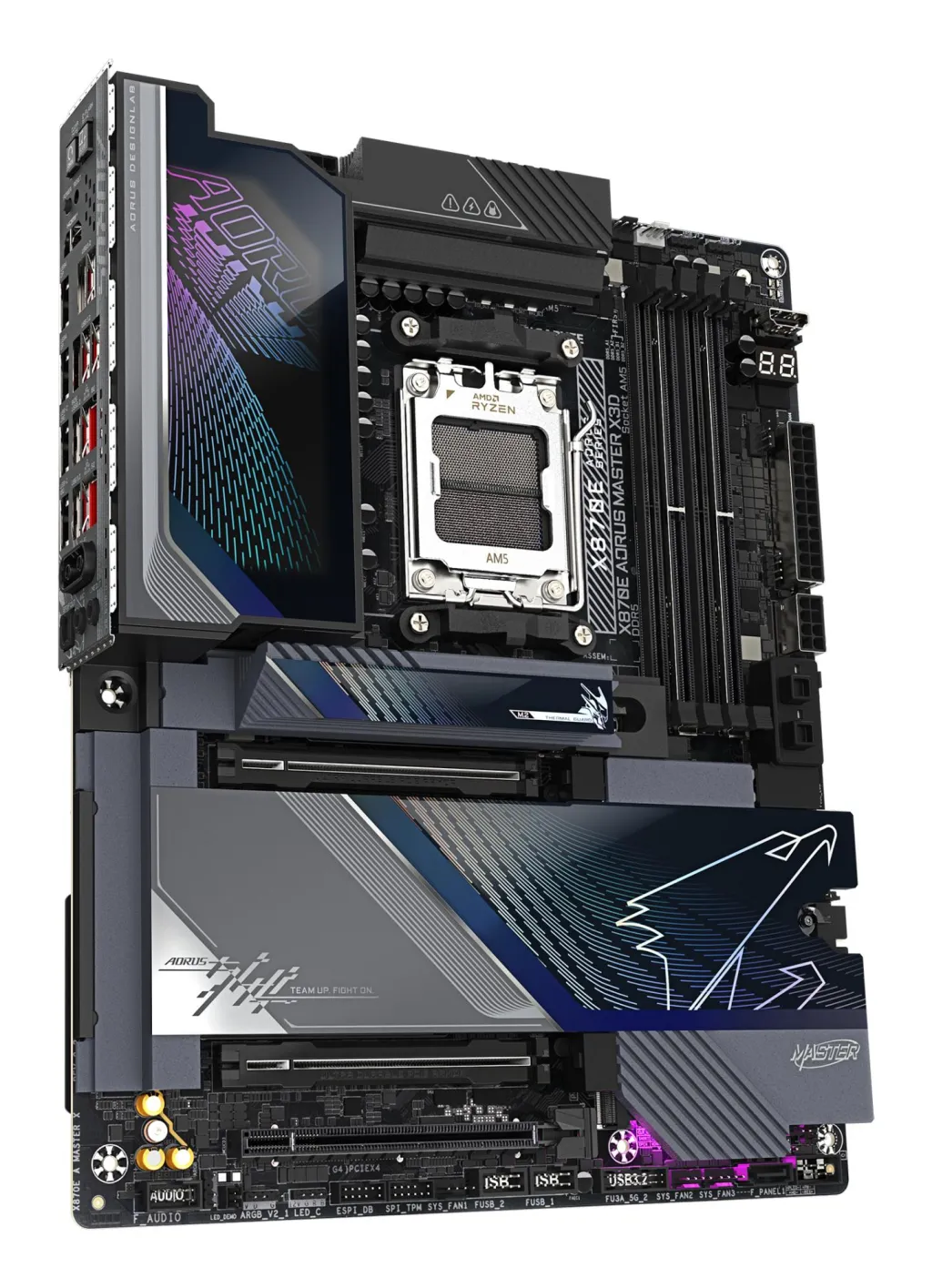

GIGABYTE X870E AORUS MASTER X3D
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- Dual Channel DDR5: 4DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
- Ultra-Fast Storage: 5M.2 slots, including PCIe 5.0 x4

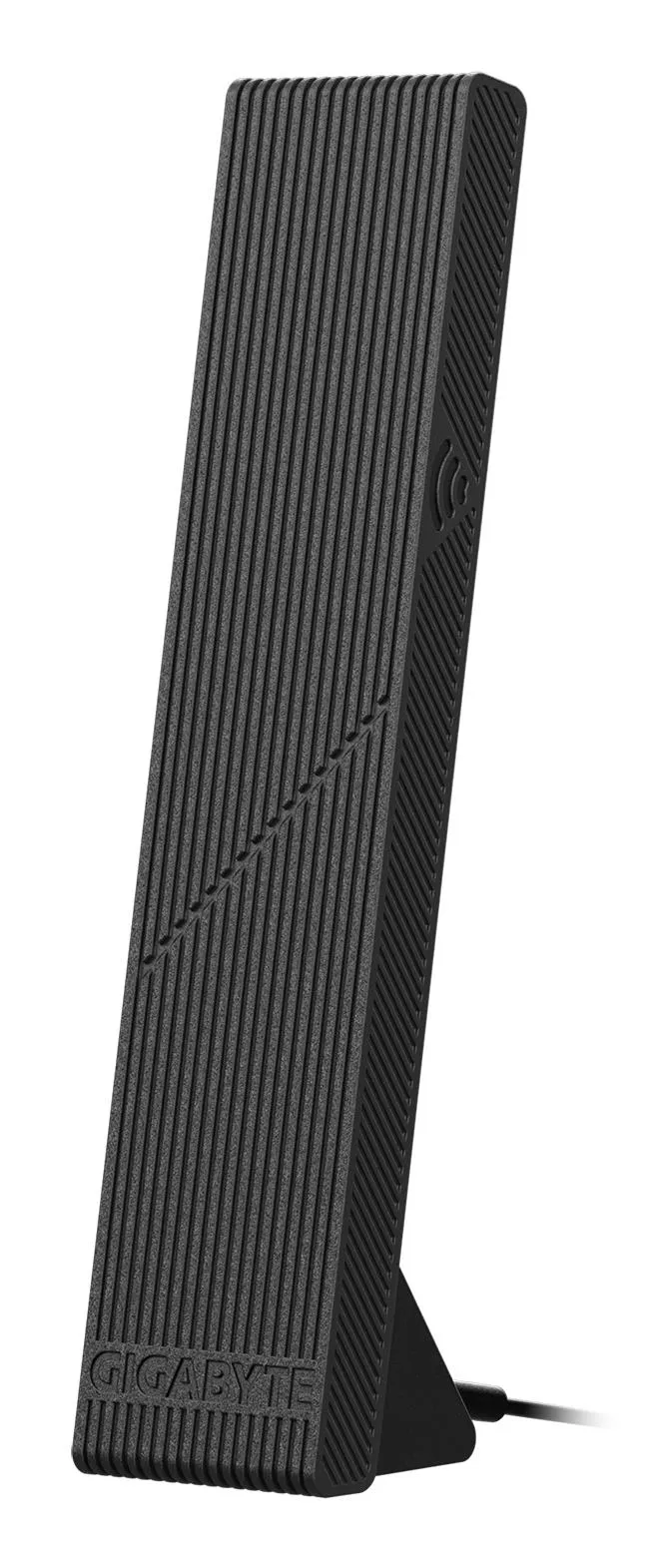

- Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Tootja
GIGABYTE
Tootekood
X870E A MASTER X
EAN
4719331878894
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Mälu :.
- Maksimaalne sisemälu
- 256 GB
.: Audio :.
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Jah
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

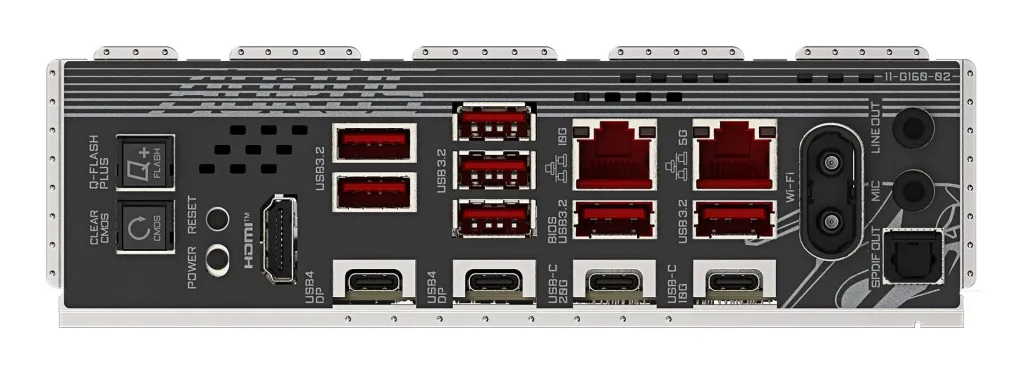

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 6
- Chassis intrusion connector
- Jah
- S/PDIF out port
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 2
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- Clear CMOS button
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 5
- Line-in
- Jah
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- WiFi-AP antenna jack
- 2
- Supported storage drive interfaces
- M.2,PCI Express 4.0,PCI Express 5.0,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- Antenna included
- Jah
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 2
- Supported memory clock speed (max)
- 9000 MHz
- Unit Box Height
- 0.095
- Unit Box Length
- 0.31
- Unit Box Width
- 0.34
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.01531 cubm
- Unit Calculated Weight
- 4.35 kg
- Summary
- GIGABYTE X870E AORUS MASTER X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- HDCP version
- 2.3
- Products per shipping (inner) case
- 1 pc(s)
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- WLAN controller model
- MediaTek MT7927
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC1220-VB/ESS 9118
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 7
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Number of HDDs supported
- 2
- USB4 Gen 2x2 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- CPU/Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- USB 3.2 Gen 2x2 connectors
- 1
- Number of temperature sensor headers
- 2
- Number of noise detection headers
- 1
- DisplayPort versioon
- 1.4
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 3
- Toote värv
- Black
- Number of CPU fan connectors
- 2
- 5th M.2 largest key size
- 2280
- Kaasas tarkvara
- Norton® Internet Security (OEM version)
- Number of EPS power connectors (8-pin)
- 2
- 5th M.2 highest PCI Express generation
- 4.0
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 5
- 1st M.2 largest key size
- 2580
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2304 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER-X3D
- Kõrgus
- 35 mm
- Toote kaal
- 3780 g
- Jahutuse tüüp
- Passive
- Päritoluriik
- Taiwan
- Digital audio optical out
- 1
- DirectX version
- 12.0
- Ethernet interface type
- 10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Motherboard chipset
- AMD X870E
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11 x64
- Batteries Included
- Jah
- Aku mahutavus
- 220 mAh
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 512 Mbit
- LAN controller
- Realtek RTL8126/Realtek RTL8127
- Mudel
- GIGABYTE X870E AORUS MASTER X3D
- Number of memory slots
- 4
- Pakendi sügavus
- 310 mm
- Pakendi kõrgus
- 92 mm
- Pakendi kaal
- 4330 g
- Pakendi laius
- 340 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
- USB 2.0 connectors
- 2
