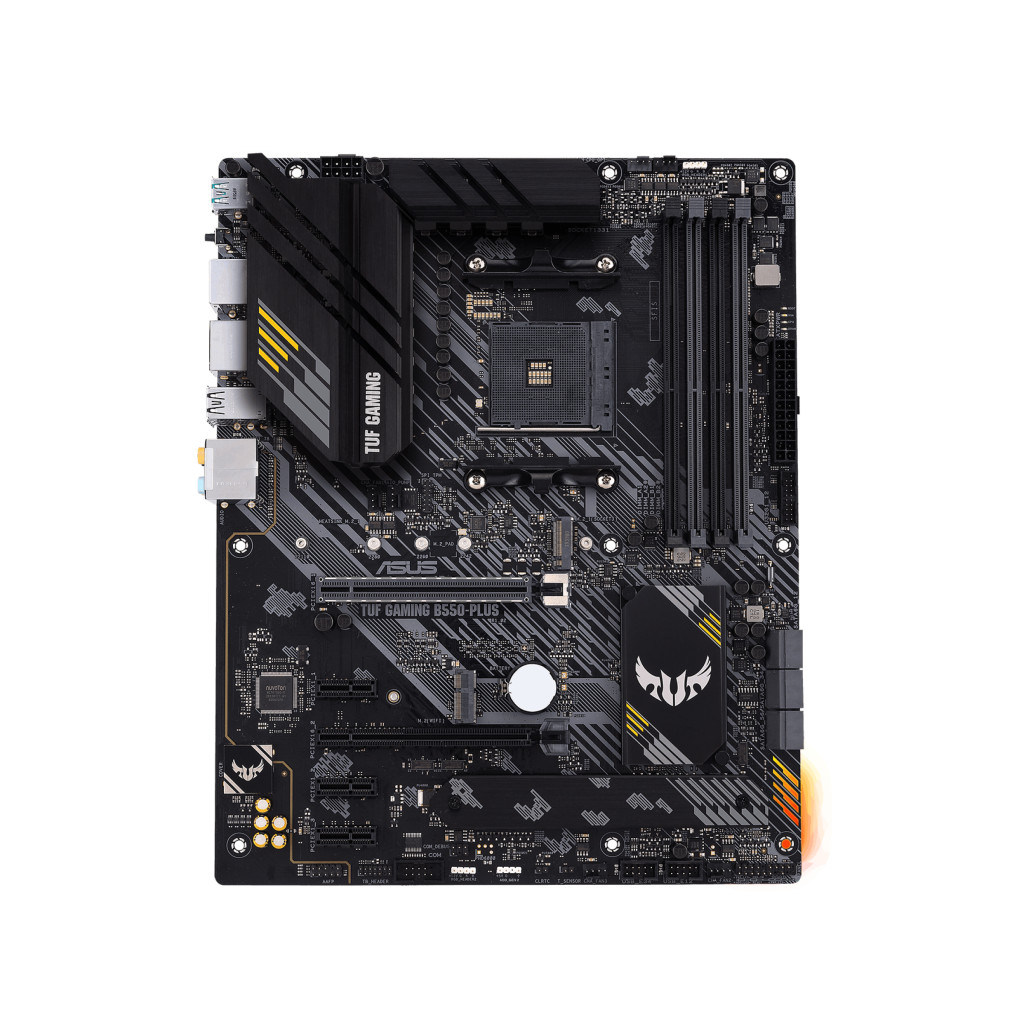

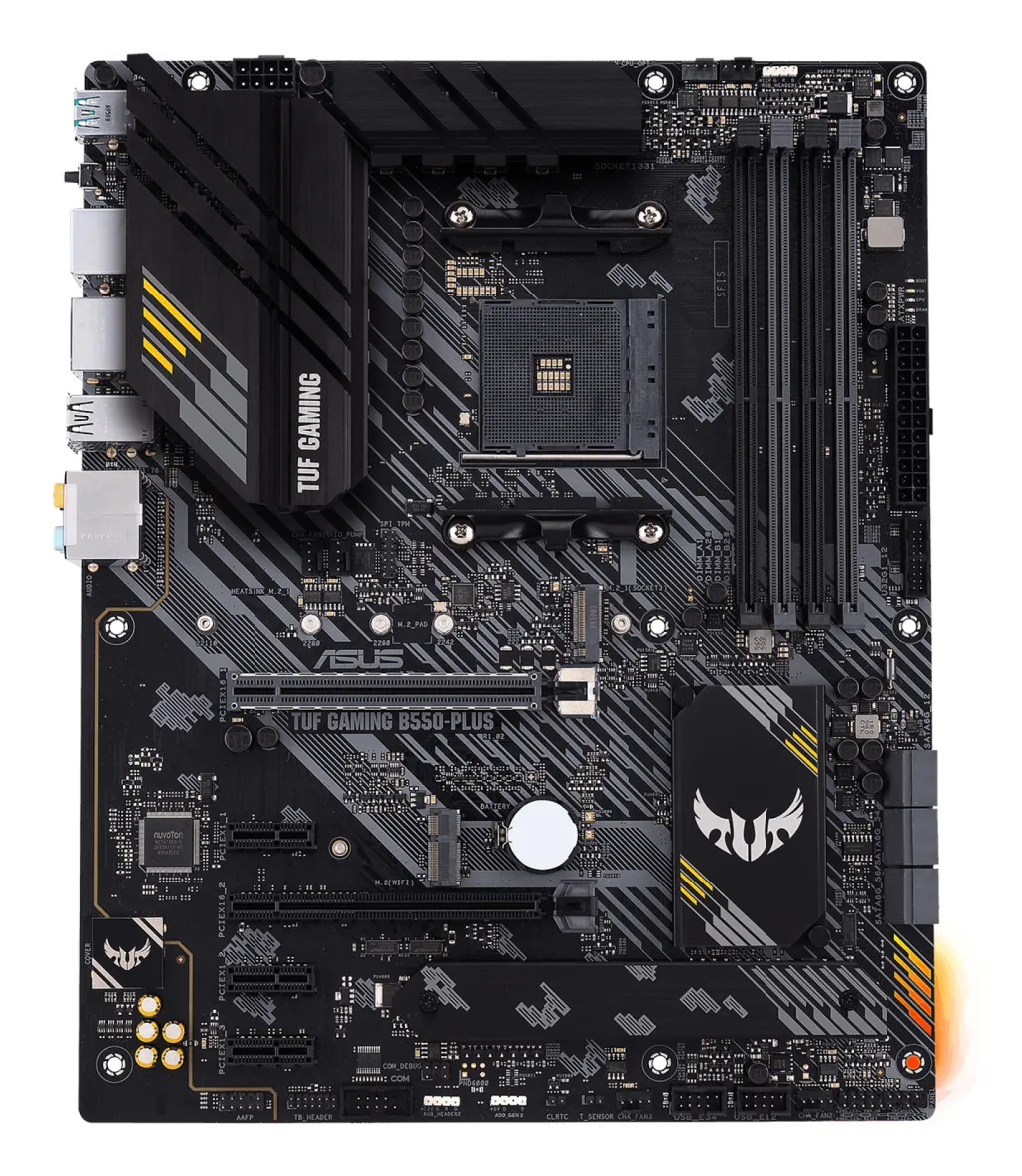

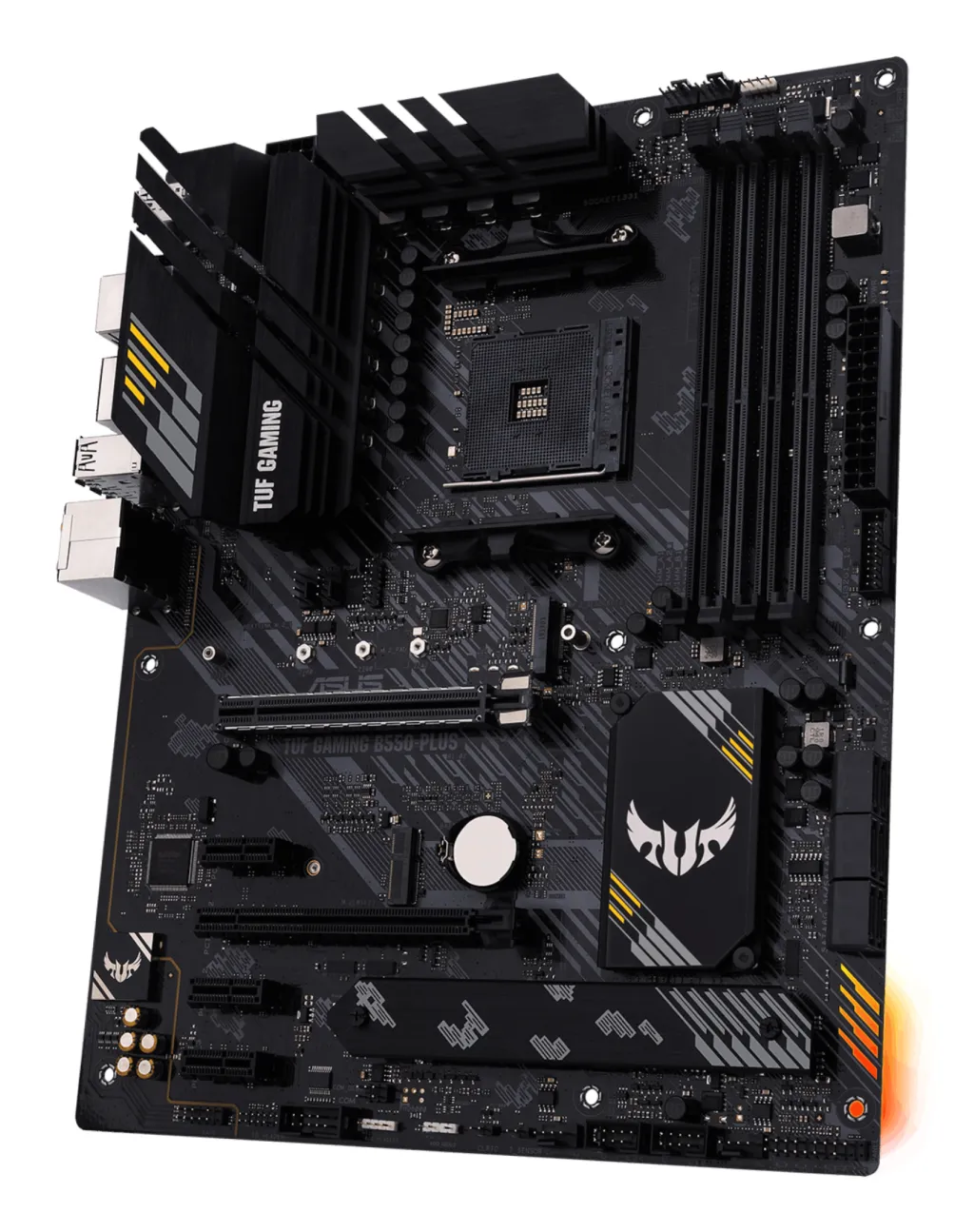

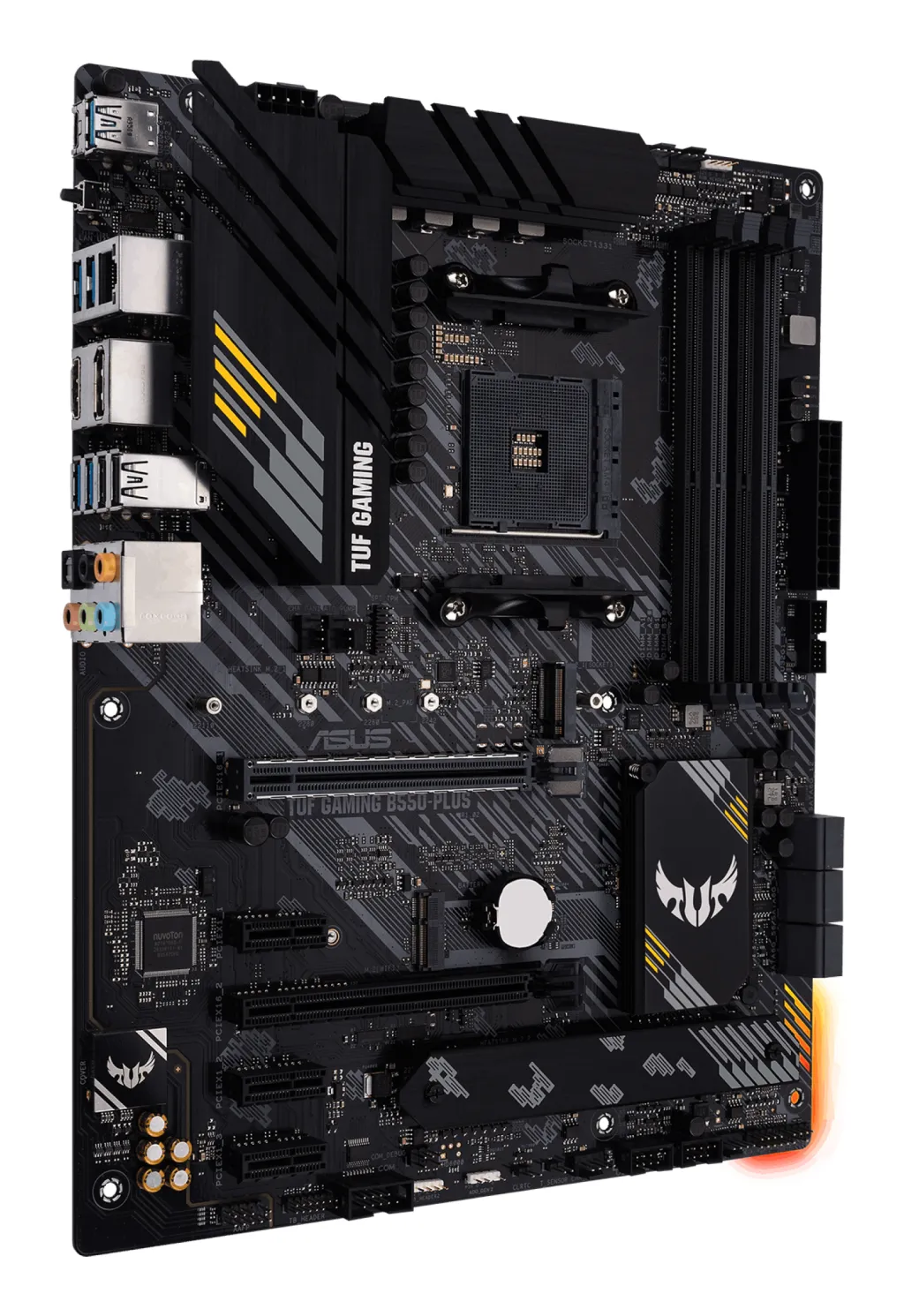

ASUS TUF Gaming B550-PLUS AMD B550 Pesa AM4 ATX

Muud näitajad

Compatible processor series

AMD Ryzen 3000 Series

Supported processor sockets

Socket AM4

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

3

Number of SATA connectors

4

S/PDIF out port

Jah

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

6

PCI Express x16 (Gen 3.x) slots

1

Parallel processing technology support

2-Way CrossFireX

Clear CMOS jumper

Jah

Number of M.2 (M) slots

2

Drivers included

Jah

PCI Express x1 (Gen 3.x) slots

3

Maximum number of SMP processors

1

Supported storage drive interfaces

M.2,SATA

Processor manufacturer

AMD

DisplayPort arv

1

USB 3.2

Jah

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

4

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

1

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

1

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

Unit Box Height

0.07

Unit Box Length

0.34

Unit Box Width

0.27

CnCode

84733020

ECC сompatibility

ECC

ECC ühilduvus

ECC

Unit Calculated Volume

0.007884 cubm

Unit Calculated Weight

1.67 kg

Summary

ASUS TUF Gaming B550-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC S1200A

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Kogus transpordikasti kohta

5

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

1

Harmonized System (HS) kood

84733020

Component for

Nettop

Toote kaal

945 g

Firewire (IEEE 1394) pordid

0

Tootja koduleht

https://www.asus.com/Motherboards/TUF-GAMING-B550-PLUS/overview/

Transpordipakendi kaal

1.471 kg

Transpordipakendi kõrgus

7 cm

Transpordipakendi laius

27 cm

Transpordipakendi sügavus

34 cm

Kõrgus

68 mm

Tarvikud kaasa arvatud

User's manual; I/O Shield; 2 x SATA 6Gb/s cable(s); Supporting DVD; TUF Gaming Sticker; TUF Certification card(s); M.2 SSD screw package(s); M.2 Rubber Package(s)

Kõrgus

68 mm

Toote kaal

945 g

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Motherboard chipset

AMD B550

Toetatud protsessoripesad

Pesa AM4

Windows operating systems supported

Windows 10 x64

BIOS memory size

256 Mbit

DisplayPort

1

LAN controller

Realtek RTL8125B

Number of memory slots

4

Optical S/PDIF

1

Processor Socket

Socket AM4

Raid Levels

0/1/10

Supported memory clock speeds

2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz

USB 2.0 connectors

2

USB type C

1

USB-C

1
