Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|A520MKV21.1

Muud näitajad

PCI Express x16 slots

1

Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen 5000 Series

Supported processor sockets

Pesa AM4

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Chassis intrusion connector

Jah

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Ei ole toetatud

Clear CMOS jumper

Jah

ACPI version

5.0

Number of M.2 (M) slots

1

Number of storage drives supported

5

Supported storage drive types

HDD & SSD

PCI Express x1 slots

1

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

AMD

System management BIOS (SMBIOS) version

2.7

USB 3.2

Jah

Supported memory clock speed (max)

5100 MHz

Unit Box Height

0.05

Unit Box Length

0.27

Unit Box Width

0.23

CnKood

84733020

Garantiiaeg

3 aasta(s)

ECC сompatibility

ECC & Non-ECC

Üksuse kalkuleeritud maht

0.004267 cubm

Üksuse kalkuleeritud kaal

0.75 kg

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Products per shipping (inner) case

1 tk

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

PC health monitoring

Fan/Temperature/Voltage

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Front panel connector

Jah

Lithium weight per battery

0.07 g

Kokkuvõte

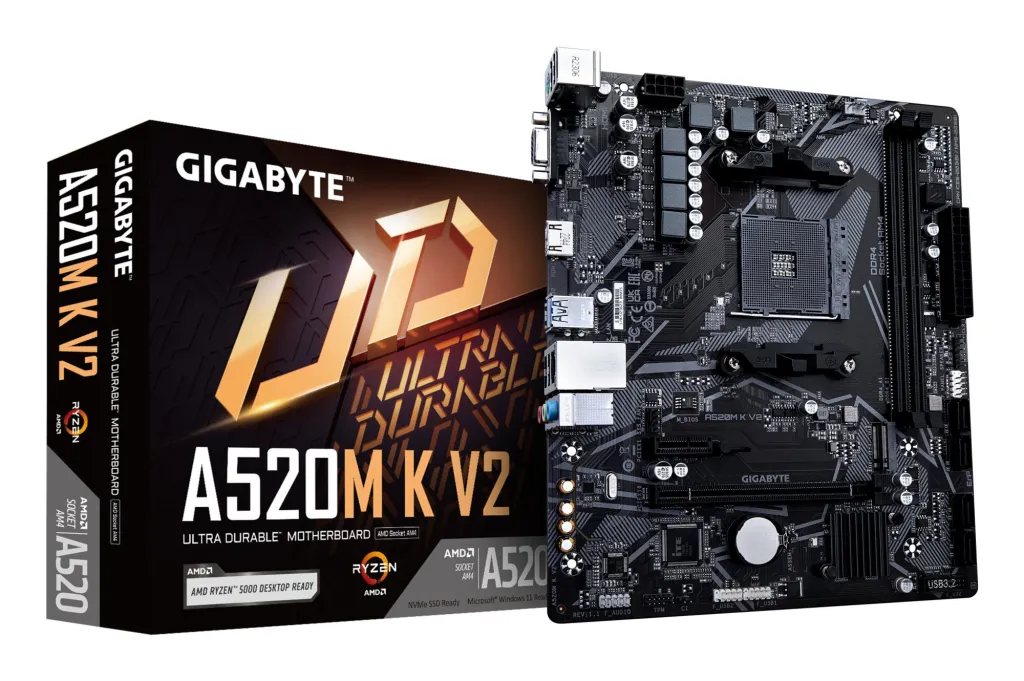

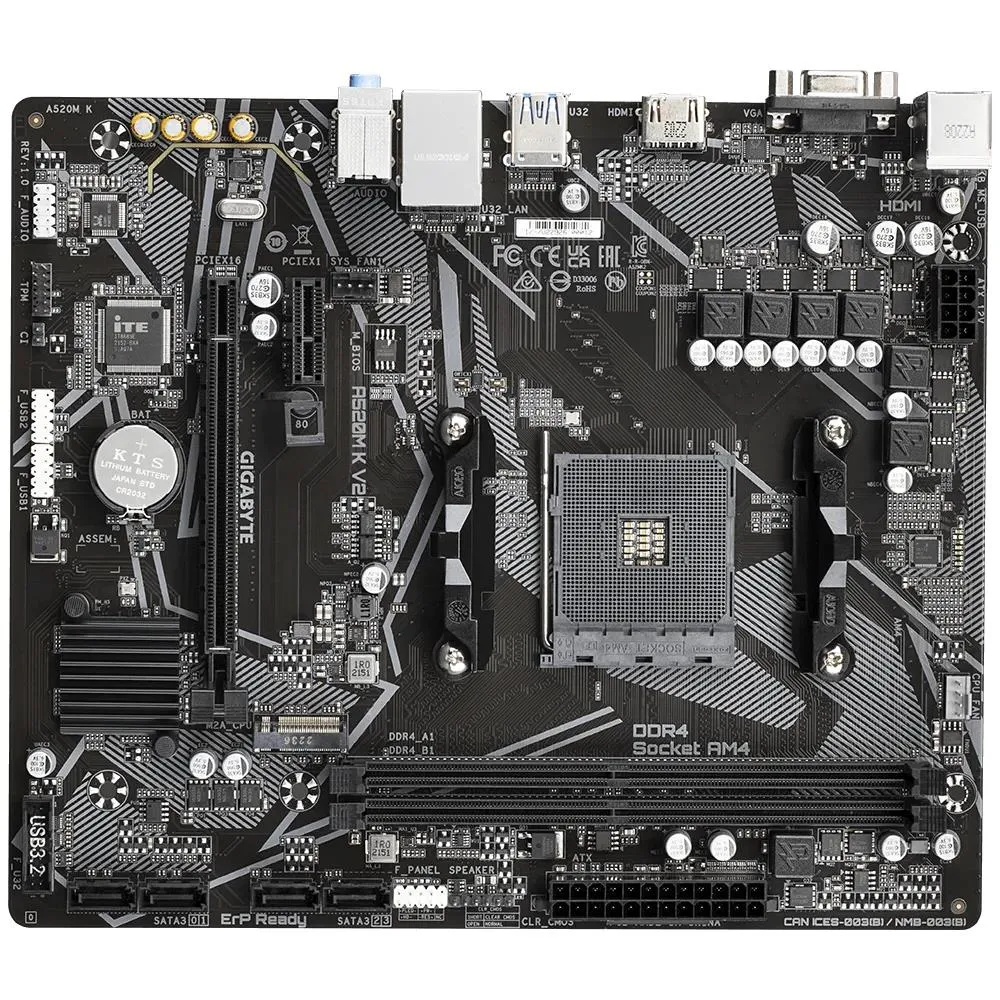

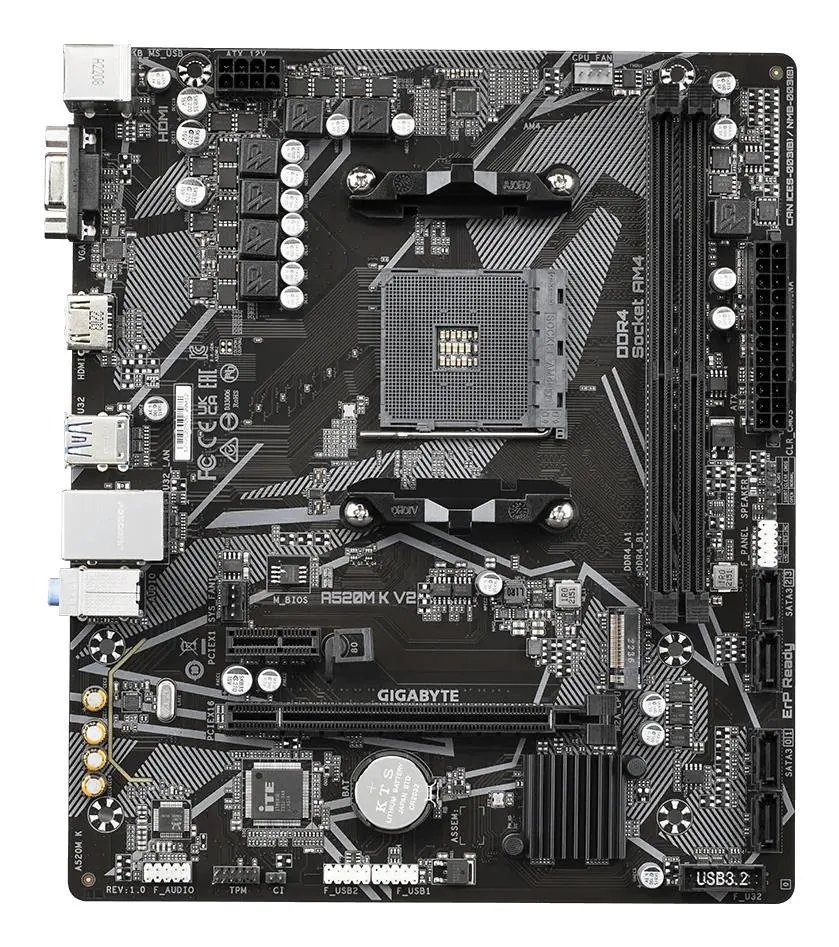

GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A

Tootja koduleht

https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10

HDMI versioon

2.1

Mudel

A520M K V2 (rev. 1.1)

Pakendi laius

265 mm

Pakendi kõrgus

52 mm

Kaasas tarkvara

Norton Internet Security

Component for

PC

Transpordipakendi kaal

7.5 kg

Transpordipakendi kõrgus

26.5 cm

Transpordipakendi laius

28.5 cm

Transpordipakendi sügavus

56.5 cm

Kogus transpordikasti kohta

10

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Pakendi sügavus

235 mm

Maksimaalne resolutsioon

4096 x 2160 pixels

Pakendi kaal

675 g

HDCP

Jah

Kõrgus

35 mm

Ethernet interface type

Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Headphone outputs

3

Päritoluriik

China

Microphone in

Jah

Motherboard chipset

AMD A520

RAID support

Jah

Unbuffered memory

Jah

USB connector type

USB Type-A

VGA (D-Sub) ports quantity

1

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

Number of memory slots

2

Processor Socket

Pesa AM4

Raid Levels

0/1/10

Supported memory clock speeds

2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 MHz

USB 2.0 connectors

2
