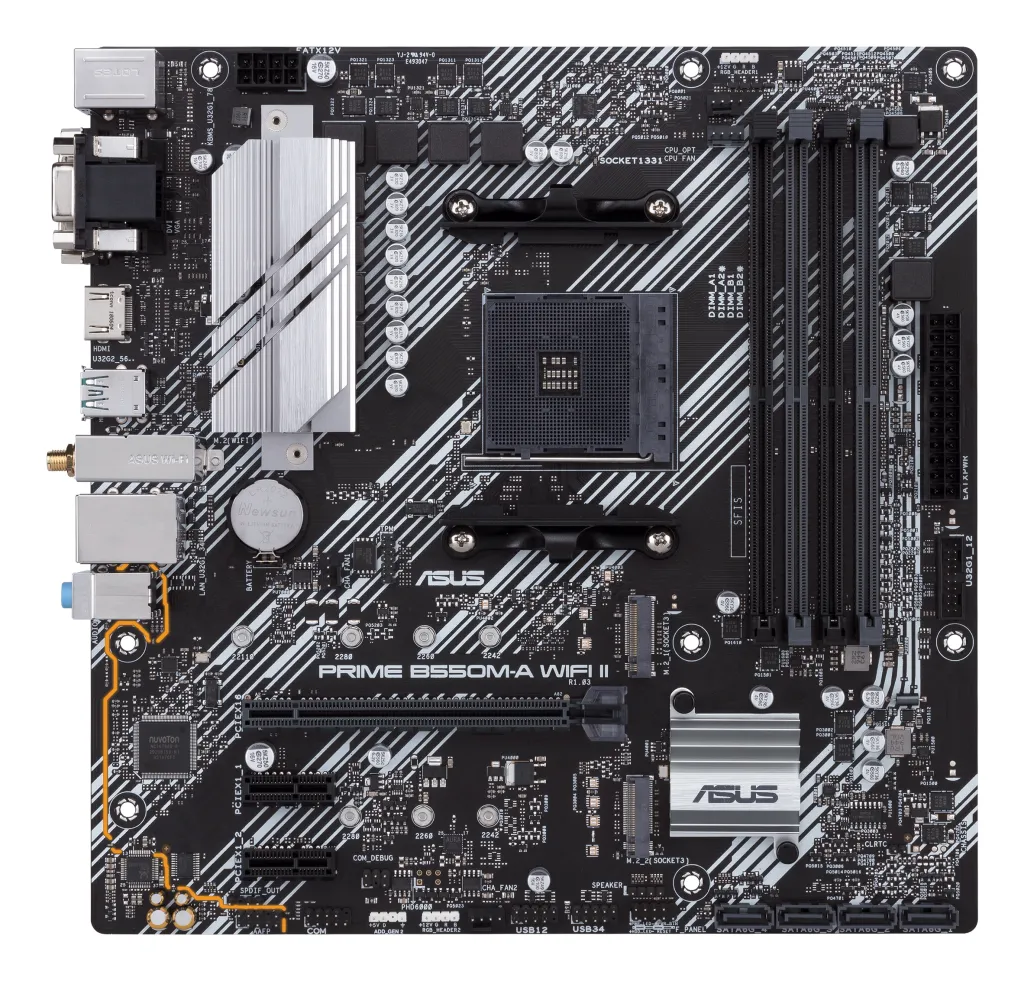

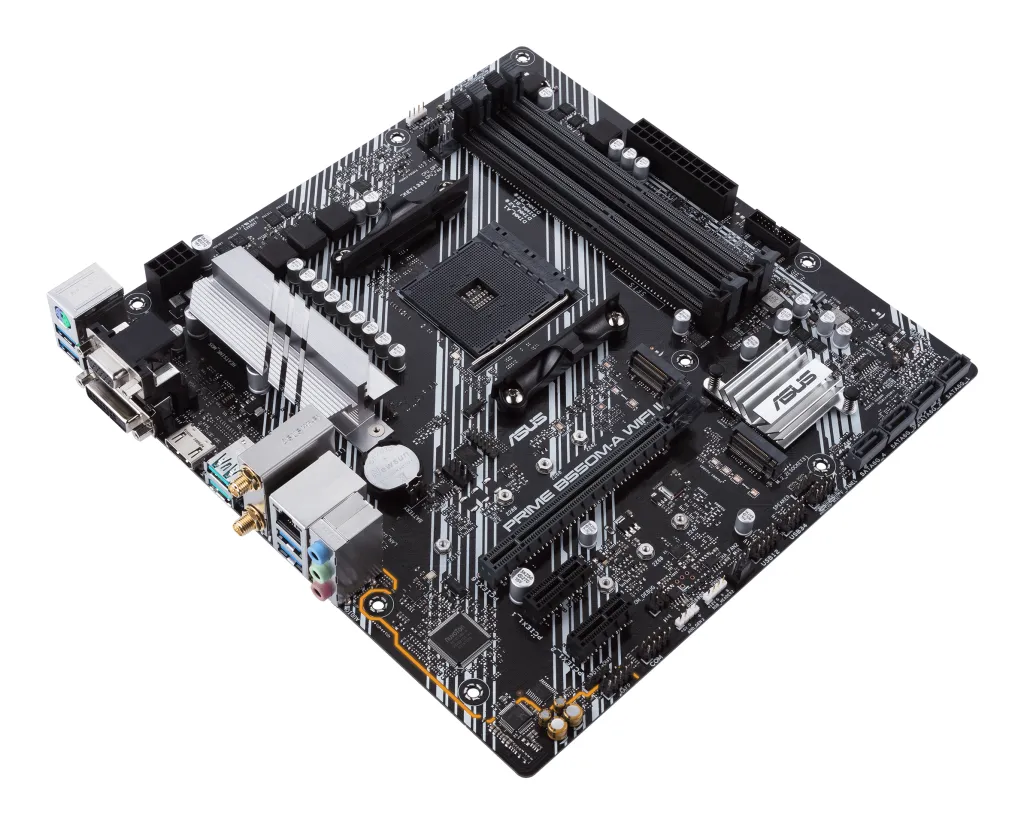

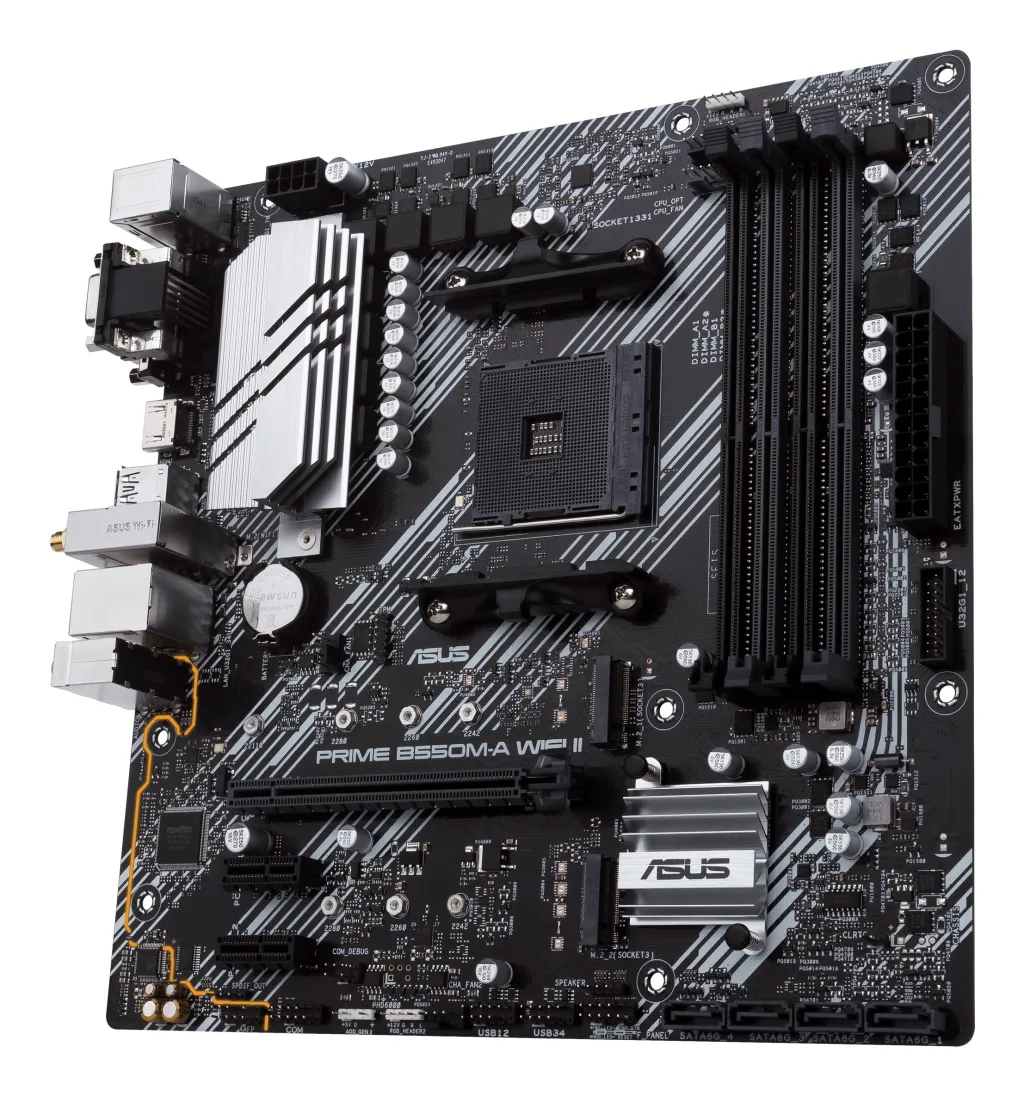

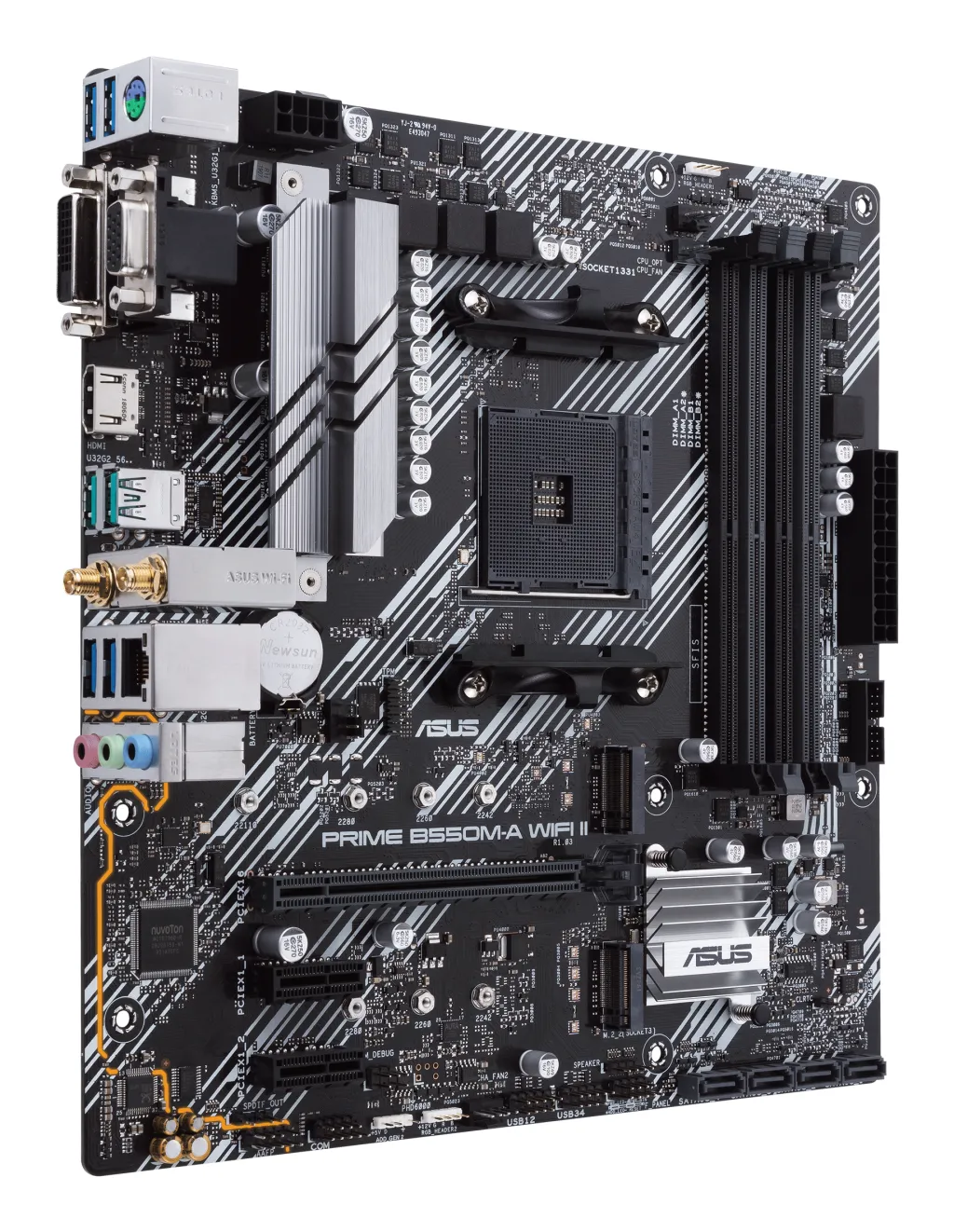

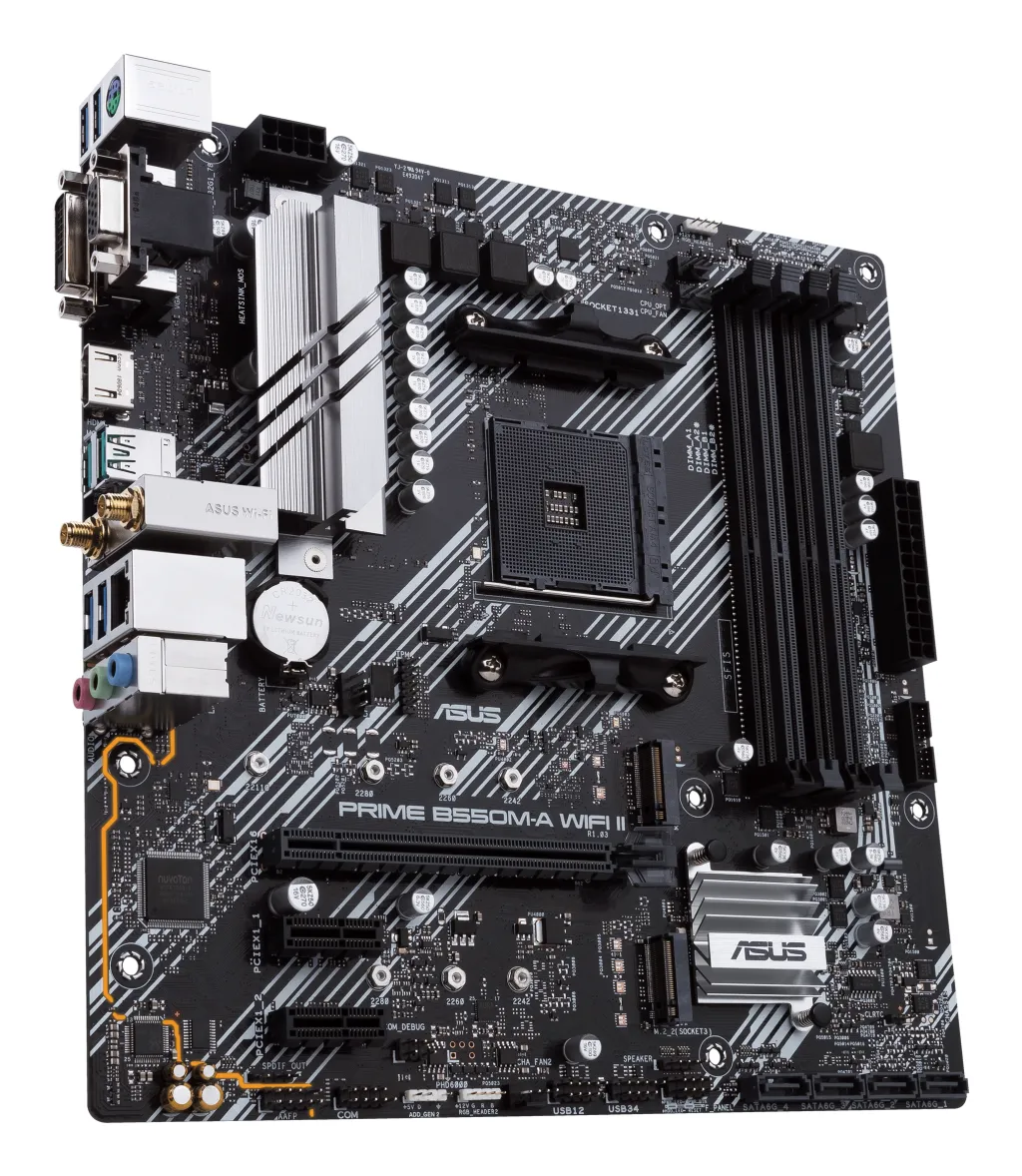

ASUS PRIME B550M-A WIFI II AMD B550 Pesa AM4 Mikro ATX

Muud näitajad

Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

2

Number of COM connectors

1

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of EATX power connectors

1

Number of SATA III connectors

4

PCI Express x16 (Gen 3.x) slots

1

Parallel processing technology support

Not supported

Clear CMOS jumper

Jah

Number of M.2 (M) slots

2

Drivers included

Jah

Number of storage drives supported

6

Wake-on-LAN ready

Jah

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

2

WiFi-AP antenna jack

1

Supported storage drive interfaces

M.2,PCI Express 3.0,PCI Express 4.0,SATA III

Processor manufacturer

AMD

RGB LED pin header

Jah

RGB LED pin ots

Jah

USB 3.2

6

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

4

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

0

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

1

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

0

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

DVI-D

1

Unit Box Height

0.07

Unit Box Length

0.28

Unit Box Width

0.27

CnCode

84733020

ECC сompatibility

ECC

ECC ühilduvus

ECC

Unit Calculated Volume

0.006438 cubm

Unit Calculated Weight

1.31 kg

Summary

ASUS PRIME B550M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Jah

Kogus transpordikasti kohta

10

Toote värv

Multicolour

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

2

Harmonized System (HS) kood

84733020

WiFi-AP antennipesa

1

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

Component for

PC

2nd M.2 highest PCI Express generation

3.0

mSATA-pesade arv

0

COM-pistmike arv

1

Toetatud ketaste tüübid

HDD & SSD

Toetatud ketaste arv

6

Toote kaal

845 g

Tootja koduleht

https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B550M-A-WIFI-II/

Transpordipakendi kaal

1.178 kg

Transpordipakendi kõrgus

7 cm

Transpordipakendi laius

27 cm

Transpordipakendi sügavus

28 cm

Kõrgus

67 mm

Tarvikud kaasa arvatud

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package

Kõrgus

67 mm

Toote kaal

845 g

HDMI-versioon

2.1

DVI-D ports quantity

1

Ethernet interface type

Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

USB-pistmiku tüüp

USB tüüp A

HDMI versioon

2.1

Headphone outputs

1

Toote värv

Mitmevärviline

Microphone in

Jah

Motherboard chipset

AMD B550

Packaging content

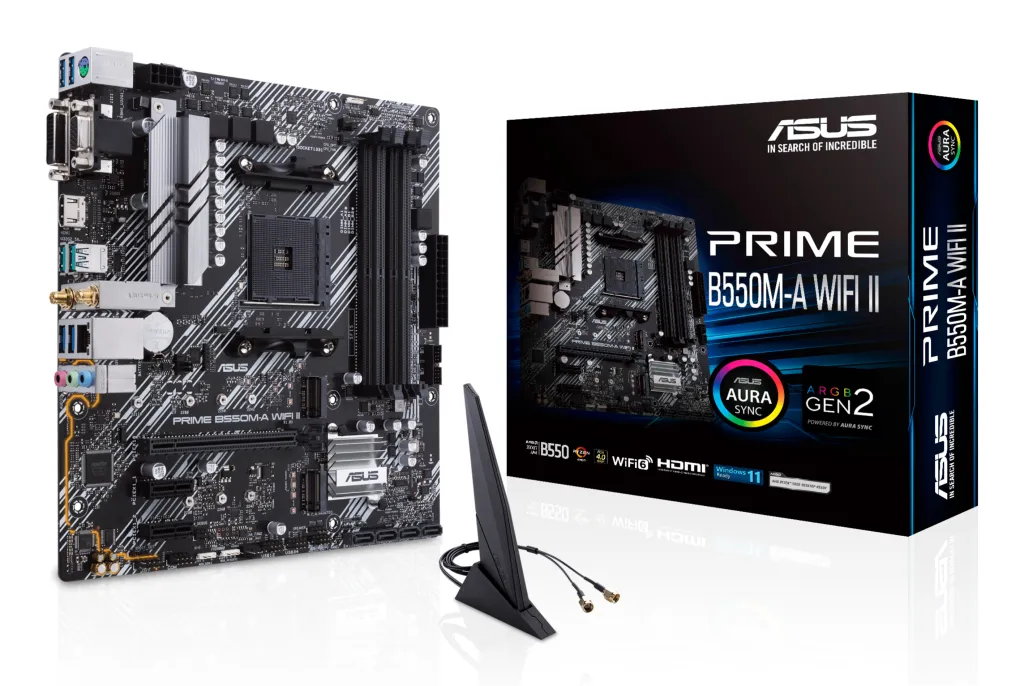

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual

RAID support

Jah

Pakendi sisu

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual

Toetatud protsessoripesad

Pesa AM4

Unbuffered memory

Jah

USB connector type

USB Type-A

VGA (D-Sub) ports quantity

1

Windows operating systems supported

Windows 10 x64/Windows 11 x64

BIOS memory size

256 Mbit

LAN controller

Realtek RTL8111H

Number of memory slots

4

Processor Socket

Socket AM4

Raid Levels

0/1/10

Supported memory clock speeds

2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800/4866 MHz

USB 2.0 connectors

2
