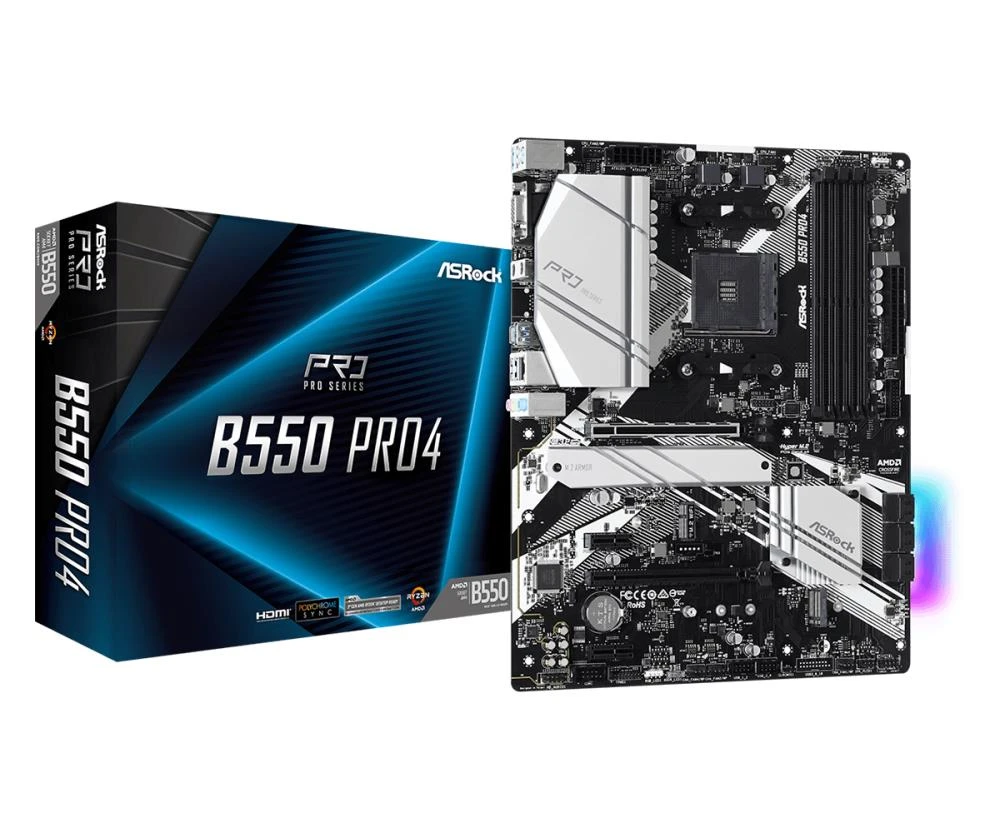

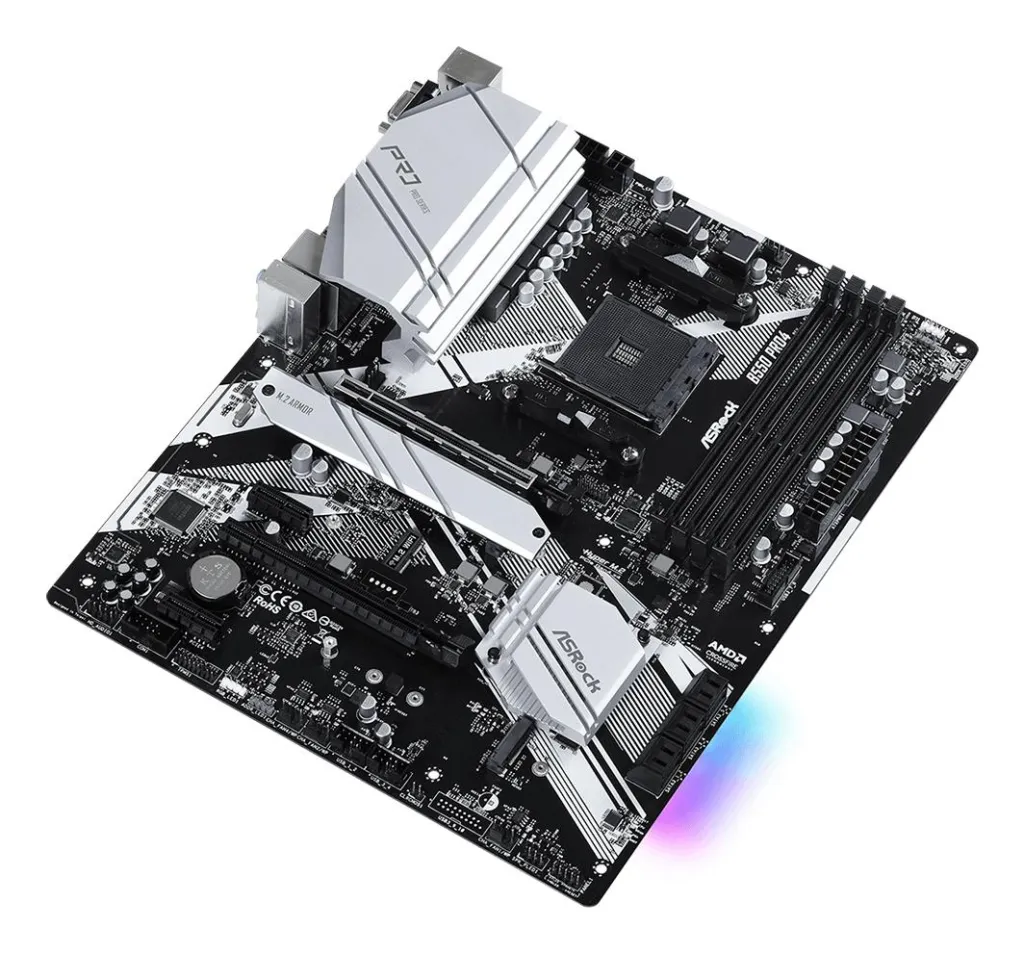

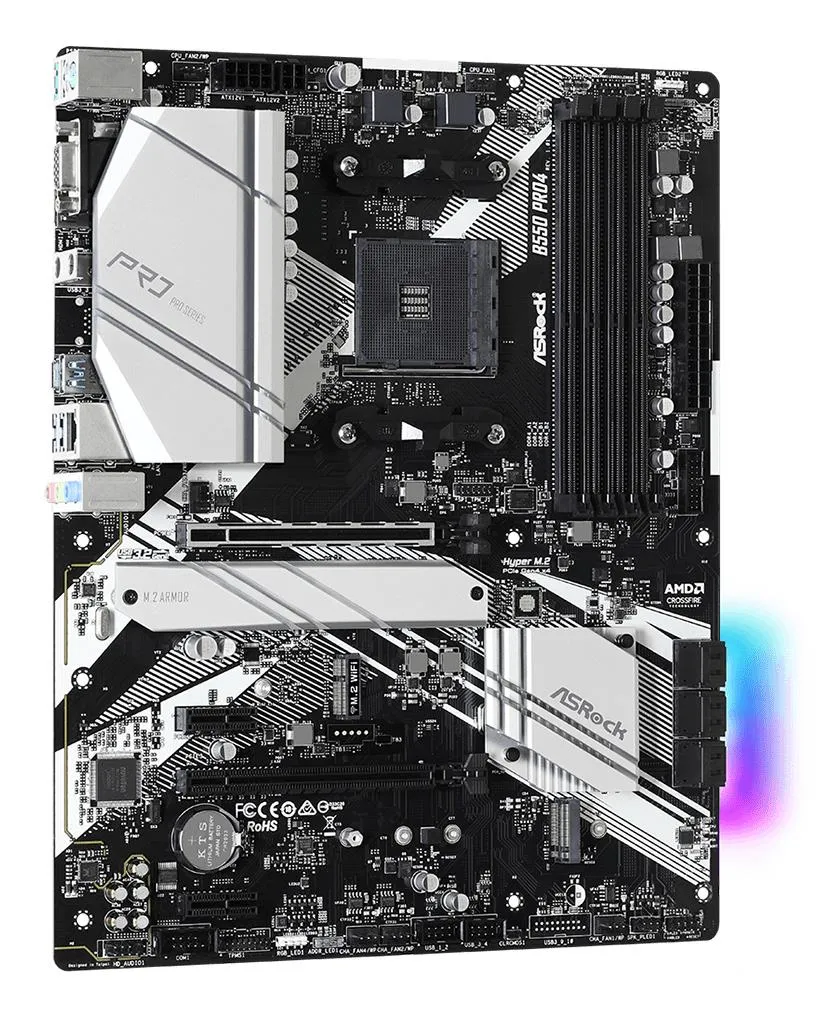

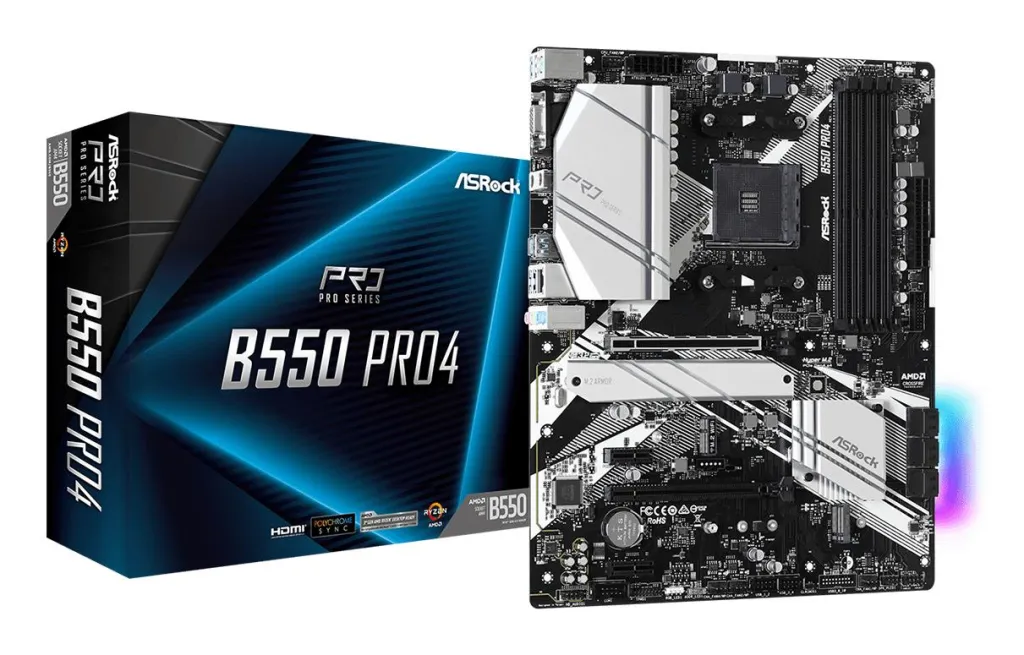

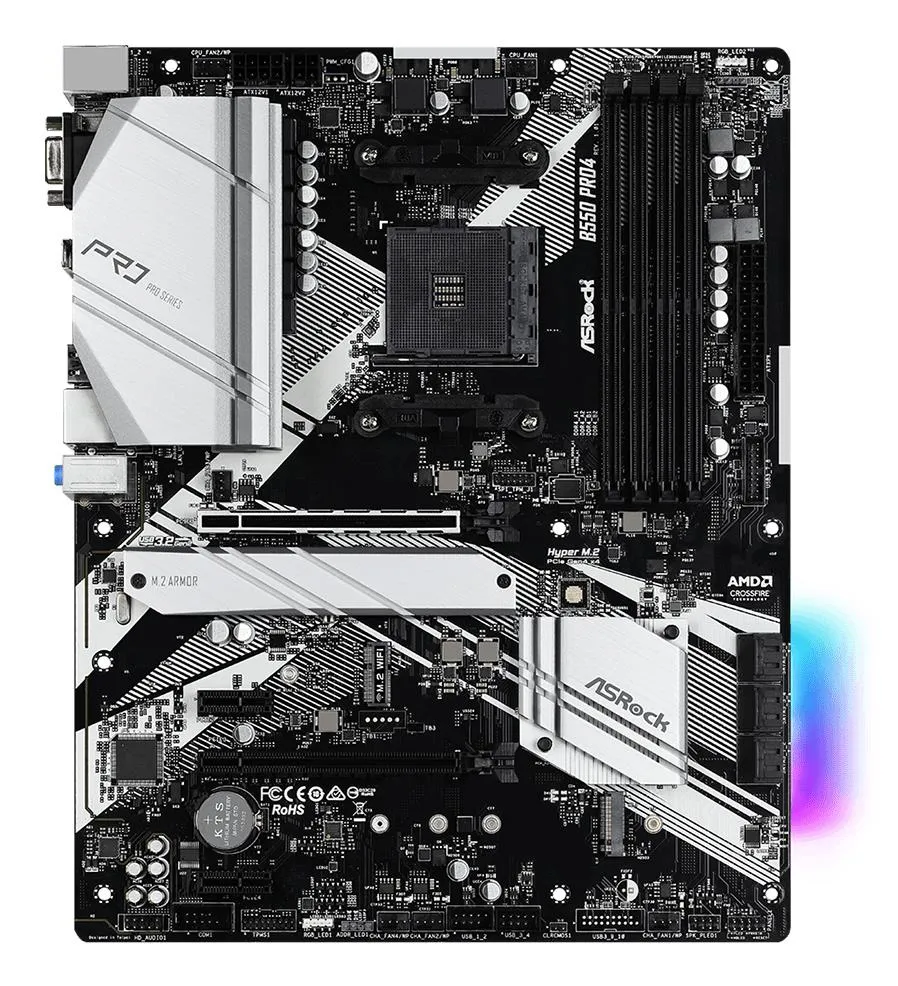

Mainboard|ASROCK|AMD B550|SAM4|ATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550PRO4
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
IT’S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B550
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 2
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

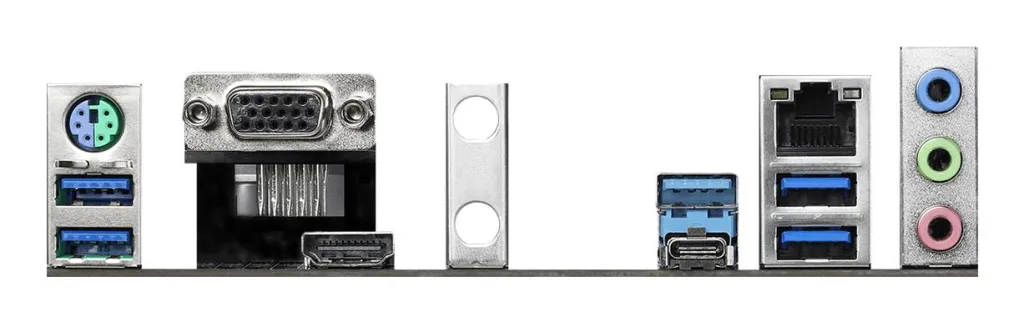

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- Serial
- Jah
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 2 kg
- Netokaal
- 1.5 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.01282 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 3000 Series
- Supported processor sockets
- Socket AM4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 6
- PCI Express x16 (Gen 3.x) slots
- 1
- Parallel processing technology support
- CrossFireX/Quad-GPU CrossFireX
- ACPI version
- 5.1
- Number of M.2 (M) slots
- 2
- Drivers included
- Jah
- Wake-on-LAN ready
- Jah
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 2
- Supported memory module capacities
- 16GB/32GB/4GB/8GB
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 2.3
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Supported memory clock speed (max)
- 4533 MHz
- Unit Box Height
- 0.36
- Unit Box Length
- 0.89
- Unit Box Width
- 0.04
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Unit Calculated Volume
- 0.01282 cubm
- Unit Calculated Weight
- 2 kg
- Summary
- Asrock B550 Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC1200
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- CPU/Fan/Temperature/Voltage/Water cooling
- 12V power connector
- Jah
- Front panel connector
- Jah
- Kogus transpordikasti kohta
- 10
- Component for
- PC
- HDCP
- Jah
- Tootja koduleht
- https://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification
- Transpordipakendi kaal
- 20 kg
- Transpordipakendi kõrgus
- 36 cm
- Transpordipakendi laius
- 40 cm
- Transpordipakendi sügavus
- 89 cm
- Kõrgus
- 87 mm
- Tarvikud kaasa arvatud
- - Quick Installation Guide, Support CD, I/O Shield; - 2 x SATA Data Cables; - 3 x Screws for M.2 Sockets; - 1 x Standoff for M.2 Socket
- Toote kaal
- 465 g
- DirectX version
- 12.0
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B550
- Peripheral (Molex) power connectors (4-pin)
- 1
- RAID support
- Jah
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- BIOS memory size
- 256 Mbit
- LAN controller
- Realtek RTL8111H
- Number of memory slots
- 4
- Processor Socket
- Socket AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533 MHz
- USB 2.0 connectors
- 2
- USB type C
- 1
- USB-C
- 1
