Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2
63.61€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 244 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD A520
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Jah
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

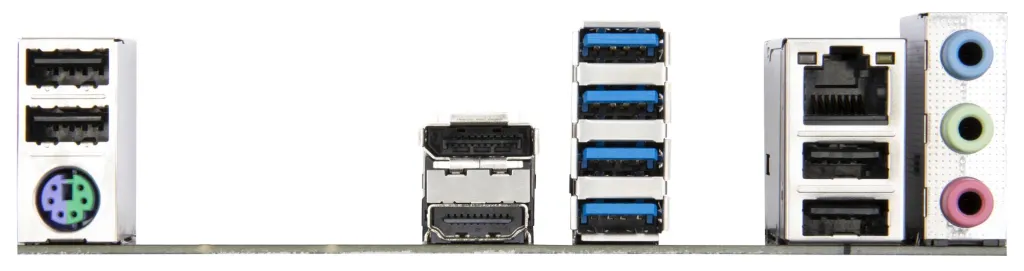

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Netokaal
- 0.7 kg
Muud näitajad
- DisplayPort versioon
- 2.0
- Number of displays supported
- 3
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
- Supported processor sockets
- Pesa AM4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of EATX power connectors
- 1
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- Clear CMOS jumper
- Jah
- Clear CMOS button
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 1
- Drivers included
- Jah
- Number of storage drives supported
- 5
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Jah
- Power fan connector
- Jah
- PCI Express x1 (Gen 3.x) slots
- 2
- Supported memory module capacities
- 16GB/1GB/2GB/32GB/4GB/8GB
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- USB 3.2
- Jah
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- CnKood
- 84733020
- Garantiiaeg
- 3 aasta(s)
- ECC сompatibility
- ECC & Non-ECC
- Üksuse kalkuleeritud maht
- 0.004711 cubm
- Üksuse kalkuleeritud kaal
- 0.89 kg
- Kokkuvõte
- GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Products per shipping (inner) case
- 1 tk
- Audio chip
- Realtek ALC887
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- CPU/LED/Power supply/Temperature/Voltage
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- Tootja koduleht
- https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf
- HDMI versioon
- 2.1
- Mudel
- A520M DS3H V2
- Pakendi laius
- 265 mm
- Pakendi kõrgus
- 54 mm
- Kaasas tarkvara
-
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility - Component for
- PC
- Kogus transpordikasti kohta
- 10
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Pakendi sügavus
- 265 mm
- Maksimaalne resolutsioon
- 5120 x 2880 pixels
- Pakendi kaal
- 810 g
- HDCP
- Jah
- Kõrgus
- 35 mm
- Digital audio optical out
- 1
- DisplayPorts quantity
- 1
- DVI-D ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Jahutuse tüüp
- Aktiivne
- Headphone outputs
- 1
- Päritoluriik
- China
- Toote värv
- Must
- Microphone in
- Jah
- RAID support
- Jah
- Unbuffered memory
- Jah
- USB connector type
- USB Type-A
- Windows operating systems supported
- Windows 10 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- DisplayPort
- 1
- Maximum internal memory supported by processor
- 128 GB
- Number of memory slots
- 4
- Processor Socket
- Pesa AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz
- USB 2.0 connectors
- 1
