Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|3xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|MAGB850MMORTARWIFI
AL1
AC
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 10.79 €. Taotle järelmaksu ostukorvis.

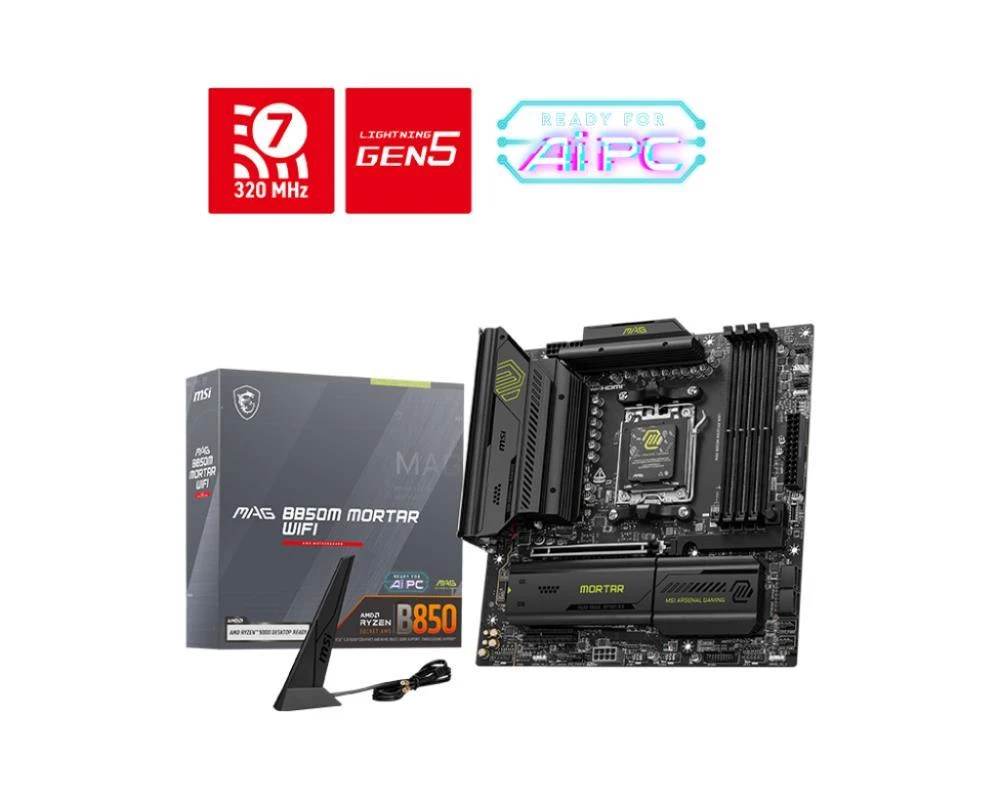

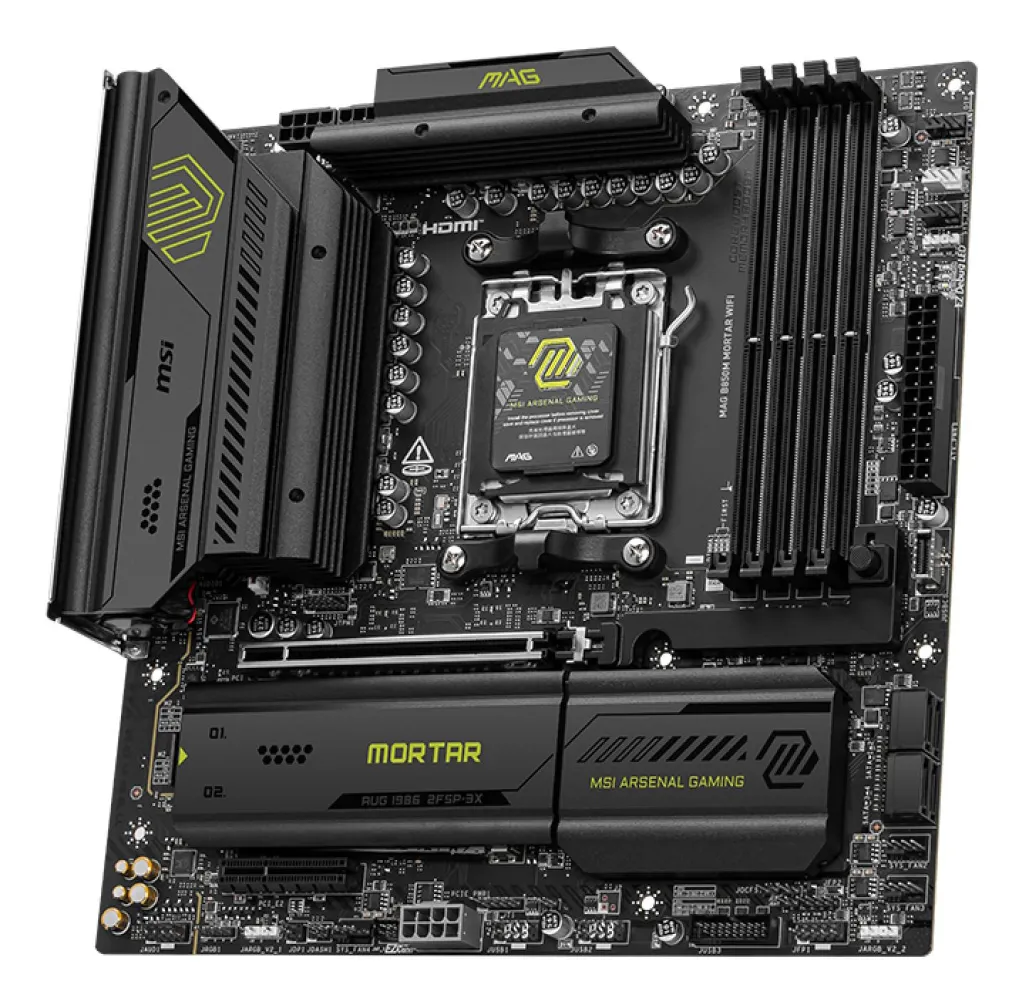

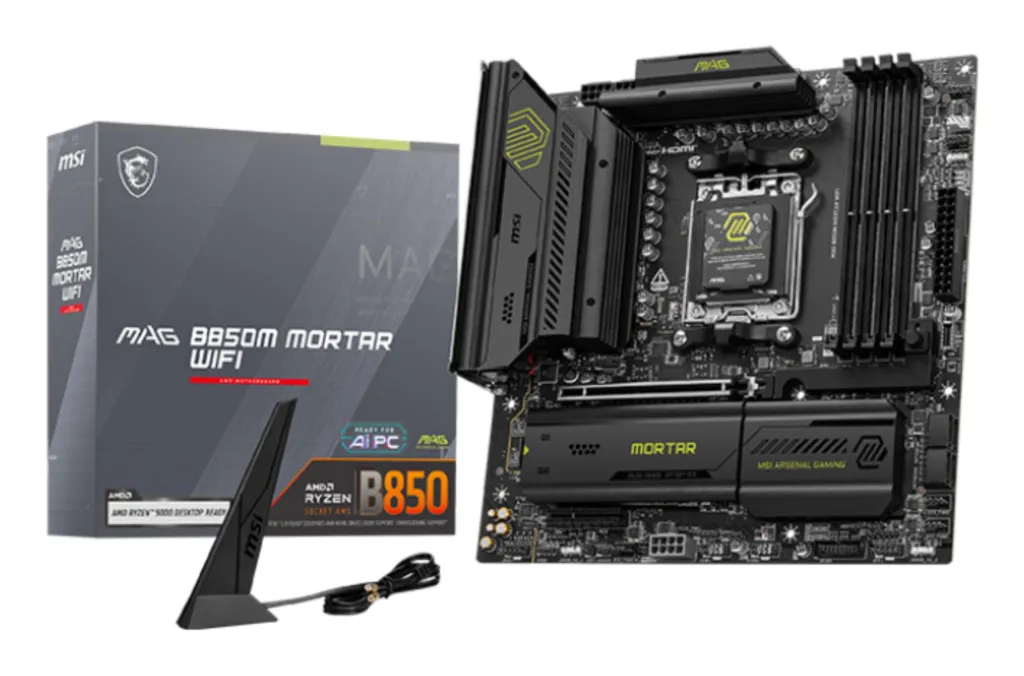

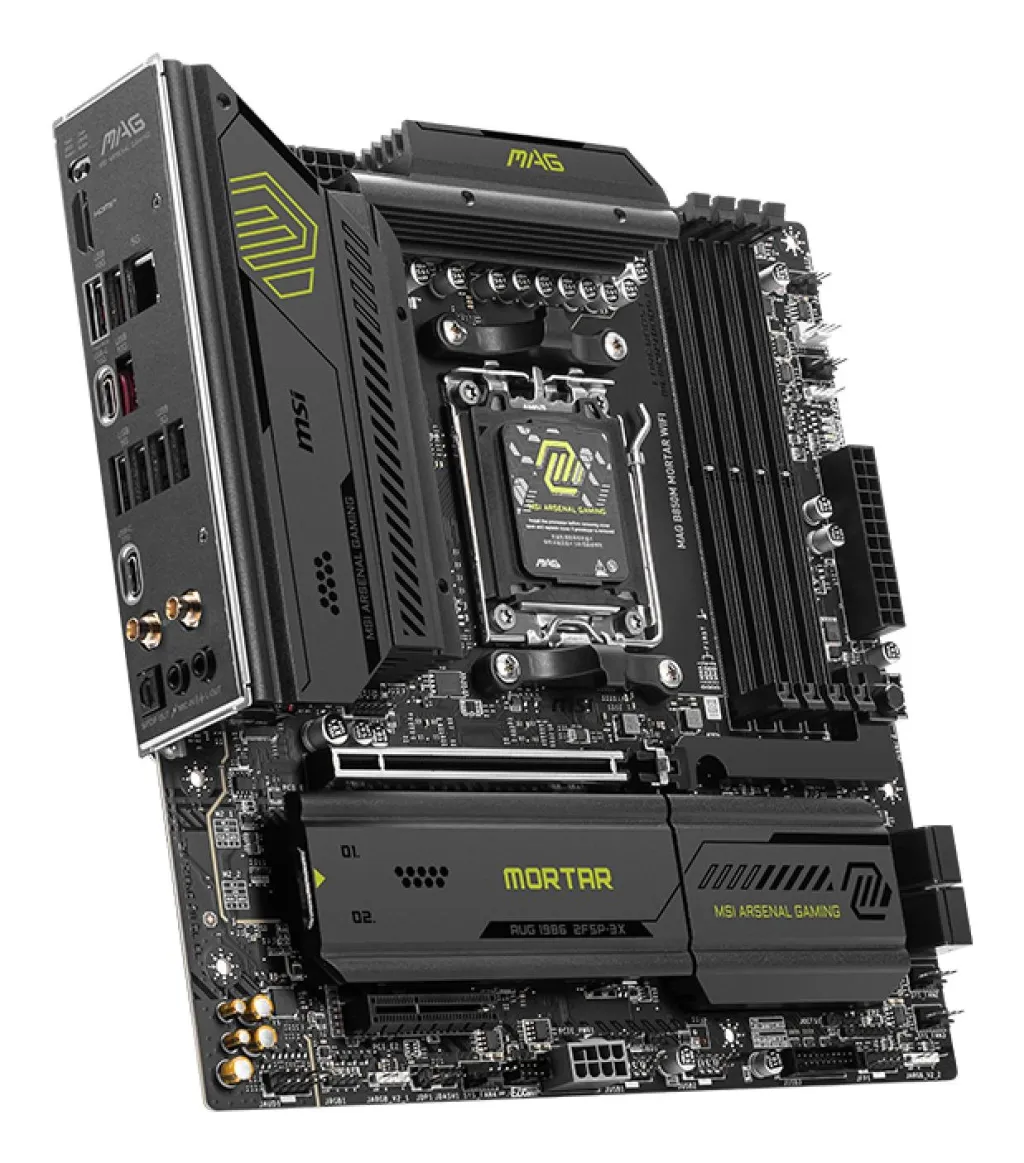

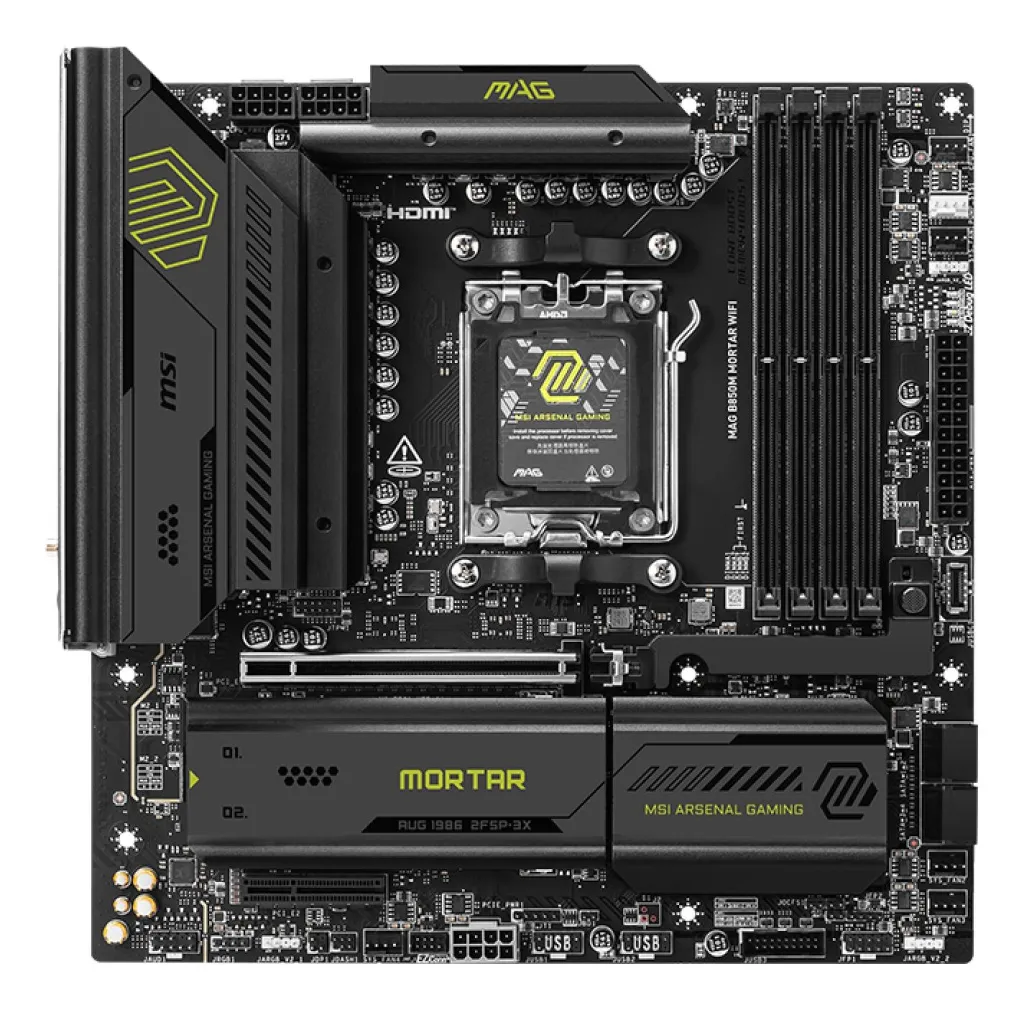

MSI MAG B850M MORTAR WIFI
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Laius
- 243.84 mm
- Sügavus
- 243.84 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B850
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5600/6400/8200 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC4080
- Audioväljundi kanalid
- 2
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 3
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 5
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

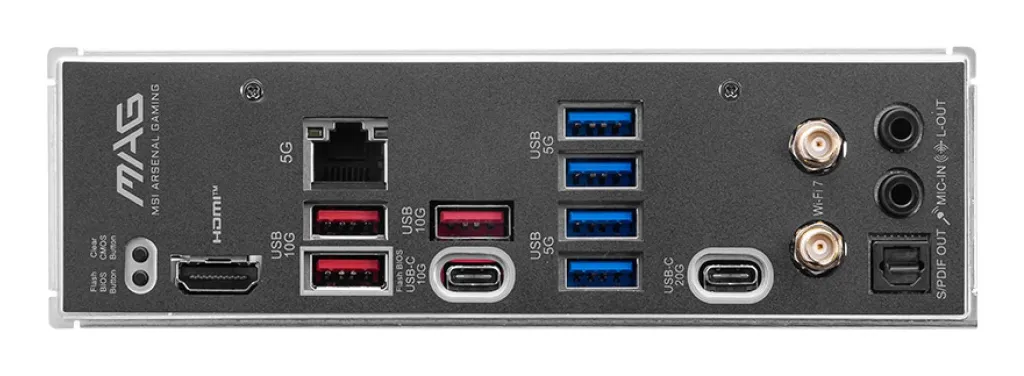

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Muud näitajad
- PCI Express x16 slots
- 1
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 6.5
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 3.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 4x
- 1
- PCI-Express 4.0 8x
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 1
- Supported memory clock speed (max)
- 8200 MHz
- Unit Box Height
- 0.07
- Unit Box Length
- 0.282
- Unit Box Width
- 0.271
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Unit Calculated Volume
- 0.006439 cubm
- Product Net Weight
- 0.8 kg
- Unit Calculated Weight
- 1.93 kg
- Summary
- MSI MAG B850M MORTAR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Audio chip
- Realtek ALC4080
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Jah
- PCI Express x4 slots
- 1
- Kogus transpordikasti kohta
- 10
- Toote värv
- Black
- Number of CPU fan connectors
- 2
- Number of water pump connectors
- 1
- Number of RGB LED pin headers
- 3
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- Tootja koduleht
- https://www.msi.com/Motherboard/MAG-B850M-MORTAR-WIFI/Specification
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Motherboard chipset
- AMD B850
- RAID support
- Jah
- Windows operating systems supported
- Windows 11 x64
- BIOS memory size
- 256 Mbit
- Mudel
- MAG B850M MORTAR WIFI
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/5600/6400/8200 MHz
- USB 2.0 connectors
- 4
- USB-C
- Jah
