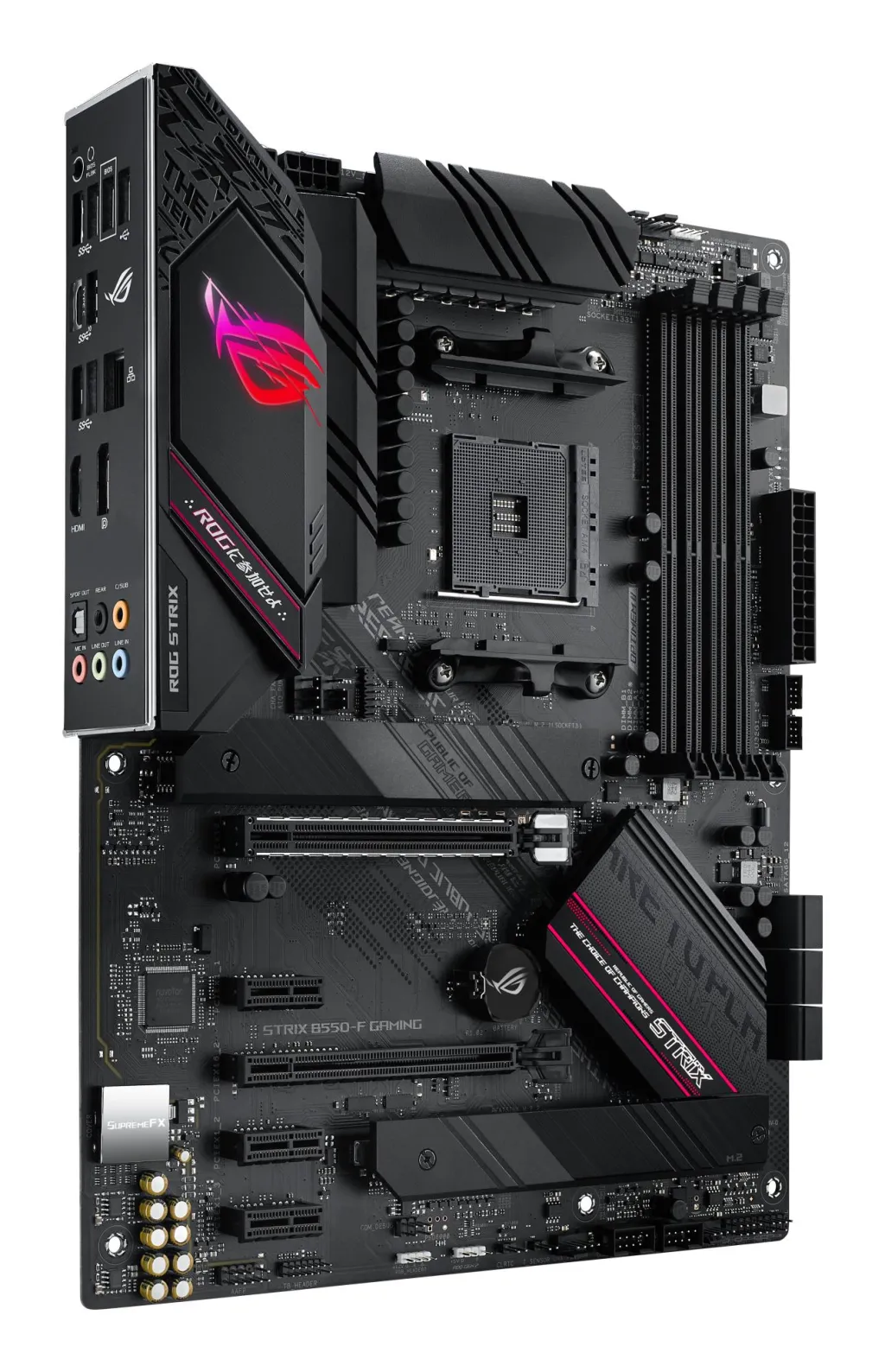

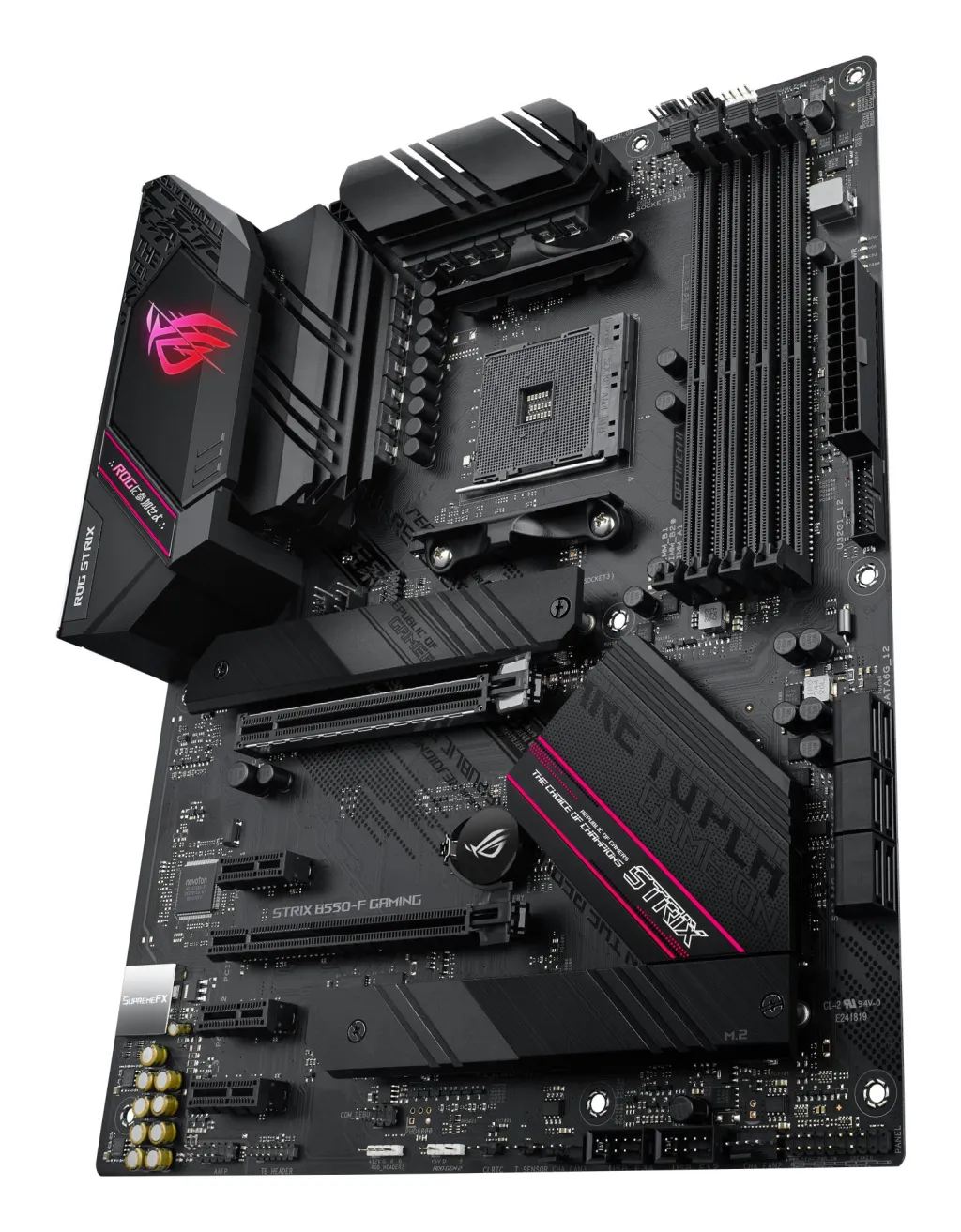

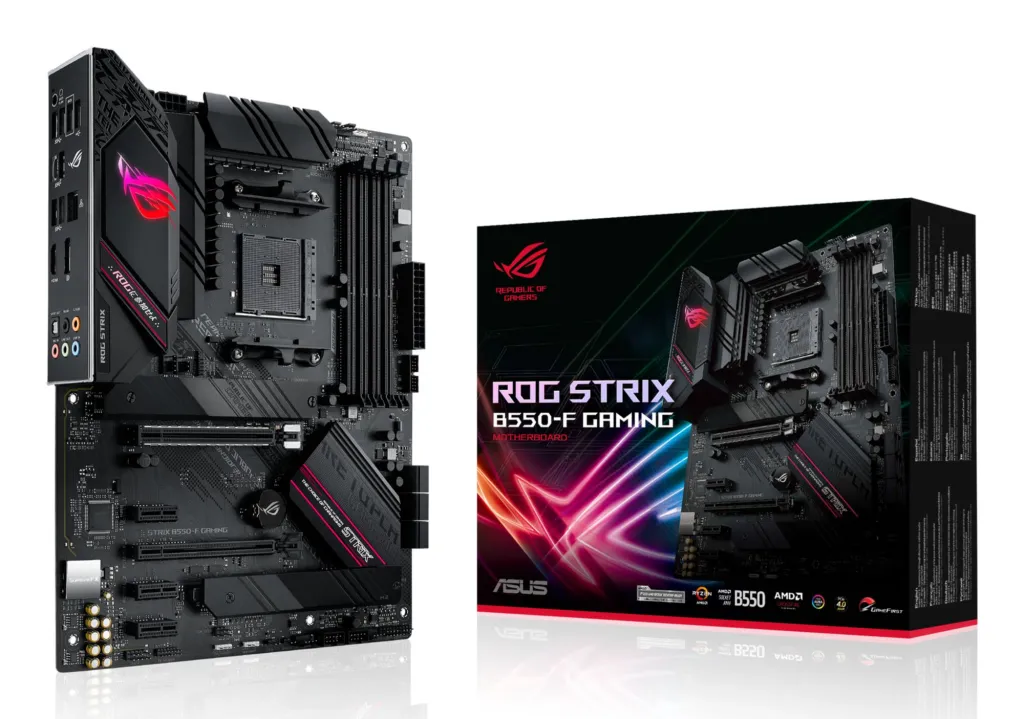

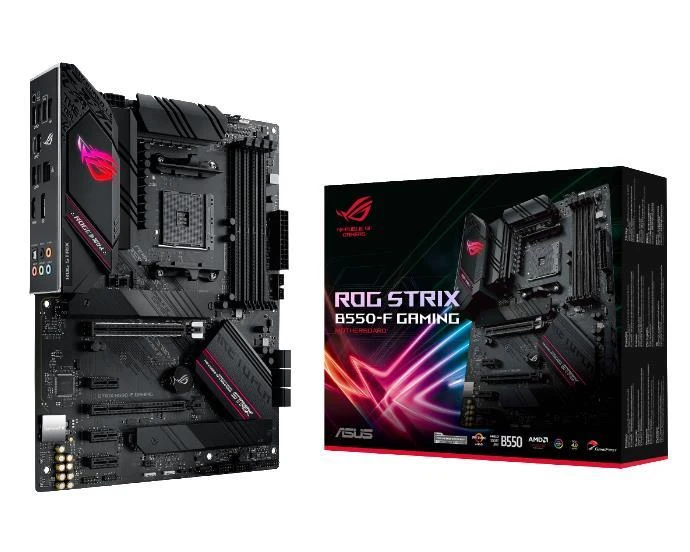

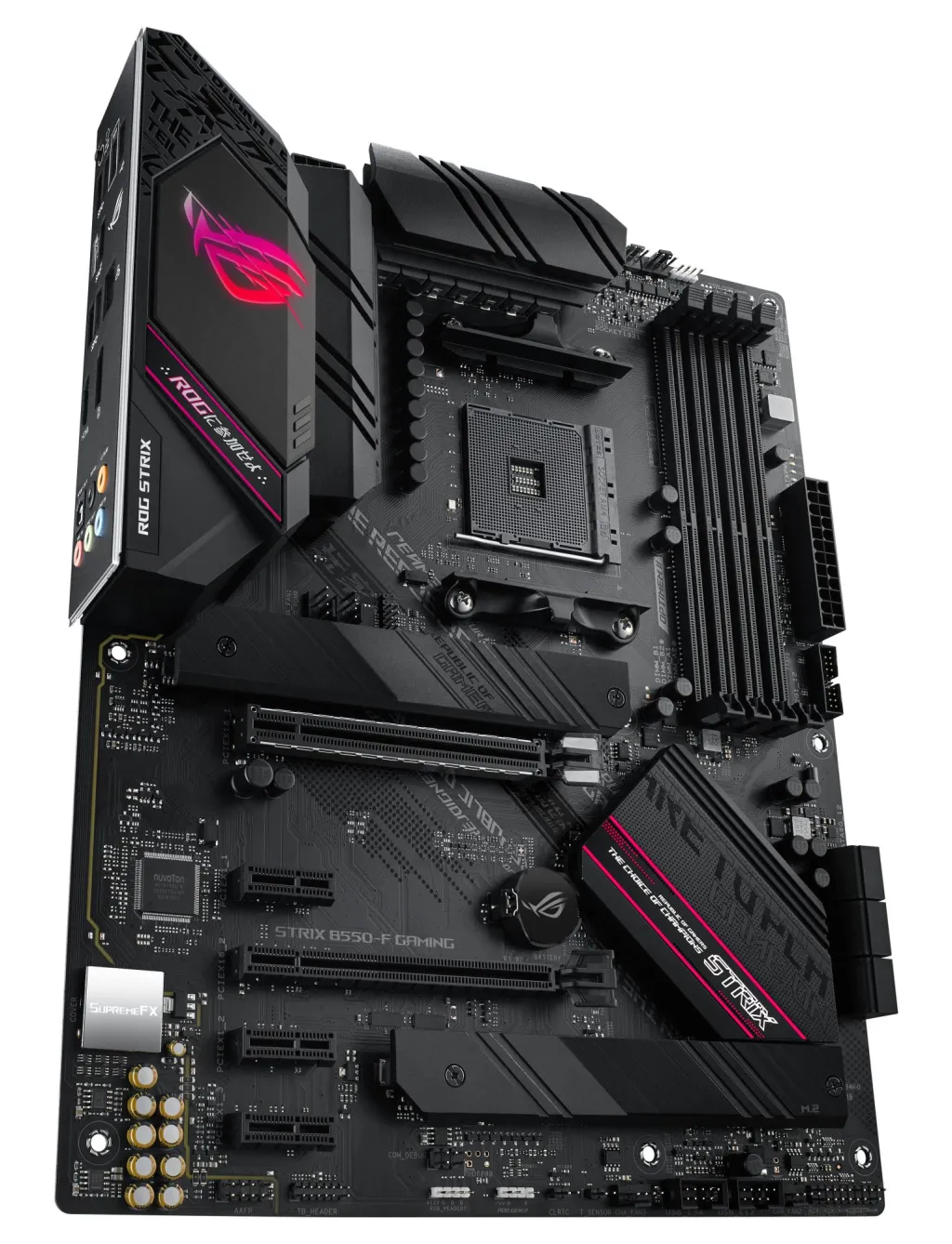

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|ROGSTRIXB550-FGAMING
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.94 €. Taotle järelmaksu ostukorvis.
Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B550
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600/4800/5100 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 5
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.0
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 3
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10
Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kasutusjuhend
- Jah
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.68 kg
- Netokaal
- 1.5 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.006545 cubm
Muud näitajad
- PCI Express slots version
- 3.0/4.0
- Compatible processor series
- AMD Ryzen 3000 Series
- Supported processor sockets
- Socket AM4
- BIOS type
- UEFI AMI
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 3
- S/PDIF out port
- Jah
- Supported memory types
- DDR4-SDRAM
- CPU fan connector
- Jah
- Number of EATX power connectors
- 1
- Number of SATA III connectors
- 6
- PCI Express x16 (Gen 3.x) slots
- 1
- Parallel processing technology support
- 2-Way CrossFireX
- Number of M.2 (M) slots
- 2
- Drivers included
- Jah
- Wake-on-LAN ready
- Jah
- Supported storage drive types
- HDD & SSD
- Thunderbolt headers
- 1
- PCI Express x1 (Gen 3.x) slots
- 3
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Unit Box Height
- 0.07
- Unit Box Length
- 0.34
- Unit Box Width
- 0.275
- CnCode
- 84733020
- Unit Calculated Volume
- 0.008323 cubm
- Unit Calculated Weight
- 1.87 kg
- Summary
- ASUS ROG STRIX B550-F GAMING. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- On-board graphics card
- Ei
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Number of HDDs supported
- 6
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- CPU/Fan
- 12V power connector
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPort versioon
- 1.2
- Kogus transpordikasti kohta
- 4
- Toote värv
- Black
- Component for
- PC
- Tootja koduleht
- https://www.asus.com/Motherboards/ROG-STRIX-B550-F-GAMING
- Transpordipakendi kaal
- 1.675 kg
- Transpordipakendi kõrgus
- 7 cm
- Transpordipakendi laius
- 27.5 cm
- Transpordipakendi sügavus
- 34 cm
- Kõrgus
- 68 mm
- Tarvikud kaasa arvatud

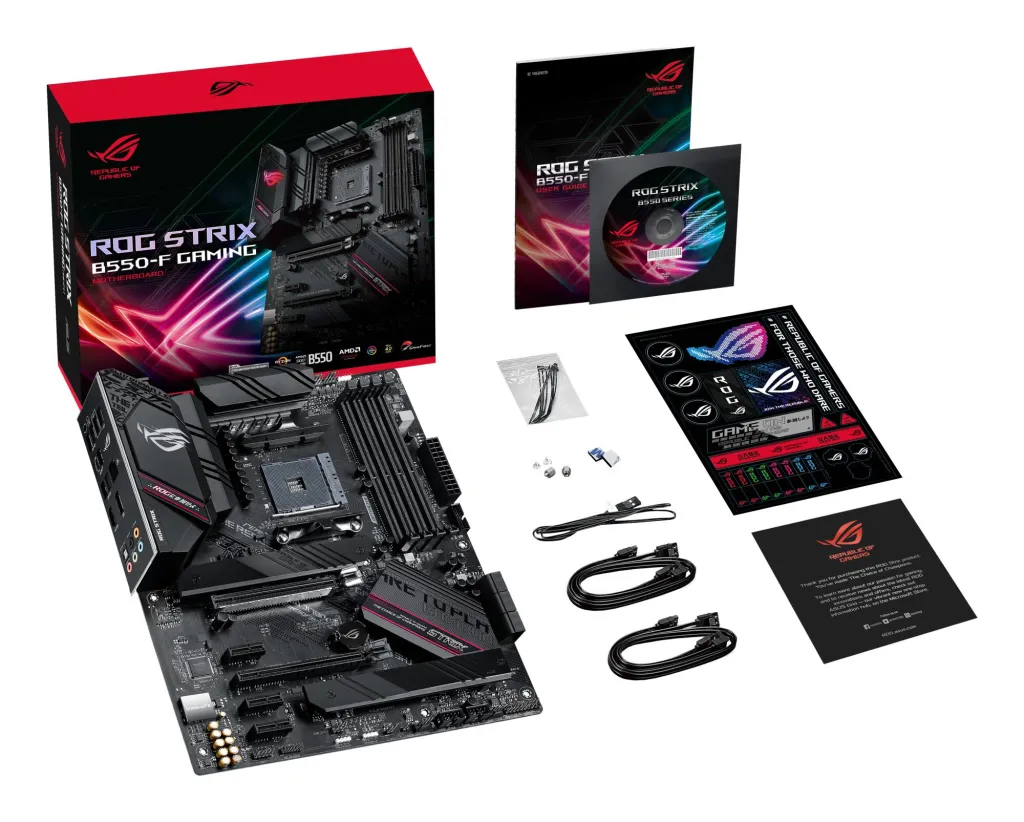

- User's manual; 4 x SATA 6Gb/s cable(s); Supporting DVD; ROG Strix stickers; Cable ties pack(s); Extension cable for Addressable LED; ROG Thank you card; M.2 SSD screw package(s); M.2 Rubber Package(s)
- Toote kaal
- 945 g
- Jahutuse tüüp
- Active
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B550
- PCI slots
- 7
- RAID support
- Jah
- Windows operating systems supported
- Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
- BIOS memory size
- 256000 Mbit
- DisplayPort
- 1
- LAN controller
- Intel I225-V
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Processor Socket
- Socket AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600 MHz
- USB 2.0 connectors
- 2
- USB type C
- 1
- USB-C
- 1
