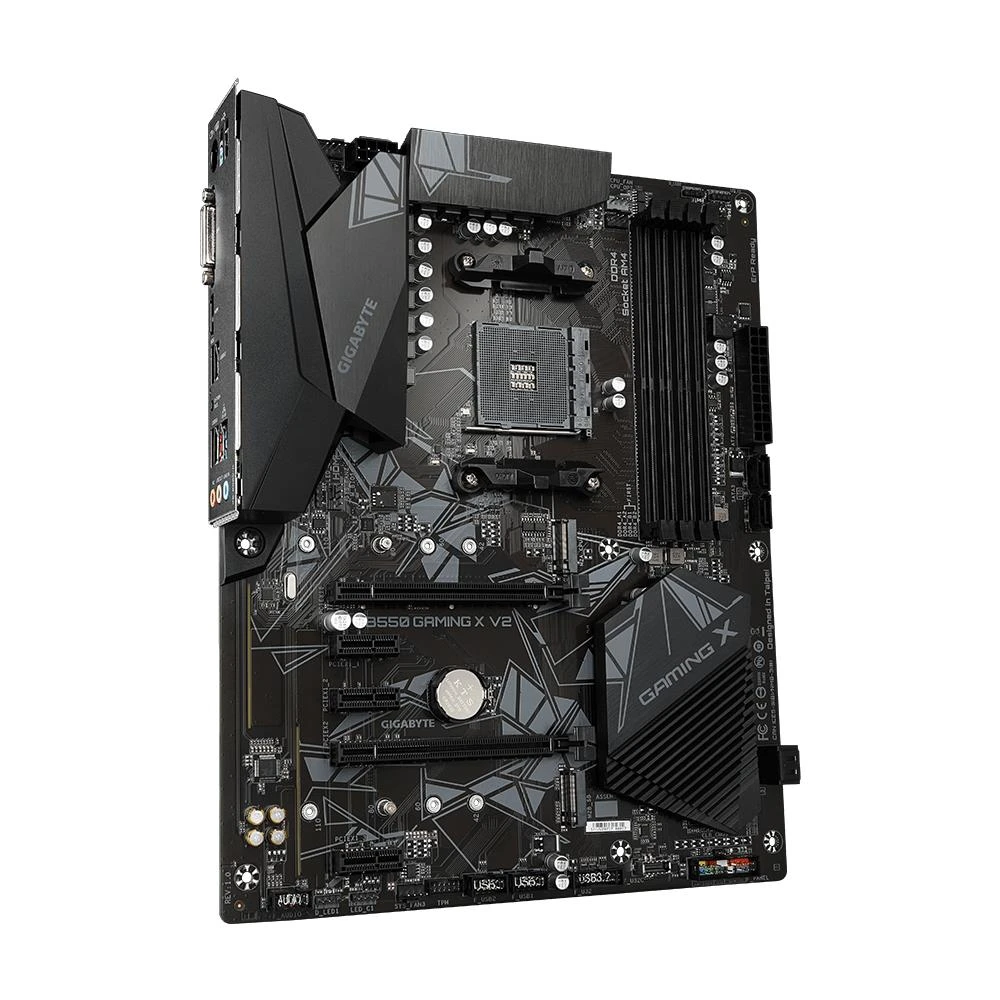

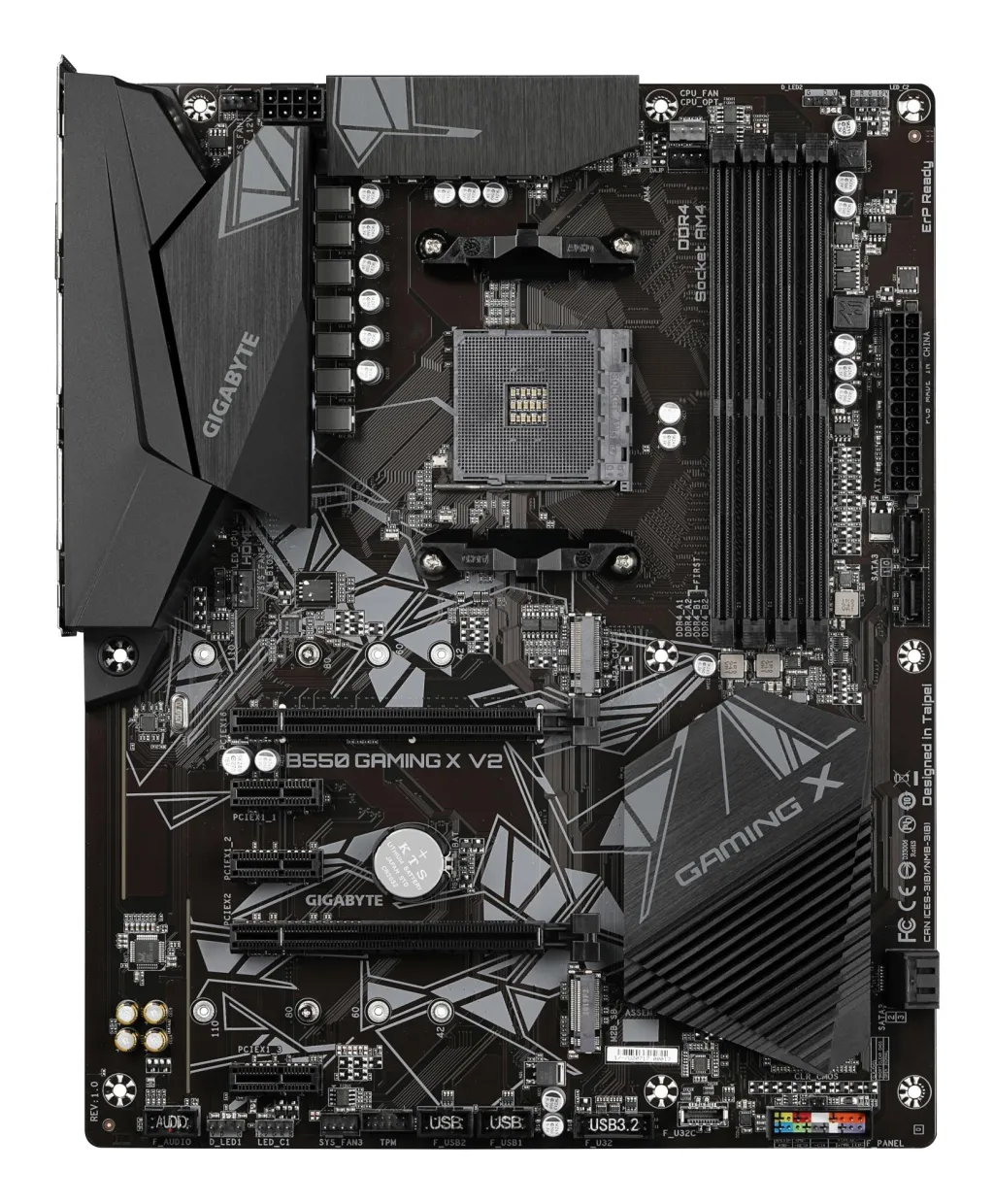

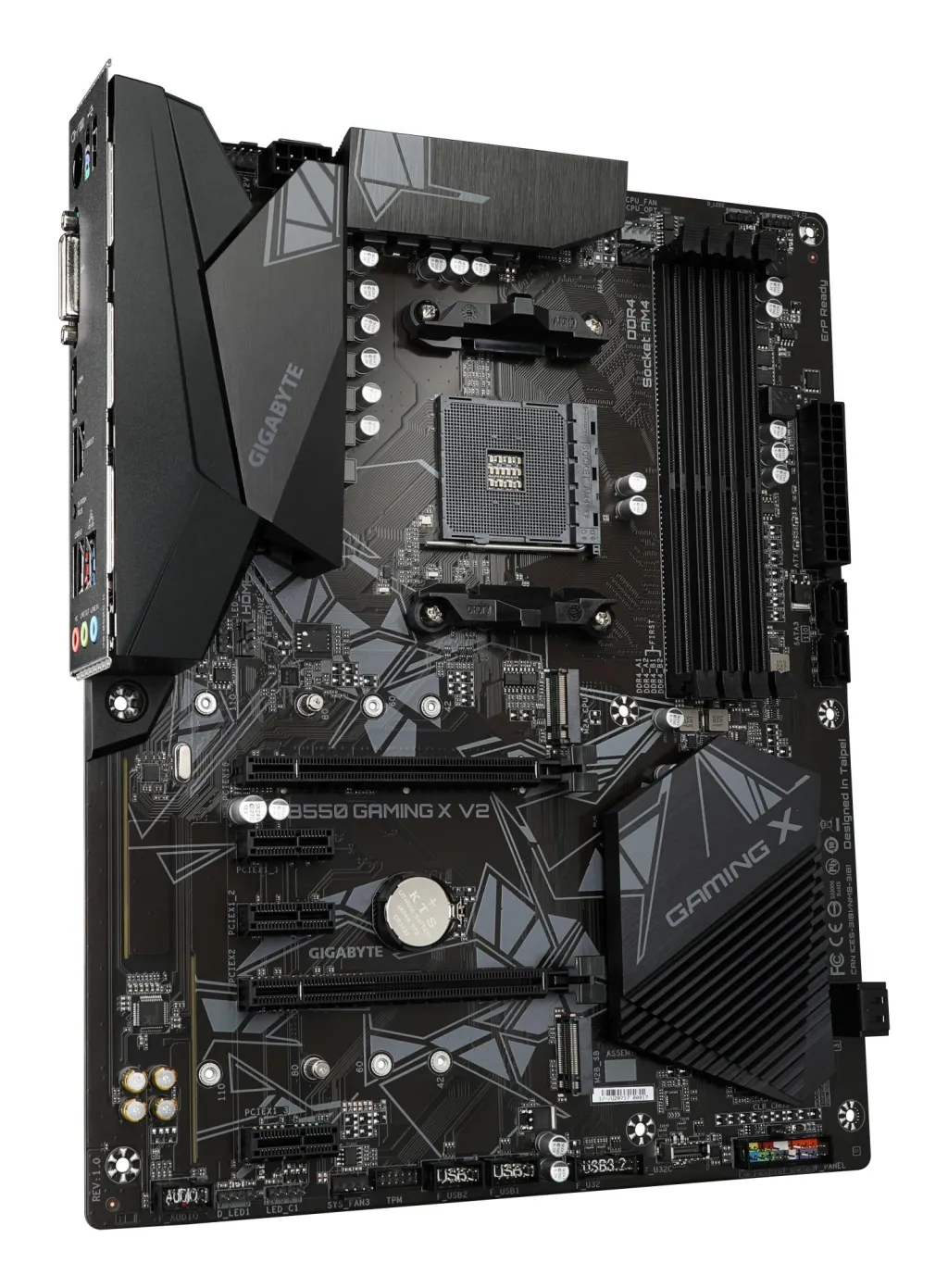

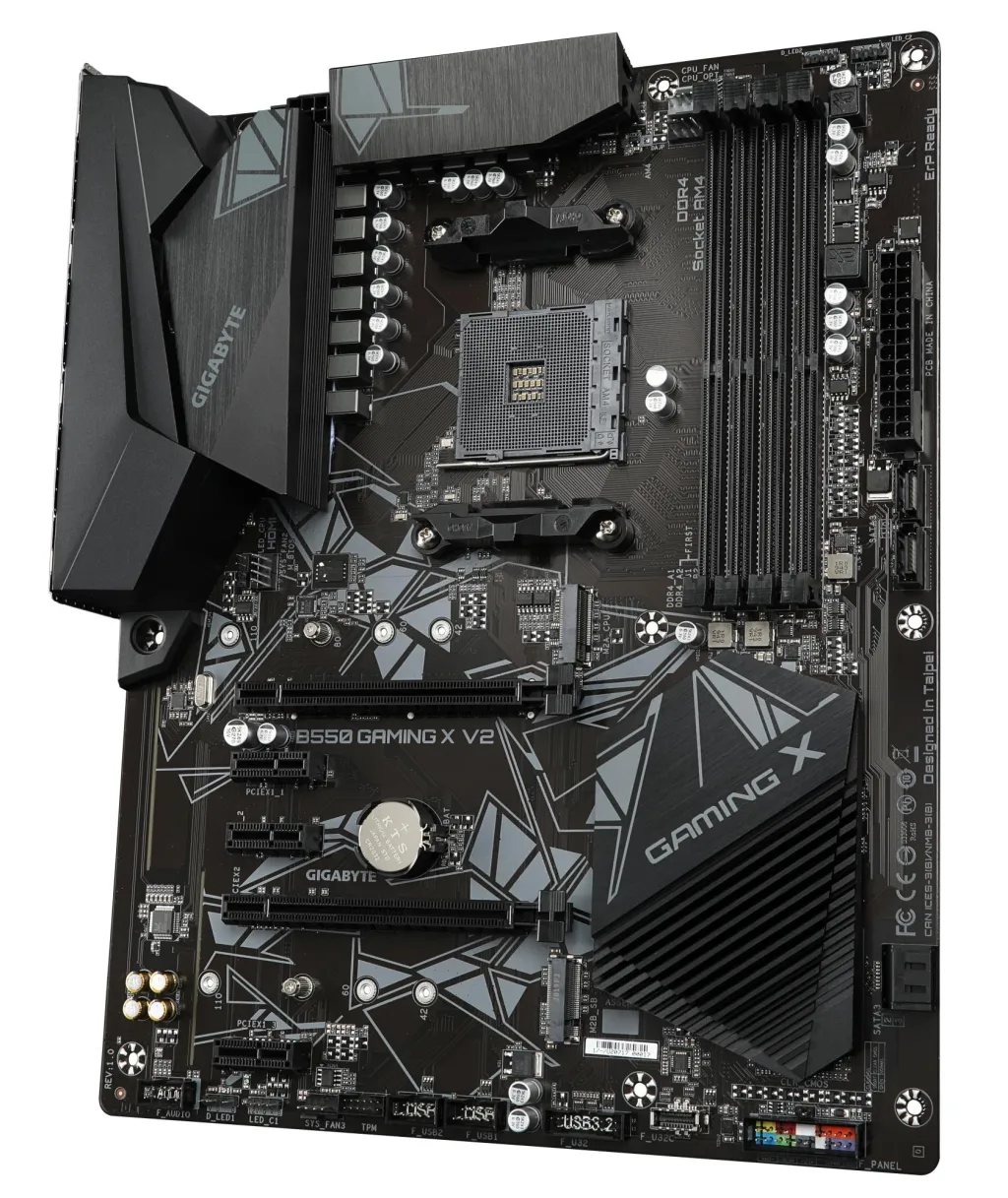

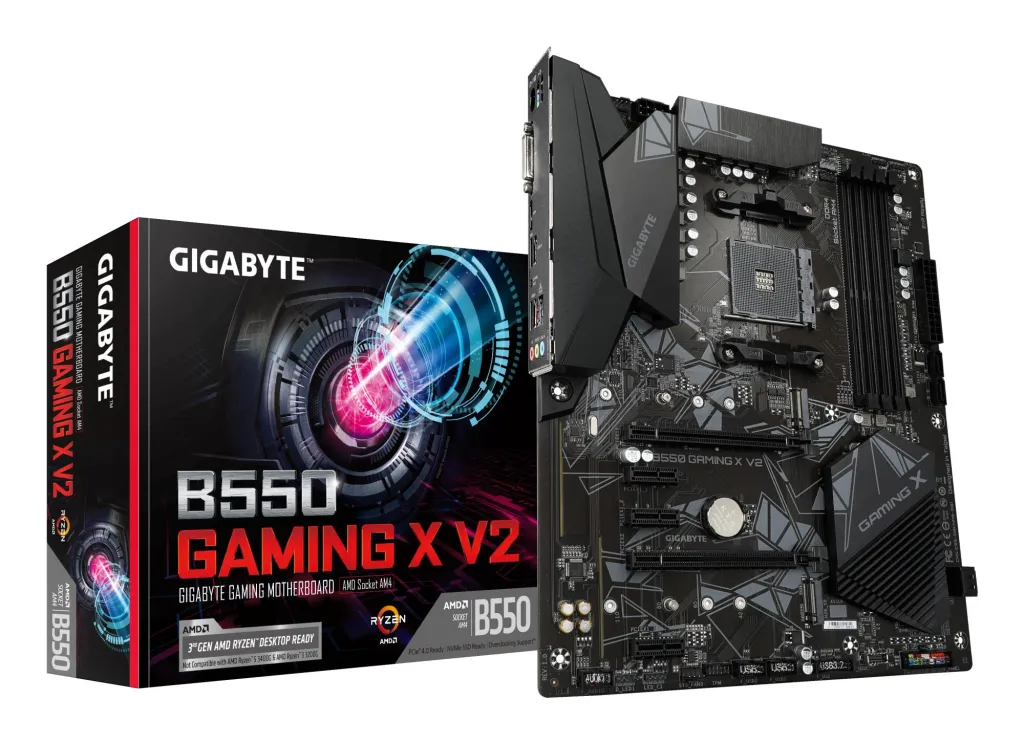

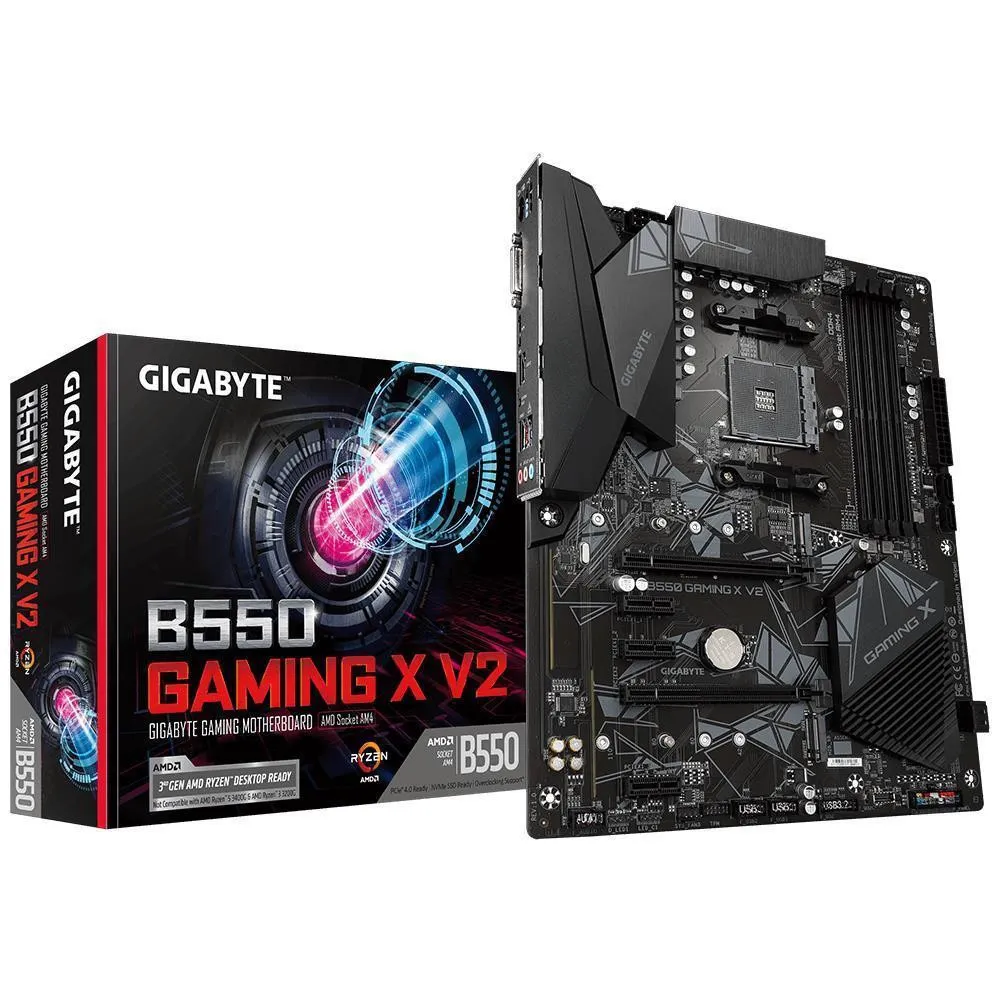

Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550GAMINGXV21.3
100.14€
E1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 6.15 €. Taotle järelmaksu ostukorvis.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Tootja
GIGABYTE
Tootekood
B550GAMINGXV21.3
EAN
4719331810702
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B550
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 3
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

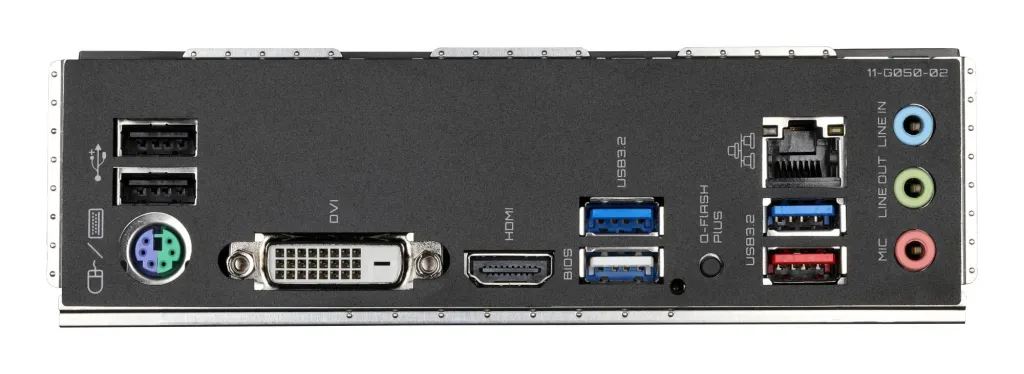

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 2
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.48 kg
- Netokaal
- 1.4 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.007344 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
- Supported processor sockets
- Socket AM4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 3
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 2
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 2
- Line-in
- Jah
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 3
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- 4
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- DVI-D
- 1
- PCI-Express 3.0 2x
- 1
- Supported memory clock speed (max)
- 4733 MHz
- Unit Box Height
- 0.08
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 32 GB
- Unit Calculated Volume
- 0.01006 cubm
- Unit Calculated Weight
- 1.7 kg
- Summary
- GIGABYTE B550 Gaming X V2 Motherboard - AMD Ryzen 5000 CPUs, 10+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Products per shipping (inner) case
- 1 pc(s)
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 8
- Toote värv
- Brown
- Number of CPU fan connectors
- 1
- Kaasas tarkvara
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of water pump connectors
- 4
- Number of RGB LED pin headers
- 5
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 3.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/
- Transpordipakendi kaal
- 1.48 kg
- Transpordipakendi kõrgus
- 8 cm
- Transpordipakendi laius
- 27 cm
- Transpordipakendi sügavus
- 34 cm
- Kõrgus
- 35 mm
- Toote kaal
- 1120 g
- Jahutuse tüüp
- Passive
- Päritoluriik
- China
- DirectX version
- 12.0
- DVI port
- Jah
- DVI-D ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B550
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- LAN controller
- Realtek RTL8111H
- Mudel
- B550 GAMING X V2 (rev. 1.3)
- Number of memory slots
- 4
- Pakendi sügavus
- 270 mm
- Pakendi kõrgus
- 80 mm
- Pakendi kaal
- 1710 g
- Pakendi laius
- 335 mm
- Processor Socket
- Socket AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- USB 2.0 connectors
- 2
